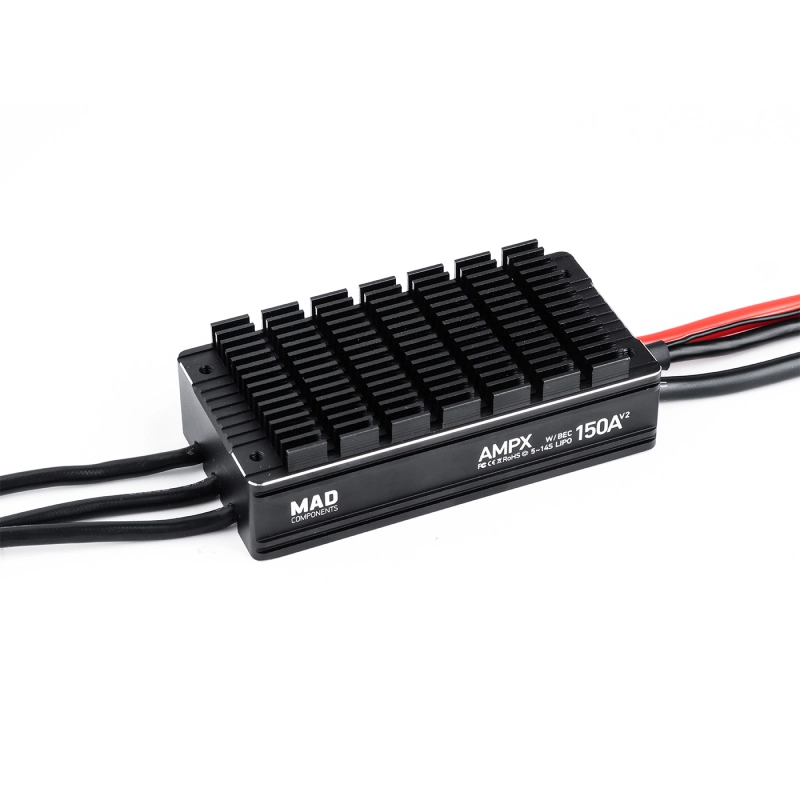

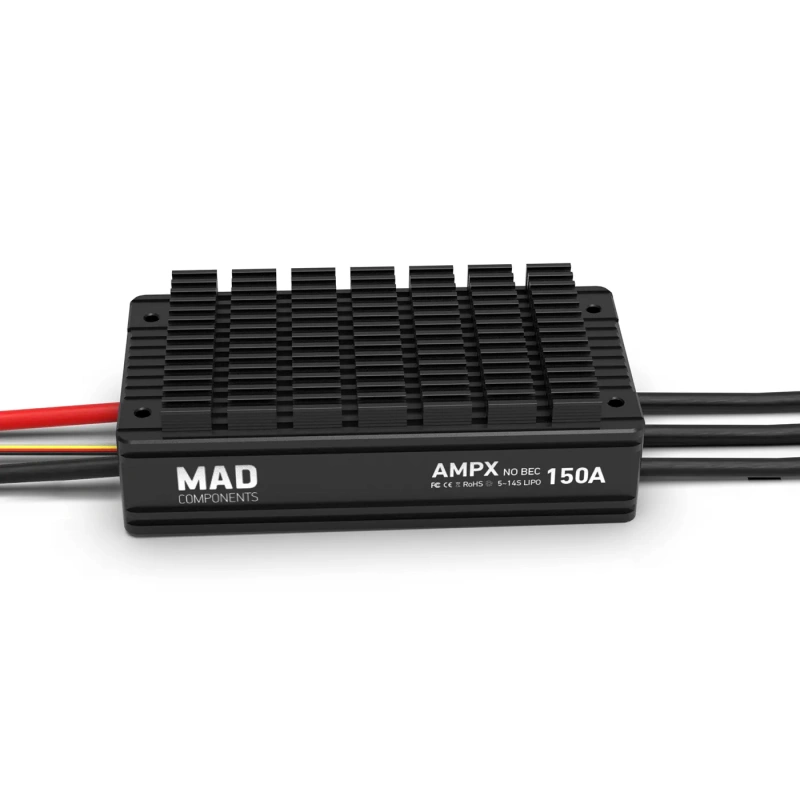

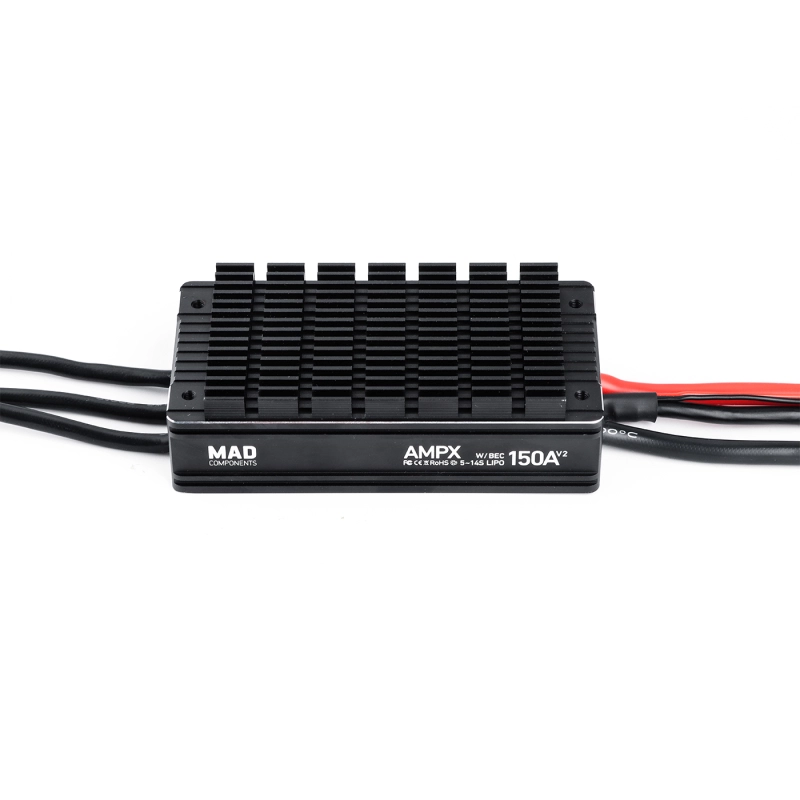

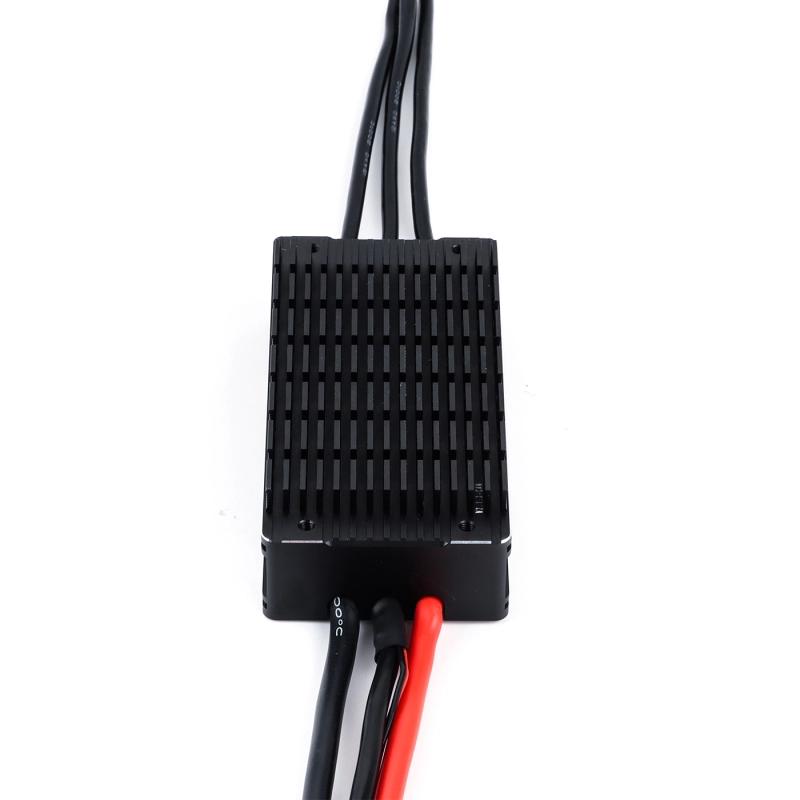

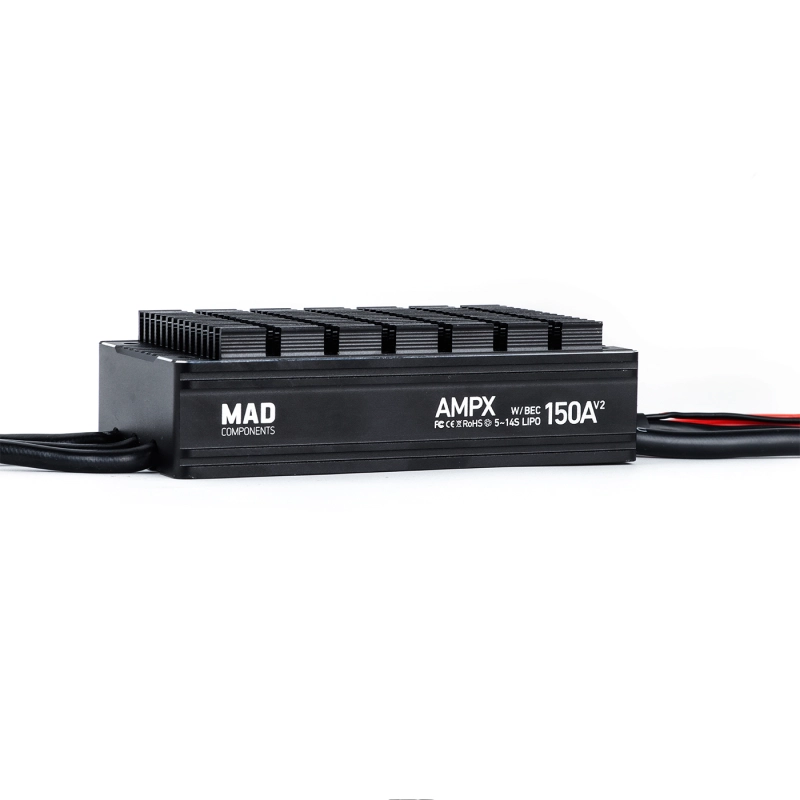

AMPX 150A (5-14S) Drone ESC

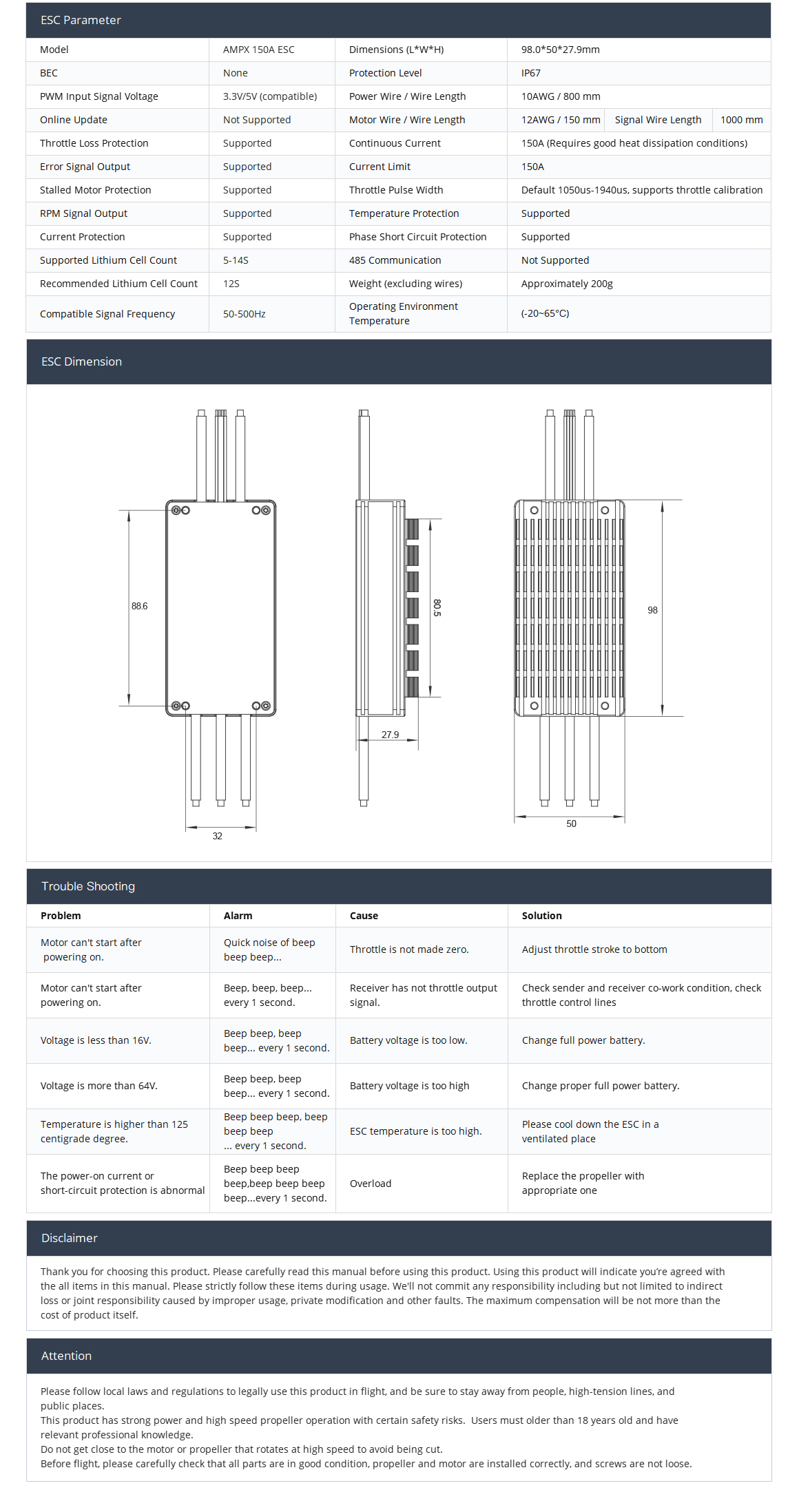

Specification

Usage

This PPG Controller is a device used to assist ESC to display and set parameters. This product is connected to the ESC through the CAN bus to display information such as voltage, current,

power, ESC temperature, motor temperature, power, and flight altitude. It also has fall protection, high temperature protection, and mode switching functions. It meets the requirements of

paramotor pilots to understand the status and information of the ESC and motor. It can make the control of paramotor more convenient, safe and intelligent.

Displayed information

1. SOC（%）

SOC is defined as the percentage of the battery remaining charge to the current maximum capacity. Before use it, you need to check whether the set full capacity and number of battery cells

are both correct. When the battery is fully charged, please press the "Up" button to reset the power to 100%; and the device will automatically recognize it as full capacity when it is turnedon.

The displayed remaining capacity is for reference only. Due to the limitation of sampling accuracy, product measurement may deviate from the actual value. Please don't rely too much on it. In

addition, when the remaining capacity reaches the set prompt value, the LED light flashes and the remaining capacity percentage flashes at the same time.

2. Flight altitude

Before using it, please press the "Up" button and the "Down" button simultaneously for a long time to clear the current flight altitude and calibrate it. When the main interface of PPG Controller

displays an altitude lower than 1km, its display unit is m. Such as "999m". When the flight altitude is greater than 1km, it only displays k and ignores the unit "m", such as "1.99k". Under
