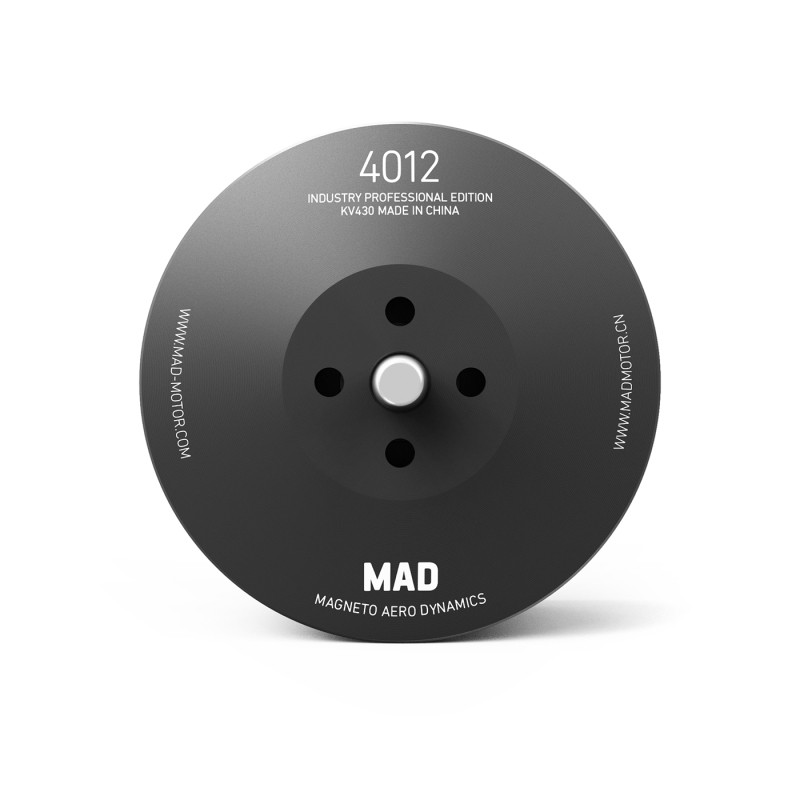

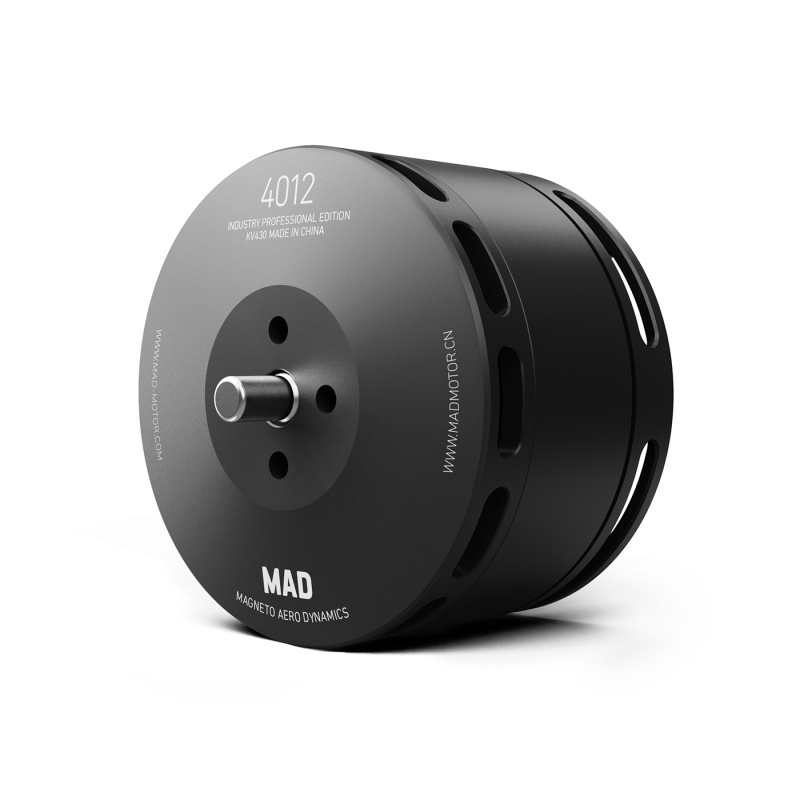

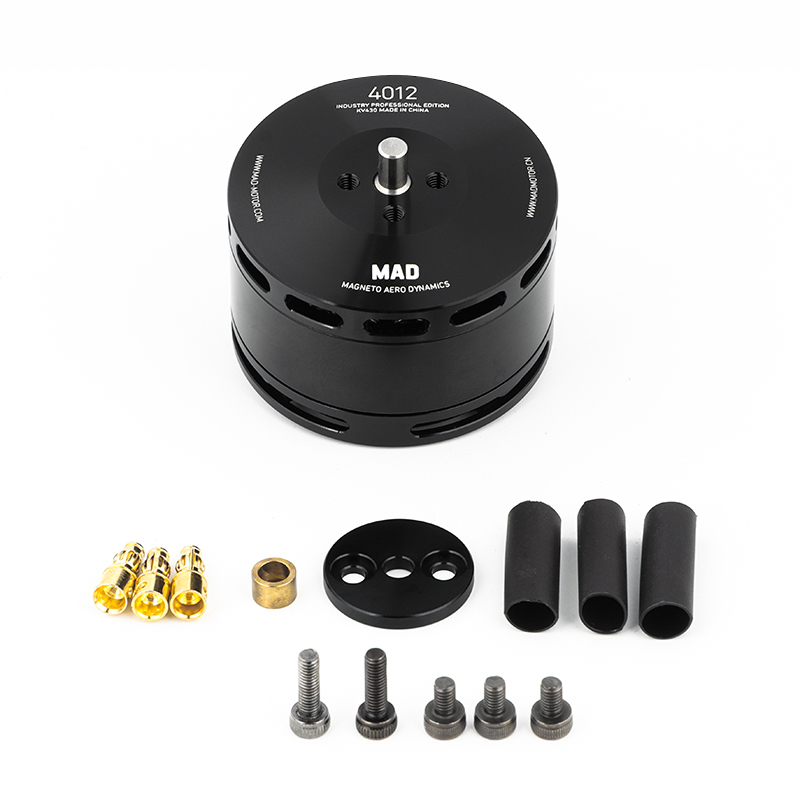

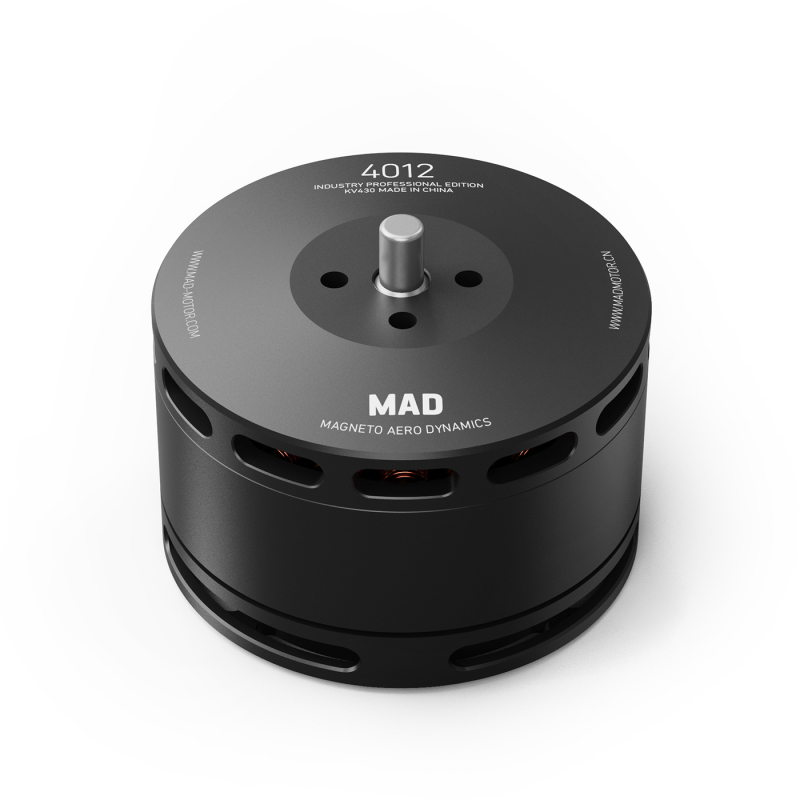

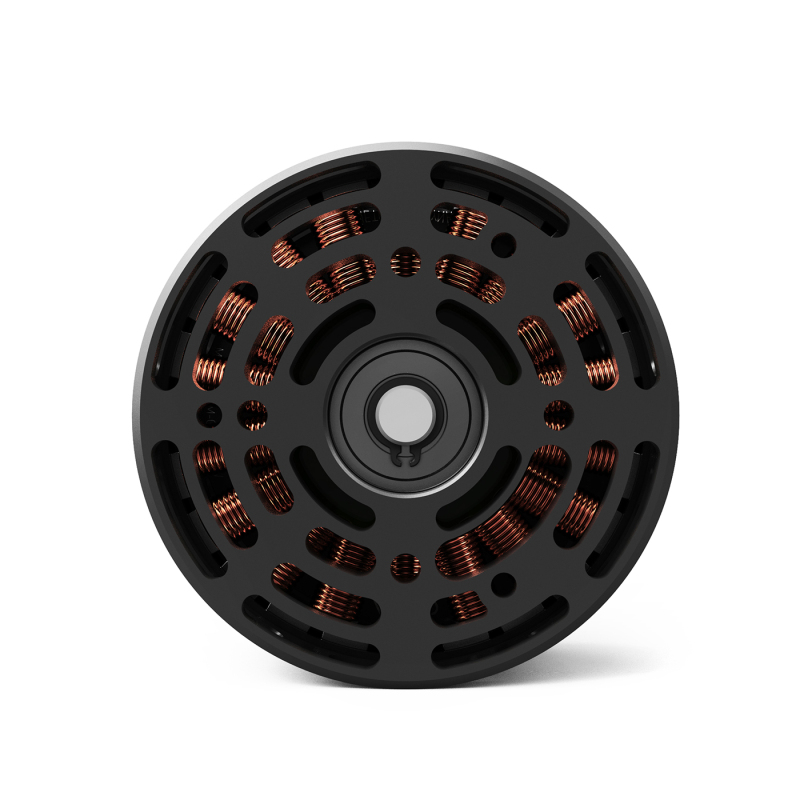

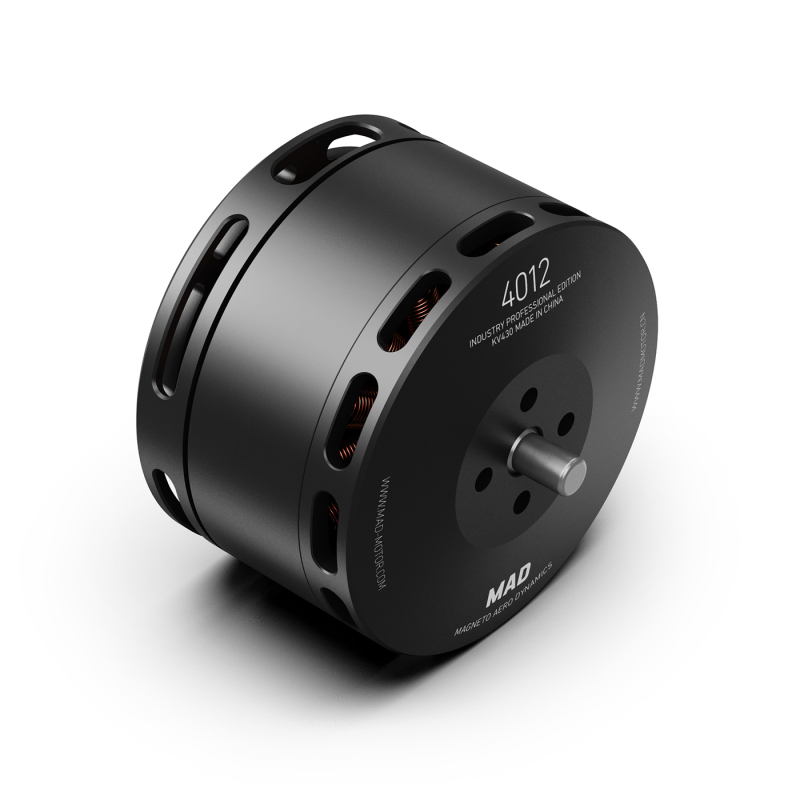

4012 IPE Brushless Drone Motor

SKU: 0101DJ00101DJ0791829
MAD 40 series motors are the classic UAV motors for small to medium industrial use, efficient and for endurance flights. These sizes of motors have been released on the market for 10years, MAD Components has optimised them to be very lightweight design. it is also for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor.
$0.00 $79.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    430KV
  • Packing way:
    1PC
    2PCS
    Please select the information you wantX
Quantity
-
+
Download
  • 4012 IPE brushless motor
  • 4012 IPE brushless motor
  • 4012 IPE brushless motor
  • 4012 IPE brushless motor
  • 4012 IPE brushless motor
  • Description
  • 430KV

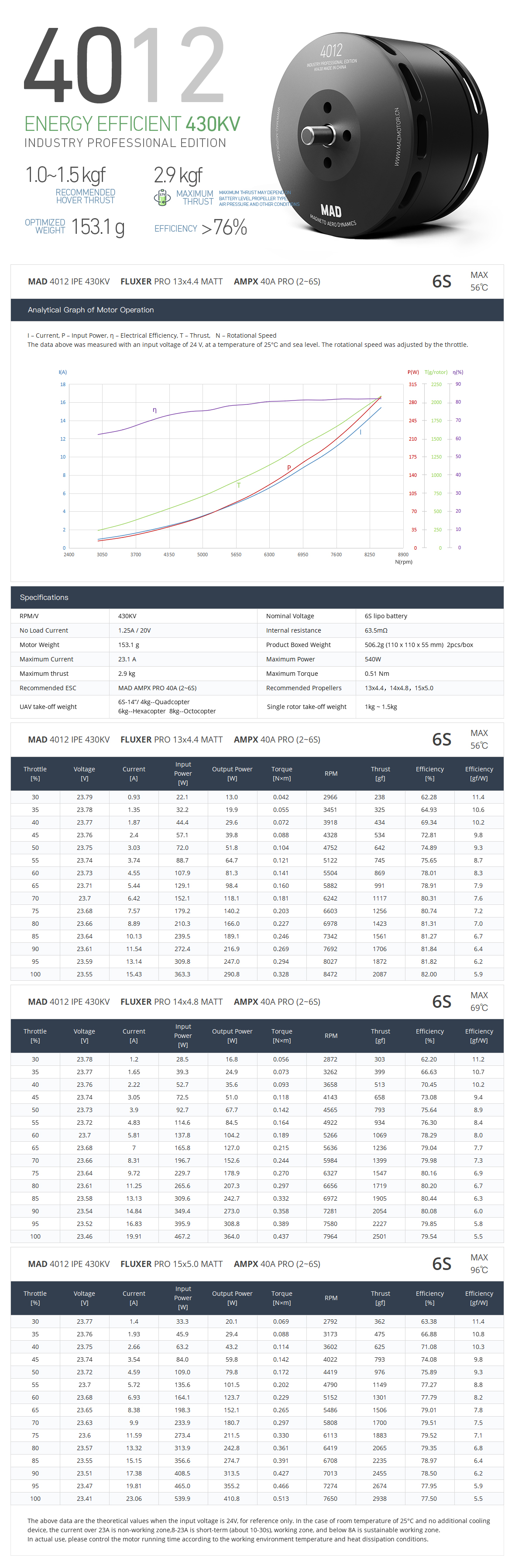

Motor Data

Motor Model MAD 4012 IPE V1.0 Number of pole pairs 12
Stator Anticorrosive Varnished wire Degree 150°C
Motor Size D:44.9 × 35.7mm Magnet Degree 150°C
Degree of Protection IP35 Cable Length 600 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 5 mm Motor Mounting Holes D:25 M3×4, D:32 M2.5×3
Bearing 685ZZ*1 / 695ZZ*1 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
