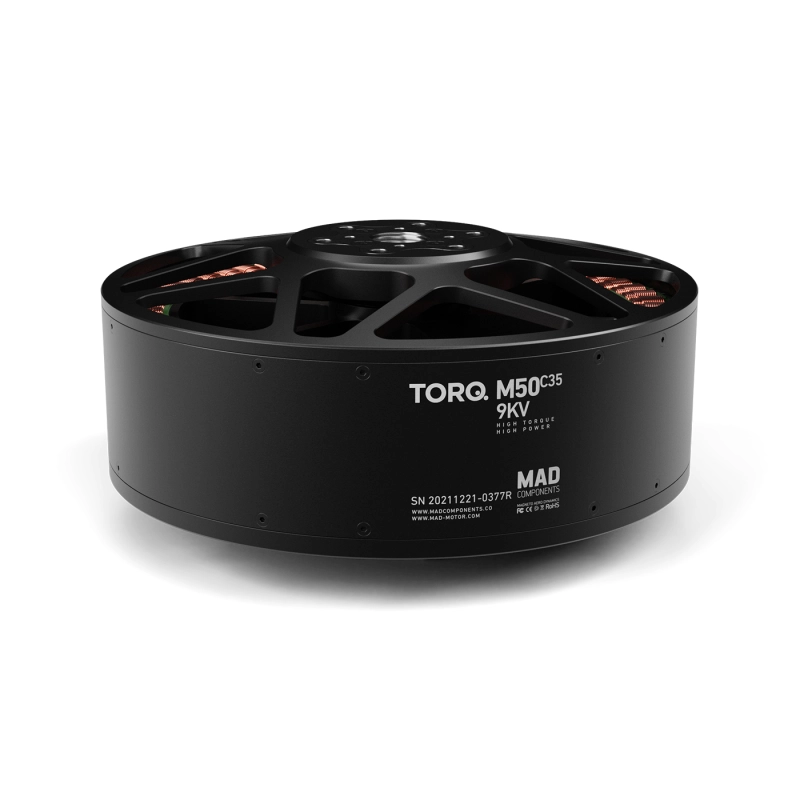

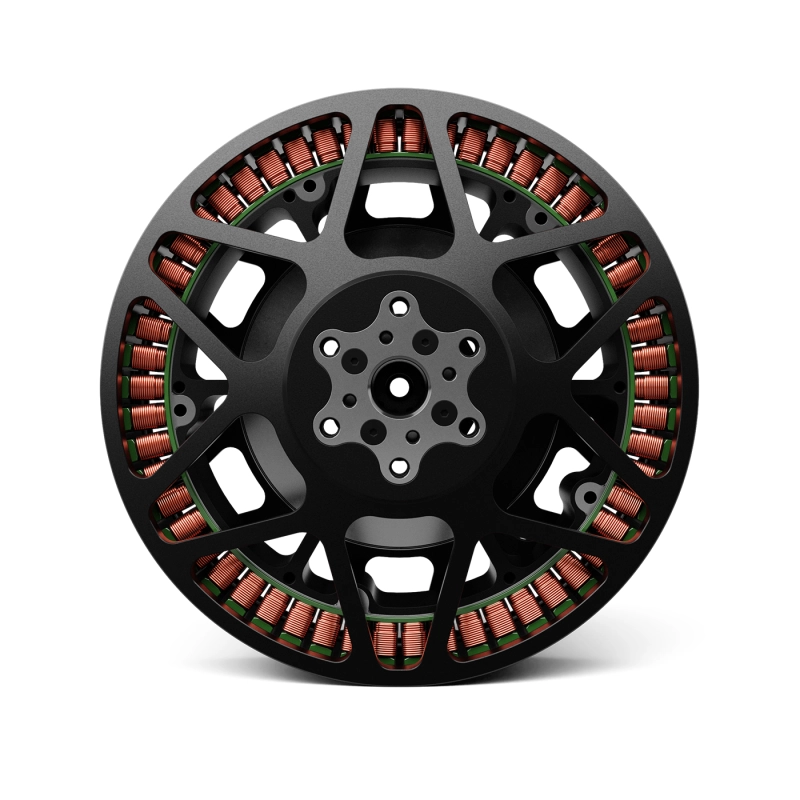

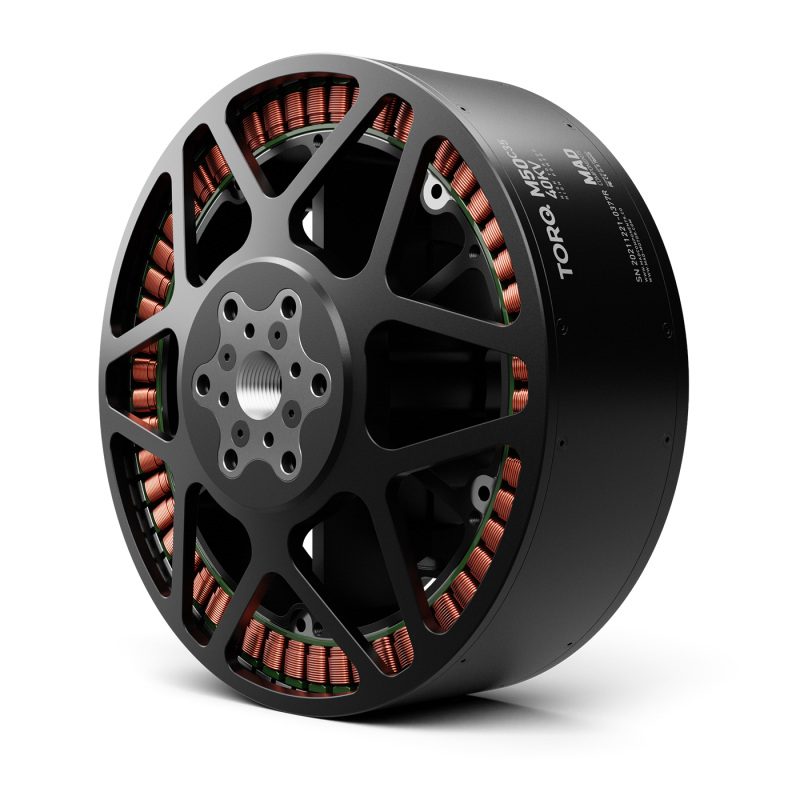

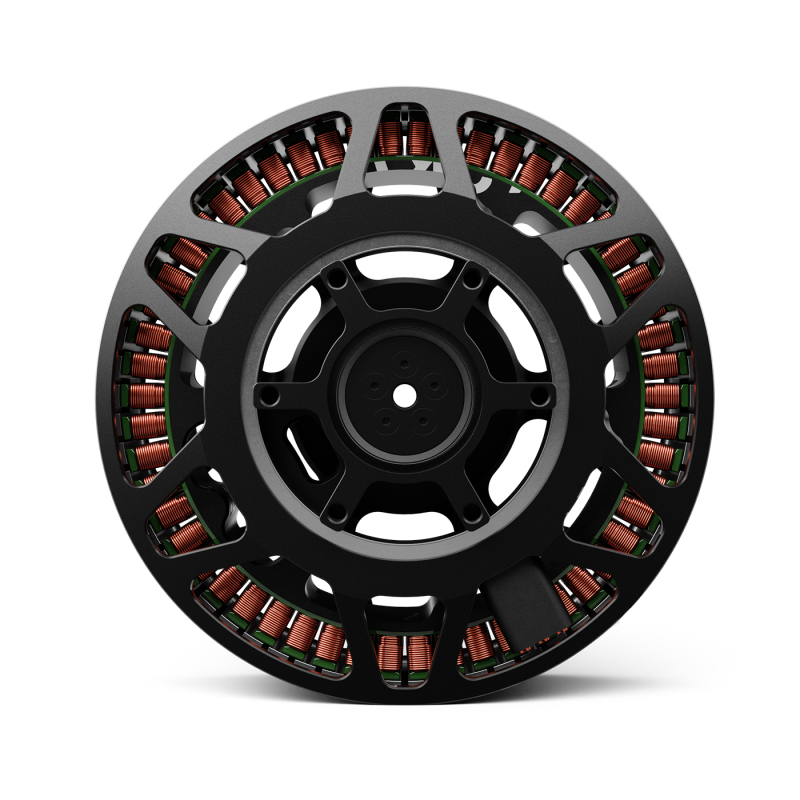

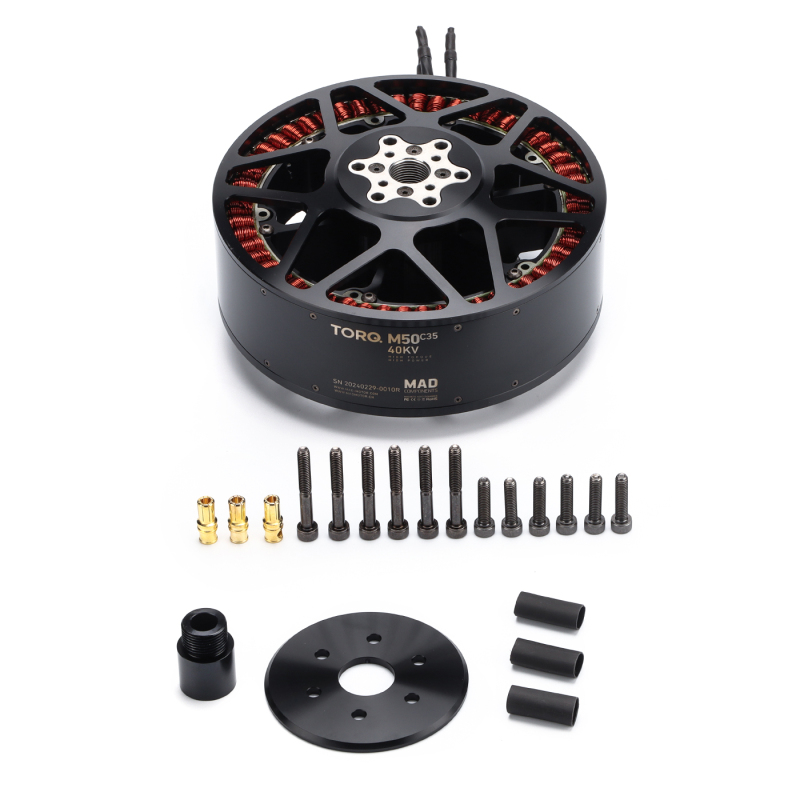

M50C35 PRO EEE Manned Drone motor

SKU: 0101DJ0487
1.The power is 25 KW(40kg continue thrust), which is equal to 29 horsepower.

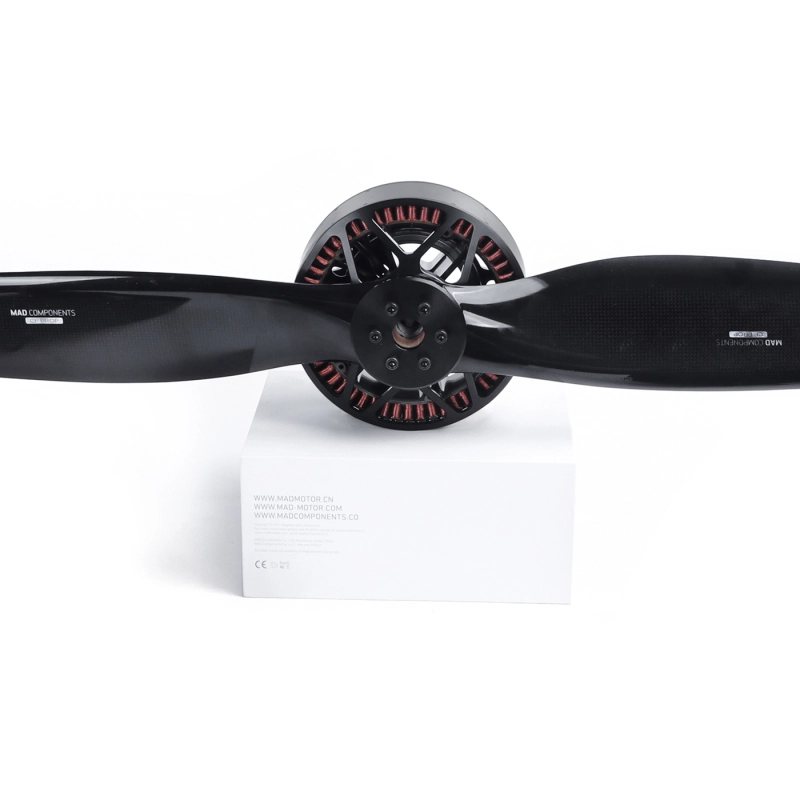

2.34KV Recommend ESC:AMPX 300A(12-24S) propeller: CB2 prop 63X22" inch carbon fiber propeller.
3.40KV Recommend ESC:AMPX 300A(12-24S) propeller:CB2 57X19 or AMPX 200A(12-24S), propeller: fluxer pro 60X20
3.9KV -Recommend FOC combo: HB40-63X22 drone arm set,HB40-64x20 drone arm set,HB40-60X19 drone arm set,HB40-57X19 drone arm set.

$0.00 $1,199.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    34KV-24S
    40KV-24S
    9KV-100S
    34KV+PT1000 Tem sensor
    Please select the information you wantX
Quantity
-
+
  • MAD M50C35 PRO EEE for the electric manned drone e-VTOL and paratrike
  • MAD M50C35 PRO EEE for the electric manned drone e-VTOL and paratrike
  • MAD M50C35 PRO EEE for the electric manned drone e-VTOL and paratrike
  • MAD M50C35 PRO EEE for the electric manned drone e-VTOL and paratrike
  • MAD M50C35 PRO EEE for the electric manned drone e-VTOL and paratrike
  • Description
  • 9KV
  • 34KV
  • 40KV
It is for large maned multi-rotor, electric para-glider, large E-VTOL, UAV. para-motor, para-trike. This type of motor is made with industrial grade components.

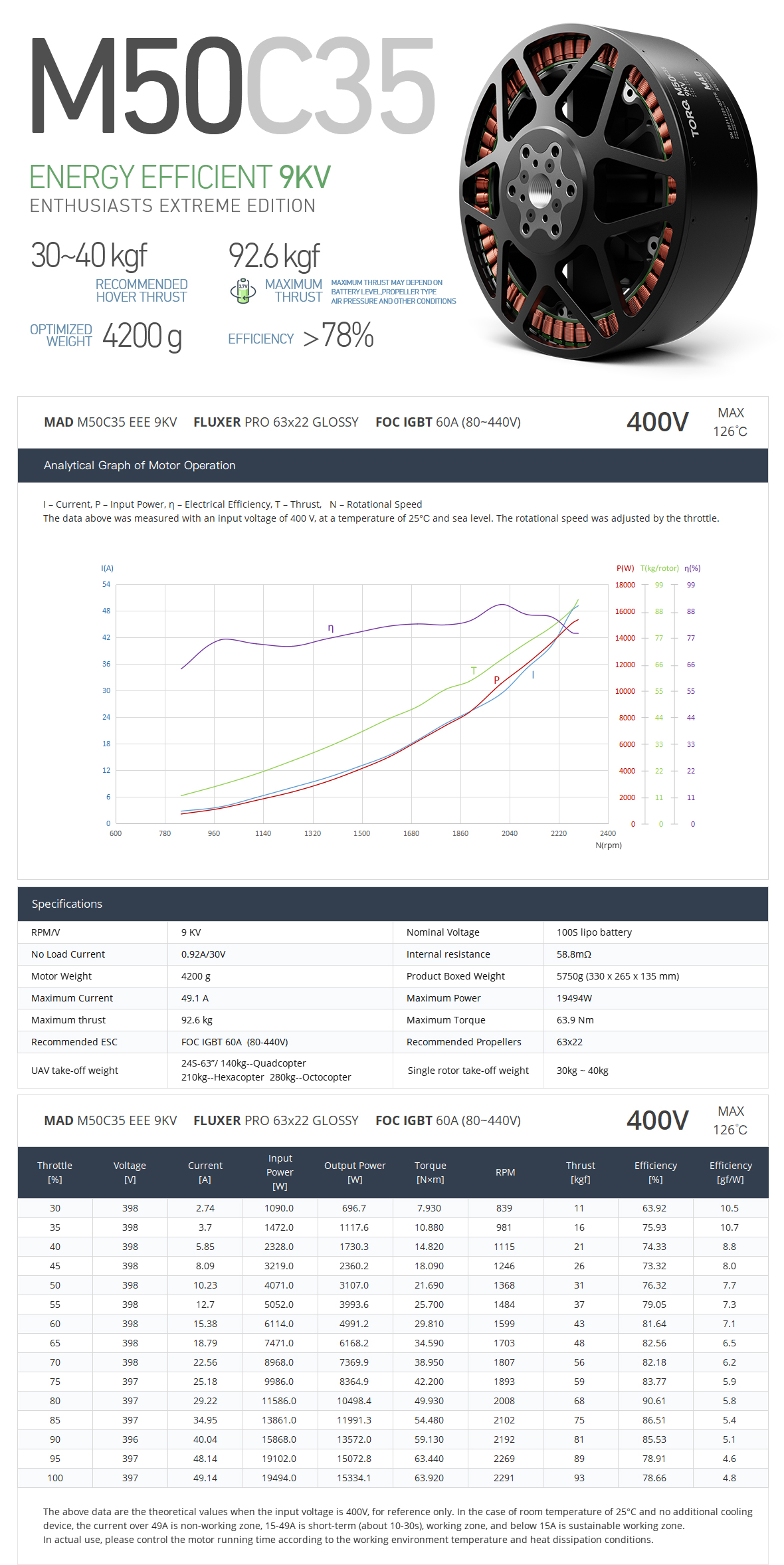

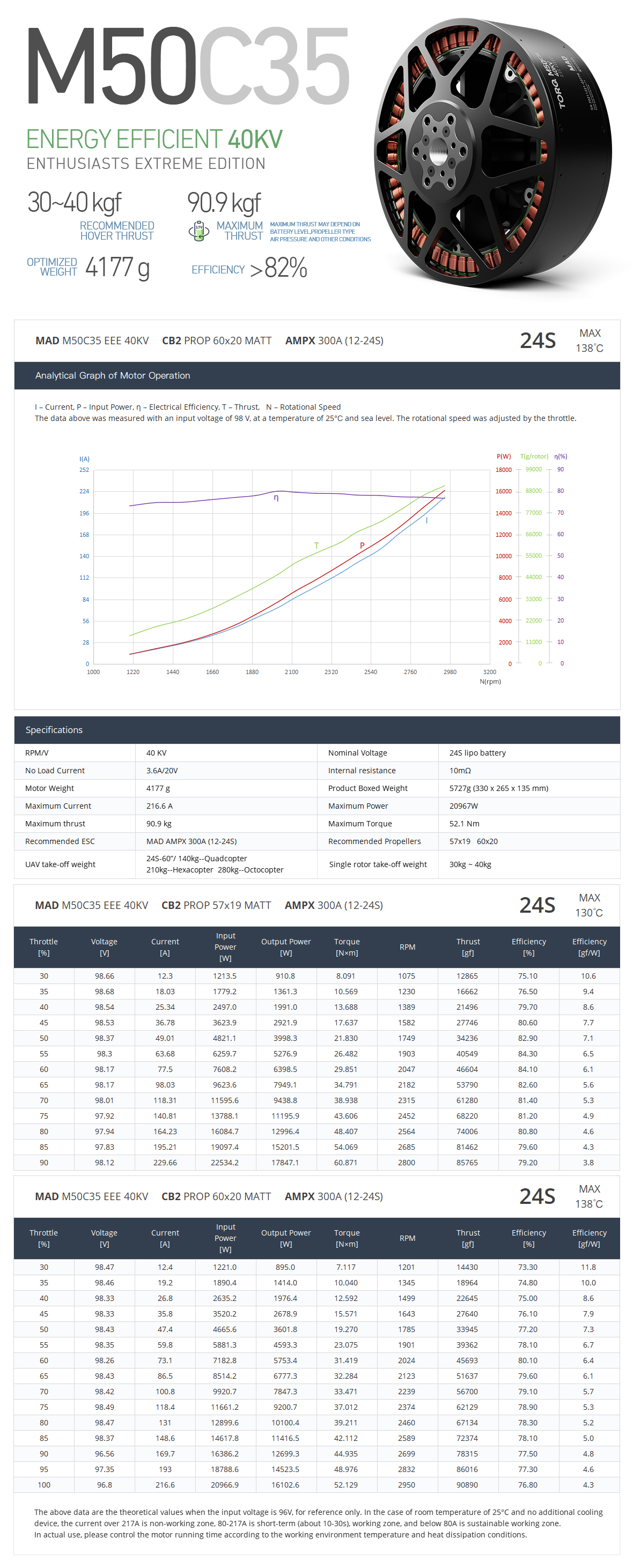

Motor Data

Motor Model MAD M50C35 EEE V2.0 Number of pole pairs 31
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:191 × 94 mm Motor Balance 180°C
Degree of Protection Rain protection Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation Independent Rotor Balance ≤20 mg
Propeller Mounting Holes D:50 M6×6, D:32 M4×4 Motor Balance ≤30 mg
Shaft Diameter IN: 25 mm Motor Mounting Holes D:80 M6×6
Bearing 6905ZZ *2 / 6818ZZ Disruptive test 1000 V

___________________________________________________________________________________________________________________________

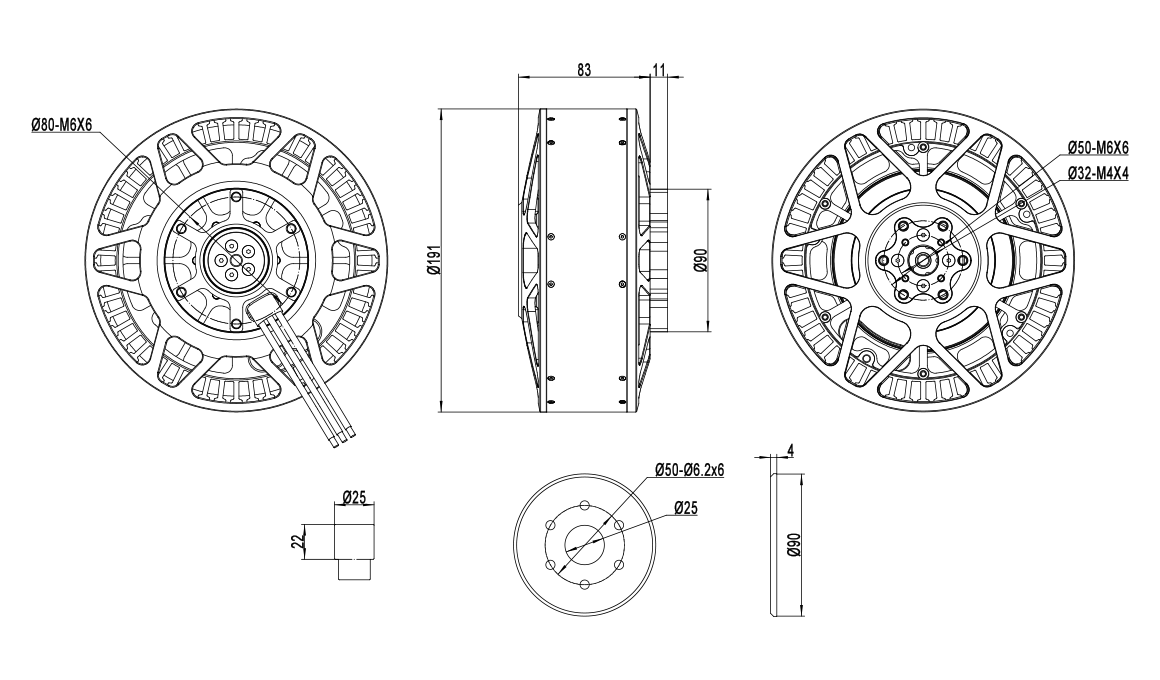

Drawing and mount holes
