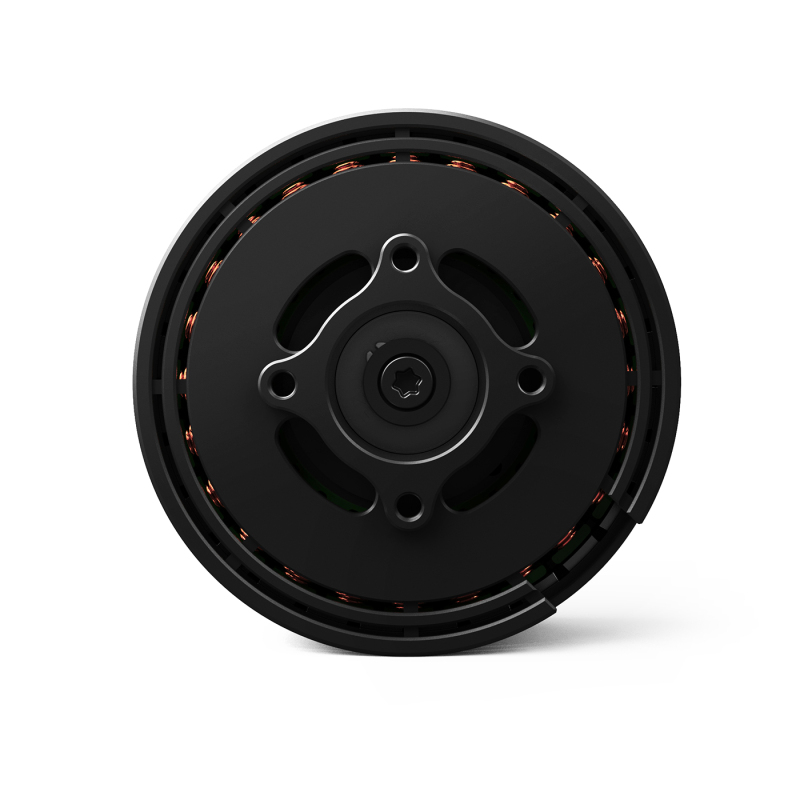

  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
1/1
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor

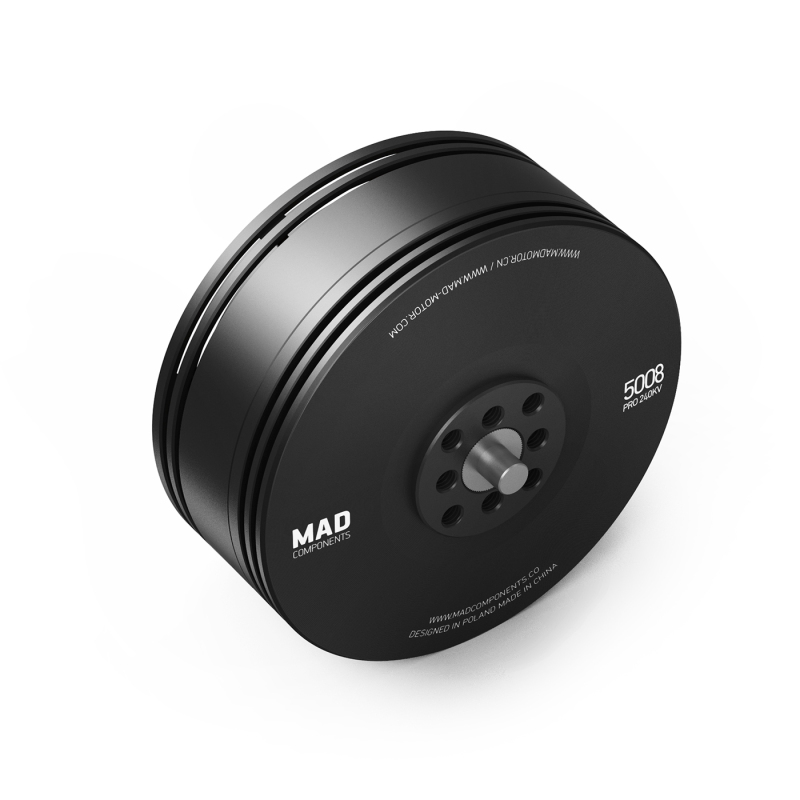

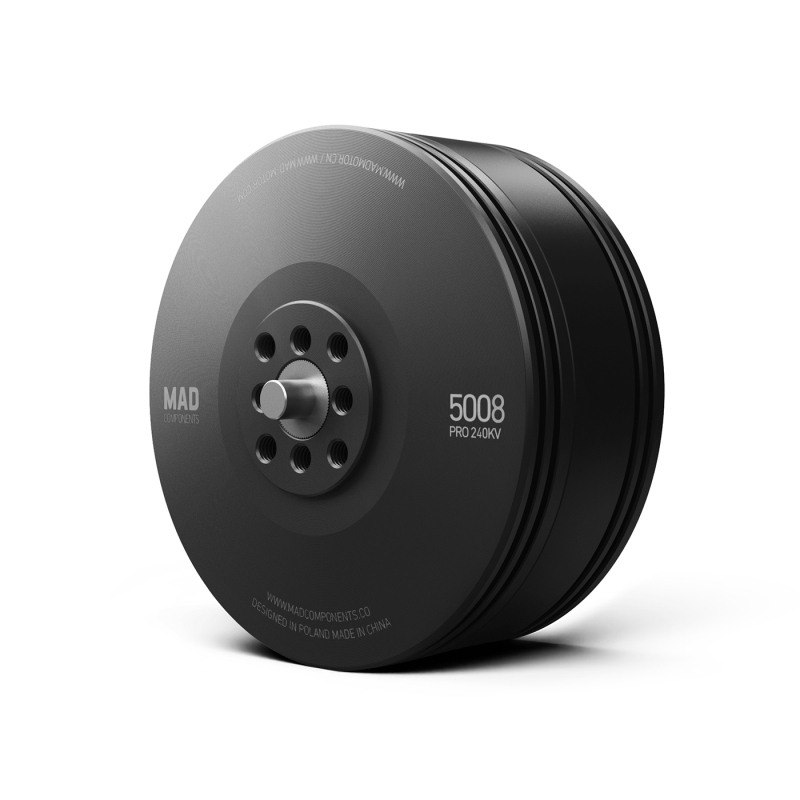

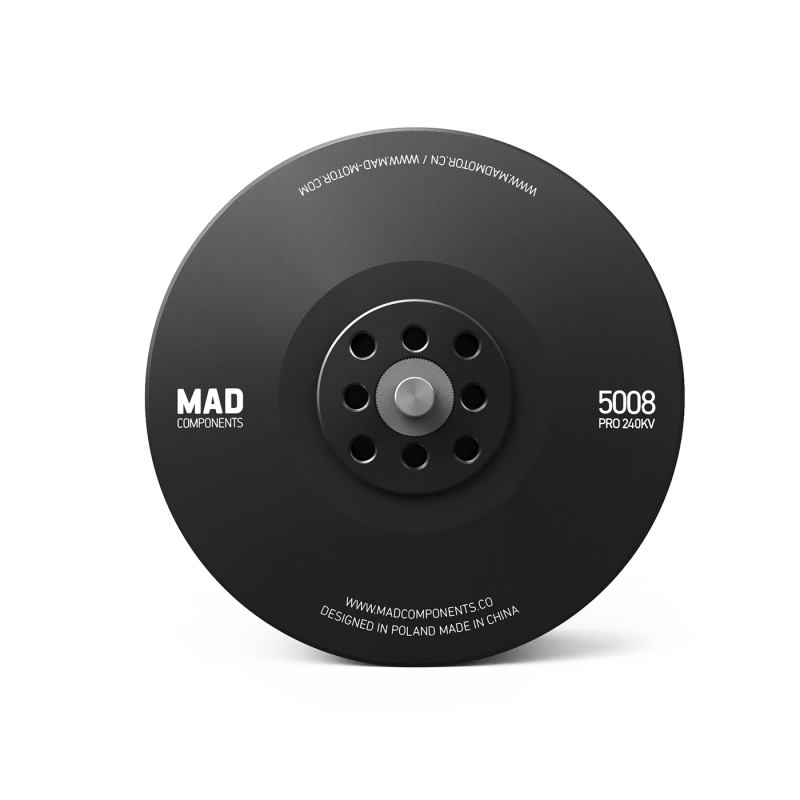

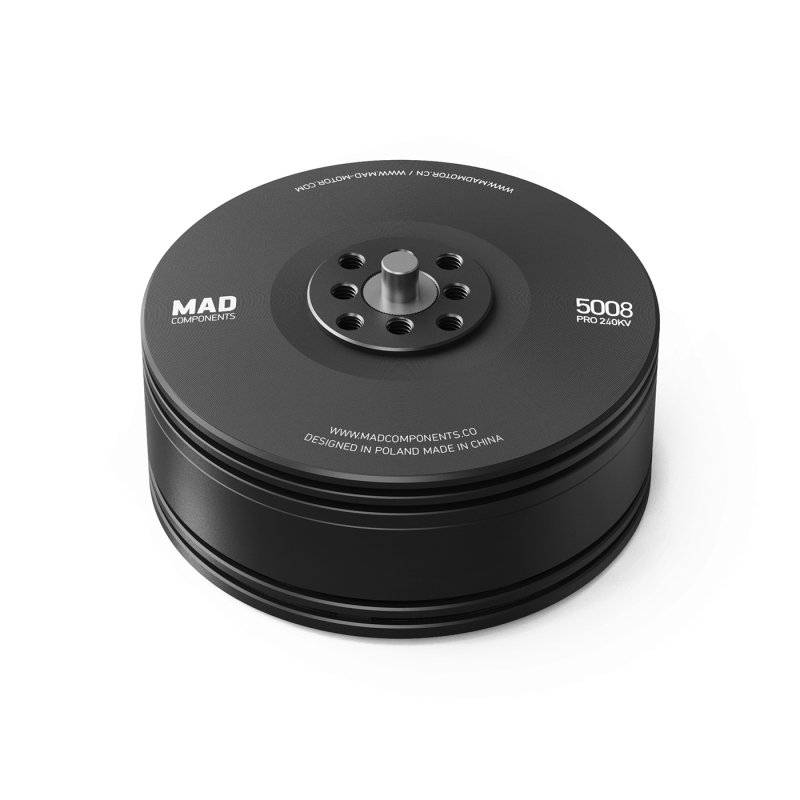

5008 PRO IPE Feathering propeller Autocenter eVTOL Drone Motor

SKU: 0101DJ1418
the motor with propeller is designed to automatically return to a horizontal position relative to the wing upon shutdown, ensuring streamlined alignment.
Sustained thrust: 1.2~2.1kg
Max thrust: 4.8kg
Support voltage: 4S;6S
Weight: 176g
$0.00 $99.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    170KV
    240KV
    300KV
    340KV
    400KV
    Please select the information you wantX
Quantity
-
+
Download
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
1/1
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • 5008 PRO IPE  brushless motor
  • Description
  • 170KV
  • 240KV
  • 300KV
  • 340KV
  • 400KV

5008 PRO IPE Motor – The Future of eVTOL Propulsion

Precision-engineered for next-gen autonomous flight with self-feathering propeller technology

Breakthrough Performance Features

🪶 Autocenter Feathering Propeller System

    • Emergency autorotation capability (FAA/EASA compliant)

    • Reduced drag in forward-flight mode

✈️ Optimized for eVTOL Architectures

  • Dual-mode operation: Vertical lift + efficient cruise transition

  • Torque-dense design: 175g weight delivers 4.8kg peak thrust

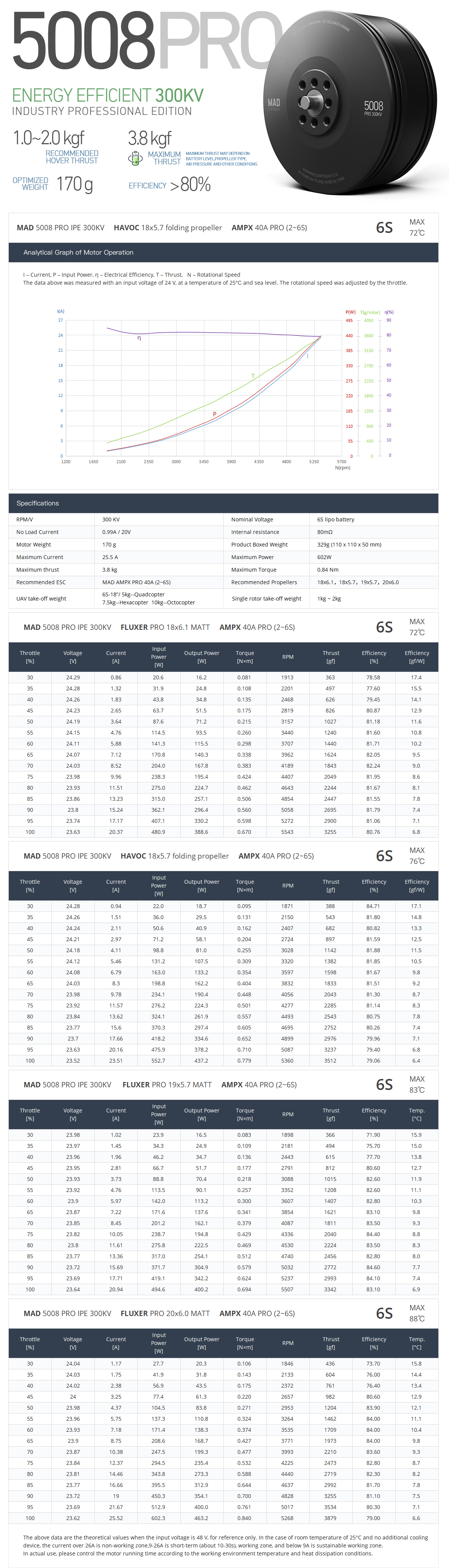

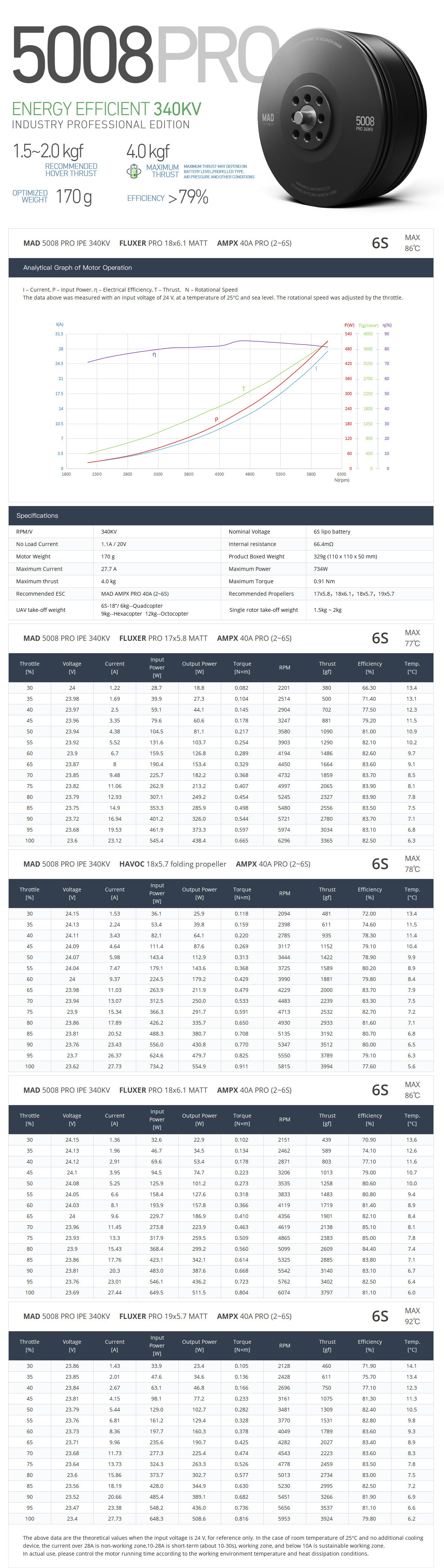

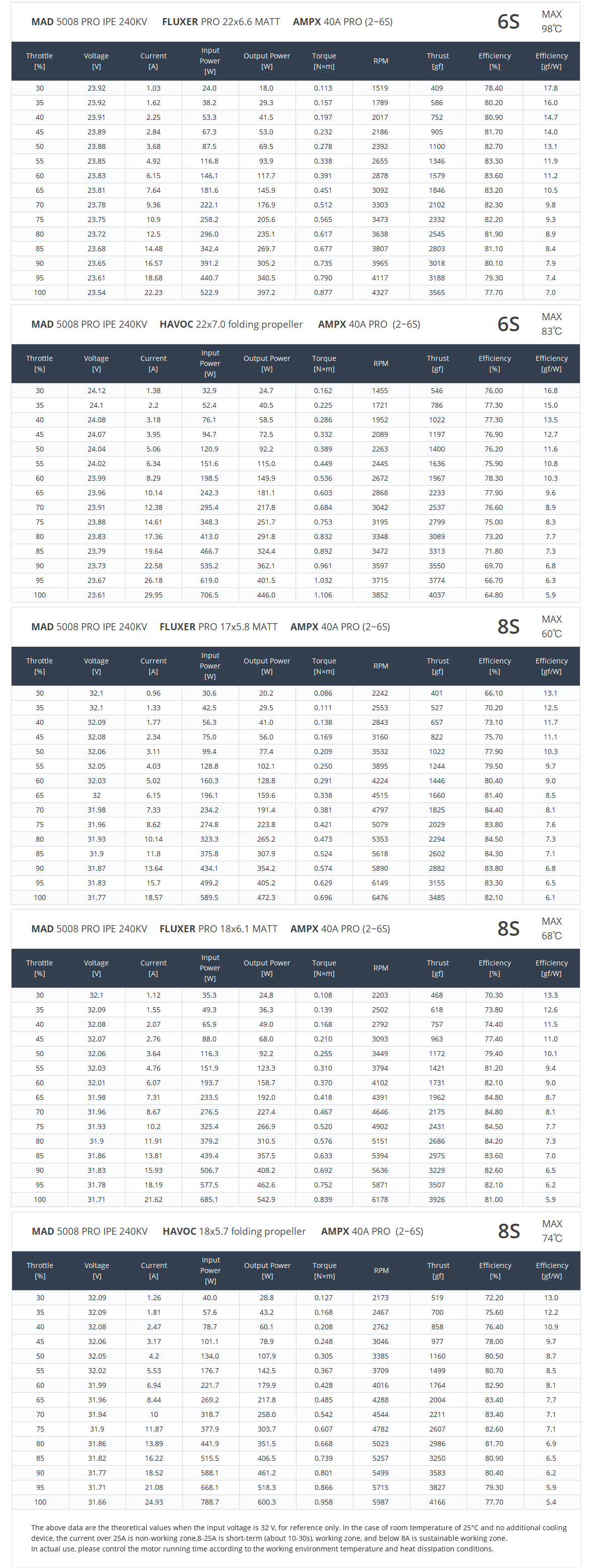

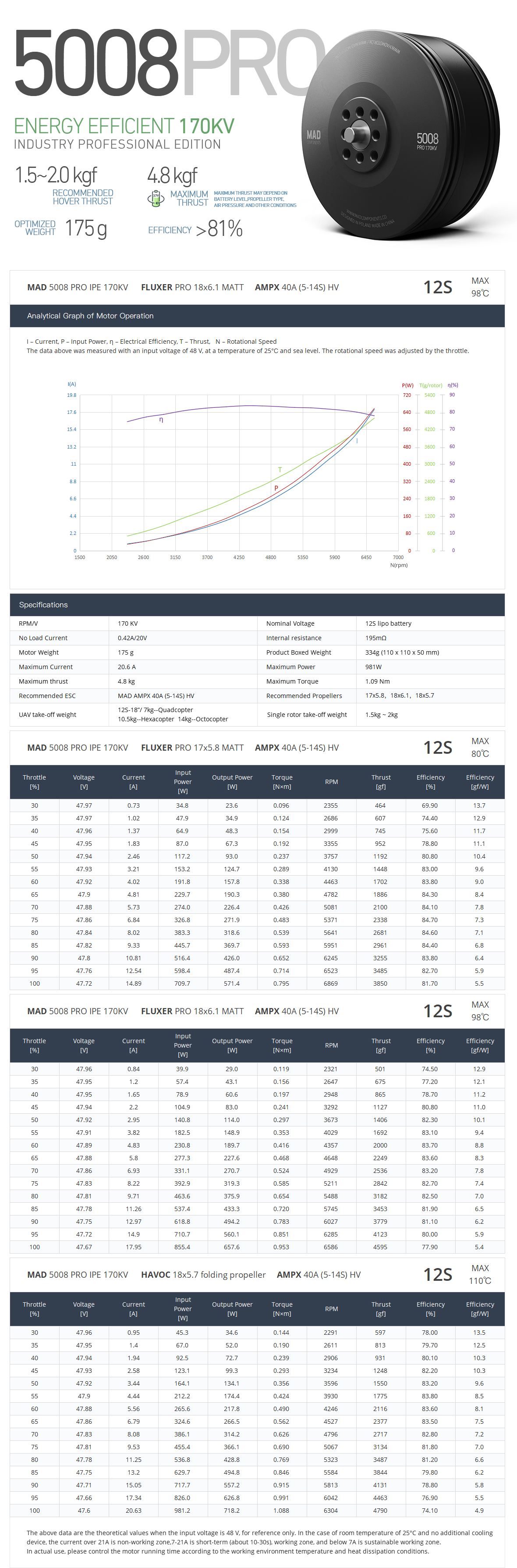

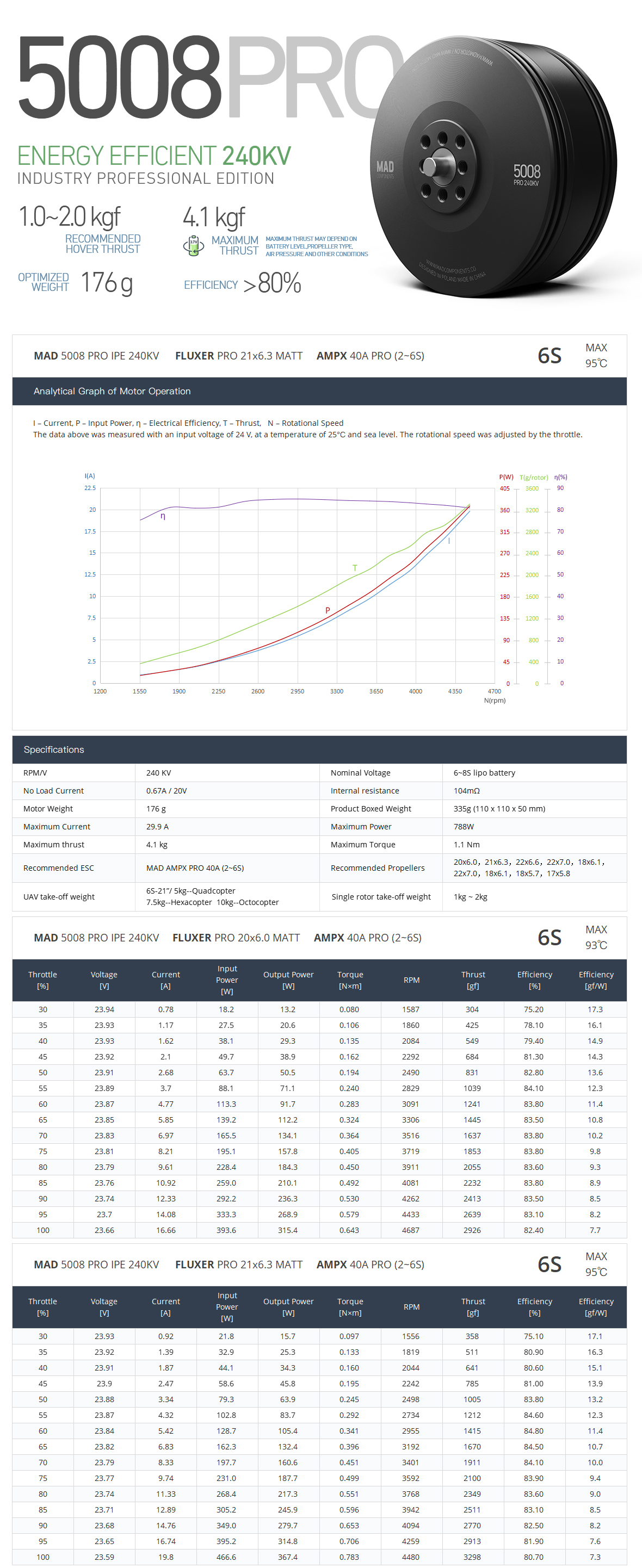

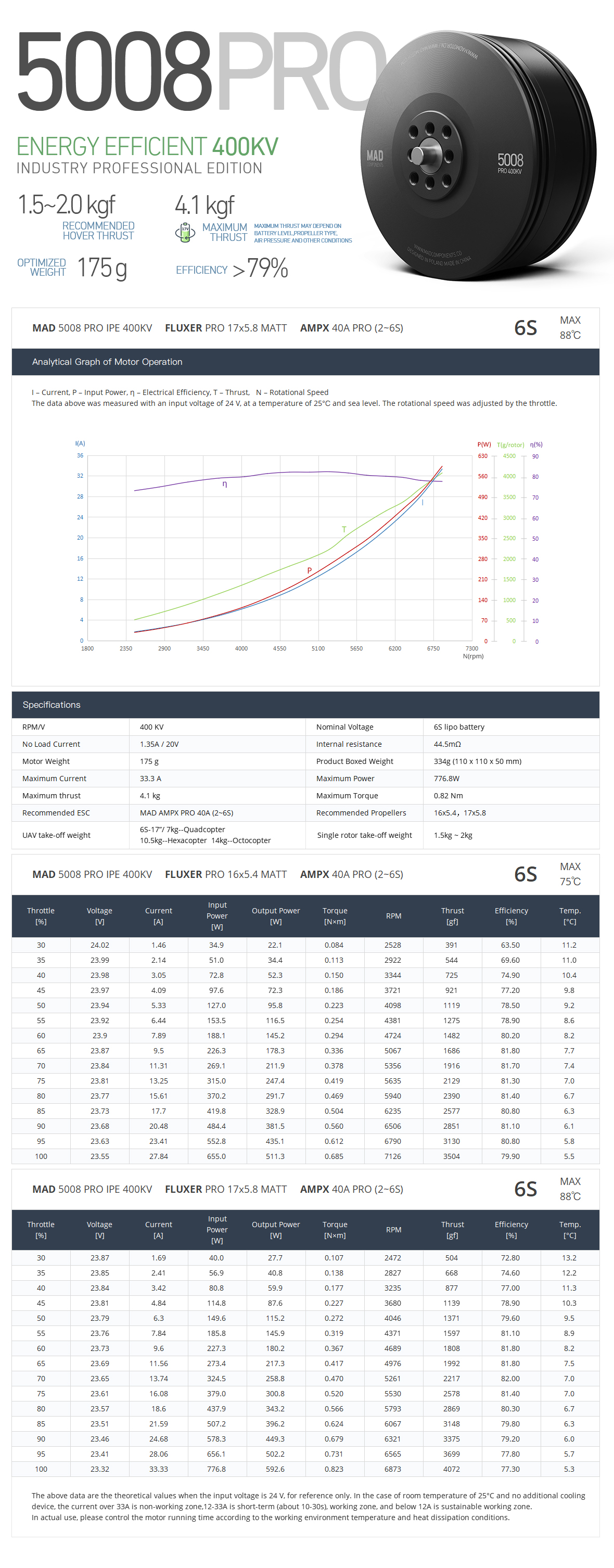

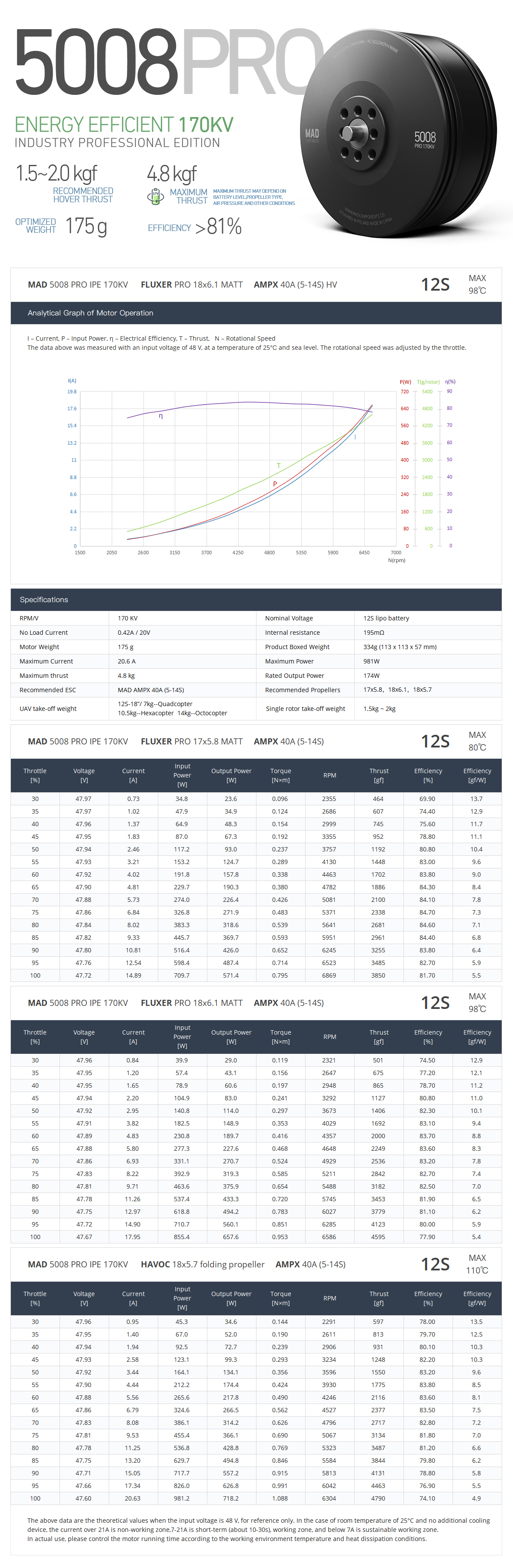

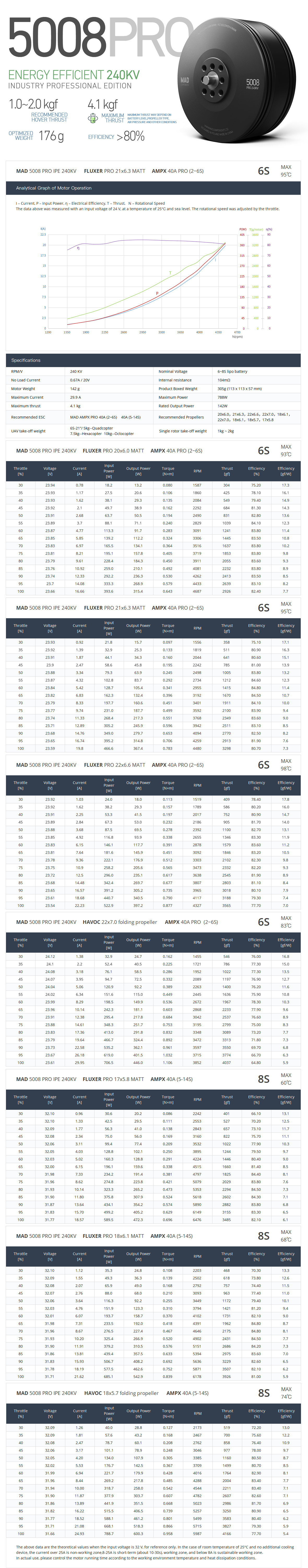

Motor Data

Motor Model MAD 5008 PRO IPE V1.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:56 × 30.4 mm Magnet Degree 150°C
Degree of Protection IP45 Cable Length 150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4,  D:15 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:25 M3×4
Bearing 696ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes___________________________________________________________________________________________________________________________
