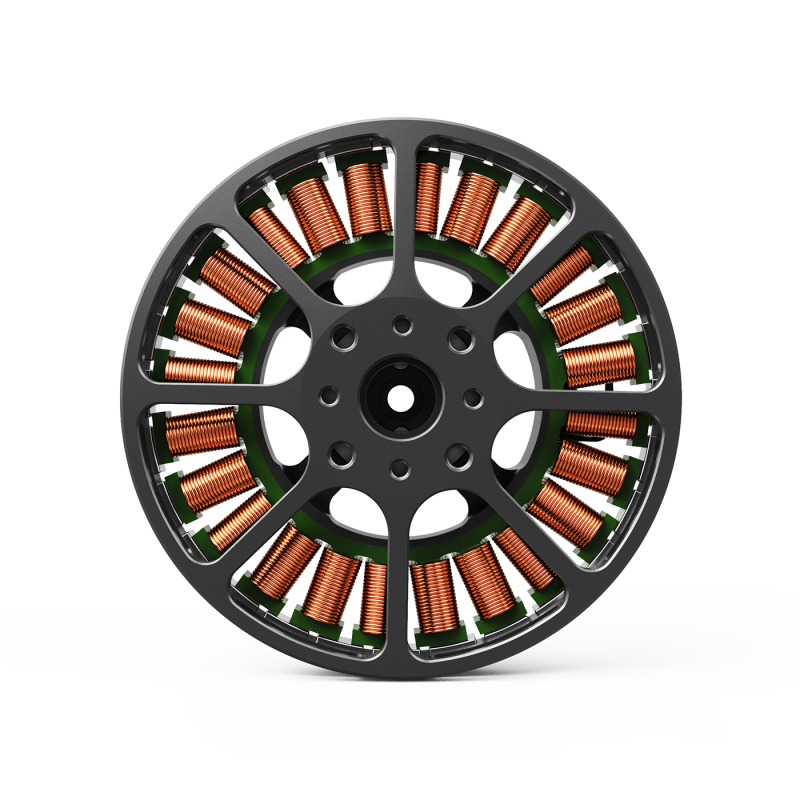

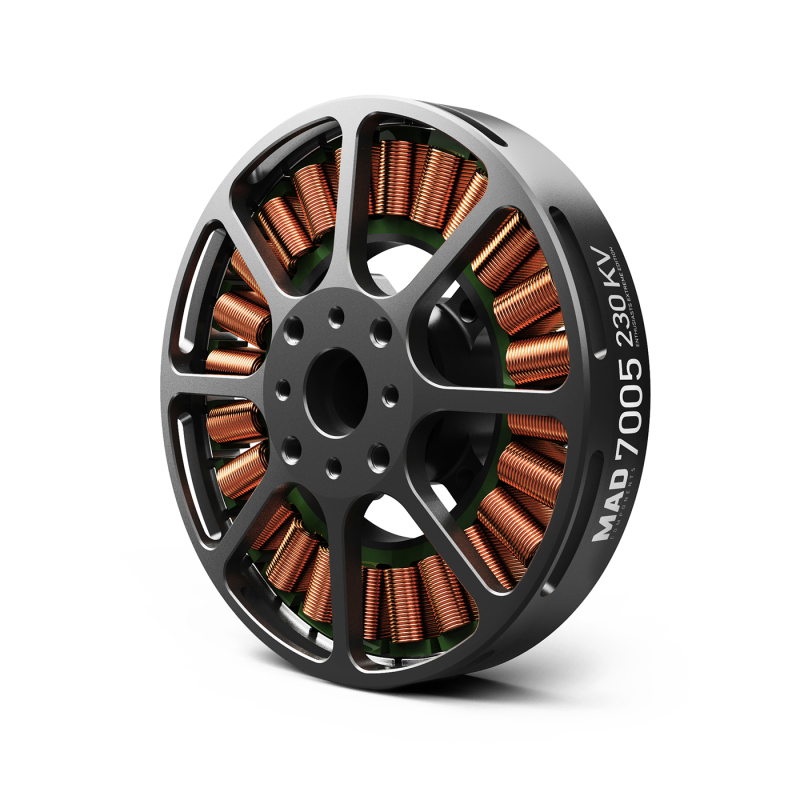

7005 EEE brushless drone motor

The MAD 7005 EEE brushless drone motor is engineered for X-class FPV drones, industrial UAV platforms, and cinematic heavy-lift applications. Delivering up to 6.6kg max thrust with a sustained output of 2–3kg, this 70mm stator motor runs on 6S (230KV) or 12S (115KV) voltage systems — giving builders the flexibility to match their power setup.

The 14-pole design paired with EZO 6802ZZ dual bearings ensures smooth, low-vibration flight even under continuous heavy load. Anti-corrosive stator varnish rated to 180°C and rain-protection enclosure make the 7005 EEE brushless drone motor a motor that performs in field conditions, not just on the bench.

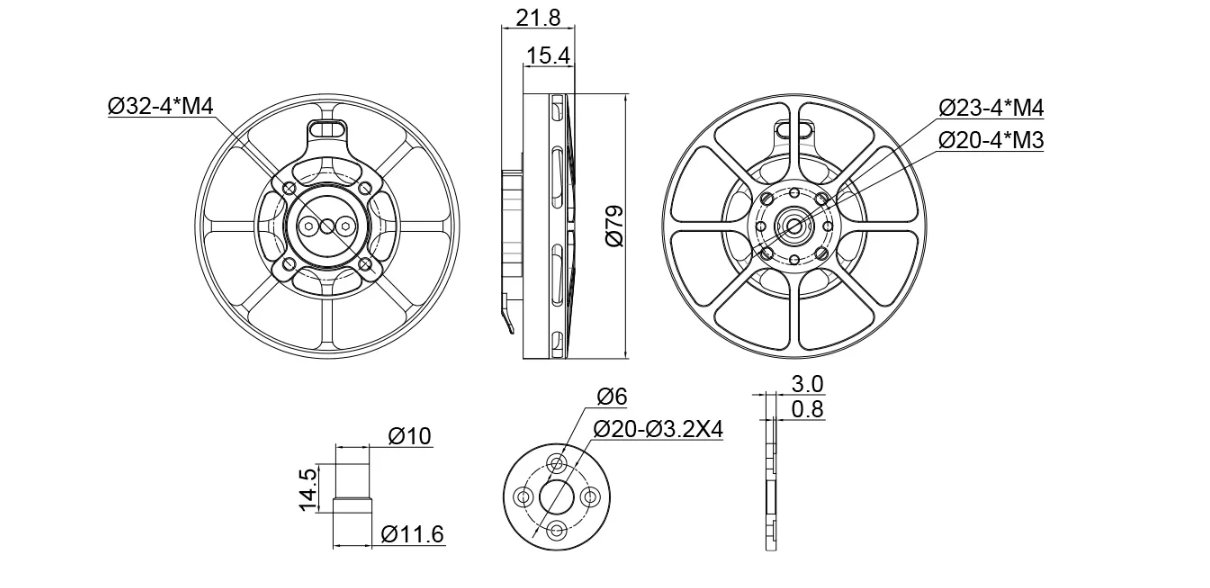

With independent centrifugal heat dissipation and a rotor balance of ≤5mg, this brushless drone motor maintains efficiency across extended flight sessions. Motor weight starts at 186g — competitive for its thrust class — with a 15mm inner shaft diameter and universal M4 prop mounting pattern (D:20 and D:32 bolt circles).

Compatible Applications

• X-Class FPV freestyle and racing drones
• Large-format cinematic UAVs (6S and 12S power systems)
• Industrial inspection and mapping drones
• Heavy-lift commercial UAV platforms up to 6.6kg thrust per motor

Frequently Asked Questions

What drones is the MAD 7005 EEE motor compatible with?

The 7005 EEE brushless drone motor is designed for X-class FPV drones, large industrial UAVs, and heavy-lift cinematic platforms requiring 2–6.6kg thrust per motor on 6S or 12S battery systems.

What is the difference between 115KV and 230KV versions?

The 115KV version is optimized for 12S (44.4V) setups delivering higher torque at lower RPM — ideal for large propellers (28–32 inch). The 230KV version runs on 6S (22.2V) with higher RPM, suited for 18–24 inch prop configurations.

What propeller size is recommended for the MAD 7005 EEE motor?

For 115KV/12S: 28–32 inch propellers. For 230KV/6S: 18–24 inch propellers. Refer to MAD Motor's propeller compatibility chart for specific pairing recommendations.

What is the weight of the 7005 EEE motor?

The MAD 7005 EEE brushless drone motor weighs 186g (standard) or 196g (extended variant), making it one of the lighter options in the 70mm stator class.
