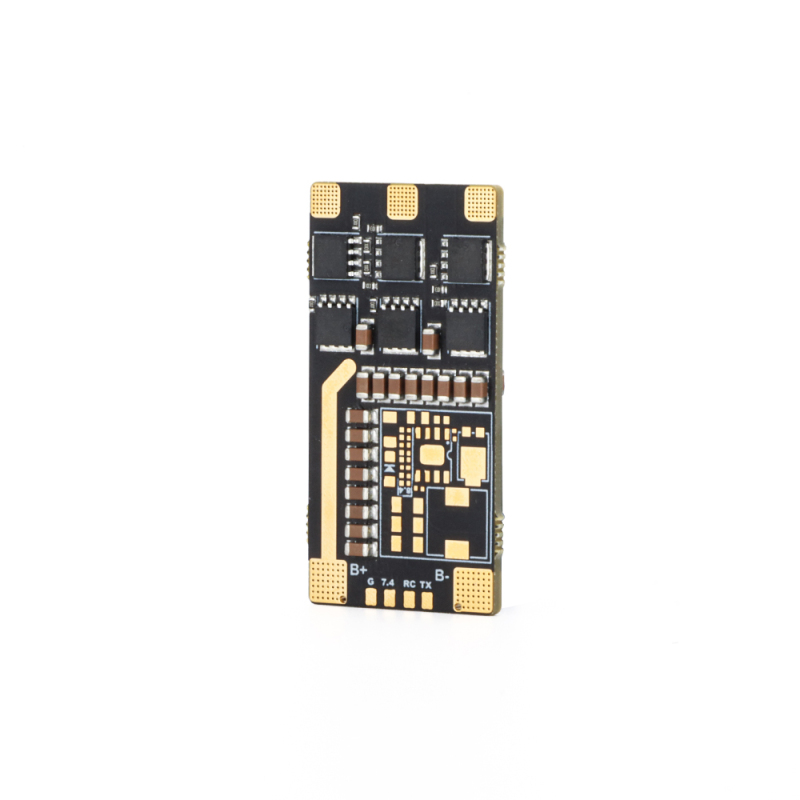

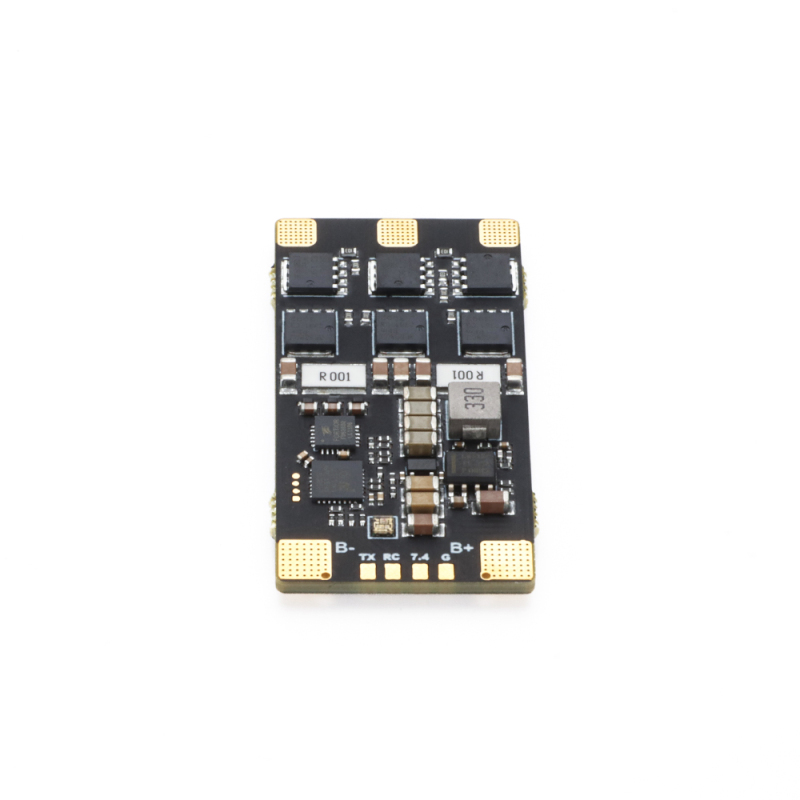

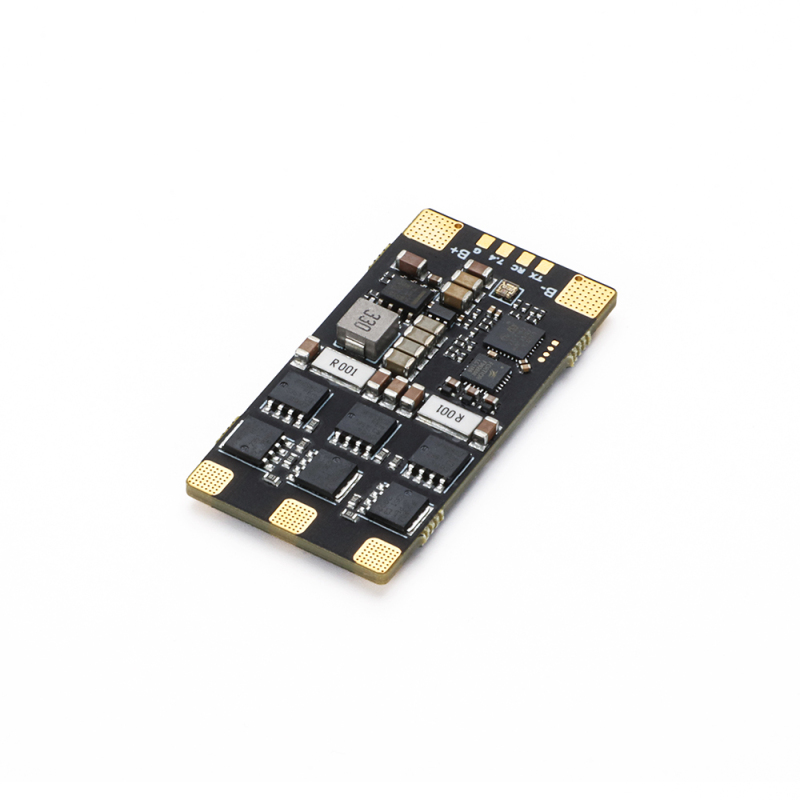

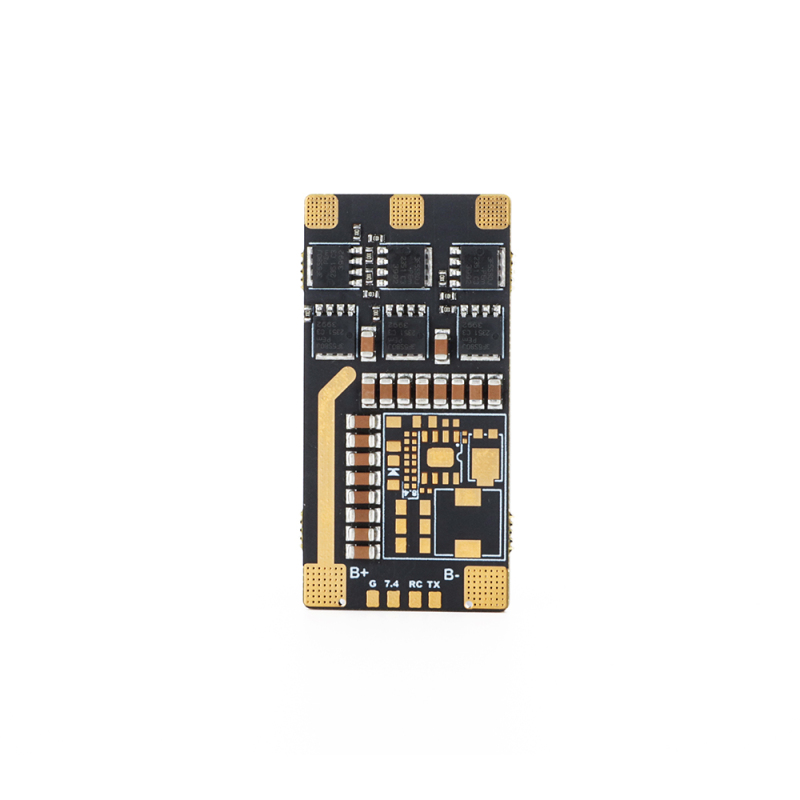

AM32 100A 12S ESC

1. Hardcore Specifications

• Current Handling:

  • Continuous: 100A (real-world sustained)

  • Burst (5s): 150A+ (with proper cooling)

• Voltage Range: 3-12S LiPo (11.1V-50.4V)

• Firmware: AM32 (supports BLHeli_32 parity features)

• Key Upgrades:

  • 600MHz ARM Cortex processor (vs 480MHz in typical BLHeli_32)

  • 96kHz PWM capability (ultra-smooth operation)

  • Dual-wire current sensing (±1% accuracy)

    Nuclear-Grade Setup

    Wiring:

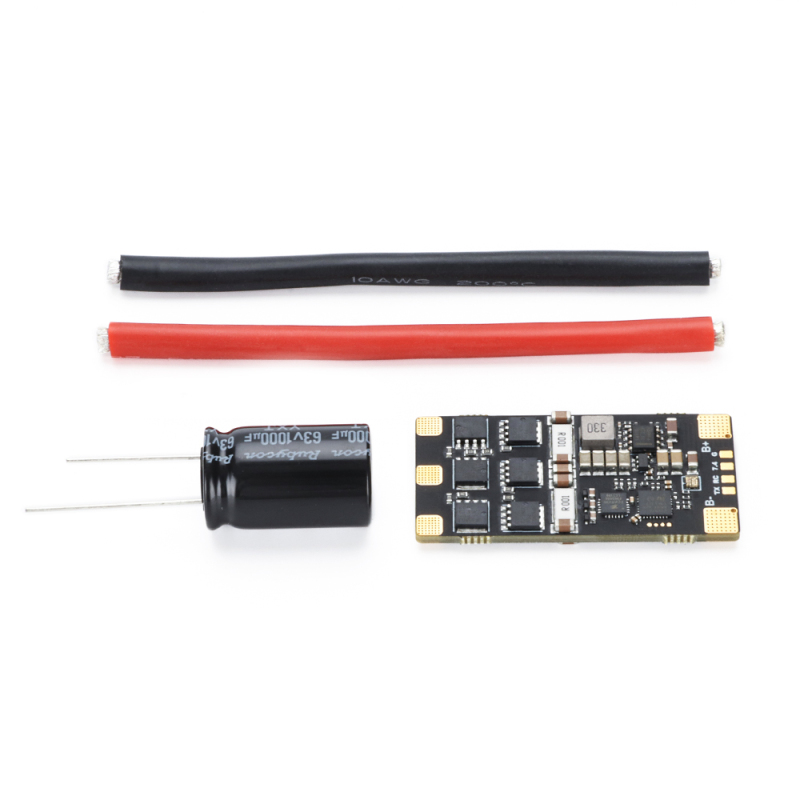

    • Battery Input: XT90H + 2× 1000μF 63V capacitors (mandatory for 12S)

    • Signal Lines:

      • Double-shielded 28AWG for DShot1200

      • Optical isolation recommended for >10S builds

    Thermal Management:

    • Minimum Cooling:

      • 4mm copper baseplate + 30×30mm heatsink

      • 12V 40mm fan (≥7CFM) for sustained >80A

    • Extreme Cooling:

      • Vapor chamber + liquid cooling loop (for 150A bursts)
