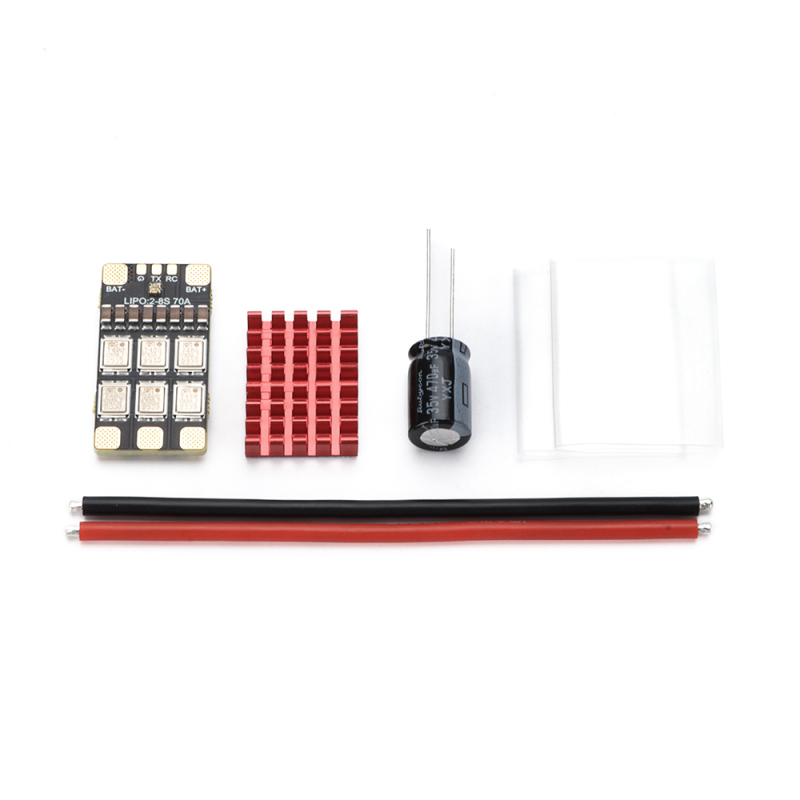

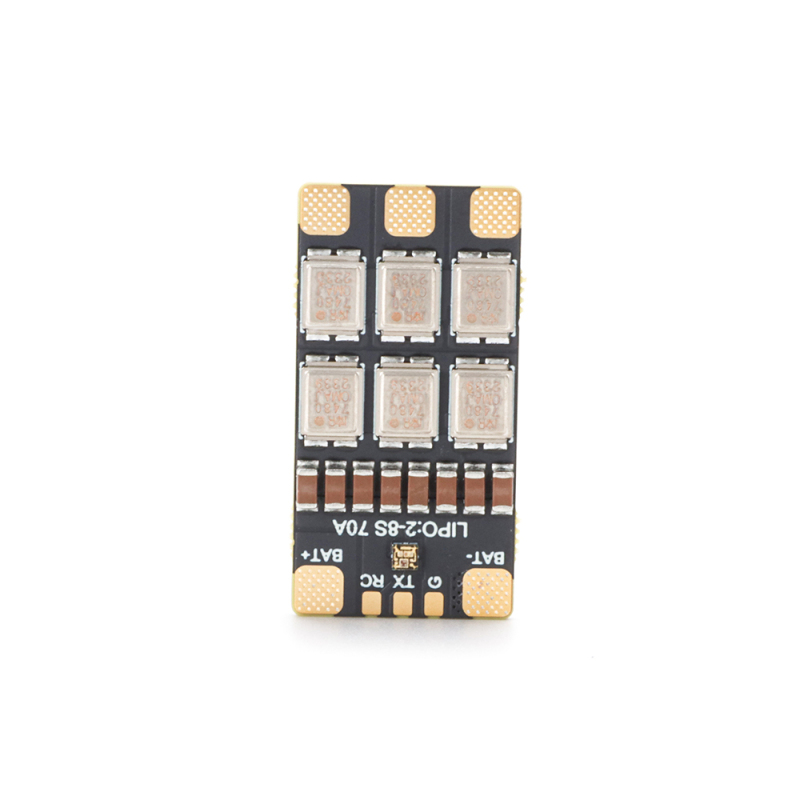

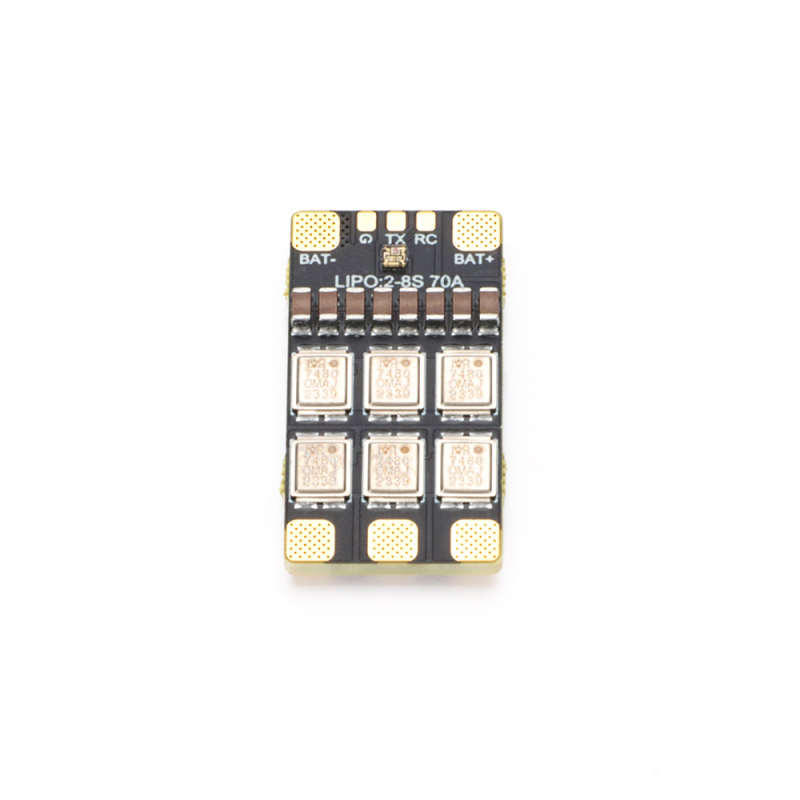

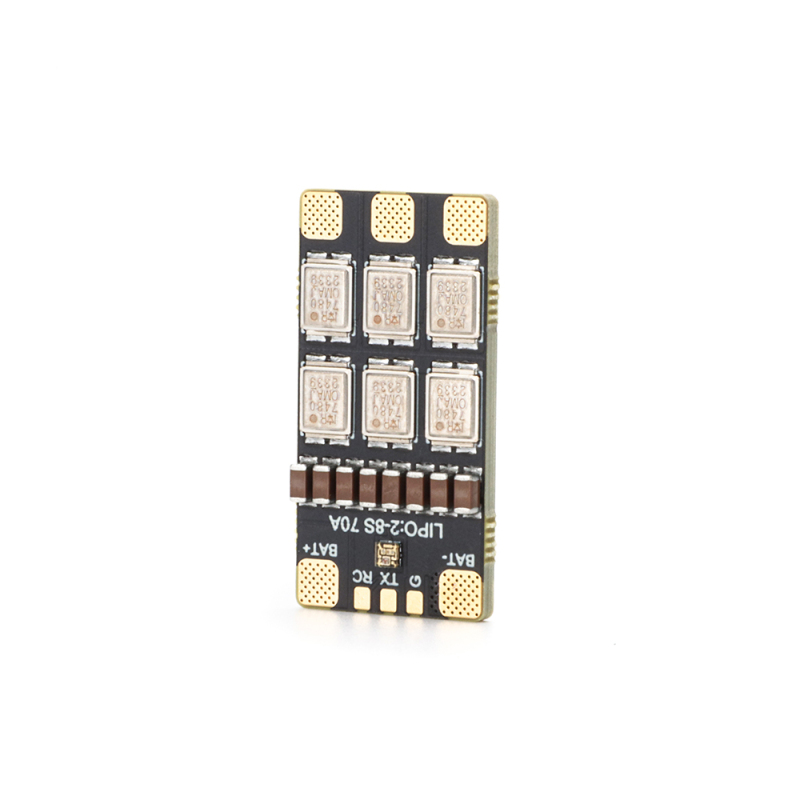

AM32 70A 2-8S ESC

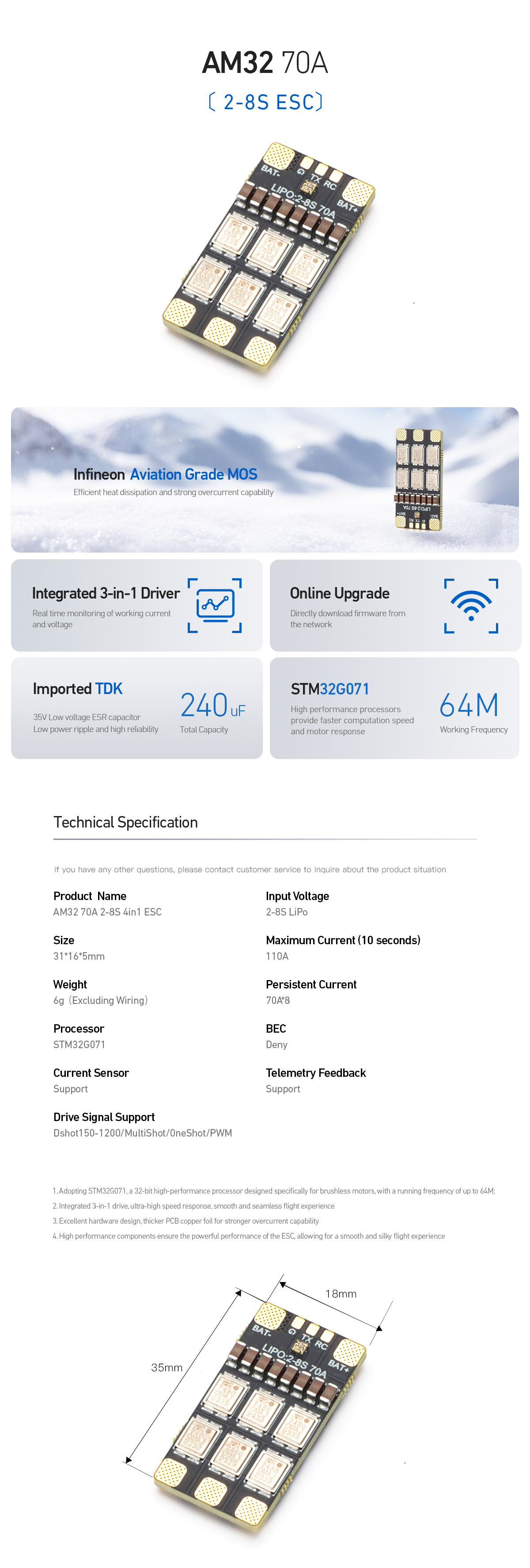

Core Specifications

• Current: 70A continuous / ~90A burst (5s)

• Voltage: 3-8S LiPo (11.1V-33.6V)

• Firmware: AM32 (open-source)

• Protocols: DShot (300-1200), Multishot, PWM

• Special Features:

  • Bidirectional DShot (RPM telemetry)

  • Active Freewheeling (reduces heat)

  • Customizable PWM frequency (up to 48kHz)

    . Optimal Use Cases

    Application	Recommended Setup	Notes
    5" Freestyle	2306 1950kV + 6S	Cap at 48kHz for silky throttle
    7" Long Range	2507 1200kV + 8S	Monitor ESC temps closely
    Cinewhoop	1404 3800kV + 4S	Lower timing to 12°
