AM50 Heavy-Lift Drone Motor

SKU:
  1. Maximizing thrust-to-weight ratio
    Rated Thrust: 42-56Kgf | Peak Thrust: 124Kgf
    Ultra-Lightweight Design: 4.4Kg

  2. Motor Only Purchase:
    A:Includes a temperature sensor (PT1000).
    B:With an encoder cable+ temperature  sensor PT1000
  3. Power System Kit Purchase:
    kit A:without lock propeller function  Kit includes:1× ESC (standard firmware) 1× CW or CCW propeller
    kit B:Motor features a magnetic encoder to detect and lock the propeller at a specified stop position (requires compatible ESC firmware).
    Kit includes:1× ESC (with required firmware) 1× CW or CCW propeller.
$0.00 $1,257.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    9.5KV
    34KV
  • Version:
    Motor A
    Motor B
    Power System Kit A CW(61x17)
    Power System Kit A CCW(61x17)
    Power System Kit B CW(61x17)
    Power System Kit B CCW(61x17)
  • Color:
    Black
    Black
    White
    White
    Please select the information you wantX
Quantity
-
+
Download
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
1/1
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • AM50 Drone Motor
  • Description
  • 9.5KV
  • 34KV

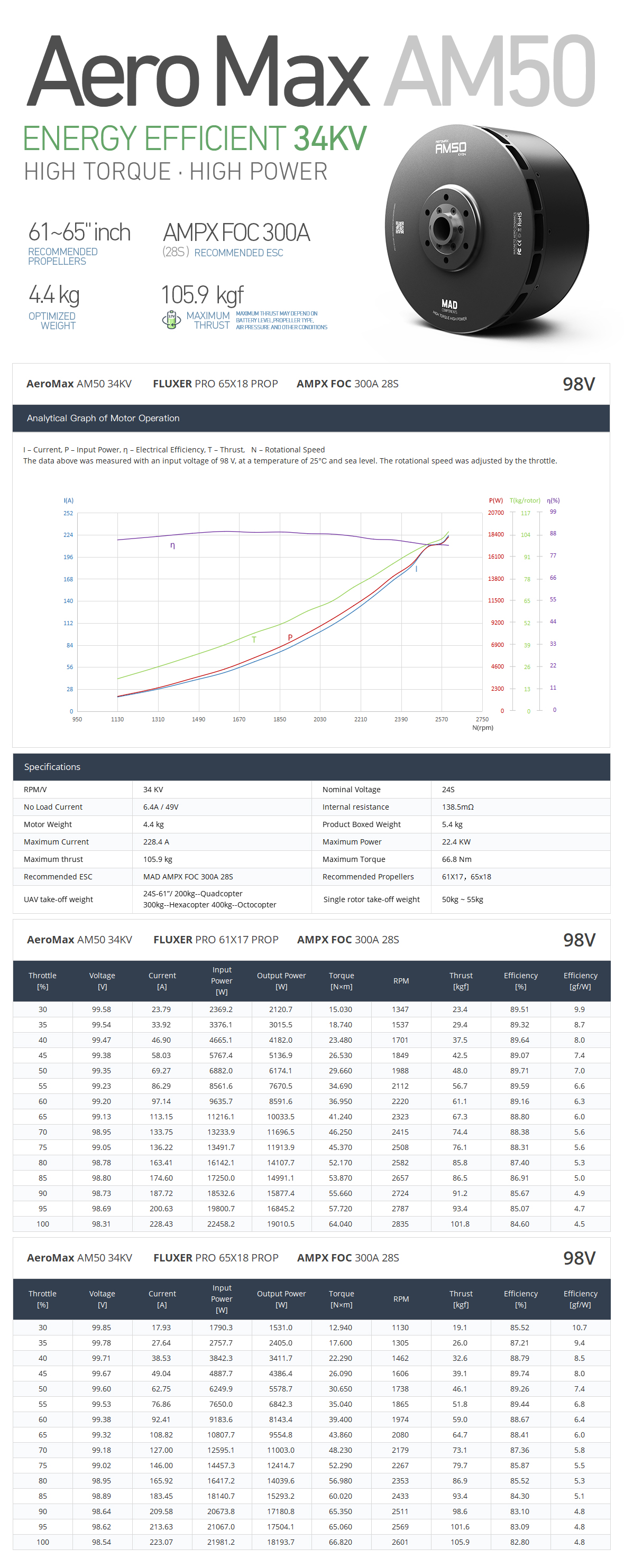

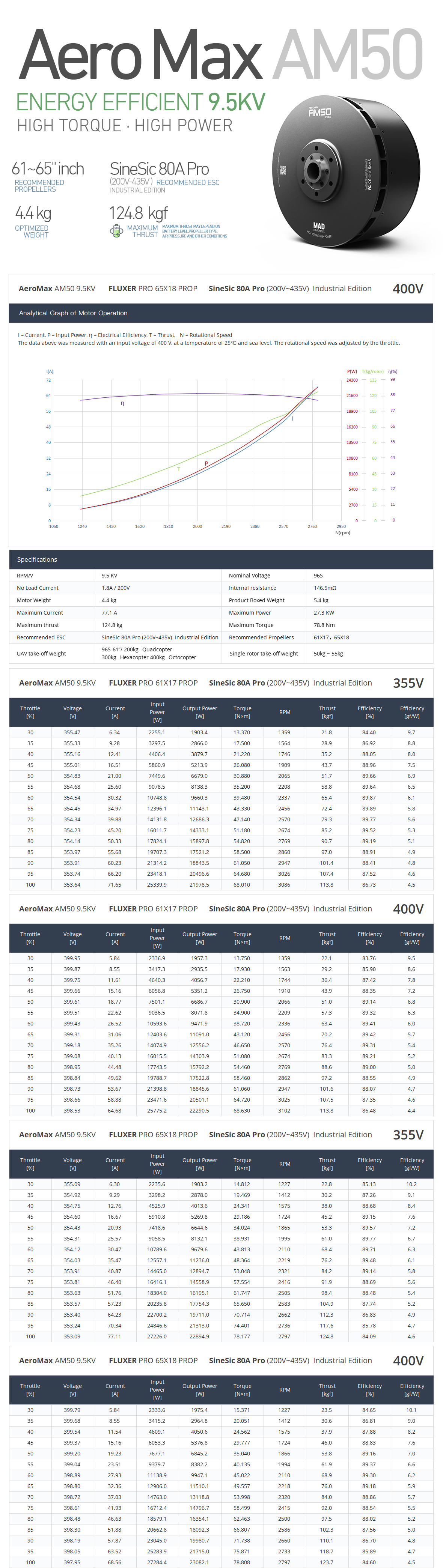

Motor Data
Motor Model MAD AeroMax AM50 V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:167 × 94.3 mm Magnet Degree 180°C
Degree of Protection IP45 Cable Length 200 mm (extended Enameled wires
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:50 M6×6 Motor Balance ≤20 mg
Shaft Diameter IN: 25 mm Motor Mounting Holes D:75 M6×6
Bearing NSK 6205 ZZ *2 Disruptive test 1000 V
