AMPX 60A V2 12~24S Drone BLDC ESC

About AMPX 60A 12-24S ESC

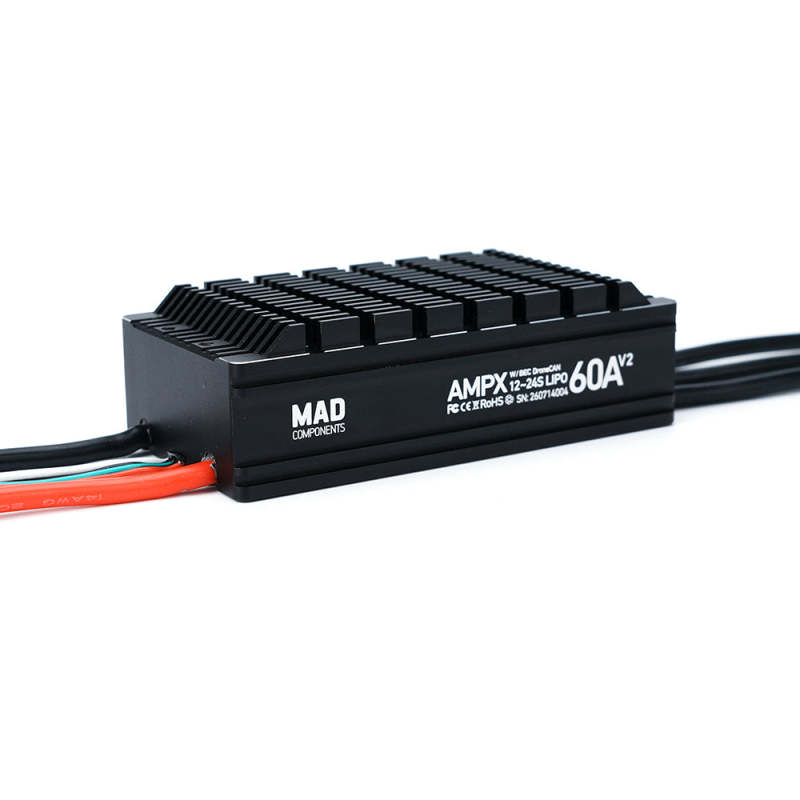

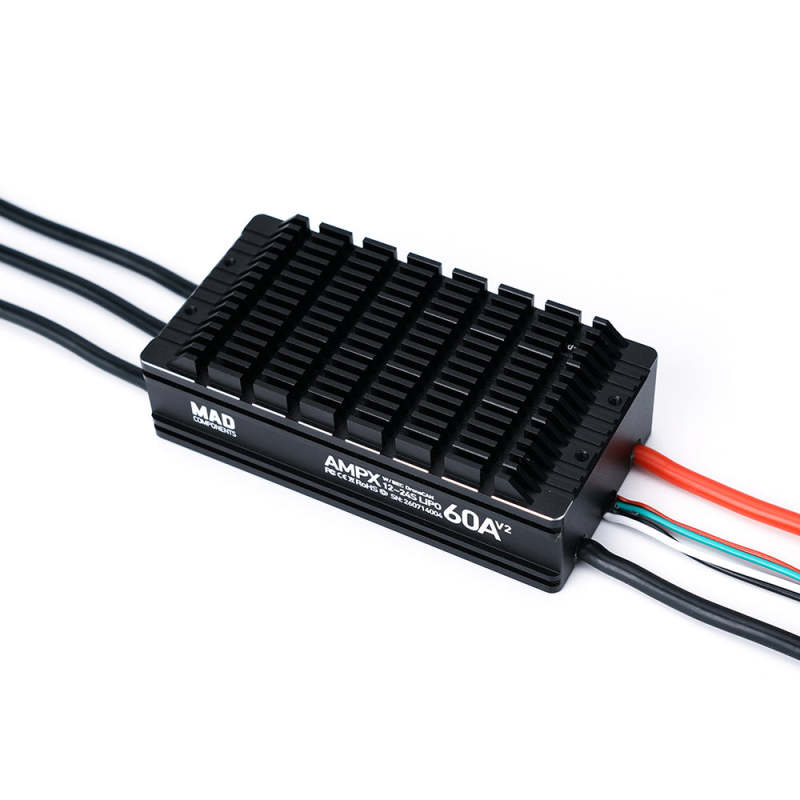

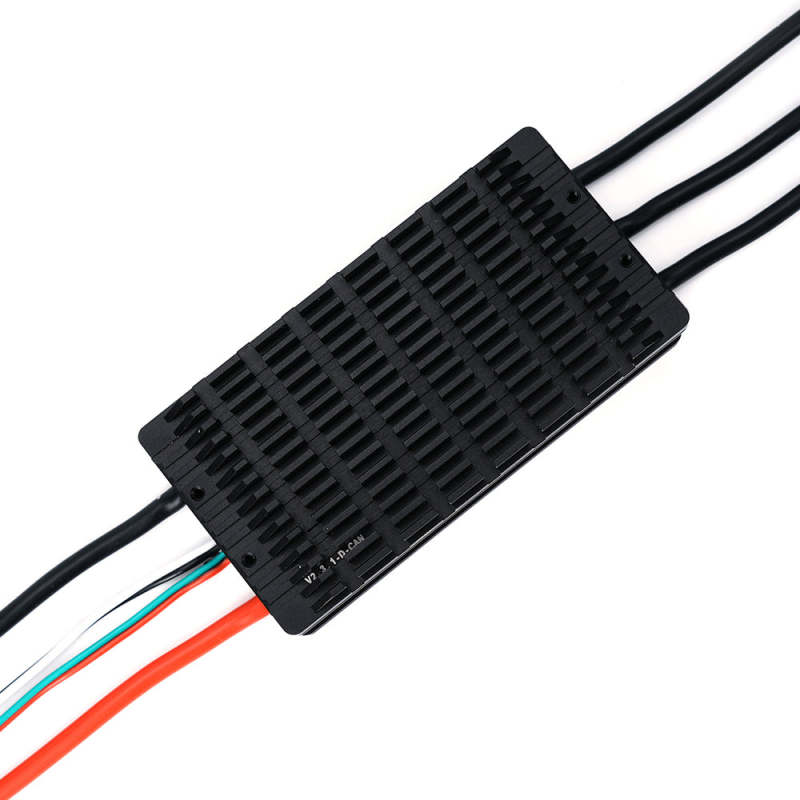

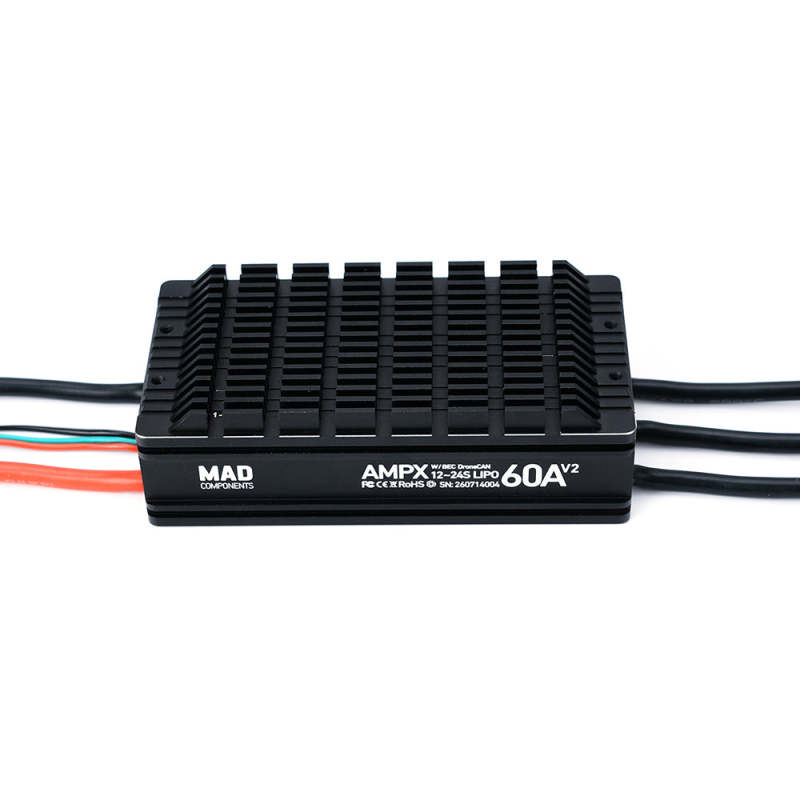

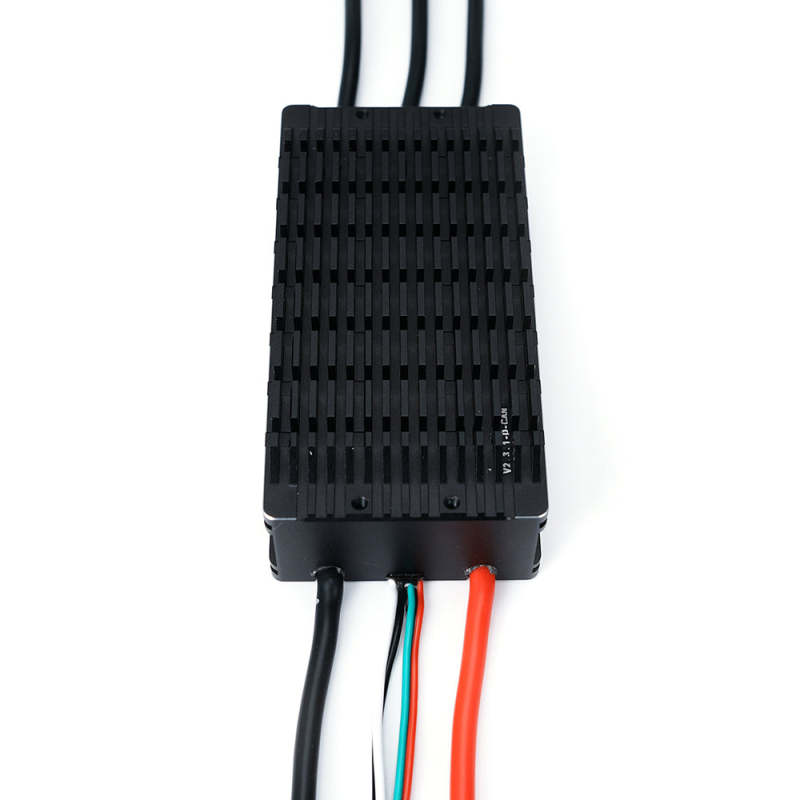

MAD AMPX 60A V2 12-24S HV ESC is designed for high-voltage UAV propulsion systems requiring efficient power management, reliable control, and advanced communication capability. Supporting 12–24S battery systems, this ESC delivers stable motor control with a 60A continuous current rating, making it suitable for large FPV drones, industrial multirotors, and professional UAV platforms.

Highlights

●   The response speed is fast. The motor can complete the transition from idle to full speed within 0.40 seconds.
●   The dedicated control algorithm for disc motors has better compatibility and stability.
●   The synchronous current-sharing technology offers better throttle linearity and driving efficiency, and automatically recovers energy when the motor slows down.
●   It has RPM and error signal output interfaces.
●   It has a CAN communication interface, enabling real-time communication with the flight controller (note: this function requires matching with the flight controller).
●   Easy installation. The positive and negative sides of the electronic speed controller can be installed freely at the same position.
●   Supports dual throttles (CAN digital throttle + PWM analog throttle), with priority given to CAN digital throttle control. The control signal interface and the main power supply are fully isolated from each other, making it safer and more reliable.

Throttle Calibration Setting
