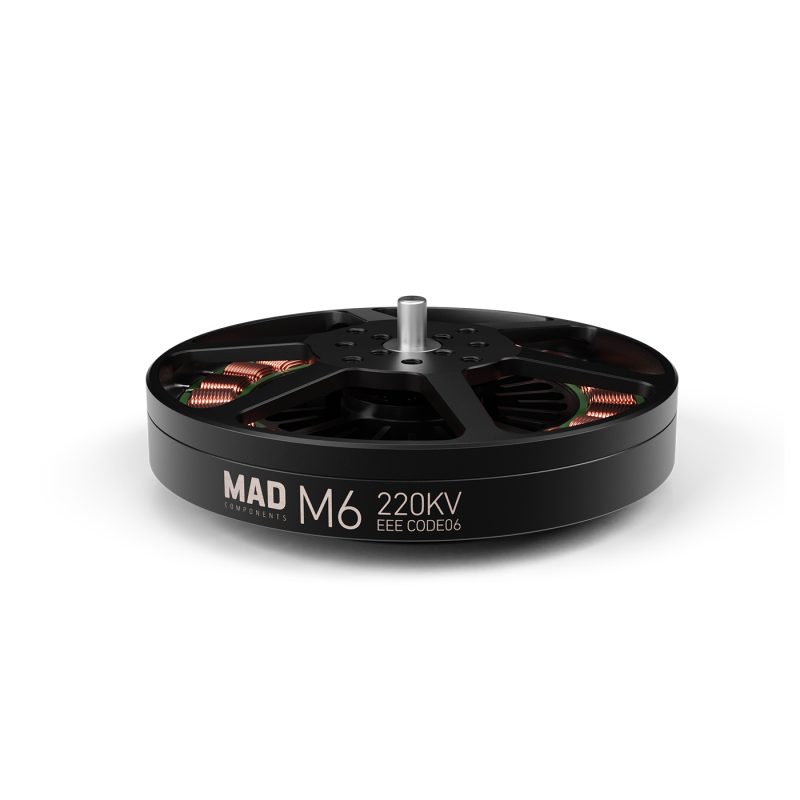

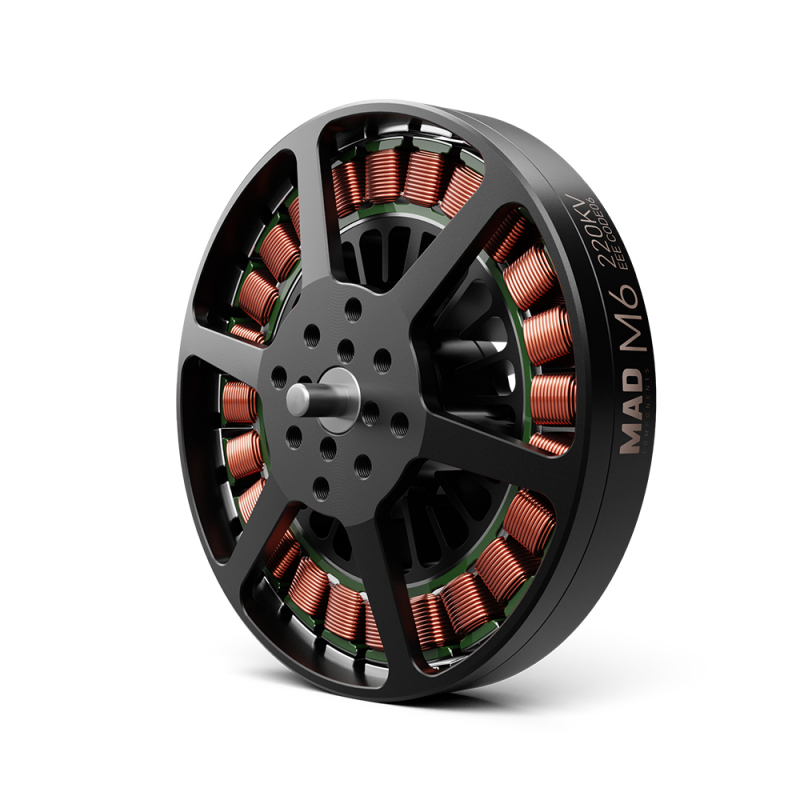

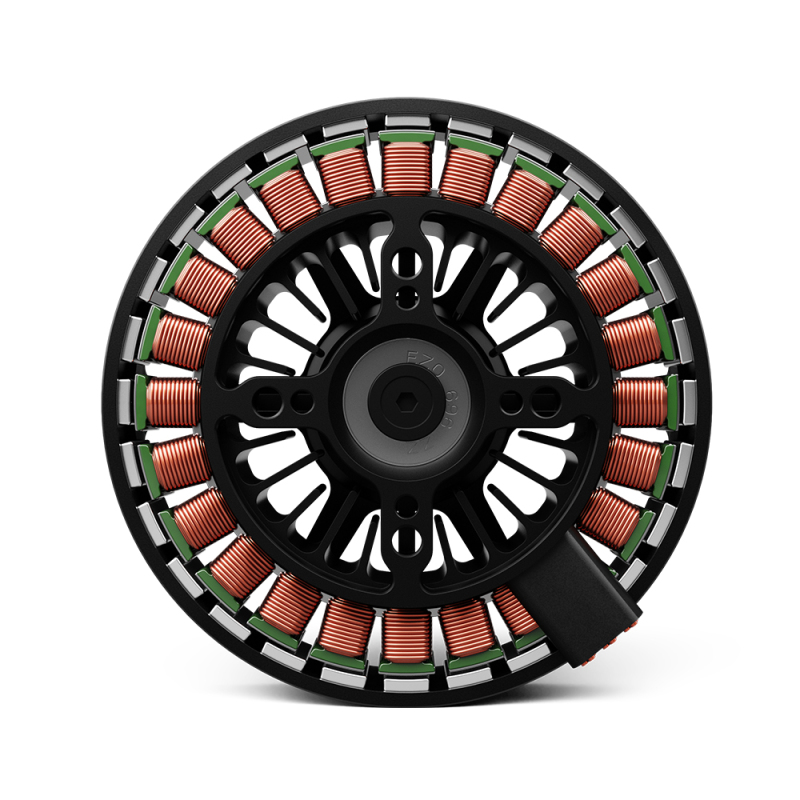

MAD Antimatter M6C06 EEE brushless motor for multirotor UAV propulsion.

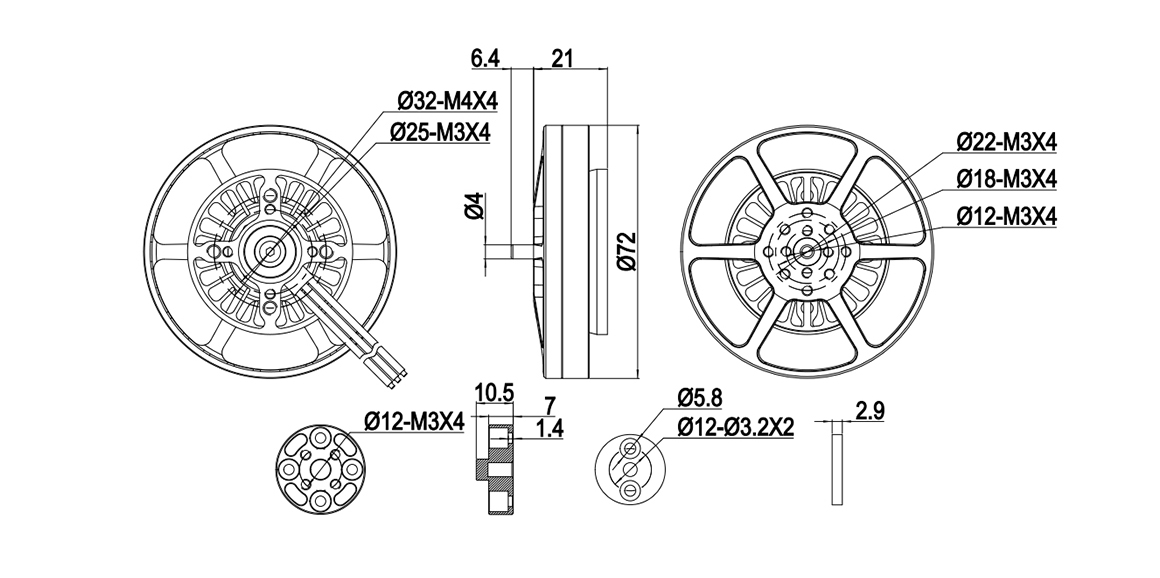

Choose your KV option and review the motor data and mounting drawing to match your aircraft.
The MAD Antimatter M6C06 EEE brings three KV choices to AN M6 series multirotor builds. Select the version that matches your battery and propeller combination, then use the motor data below to plan installation.
Match the selected KV version with a suitable battery voltage, ESC and propeller. Assess thrust and current using the test data for that exact combination; KV alone does not determine payload capacity or flight time. Check the motor and propeller mounting patterns before installation.
Compare other AN M6 series motors or explore drone ESCs and propellers to plan your system.

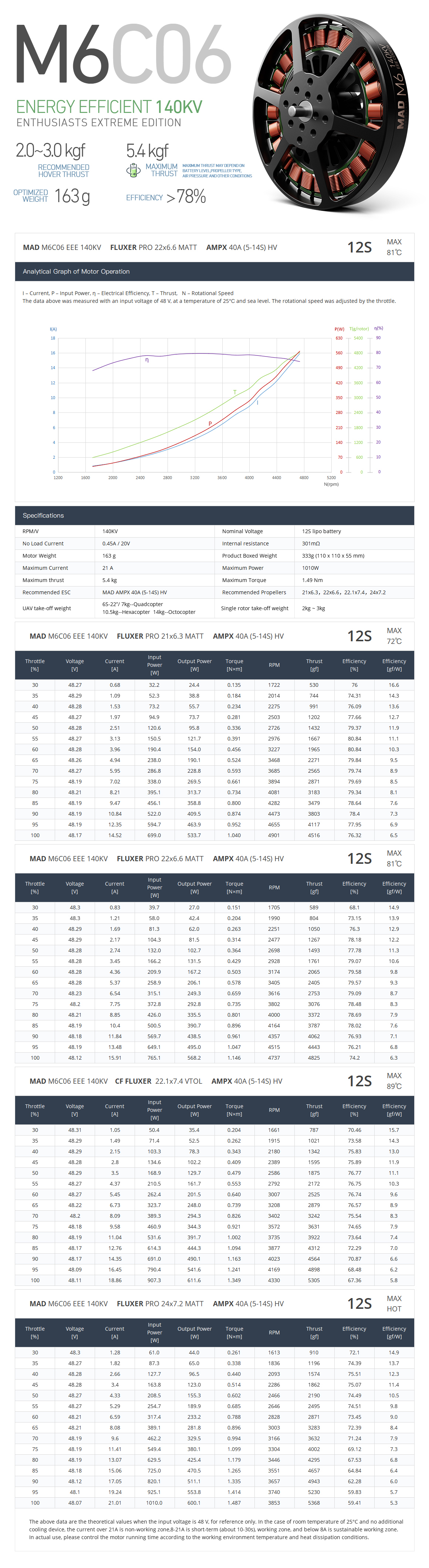

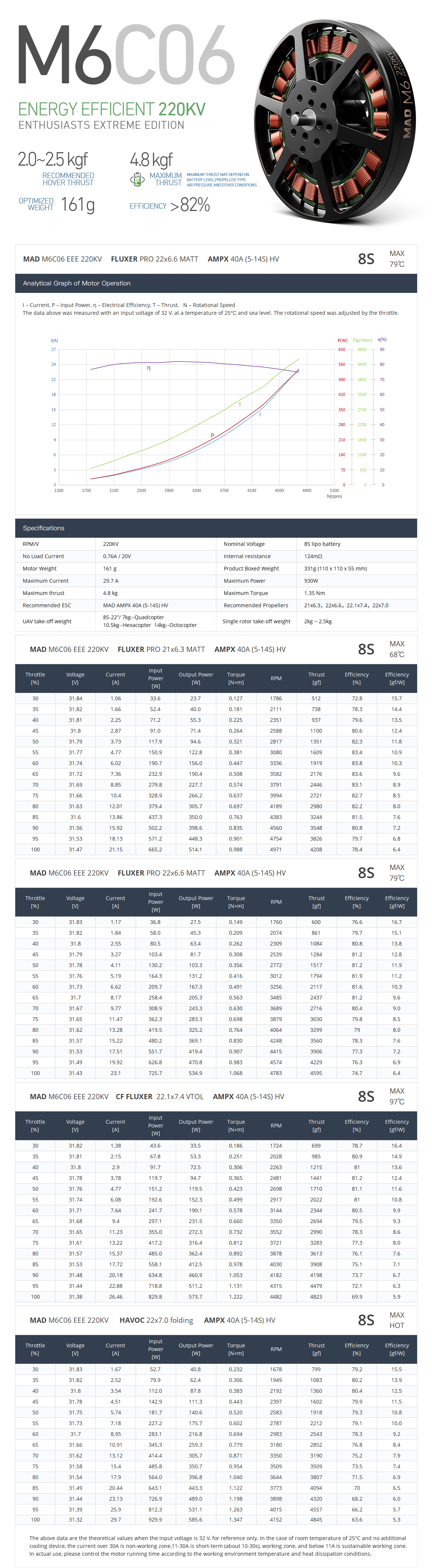

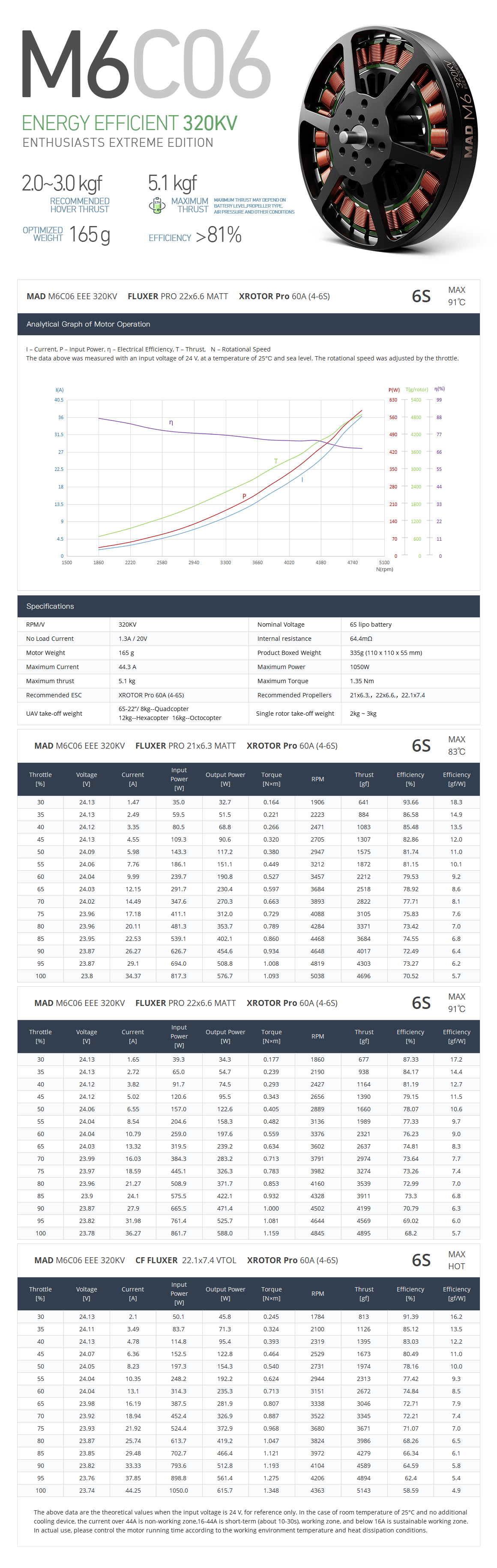

| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD M6C06 EEE V2.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 27.4 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 60 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4,D:18 M3×4,D:22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4, D:32 M4×4 |
| Bearing | 696ZZ *2 | Disruptive test | 500 V |
