MAD 745 AIO —— X-Class Power at Just 20g

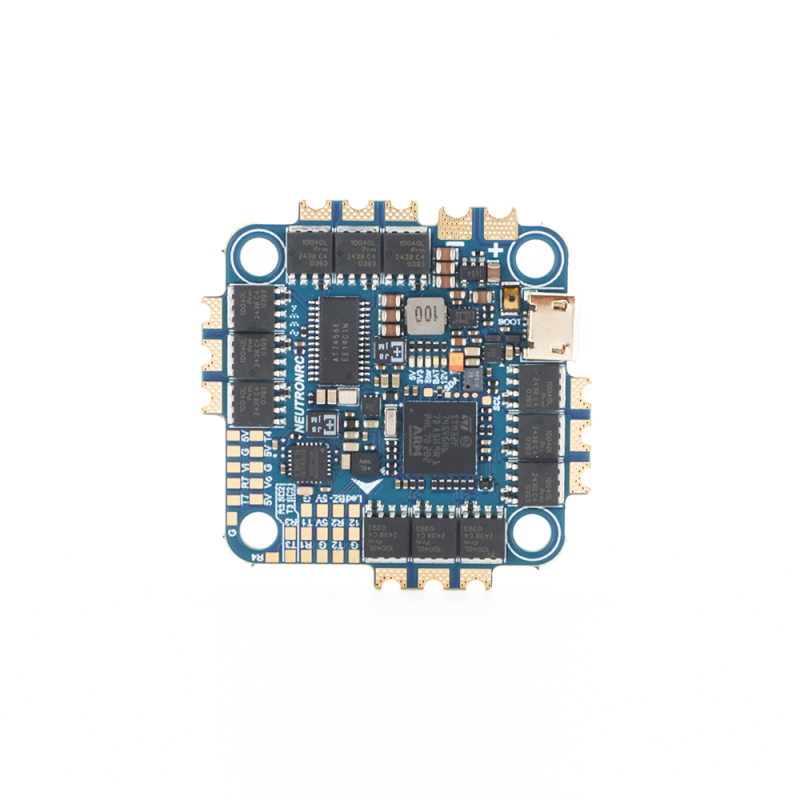

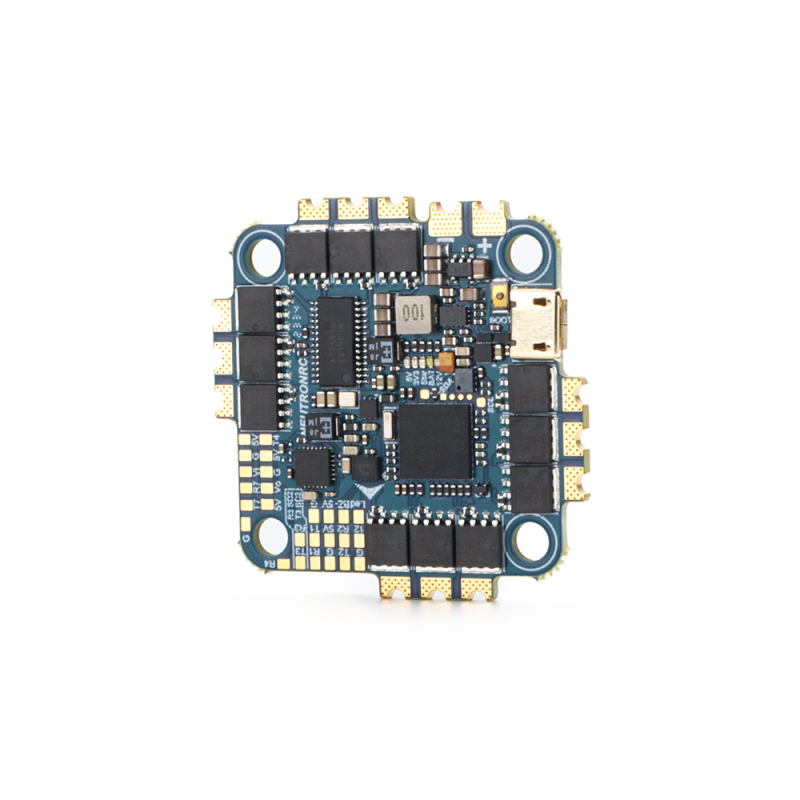

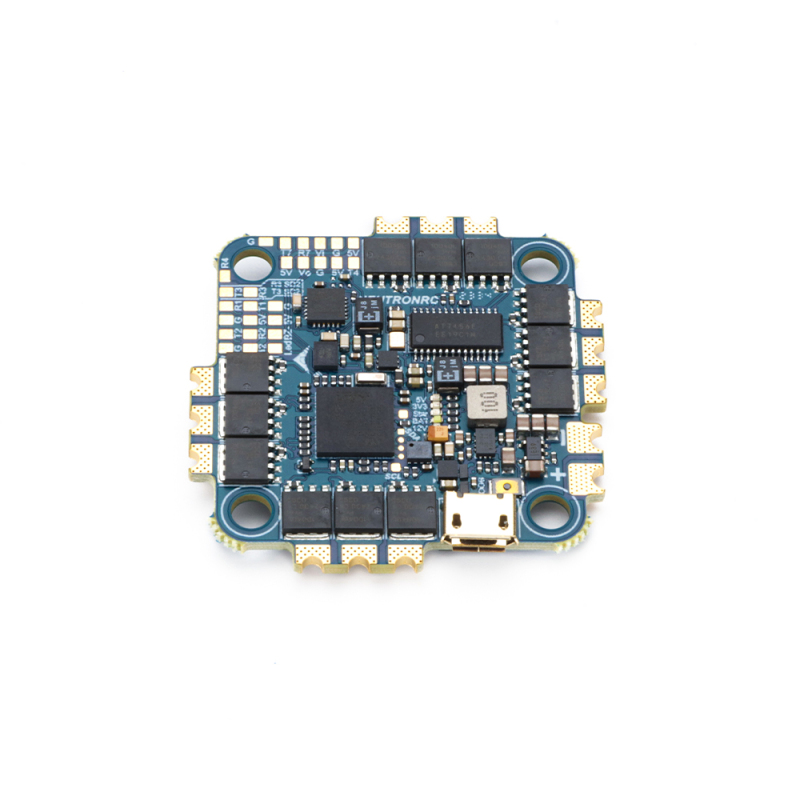

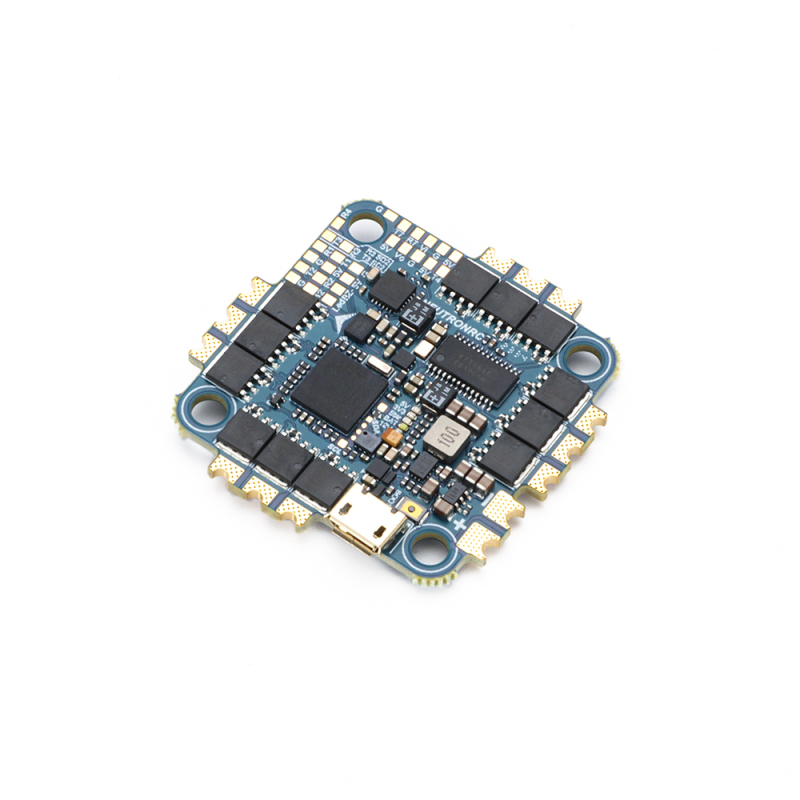

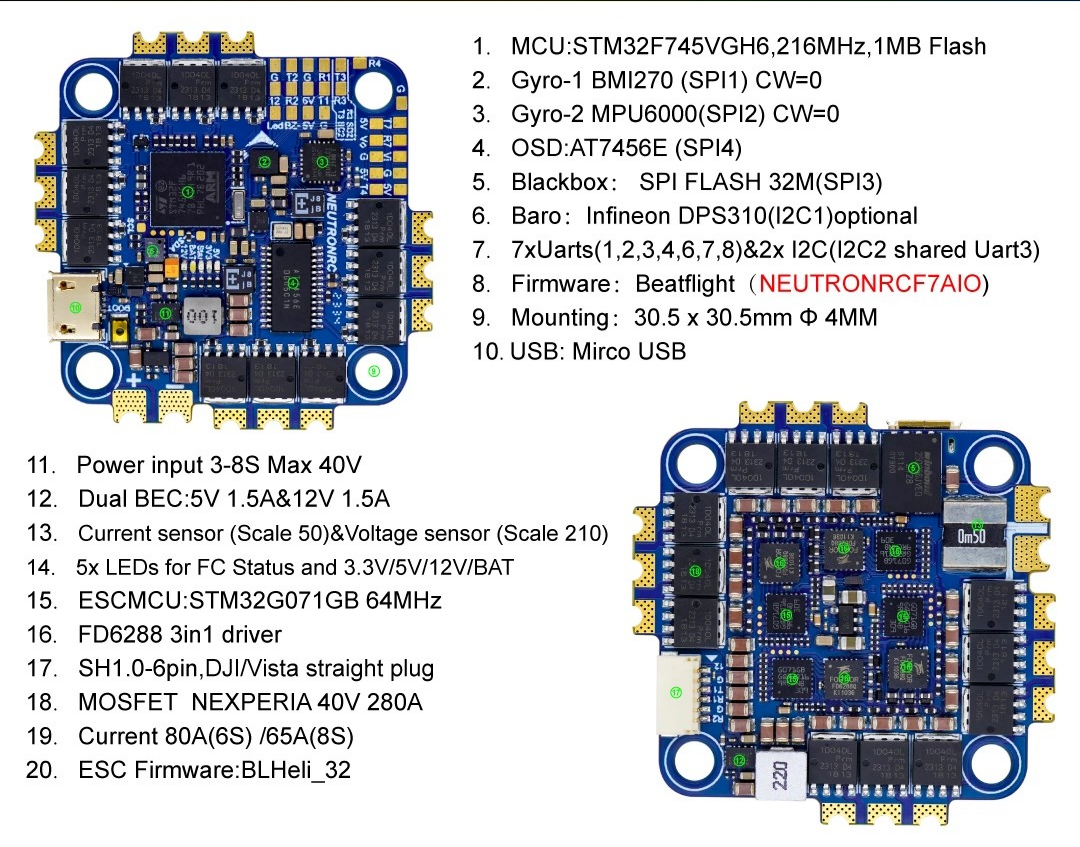

Parameter

1. MCU:STM32F745VGH6,216MHz,1MB Flash
2. Gyro-2 MPU6000(SPI2) CW=0
3. Gyro-1 BMI270 (SPI1) CW=0
4.OSD:AT7456E (SPI4)
5. Blackbox: SPI FLASH 32M(SPI3)
6. Baro: Infineon DPS310(I2C1)optional
7. 7xUarts(1,2,3,4,6,7,8)&2x I2C(12C2 shared Uart3)
8. Firmware: Beatflight (NEUTRONRCF7AIO)
9. Mounting:30.5x 30.5mm 0 4MM
10. USB: Mirco USB
11. Power input 3-8S Max 40V
12. Dual BEC:5V 1.5A&12V 1.5A
13. Current sensor (Scale 50)&Voltage sensor (Scale 210)
14. 5x LEDs for FC Status and 3.3V/5V/12V/BAT15. ESCMCU:STM32G071GB 64MHz
16. FD6288 3in1 driver
17. SH1.0-6pin,DJI/Vista straight plug18. MOSFET NEXPERIA 40V 280A19. Current 80A(6S)/65A(8S)20. ESC Firmware:BLHeli_32

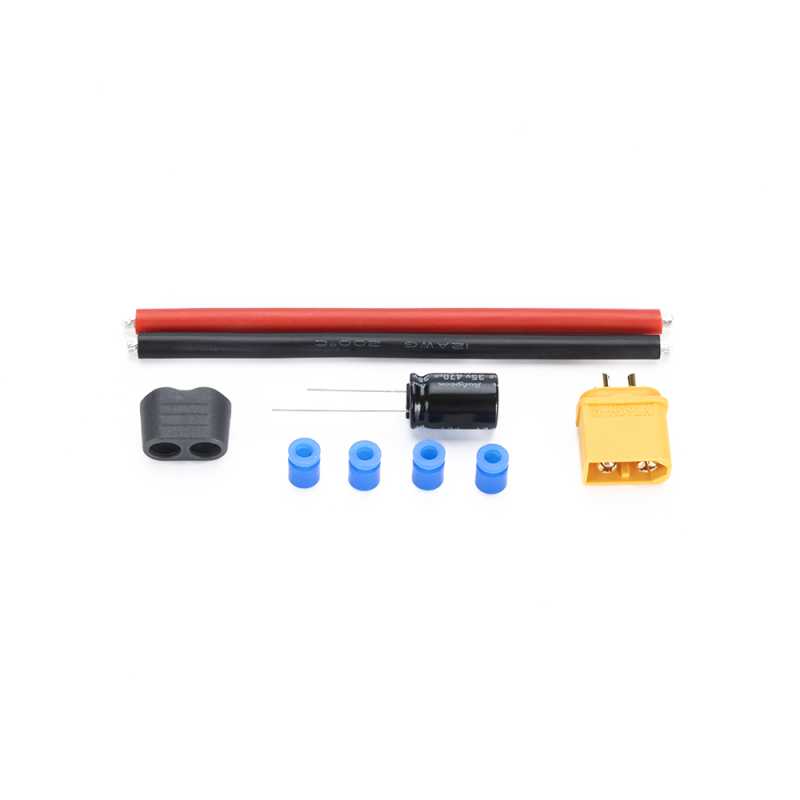

Detail

Size:43*43*6mm
Input Power: 3-8S.Max 40V

Recommended configuration:

For 60A 8S power, recommended 5-7 inches, no larger than 9-inch chassis 2207,2306 11500-1750KV, 25XX 1300-1500KV, 28 series 1300-1500KV

For 80A 8S power, recommended 5-10 inches chassis, currently the maximum tested is 10 inches, the motor is recommended 10-inch 3110 900KV8S, 3110 1250KV6S, the 3115 motor has not been tested yet, all general power configurations of 10 inches and below are fully satisfied;

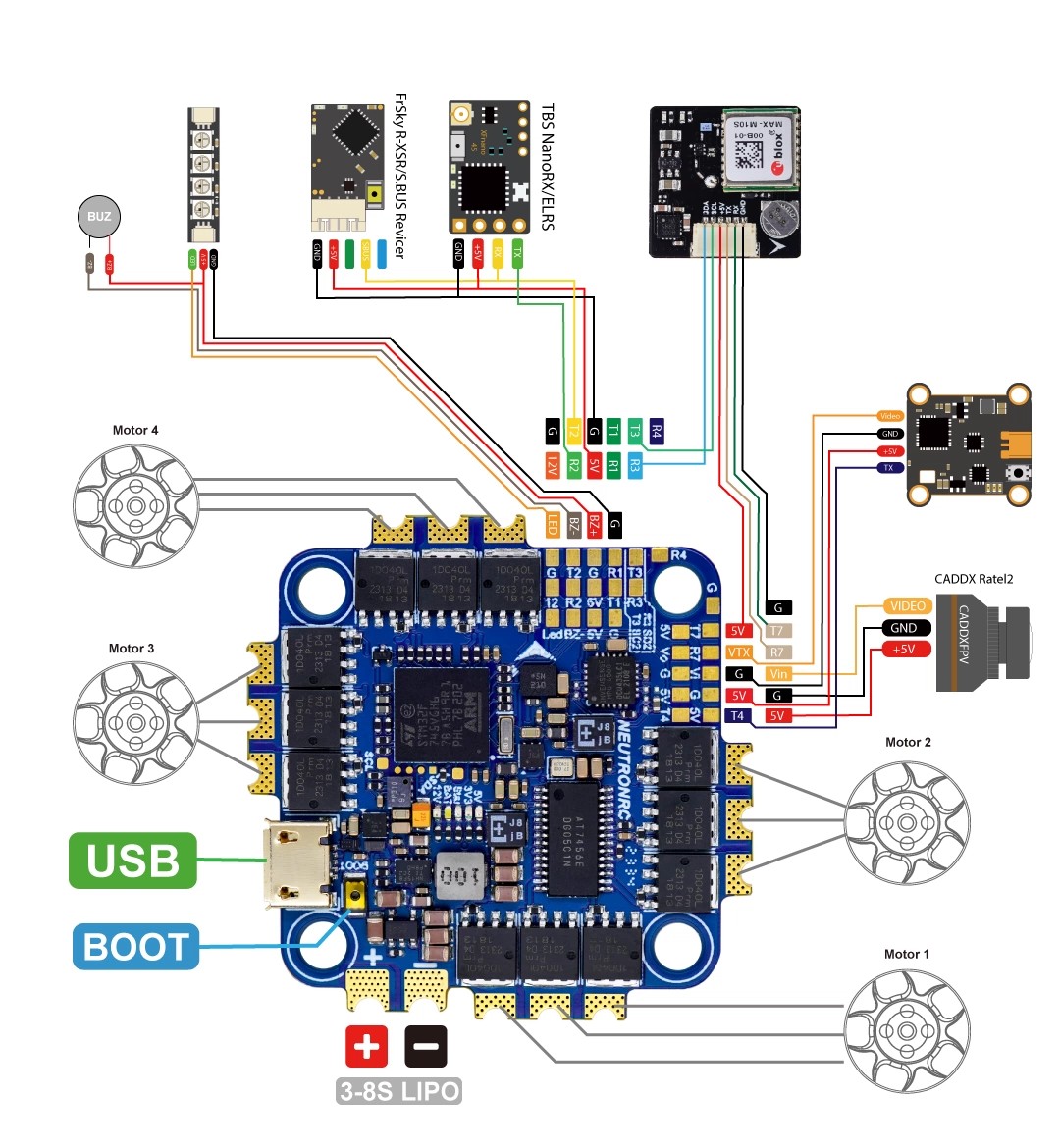

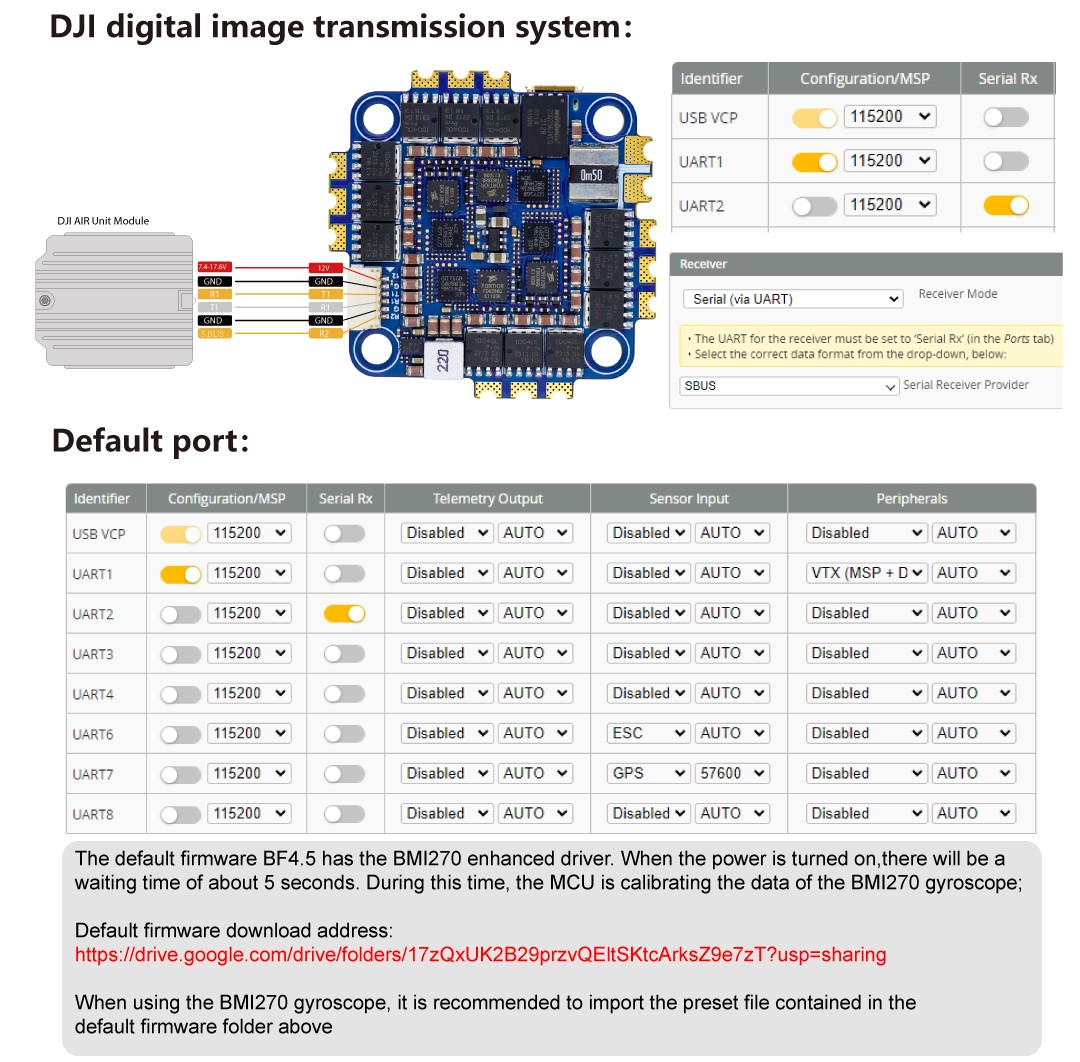

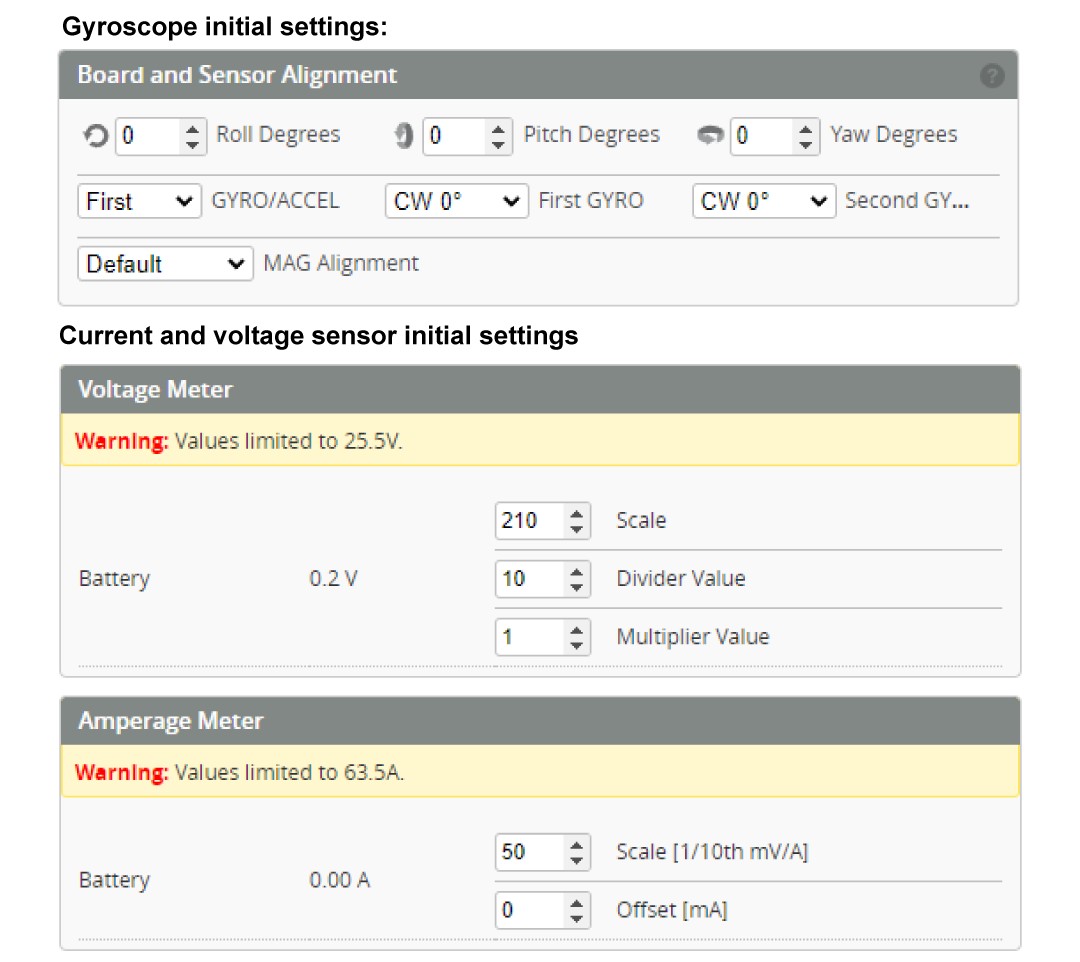

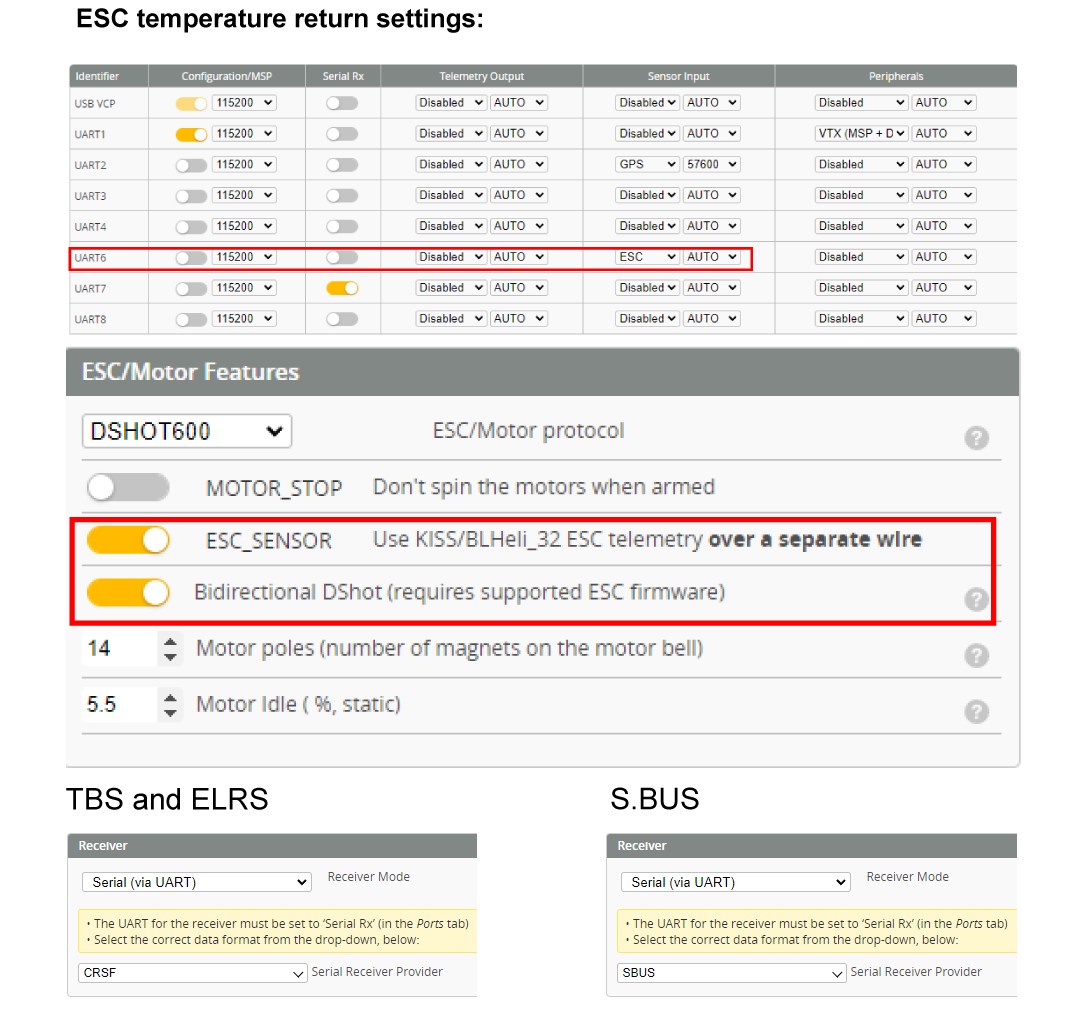

The factory default is BMI270 gyroscope, if the firmware has been updated, please use the official recommended enhanced version BMI270 firmware and write the BMI270 preset. Enhanced version 4.5 firmware download address: https://drive.google.com/drive/folders/17zQxUK2B29przvQEltSKtcArksZ9e7zT?usp=sharing
