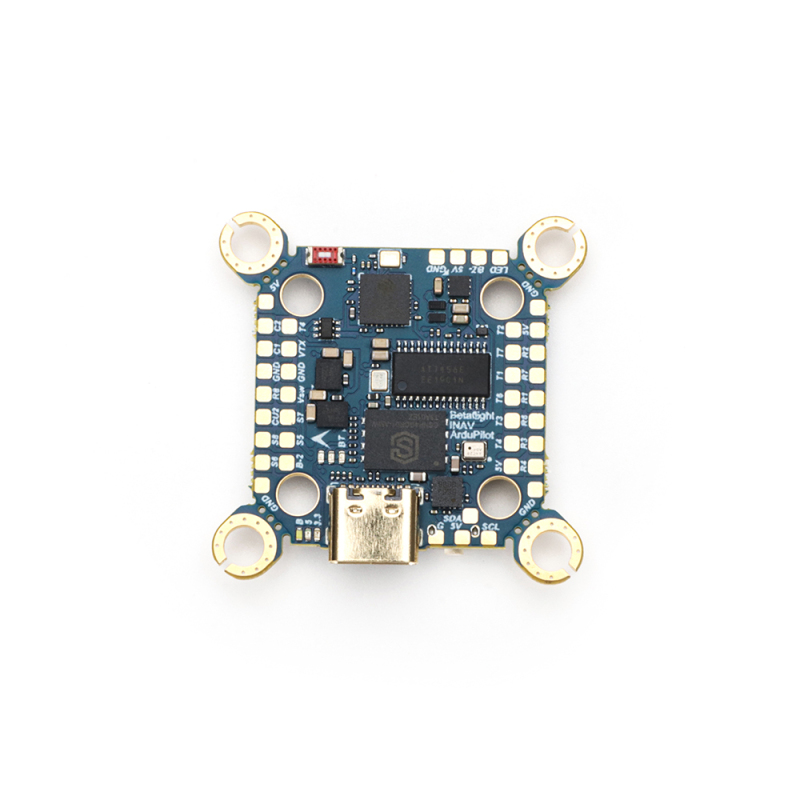

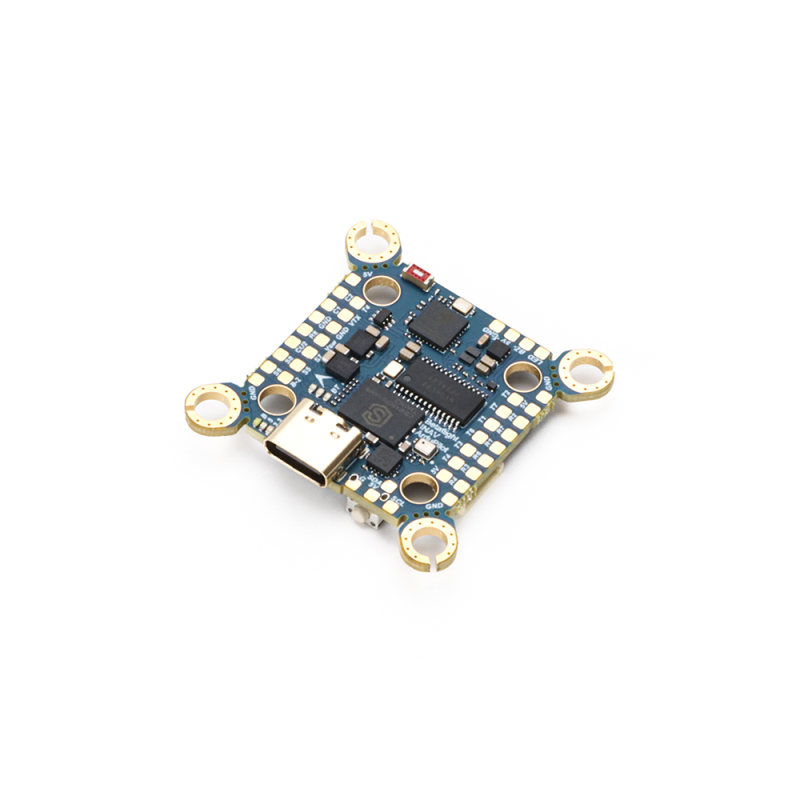

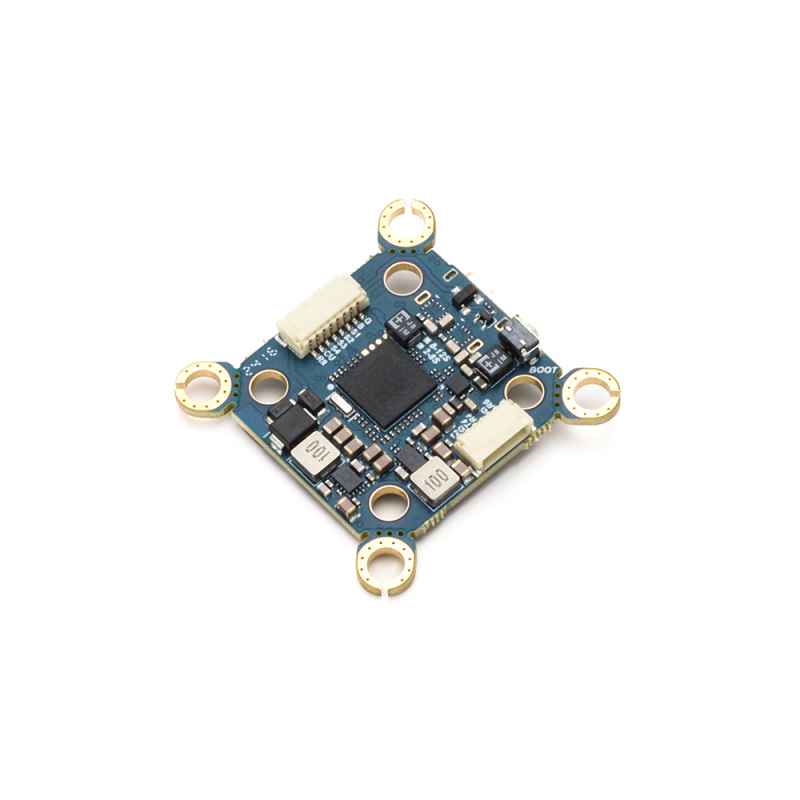

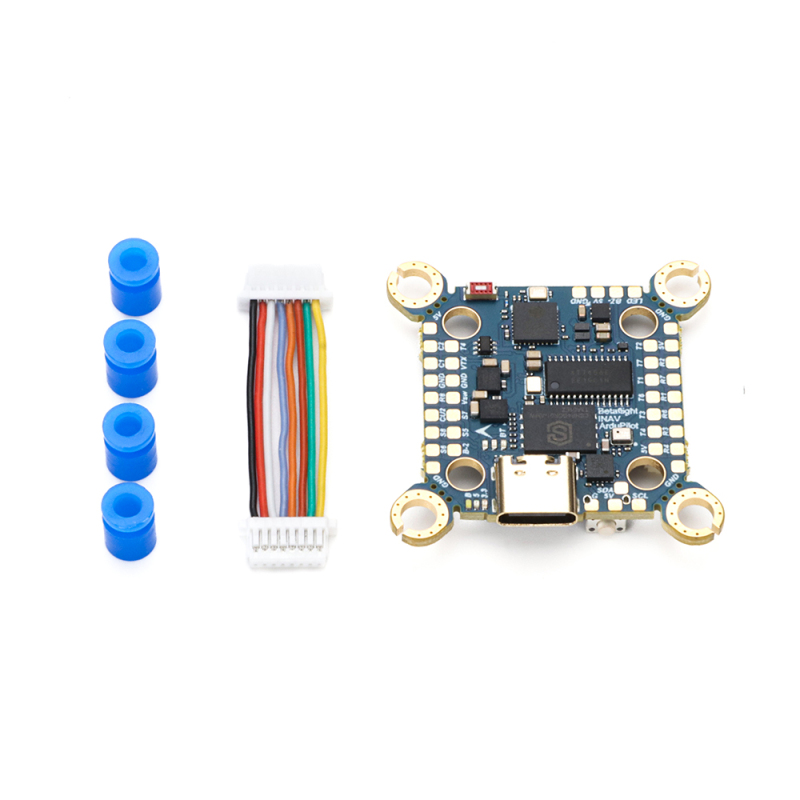

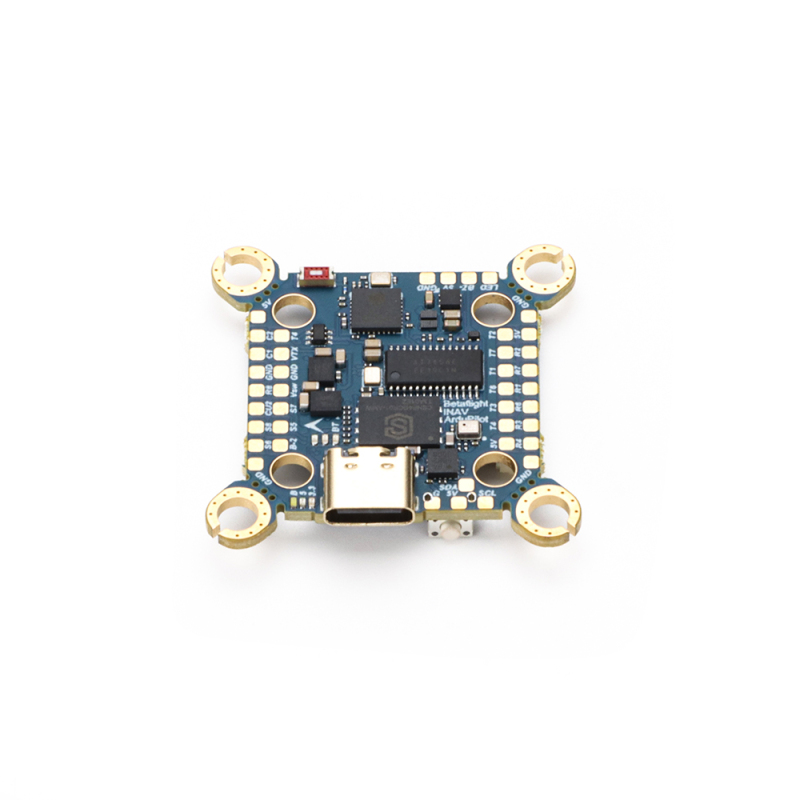

The NeutronRC H743 Mini control board is designed with high performance and adaptability in mind for FPV drones.
NeutronRC H743 Mini features
- It uses a powerful STM32H750 processor with high operating frequency to ensure fast data processing and system response.
- Dual gyro ICM42688+ICM42605
- Dual BEC 5V 2.5A and 12V 2.5A
- Connector for connecting DJI O3 unit etc…
- Support for two cameras with switching on the transmitter
- Bluetooth Technology Allows easy configuration and setup via mobile apps without the need for a direct wired connection.
- DShot1200 protocol support offers highly efficient and fast communication with ESC for immediate response to control signals.

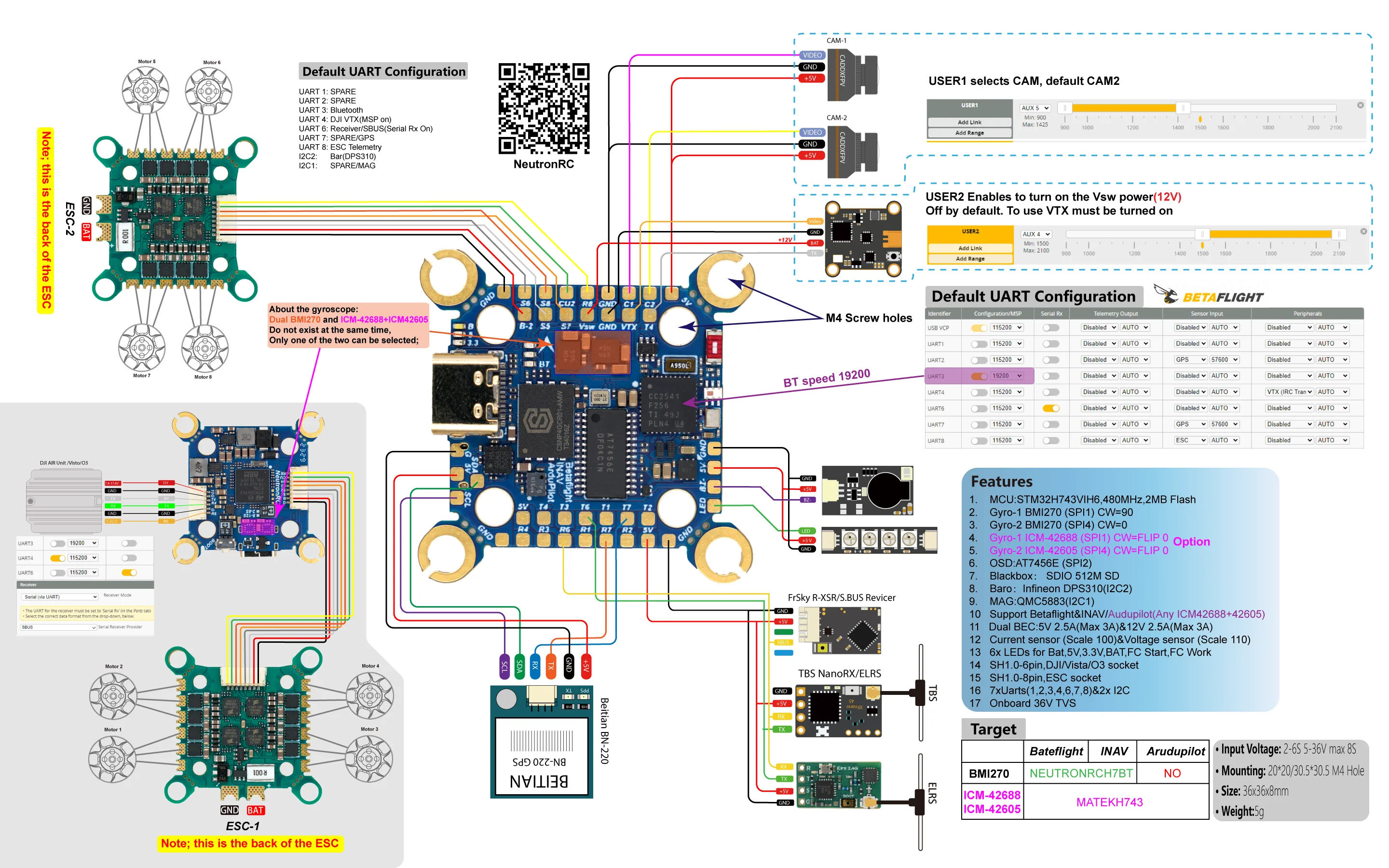

- Includes 7 UART ports , allowing connection of various external devices such as GPS, telemetry systems, and more.
- Fully compatible with Betaflight and INAV
- OSD Support
- Input voltage 2-8S 5-36V
- Mounting holes 20x20mm and 30.5×30.5mm
- Dimensions 36x36x8mm
- Weight 5g.
