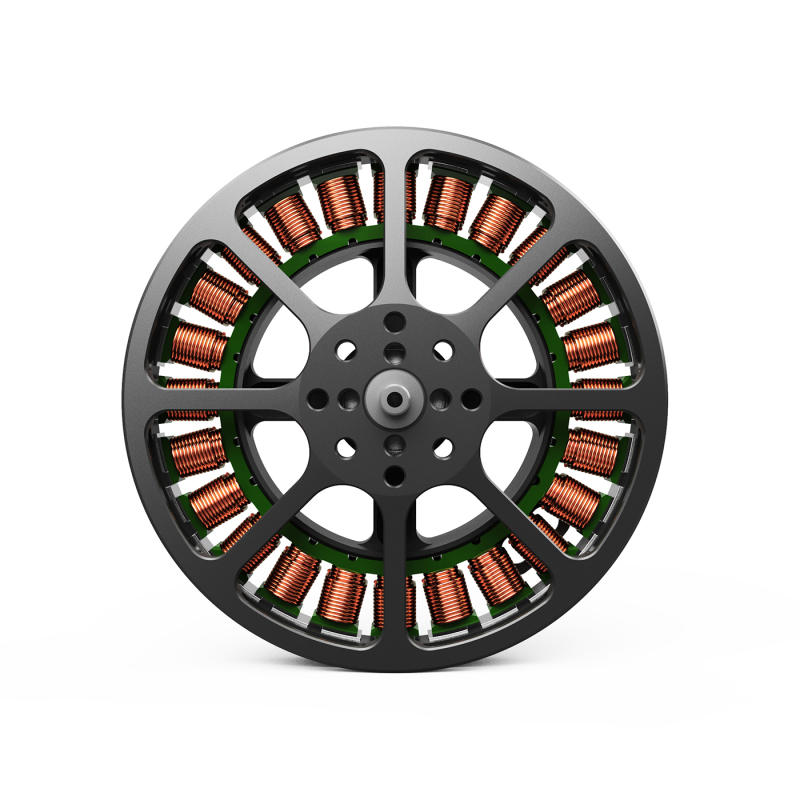

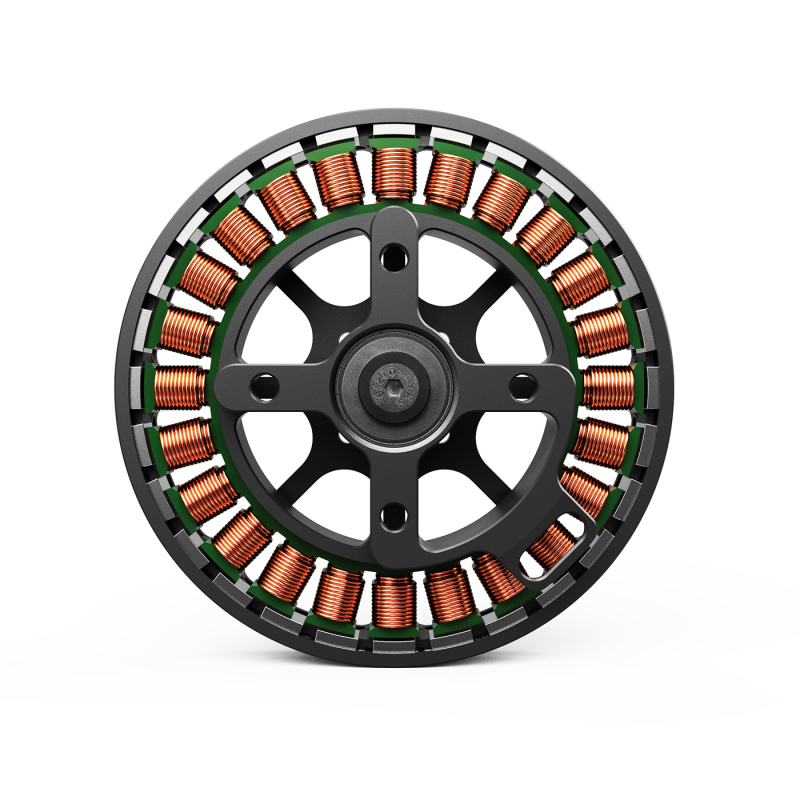

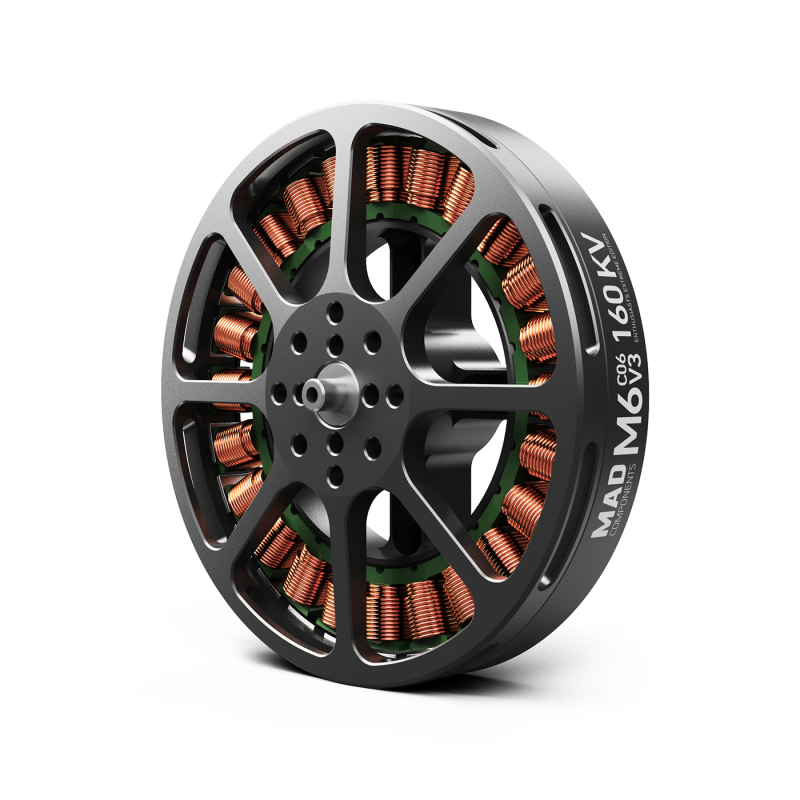

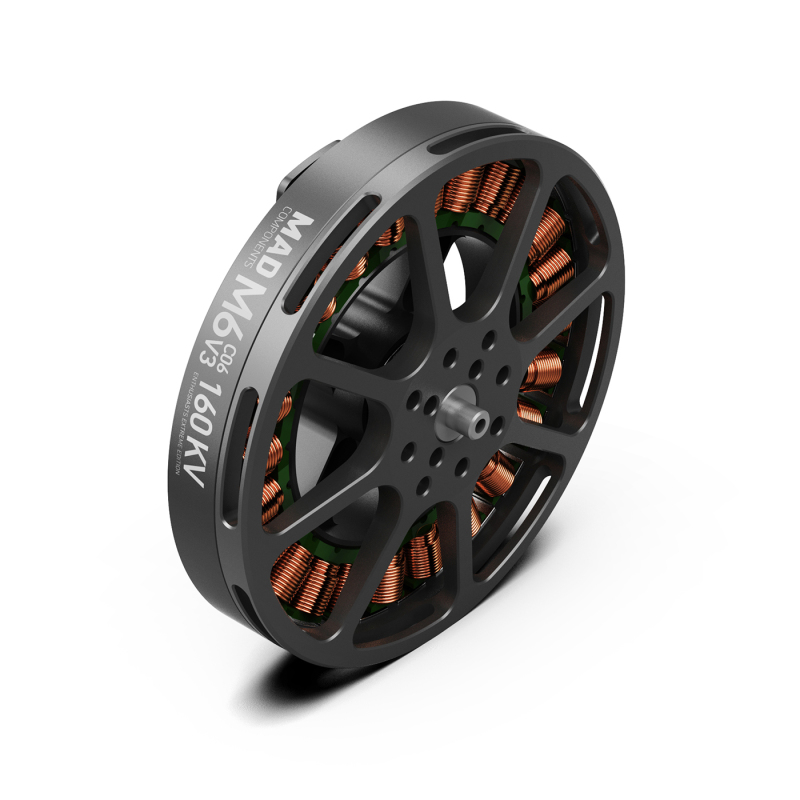

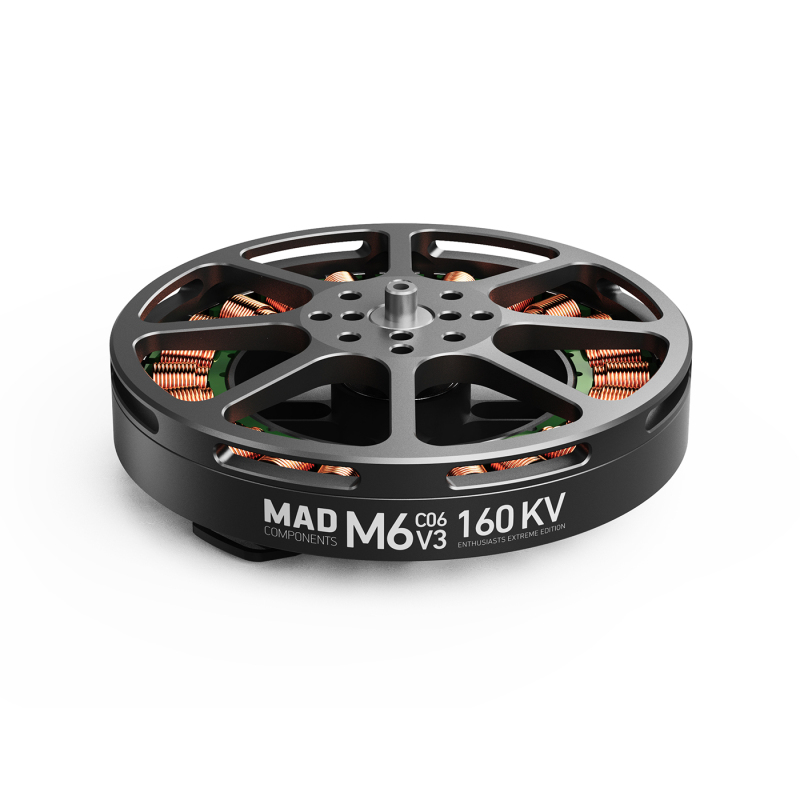

Antimatter M6C06 EEE V3 Drone Motor
SKU: 0101DJ2350
| Sustained thrust: | 2~3kg |
| Max thrust: | 5.8kg |

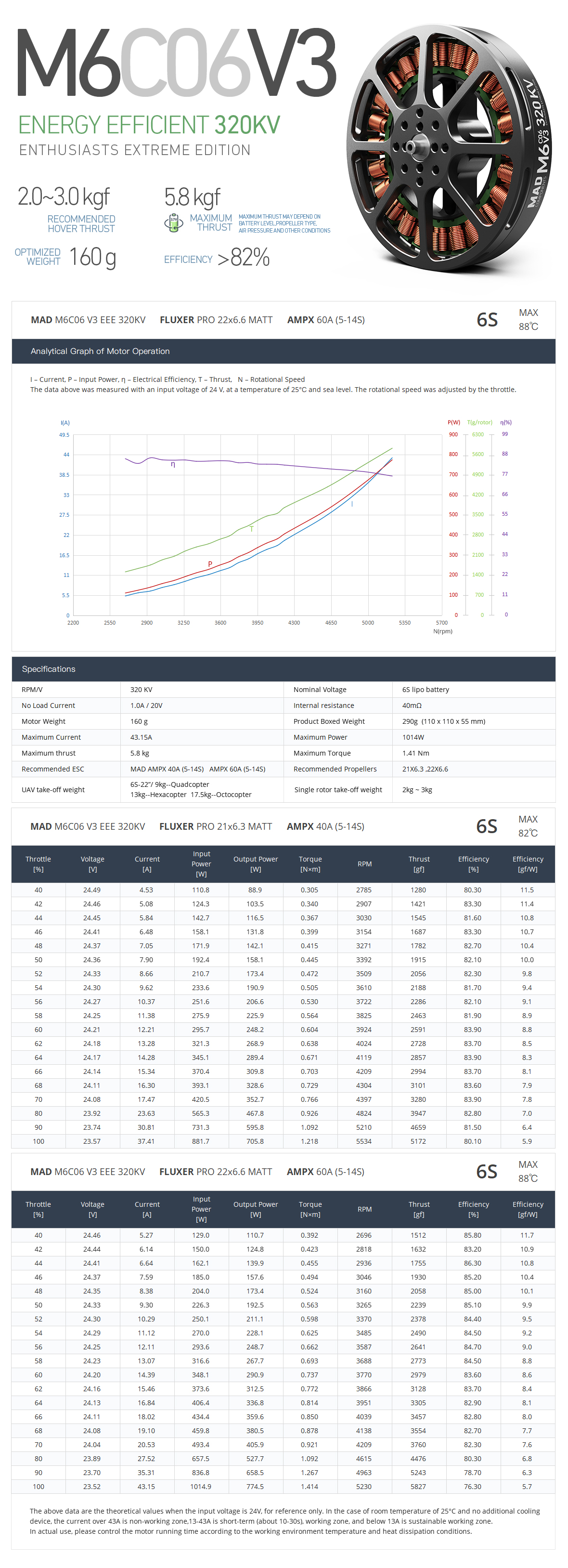

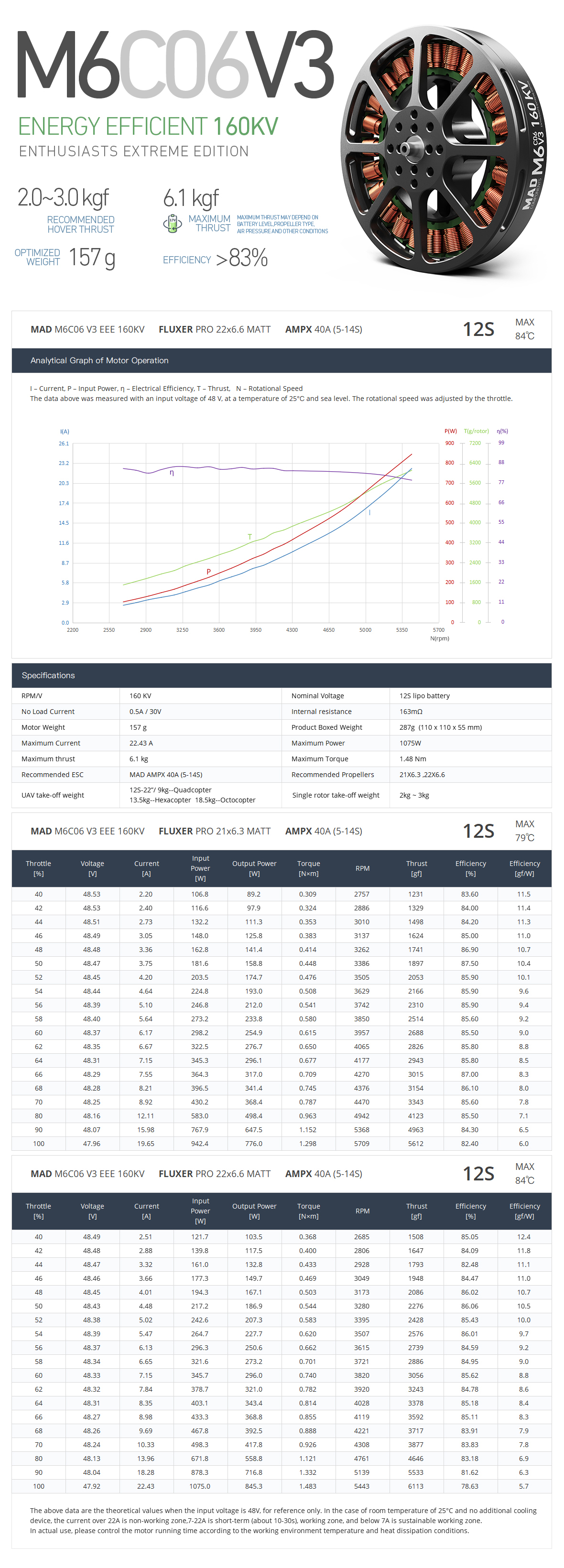

| Support voltage: | 320KV/6S, 160KV/12S |
| Weight: | 157g,160g |
$99.00
| Sustained thrust: | 2~3kg |
| Max thrust: | 5.8kg |
| Support voltage: | 320KV/6S, 160KV/12S |
| Weight: | 157g,160g |
• A lightweight yet powerful motor optimized for 2–3 kg single-axis payloads.
• Designed for stable performance with 21–22 inch carbon fiber propellers.
• Ideal for mid-sized drones requiring a balance of thrust, efficiency, and weight.
Key Features:
✔ Supports dual voltage configurations: 320KV/6S and 160KV/12S.
✔ Delivers up to 5.8 kg thrust per axis with only 160g motor weight.
✔ Compatible with multiple ESCs including XROTOR Pro 60A, AMPX 60A, and FOC 60A14S.
Perfect for:
• Multirotor platforms with medium payload requirements.
• Aerial photography drones needing quiet, stable lift.
• Builders optimizing for both efficiency and flight endurance.
| Specification |
|||||||||
| Motor Model |
MAD M6C06 V3 EEE |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:72.1× 22.4 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
60 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4,D:18 M3×4,D:20 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 4 mm |
Motor Mounting Holes |
D:32 M4×4 | ||||||
| Bearing | 696ZZ*2 |
Disruptive test |
500 V |
||||||
