| Sustained thrust: | 4~6kg |
| Max thrust: | 15.5kg |
| Support voltage: | 140KV/12S, 220KV/ 12S |
| Weight: | 450g, 454g |
Positioning:
• Heavy-duty motor designed for manned or industrial-grade UAVs
• Ideal for hexacopters, octocopters, firefighter drones, and tethered drone systems
• Supports 12S voltage and 4–6 kg single-axis payloads with 26–27 inch carbon fiber propellers
Key Features:
✔ Delivers up to 15.5 kg maximum thrust per axis
✔ Motor weight: 450g
✔ Compatible with high-load, high-stability aerial platforms.
Perfect for:
• Firefighting and rescue drones.
• Tethered or industrial-grade UAVs with heavy payload requirements.
Motor Data |
|||

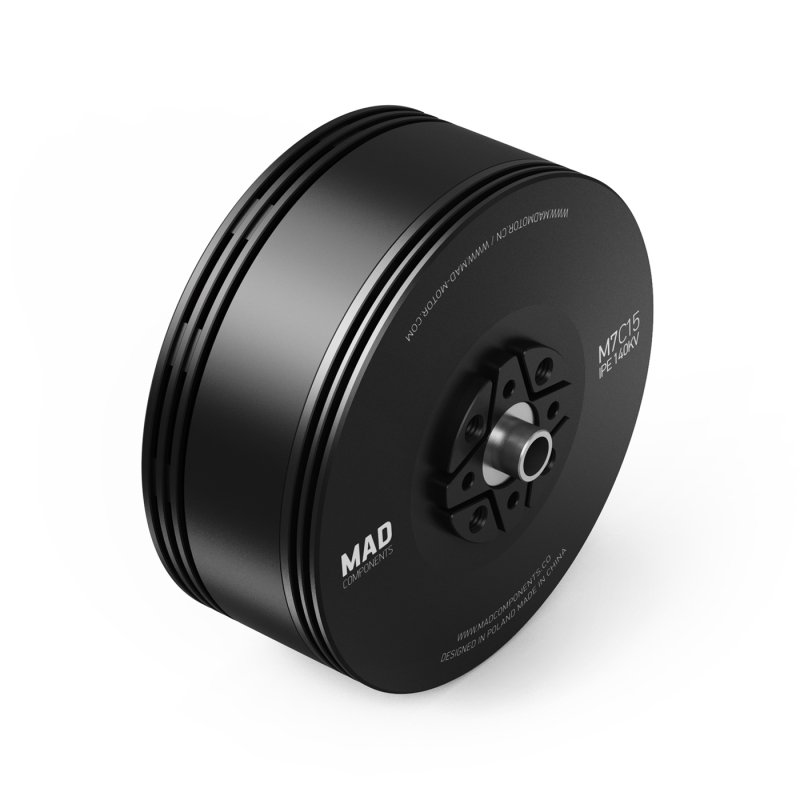

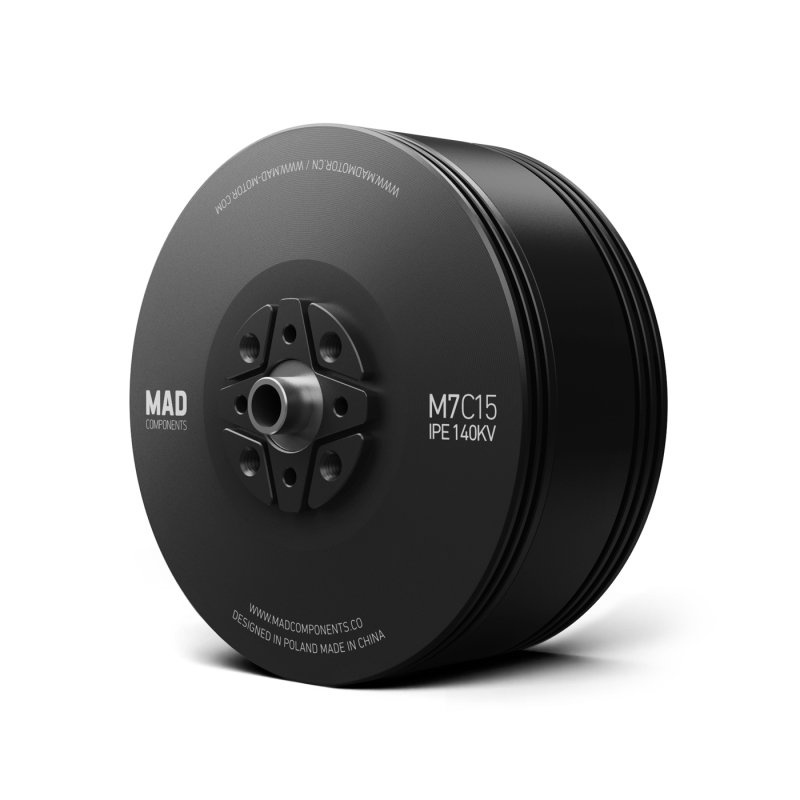

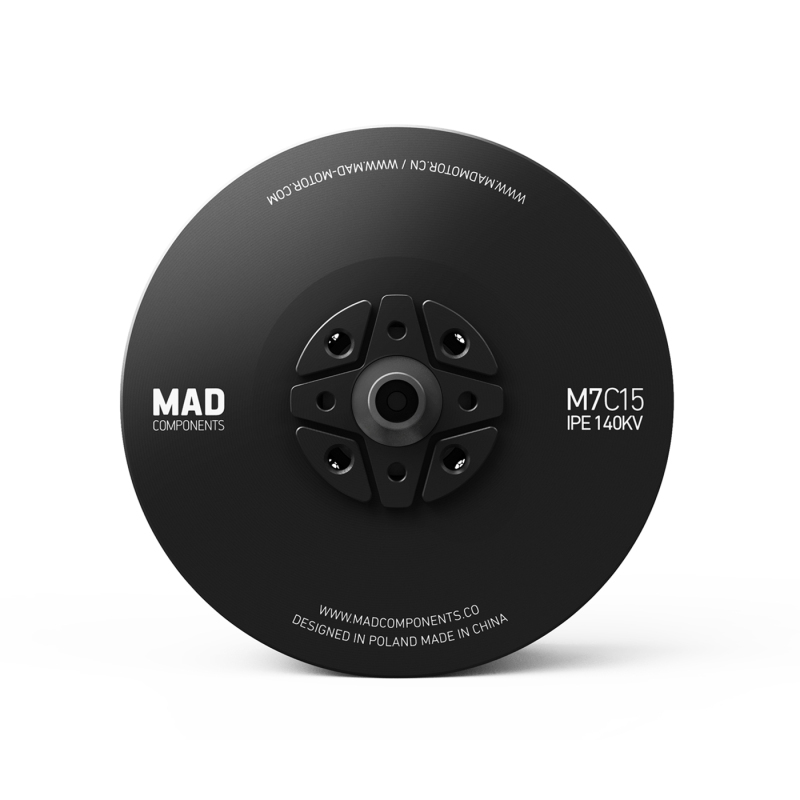

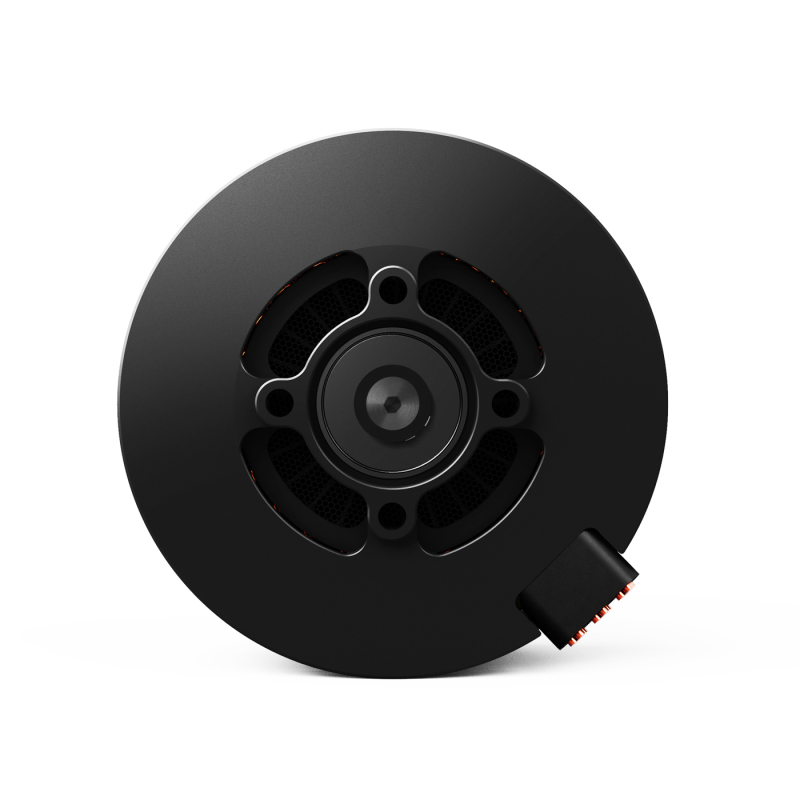

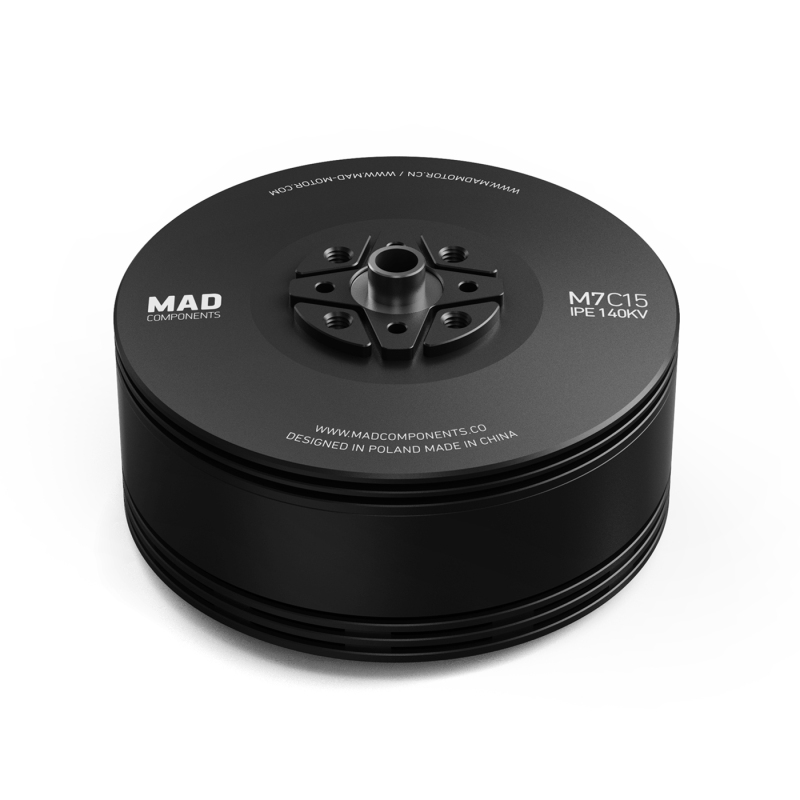

| Motor Model | MAD M7C15 IPE V2.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:79.2 × 42.7 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 150 mm 14# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×8, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 8 mm | Motor Mounting Holes | D:32 M4×4 |
| Bearing | NSK 608ZZ *2 | Disruptive test | 500 V |
