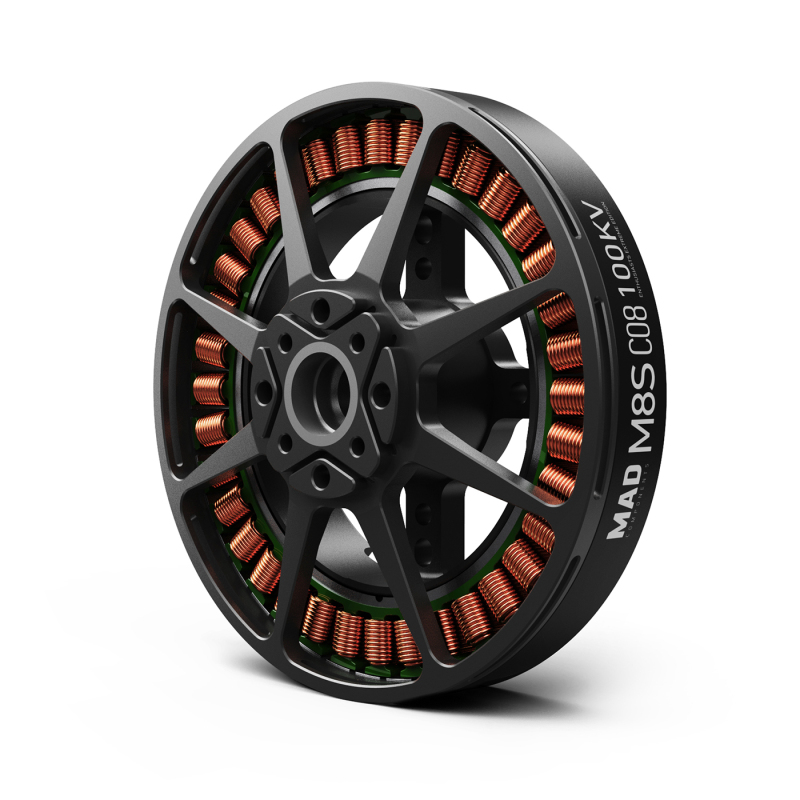

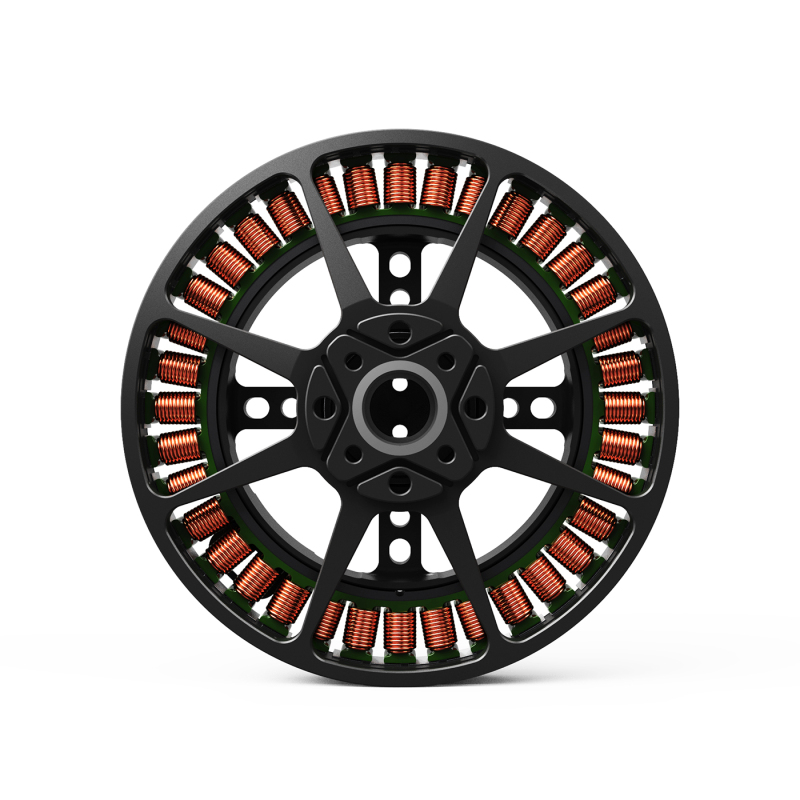

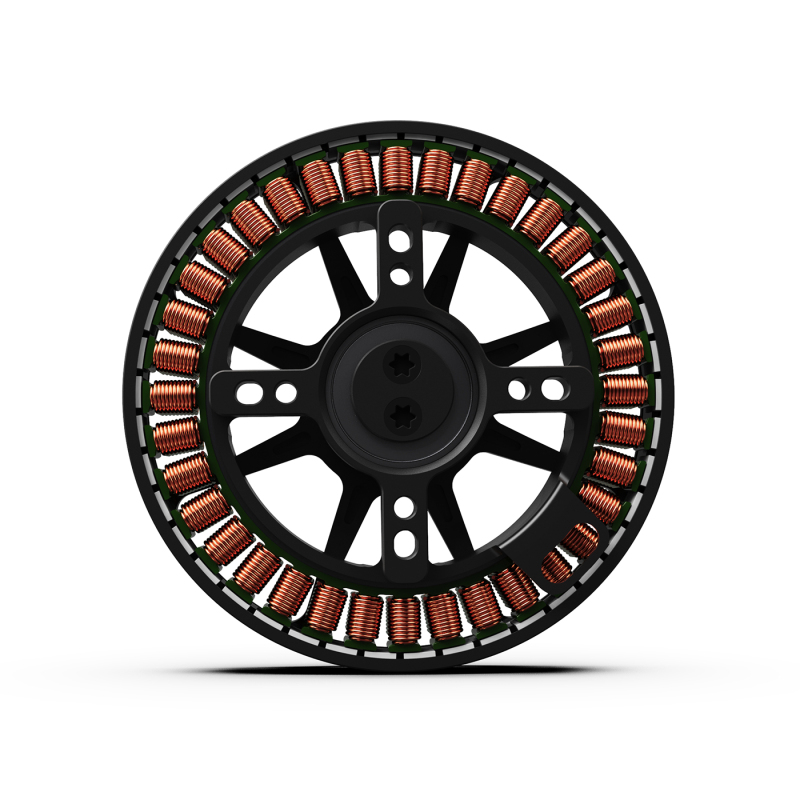

M8S C08 (8108) EEE V1 brushless drone motor
| Sustained thrust: | 2~3kg |
| Max thrust: | 8.9kg |
| Support voltage: | 100KV/12S |
| Weight: | 283g |
$269.00
| Sustained thrust: | 2~3kg |
| Max thrust: | 8.9kg |
| Support voltage: | 100KV/12S |
| Weight: | 283g |
Positioning:
• A flagship model based on the classic 8108 UAV motor architecture
• Widely used in high-end aerial photography, exploration, archaeology, and remote sensing applications
• Optimized for endurance flights ranging from 30 to 120 minutes
• Designed for 3–4 kg single-axis payloads with 27–28 inch carbon fiber propellers
Key Features:
✔ Up to 8.9 kg thrust per axis
✔ Lightweight at 252g
✔ Latest-generation EEE version for improved efficiency and reduced weight
✔ Engineered for long-endurance, stable operation across diverse missions
Perfect for:
• Drones focused on long-range aerial imaging and mapping
• Builders seeking a refined, efficient upgrade of the 8108 motor class

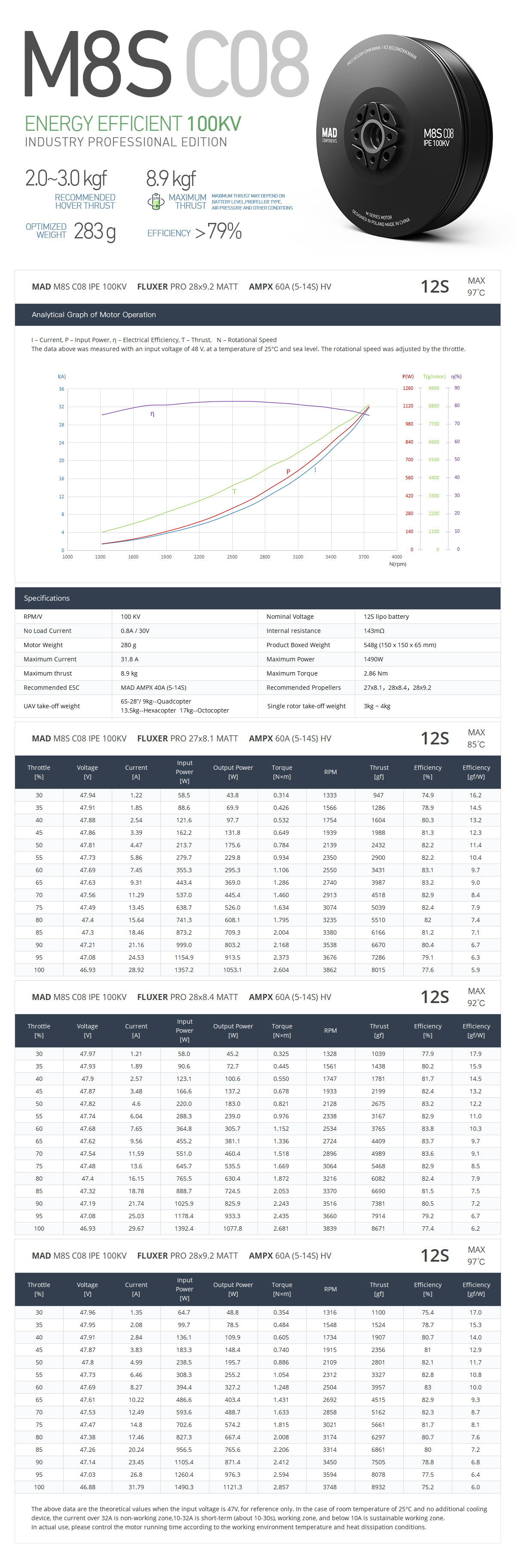

Motor Data |
|||
| Motor Model | MAD M8S C08 EEE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:87.3 × 26.75 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 80 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:36 M4×4 |
| Bearing | EZO 6901ZZ*2 | Disruptive test | 1000 V |
