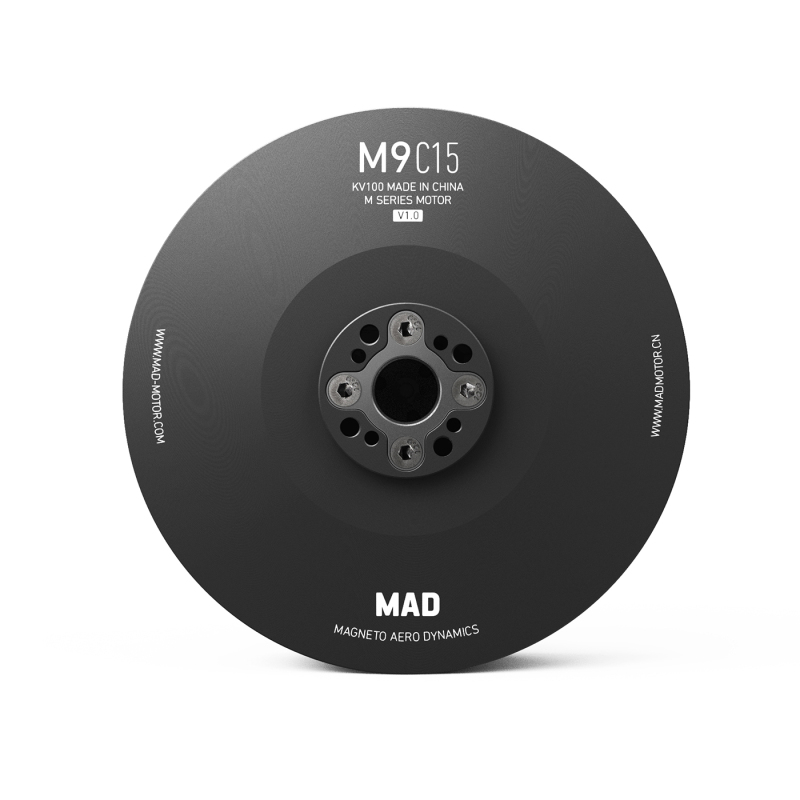

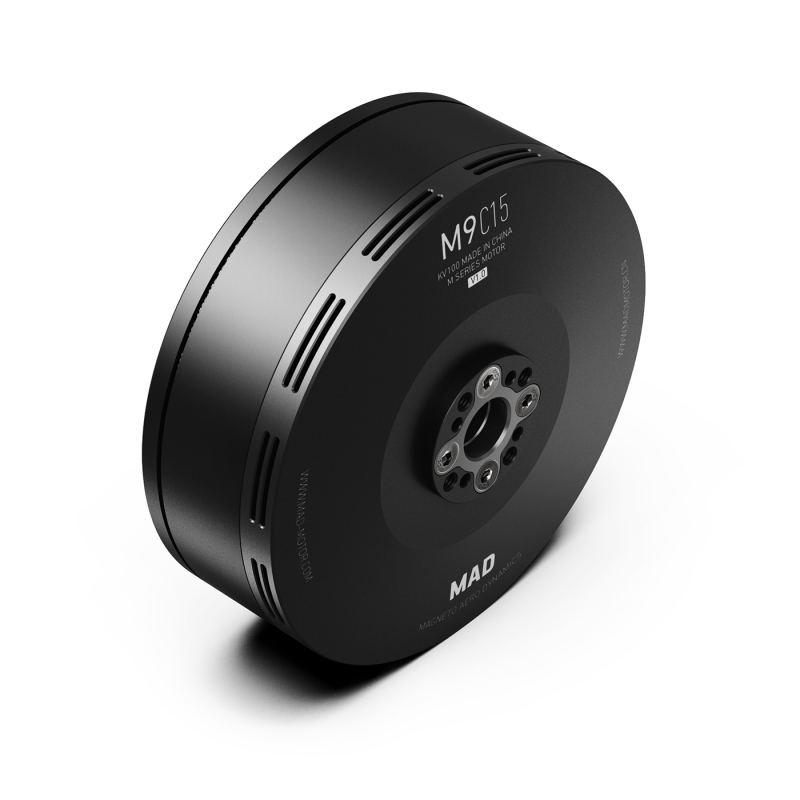

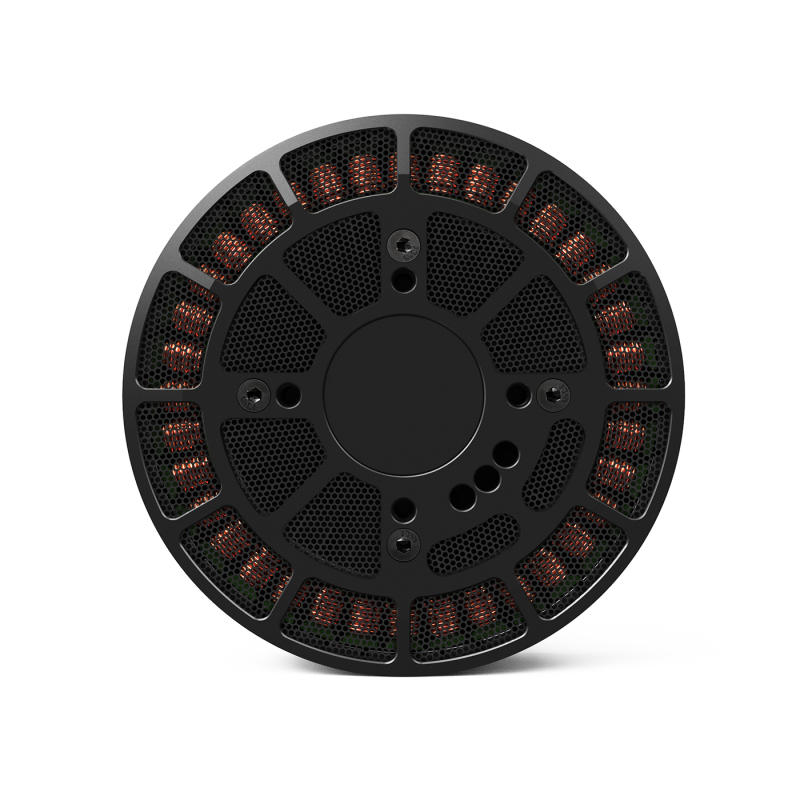

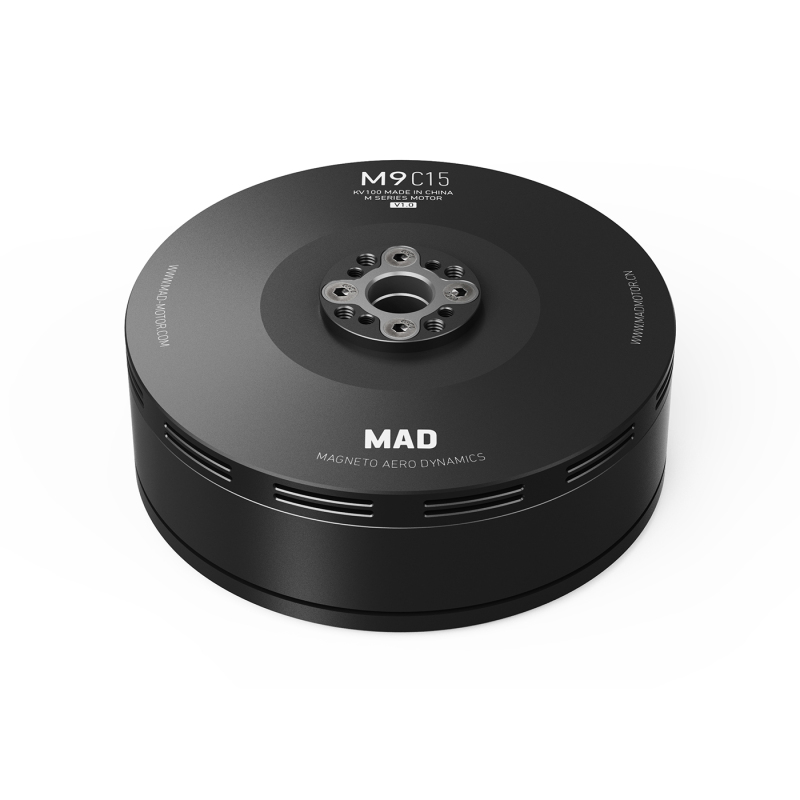

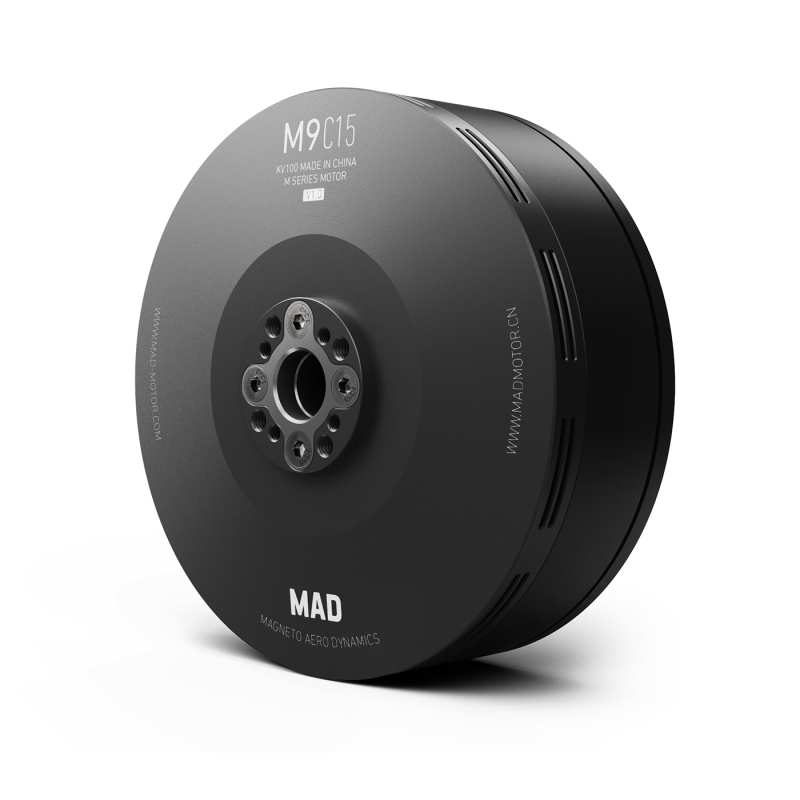

M9C15 IPE V1.0 Drone Motor
SKU: 0101DJ1476
| Sustained thrust: | 6~8kg |
| Max thrust: | 17.7kg |
| Support voltage: | 100KV/12S |
| Weight: | 595g |
$289.00
1/1
| Sustained thrust: | 6~8kg |
| Max thrust: | 17.7kg |
| Support voltage: | 100KV/12S |
| Weight: | 595g |
Positioning:
• Built for 6–8 kg single-axis payloads with 34–36 inch carbon fiber propellers
• Designed for ultra-high thrust demands with low energy consumption
• Ideal for heavy-duty UAV applications requiring efficiency, power, and mechanical strength
Key Features:
✔ Maximum thrust up to 17.7 kg per axis
✔ Motor weight: 600g
✔ Advanced 36N42P motor core design for smoother torque output
✔ Constructed with 7075-T6 aviation-grade aluminum
✔ Reinforced steel shaft for added strength and durability
✔ Optimized via magnetic flux density and magnetic inclusion simulation
Perfect for:
• Heavy-lift drones using 34–36 inch carbon props
• Industrial UAV platforms with 6–8 kg rotor load

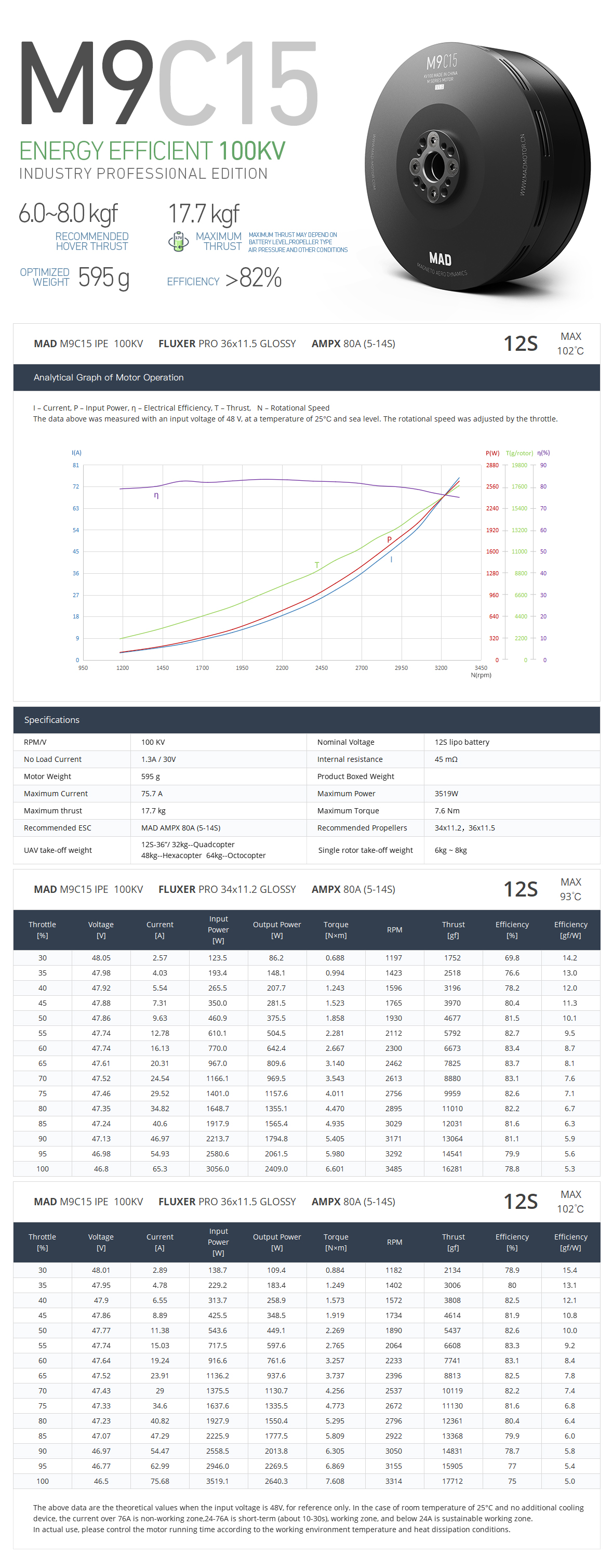

| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD M9C15 IPE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:98.5 × 38.75 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 100mm 14# Awg (Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:40 M4×4 |
| Bearing | 6902*2 | Disruptive test | 500 V |
