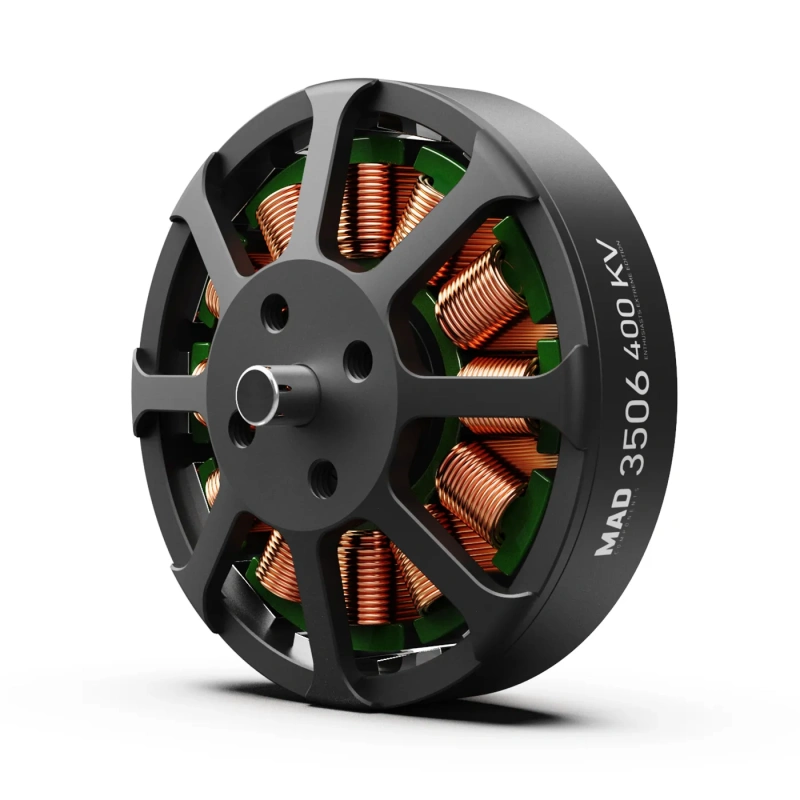

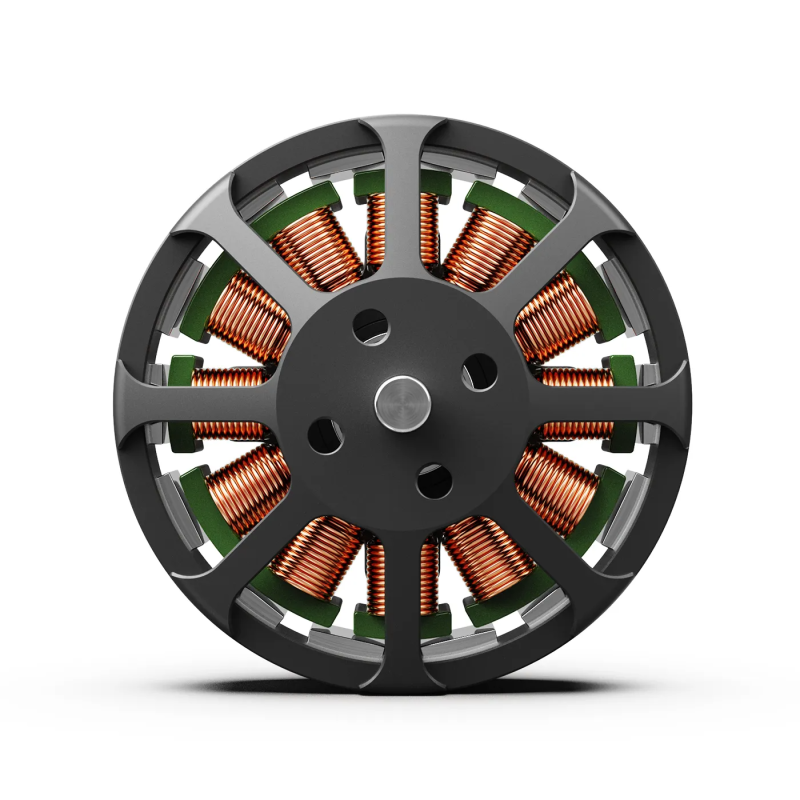

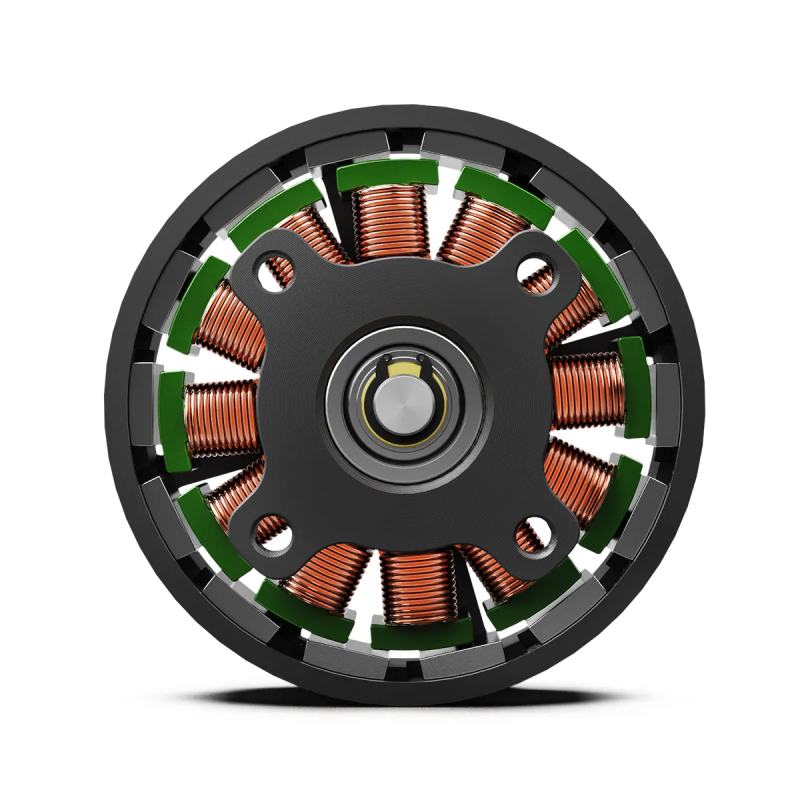

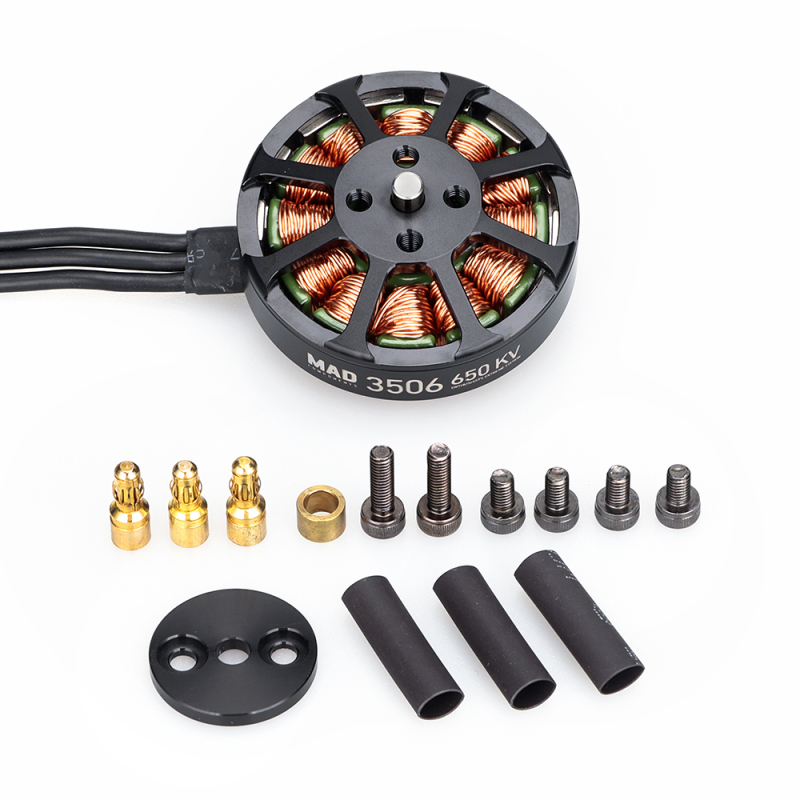

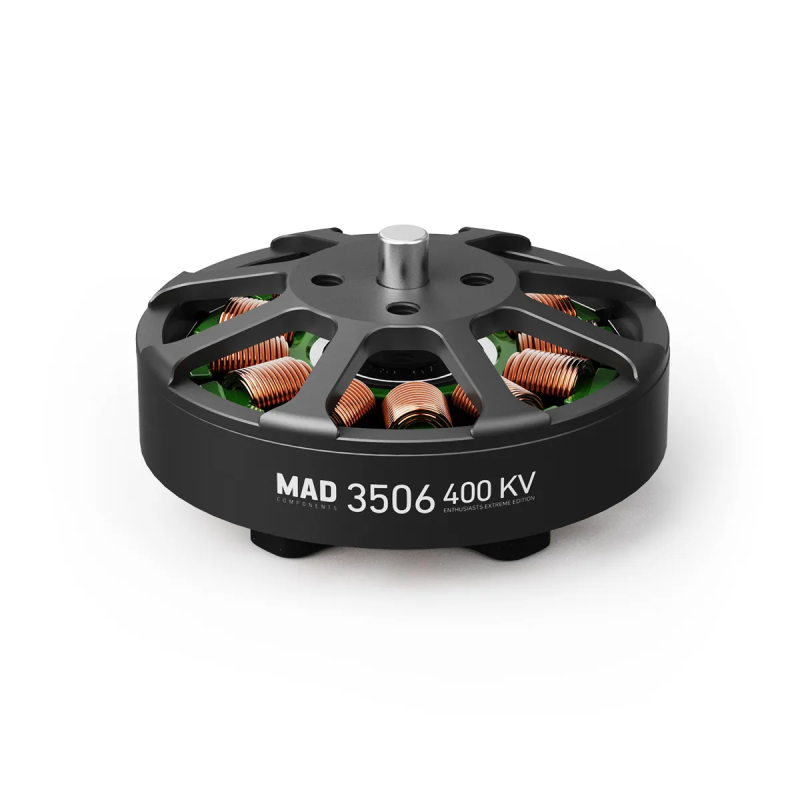

3506 EEE brushless drone motor

SKU: 0101DJ0578
It is widely used for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor.
MAD 35 series motors are the classic UAV motors for small to medium industrial use, efficient and for long endurance flights. These sizes of motors have been on the market for 10 years, MAD Components has optimised them to be very lightweight.
$0.00 $52.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    400KV
    460KV
    650KV
  • Packing way:
    1Pc
    2Pcs
    Please select the information you wantX
Quantity
-
+
Download
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 3506 EEE brushless drone motor
  • 3506 EEE brushless drone motor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 3506 EEE brushless drone motor
  • 3506 EEE brushless drone motor
1/1
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 3506 EEE brushless drone motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 3506 EEE brushless drone motor
  • 3506 EEE brushless drone motor
  • Description
  • 400KV
  • 460KV
  • 650KV

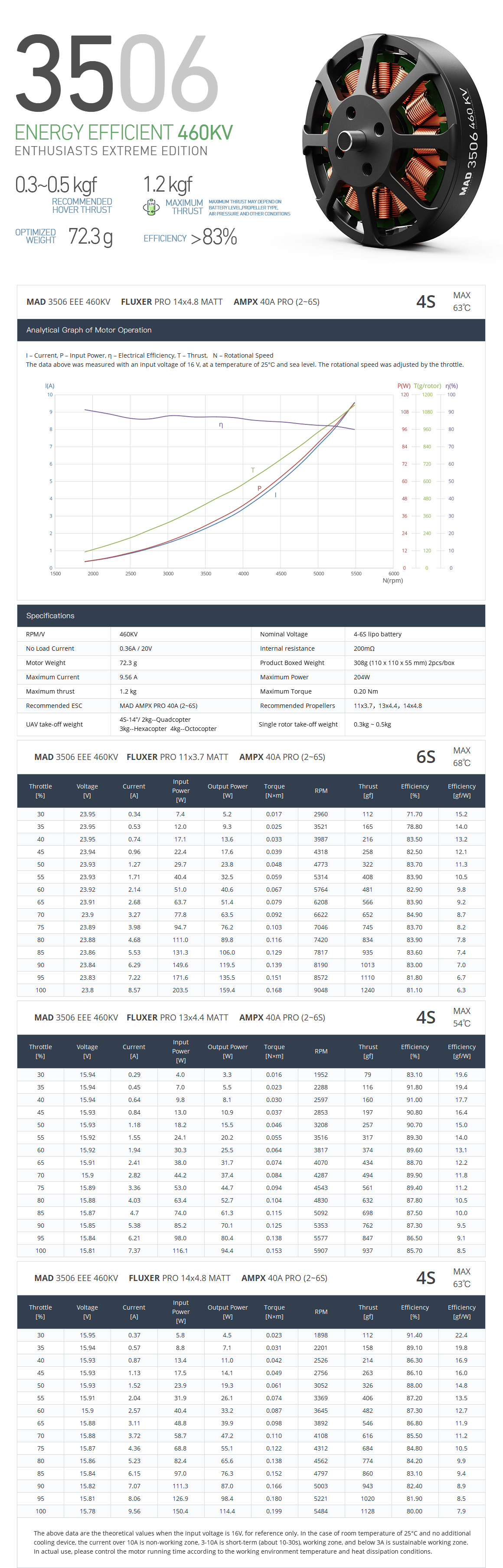

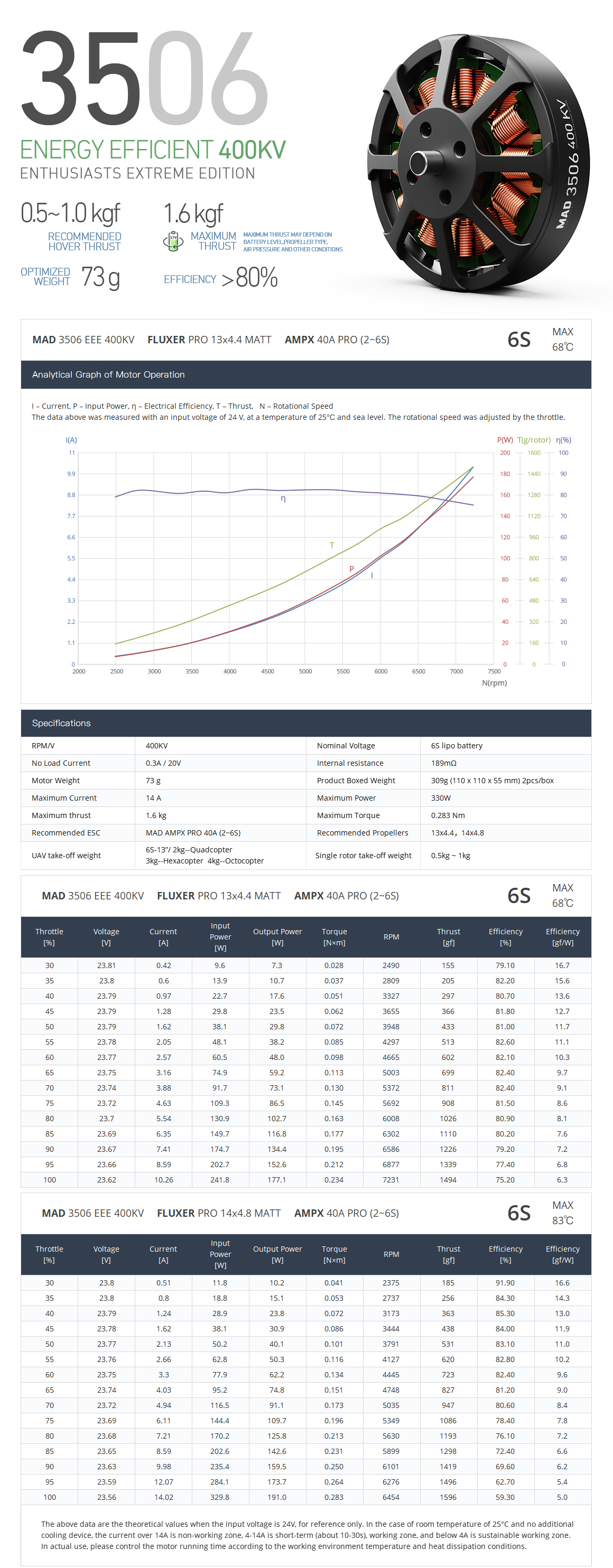

Motor Data

Motor Model MAD 3506 EEE V1.0 Number of pole pairs 7
Stator Anticorrosive Varnished wire Degree 150°C
Motor Size D:42.5 × 23.8 mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 4 mm Motor Mounting Holes D:25 M3×4
Bearing 694ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
