4006 IPE Drone Motor 380KV/740KV

SKU: 0101DJ0893
$0.00 $68.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    380KV
    740KV
  • packing way:
    1PC
    2PCS
    Please select the information you wantX
Quantity
-
+
Download
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 4006 IPE Drone Motor 380KV/740KV
  • 4006 IPE Brushless Drone Motor
  • 4006 IPE Brushless Drone Motor
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 4006 IPE Drone Motor 380KV/740KV
  • 4006 IPE Brushless Drone Motor
  • 4006 IPE Brushless Drone Motor
1/1
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 4006 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 4006 IPE Drone Motor 380KV/740KV
  • 4006 IPE Brushless Drone Motor
  • 4006 IPE Brushless Drone Motor
  • Description
  • 380KV
  • 740KV

About 4006 IPE

  • Payload Range: 550–1100g/rotor

  • Propeller Match: 13–16" high-performance carbon fiber

  • Max Thrust: 2200g (2.2kg) per motor

  • Weight: 79g

    Recommended Applications

    • Cinematic Heavy Lifters
      ▶ Supports ARRI Mini LF + O3 Air Unit (total 1.8kg)
      ▶ Ultra-low vibration (0.005mm RMS)

    • Industrial Mission Platforms
      ▶ 200h maintenance-free operation
      ▶ Compatible with 4S-6S power systems

    • Defense & Security
      ▶ EMI-shielded version available

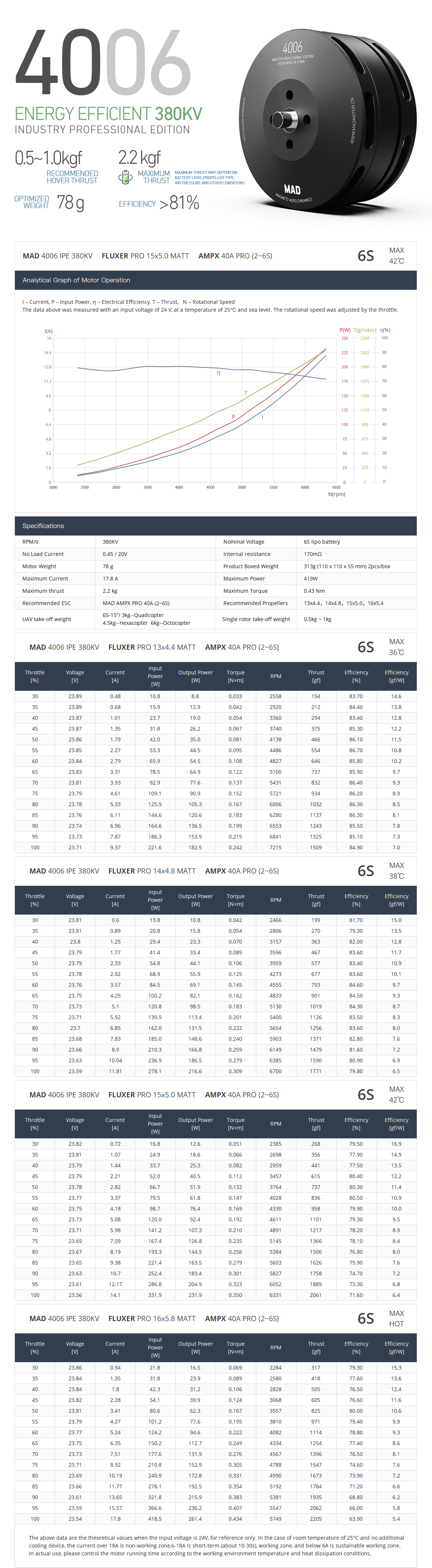

Motor Data

Motor Model MAD 4006 IPE V1.0 Number of pole pairs 12
Stator Anticorrosive Varnished wire Degree 150°C
Motor Size D:44.5 × 24.5mm Magnet Degree 150°C
Degree of Protection IP35 Cable Length 150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 4 mm Motor Mounting Holes D:25 M3×4
Bearing  NSK 694ZZMC3*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
