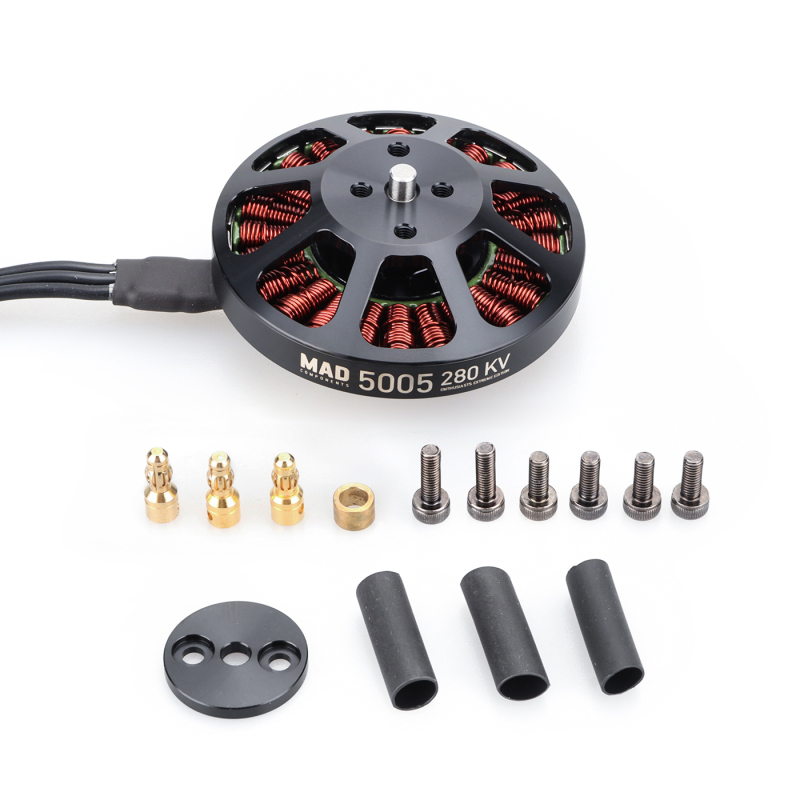

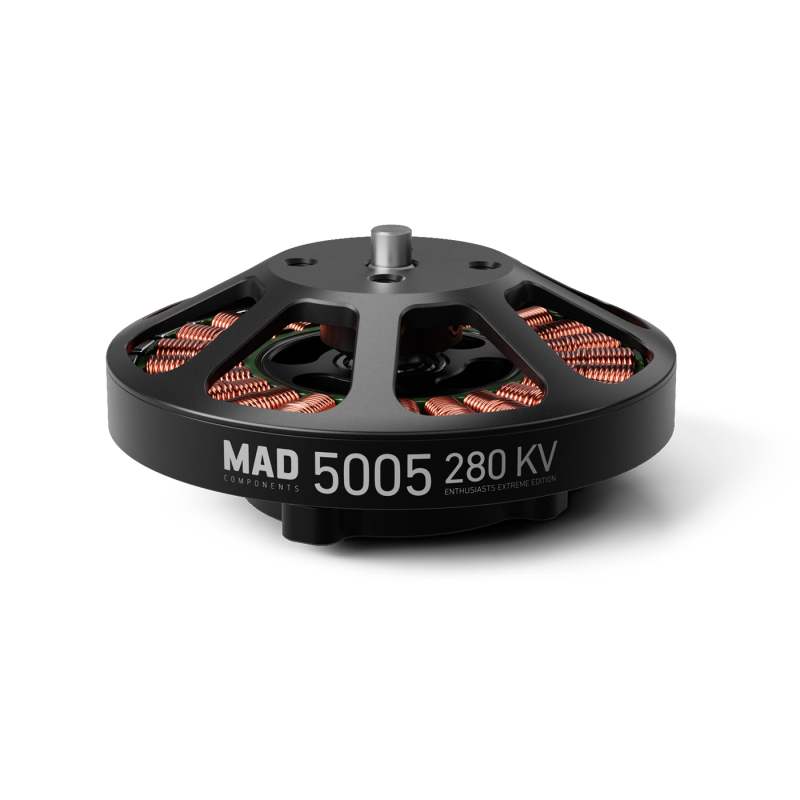

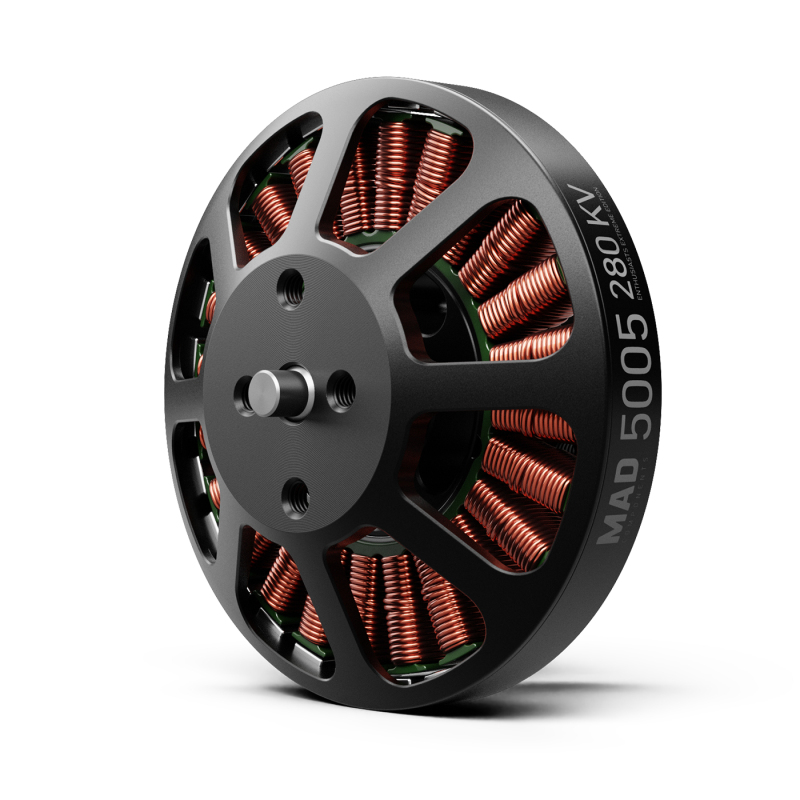

5005 EEE Drone Motor
SKU: 0101DJ0284
| Sustained thrust: | 0.5~1.5kg |
| Max thrust: | 3kg |
| Support voltage: | 4S;6S |
| Weight: | 88g;90g;92g |
$68.00
| Sustained thrust: | 0.5~1.5kg |
| Max thrust: | 3kg |
| Support voltage: | 4S;6S |
| Weight: | 88g;90g;92g |
⚡ Thrust-Optimized Performance
Continuous Thrust: 500–1500g per motor (Ideal for stable, efficient operation)
Peak Burst Thrust: 92g per rotor (For critical maneuvers or emergency recovery)
Propeller Range: 14–18" carbon fiber or polymer
18" Props: Max efficiency for heavy lifting
14" Props: Agile response for high-speed applications
🛡️ Built for Industrial Durability
Ultralight Design: Just 92g/motor (Reduces dead weight without sacrificing power)
Aerospace-Grade Materials: Precision bearings, reinforced alloy housing
Thermal Resilience: Optimized for sustained high-load operation
✔ Predictable Power Delivery – Stable thrust curves for precise flight control
✔ Mission-Adaptive – Reconfigure propeller sizing for efficiency vs. speed priorities
✔ Overbuilt for Reliability – Withstands vibration, dust, and moisture in harsh environments
Ideal Applications:
Heavy-payload cinematography drones
Industrial inspection UAVs
Agricultural spray systems
Search-and-rescue operations
Engineered to Lift More Than Weight – It Lifts Expectations.

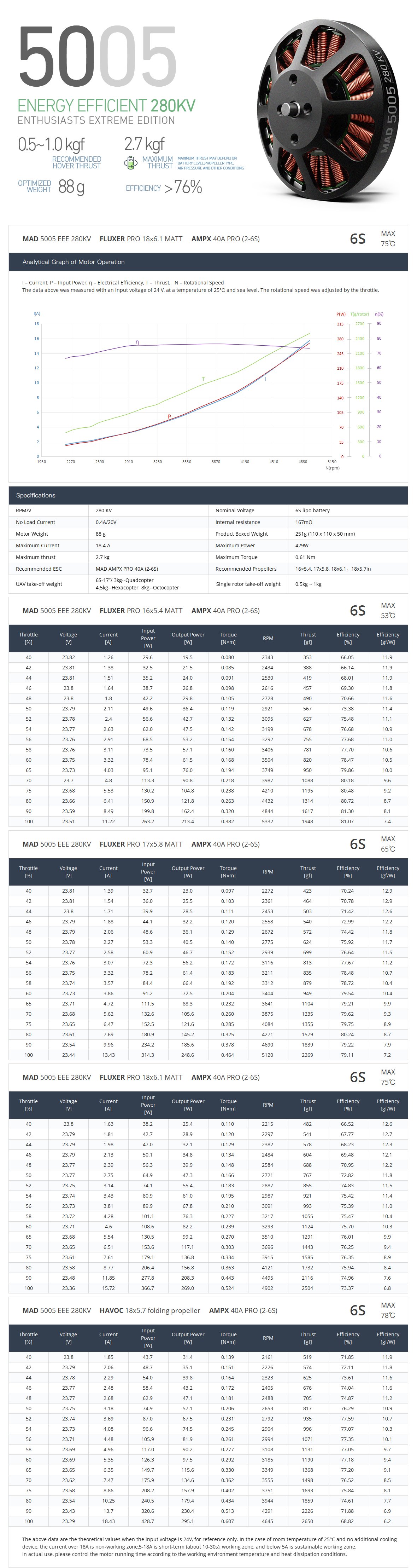

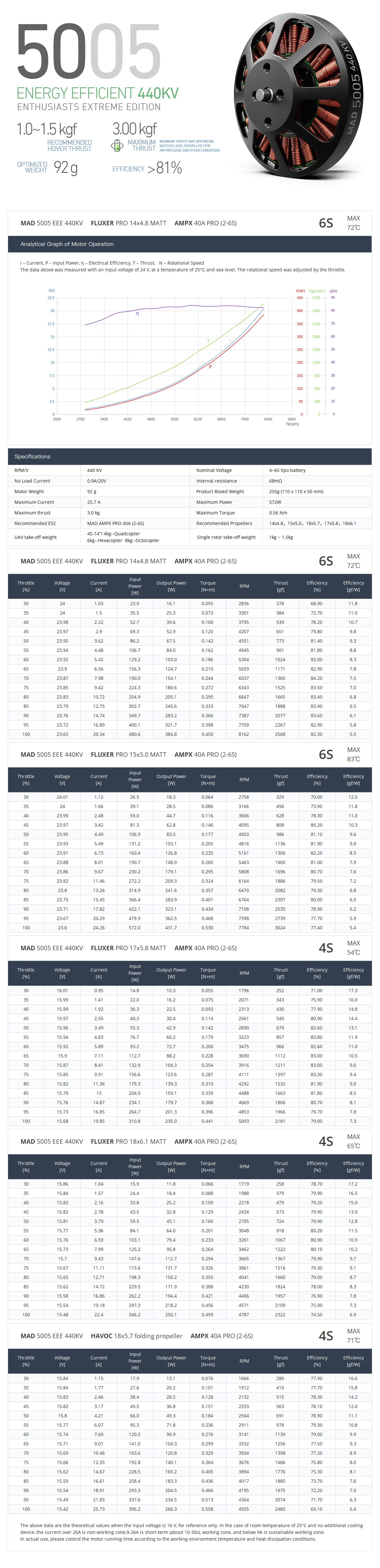

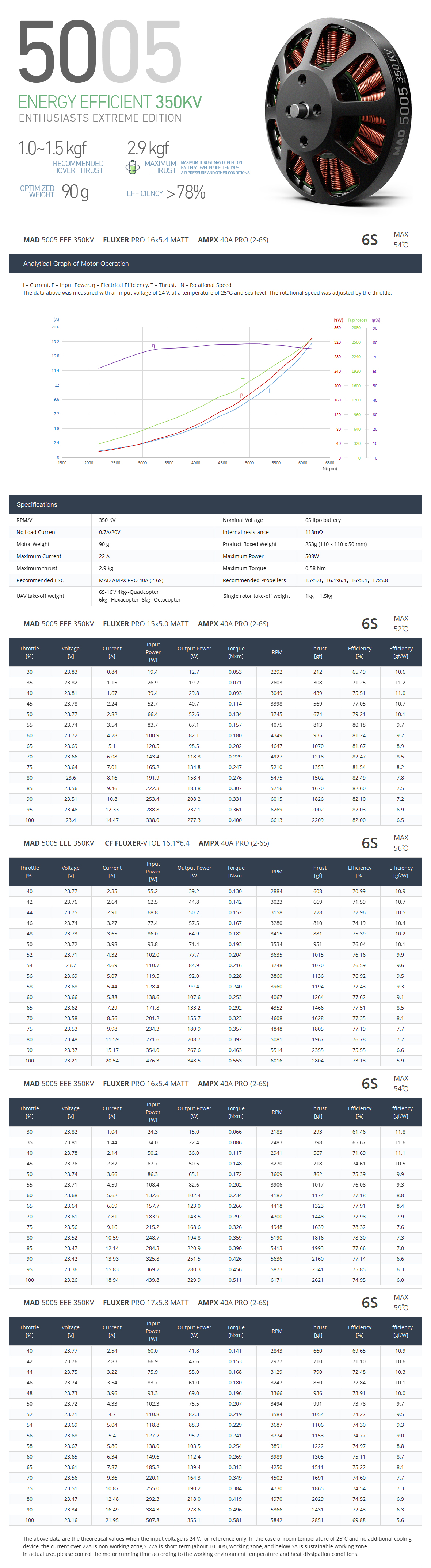

| Specification |
|||||||||
| Motor Model |
MAD 5005 EEE V2.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 27.7 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
150 mm 18# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×2, D:18 M3×2 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 5 mm |
Motor Mounting Holes |
D:25 M3×4, D:30 M3×4 | ||||||
| Bearing | EZO 685ZZ*1 / EZO 695ZZ*1 |
Disruptive test |
500 V |
||||||
