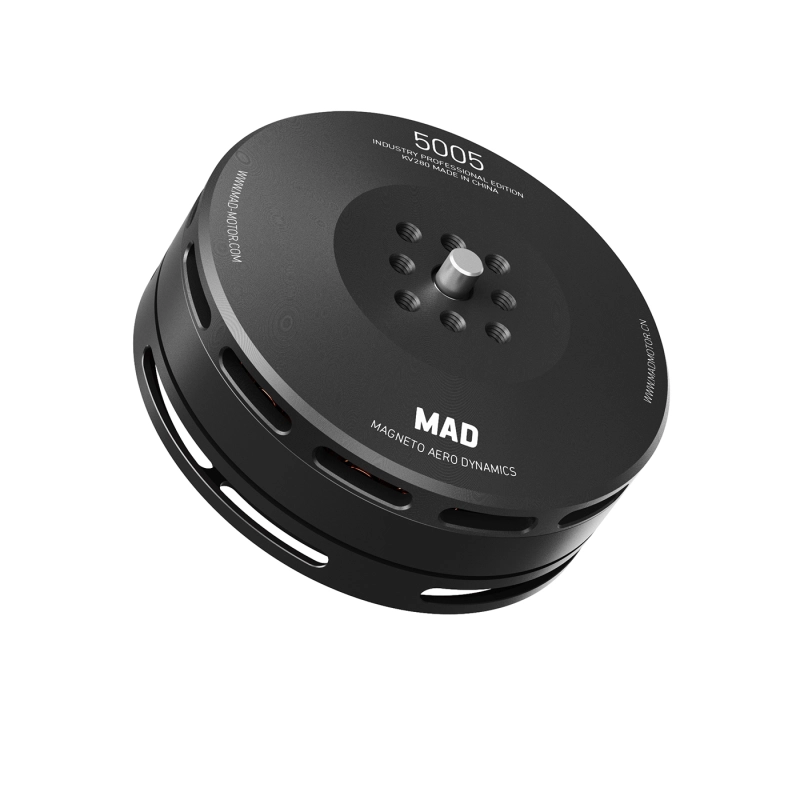

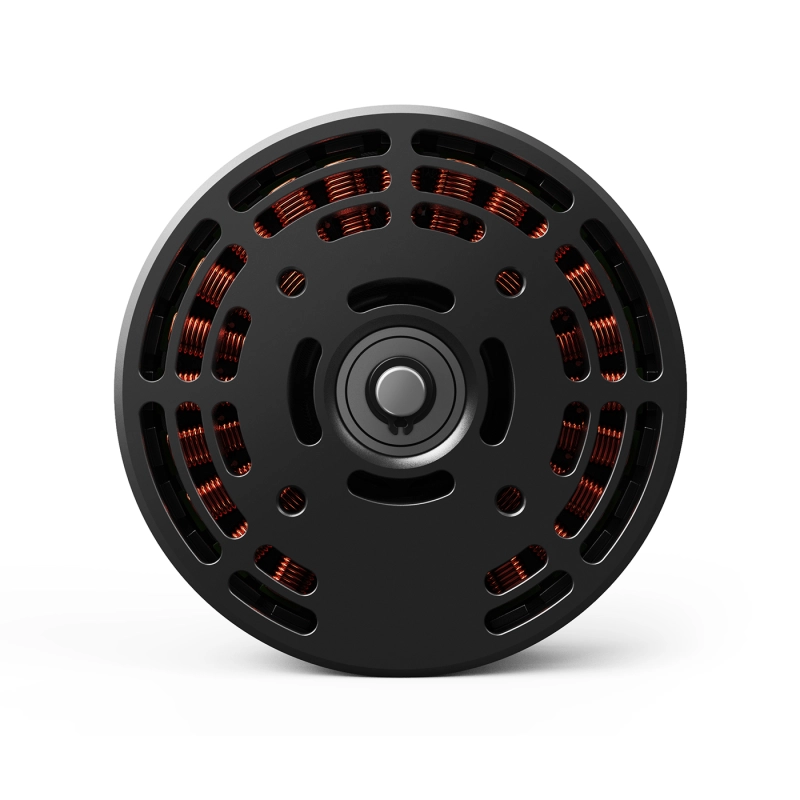

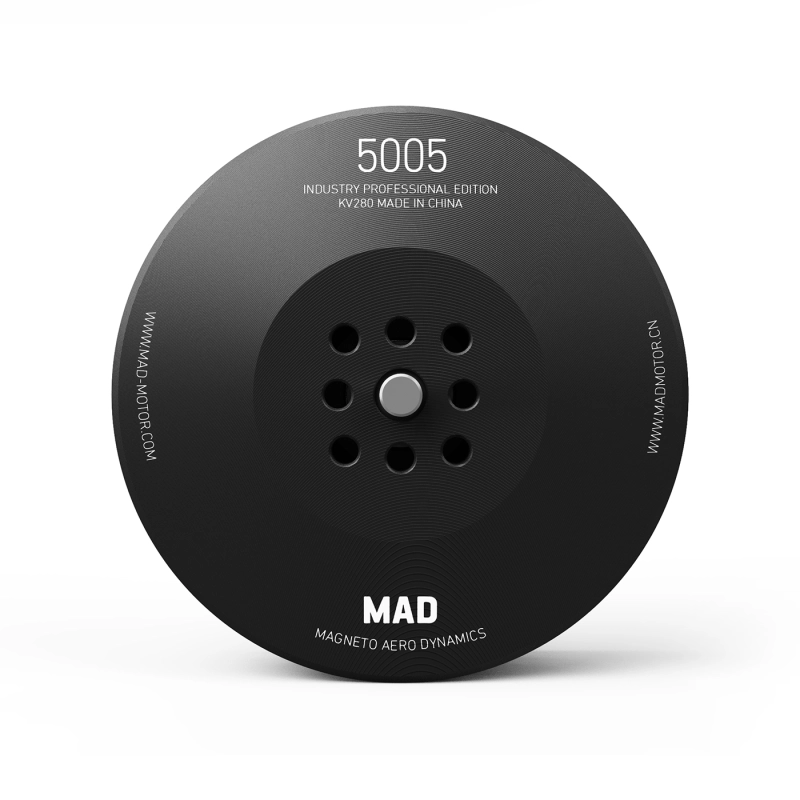

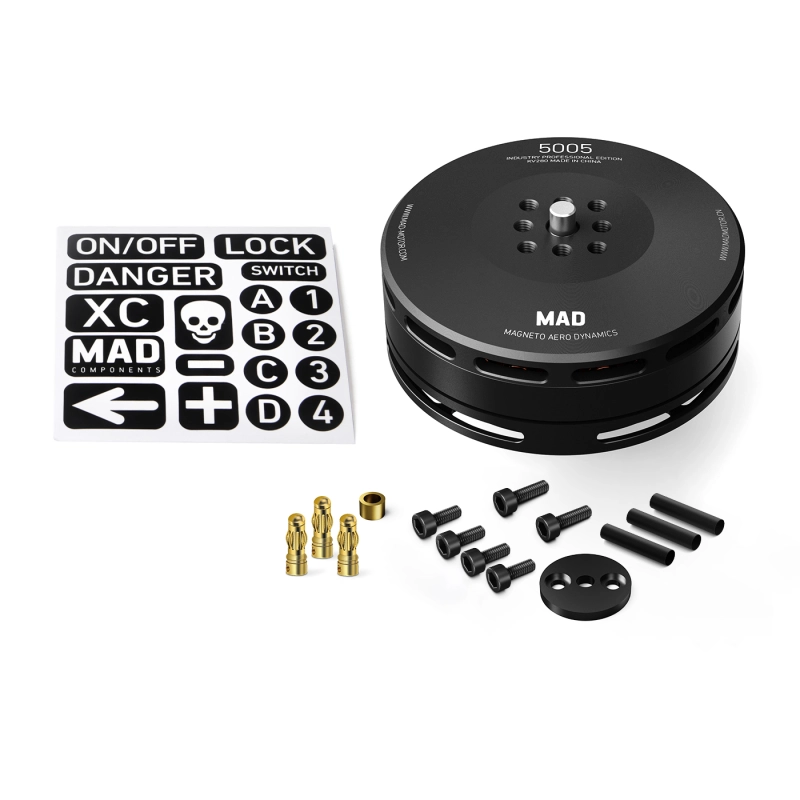

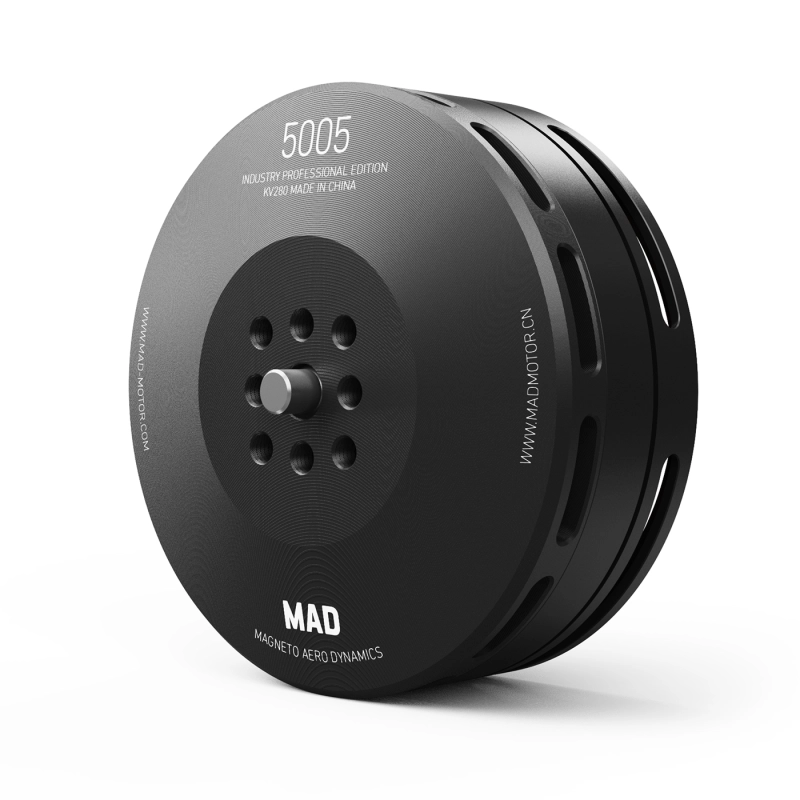

5005 IPE brushless motor

SKU: 0101DJ0272
MAD 50 series are high efficiency drone motors. The motors are designed for long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
1,Arc magnets. 2.Customs stators. 24N28P, 3. Very good motor electromagnetic design.

Designed for rigorous conditions
Over-sized durable bearings for increased life, durability
Water and dust resistant. IP35 degree of protection
Motor mounting holes standarization
$0.00 $72.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    280KV
    350KV
    440KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD 5005 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5005 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5005 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5005 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5005 IPE brushless motor for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • Description
  • 280KV
  • 350KV
  • 440KV
Specification

Motor Model
MAD 5005 IPE V2.0
Number of pole pairs
14
Stator
Anticorrosive
Varnished wire Degree
180°C
Motor Size
D:56 × 26.3 mm
Magnet Degree
150°C
Degree of Protection
IP35 Cable Length
150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation
YES Rotor Balance
≤5 mg
Propeller Mounting Holes
D:12 M3×4,  D:15 M3×4
Motor Balance
≤10 mg
Shaft Diameter
IN: 5 mm
Motor Mounting Holes
D:30 M3×4
Bearing EZO 685ZZ*1 / EZO 695ZZ*1
Disruptive test
500 V

___________________________________________________________________________________________________________________________


Drawing and mount holes
