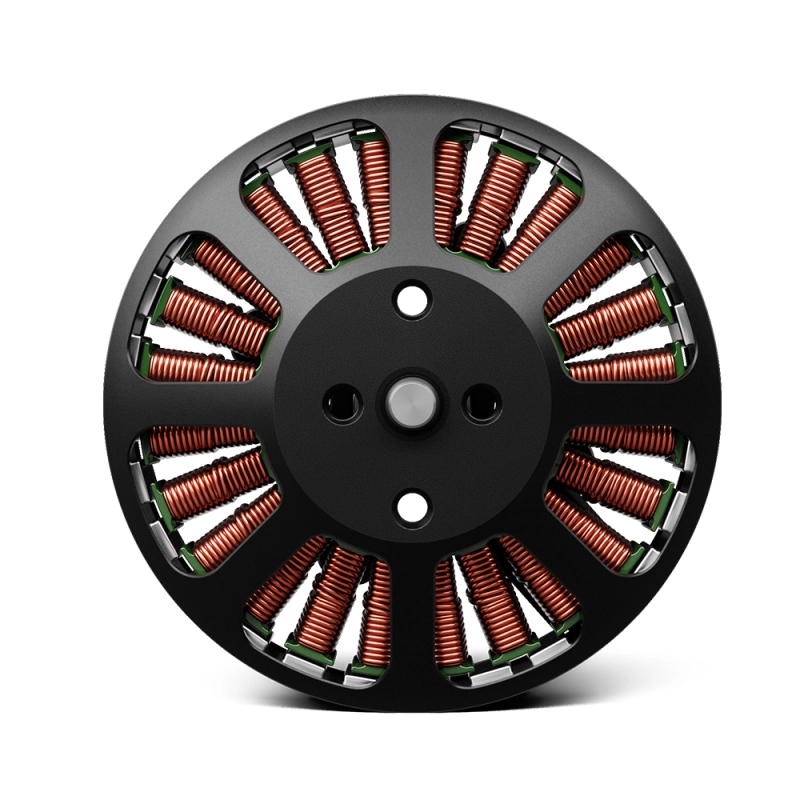

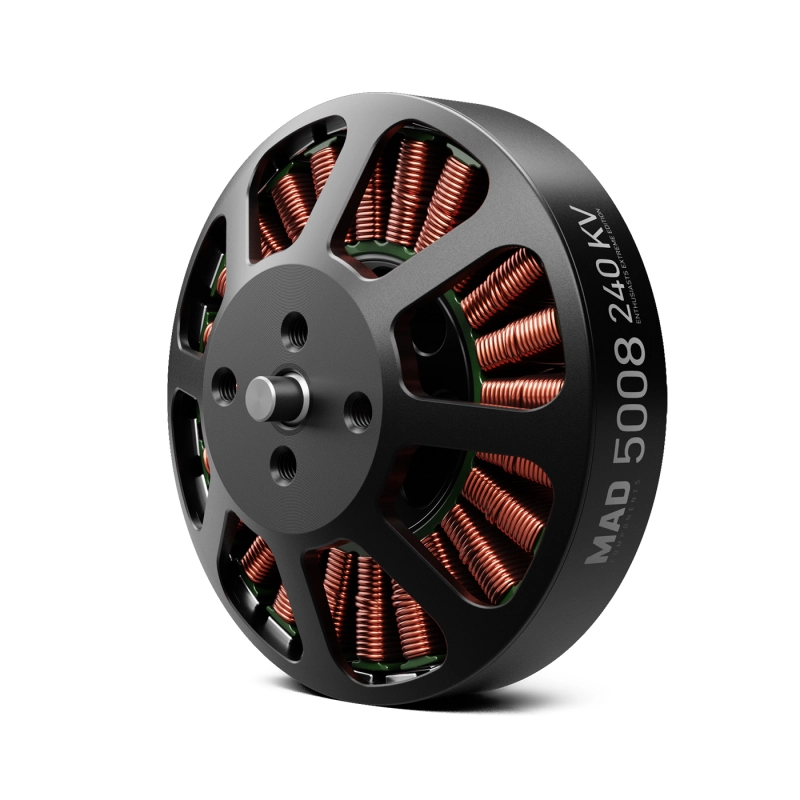

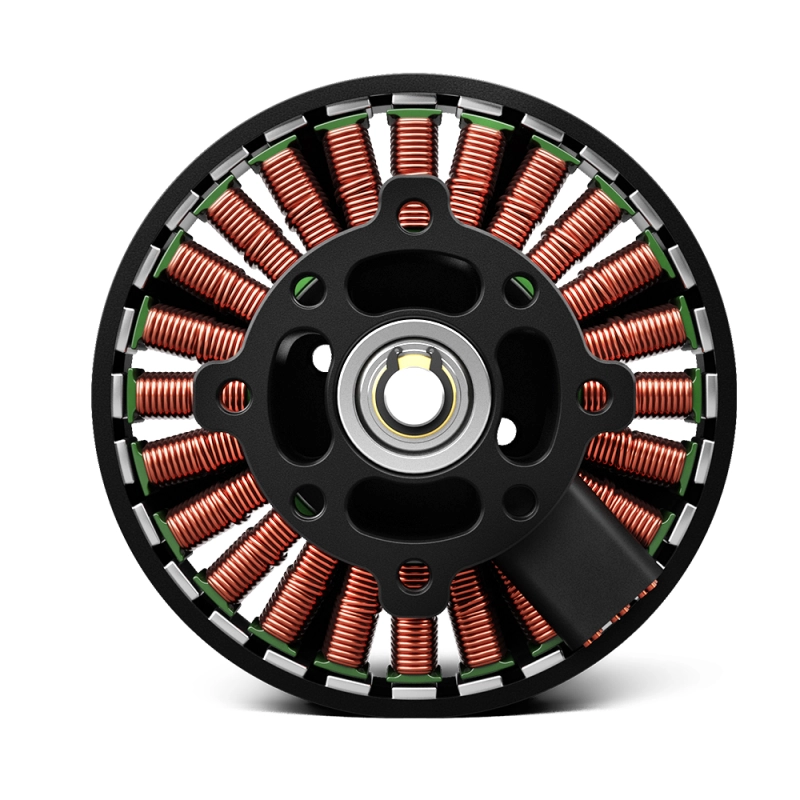

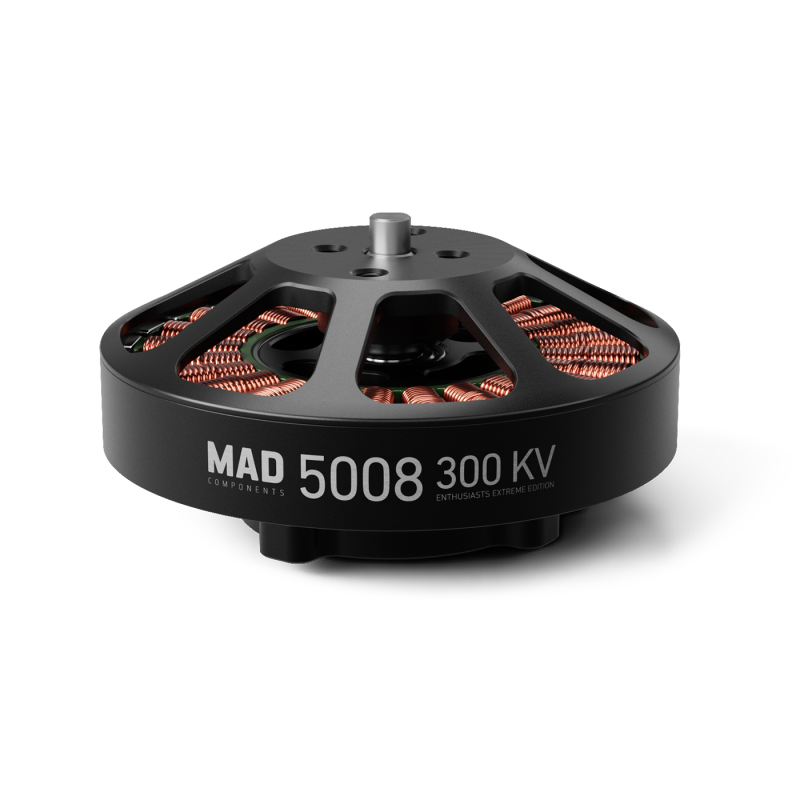

5008 EEE V2.0 Drone Motor

SKU: 0101DJ0174
Sustained thrust: 1~2kg
Max thrust: 4.8kg
Support voltage: 6S; 8S; 12S
Weight: 124-138g;
$0.00 $76.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    170KV
    240KV
    340KV
    300KV
    400KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 5008 EEE V2.0 Drone Motor
  • 5008 EEE V2.0 Drone Motor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 5008 EEE V2.0 Drone Motor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 5008 EEE V2.0 Drone Motor
  • 5008 EEE V2.0 Drone Motor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 5008 EEE V2.0 Drone Motor
1/1
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 5008 EEE V2.0 Drone Motor
  • 5008 EEE V2.0 Drone Motor
  • MAD 5008 EEE V2.0 for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor
  • 5008 EEE V2.0 Drone Motor
  • Description

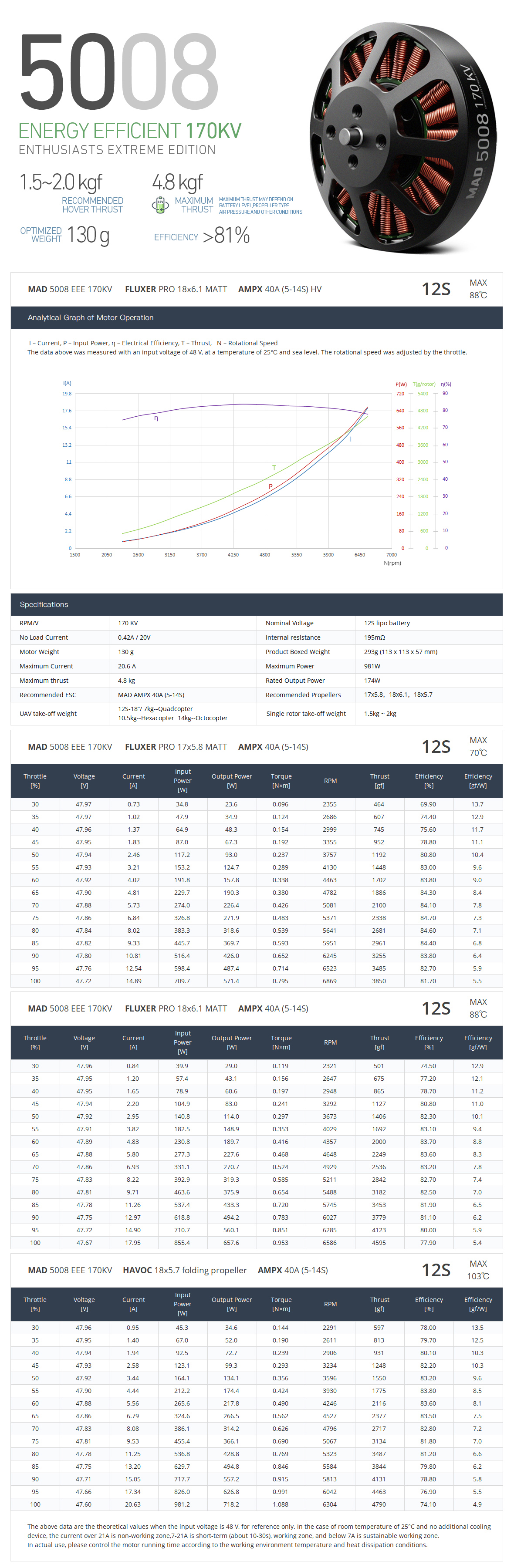

  • 170KV

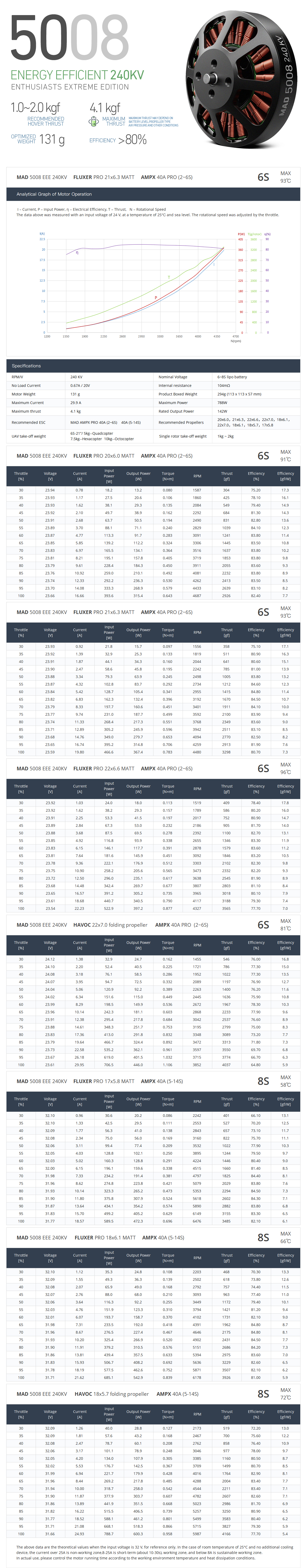

  • 240KV
  • 300KV

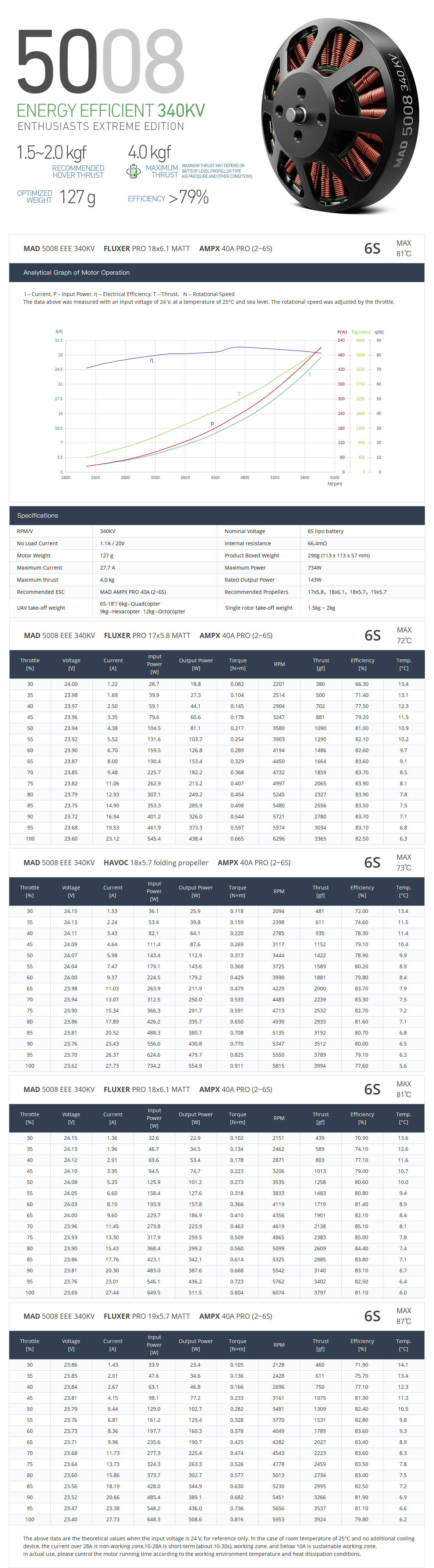

  • 340KV

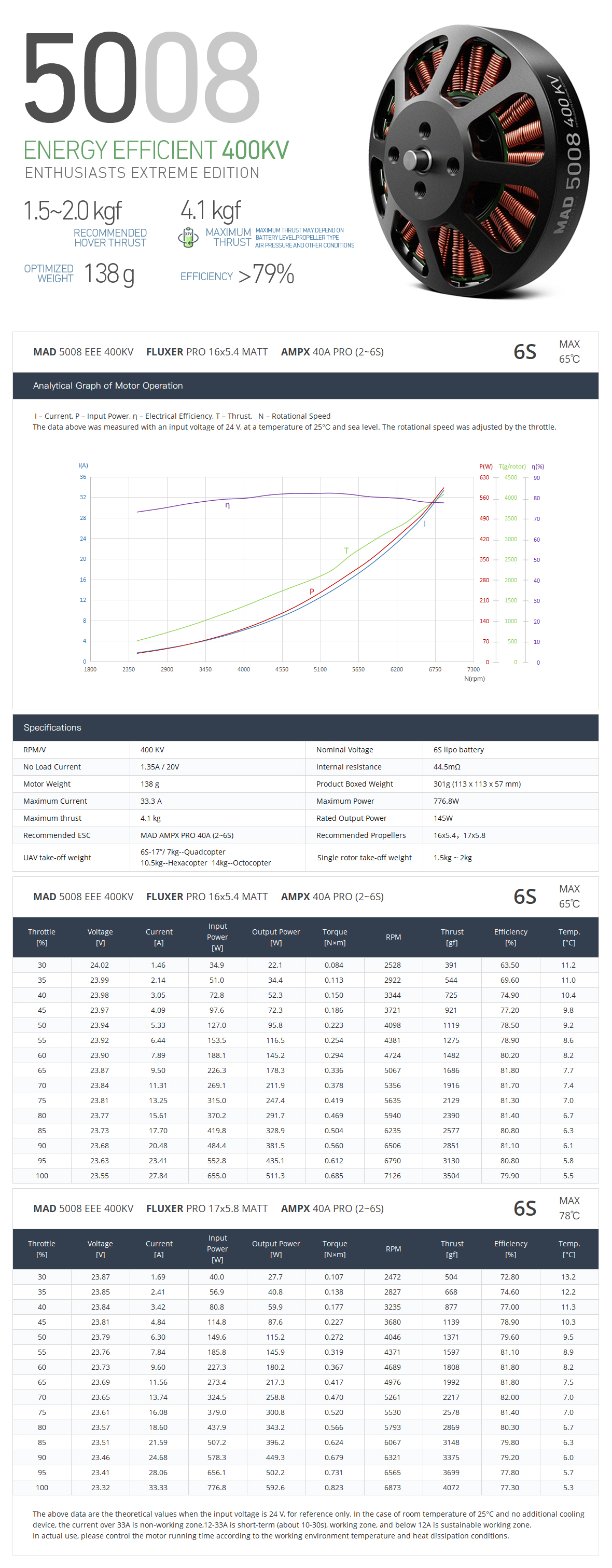

  • 400KV

About 5008 EEE

Summary of the 5008 Motor by MAD EU (2015):
Developer/Year: Designed and developed by MAD EU in 2015, this motor has proven reliable and effective, meeting the expectations of both designers and users.
Key Features
  •  High Efficiency: Optimized for 18-20 inch propellers, making it one of the most efficient motors in its class.
  • Thrust Capacity: Ideal for multirotors requiring 1-2 kg of thrust per rotor, balancing power and payload for applications like heavy-lift drones.
Applications: Widely adopted in professional drones, including:
  •   Long-range inspection drones.
  •   Mapping and surveying drones.
  •   Quadcopters, hexacopters, and other multirotor configurations.
Reputation:Recognized for its reliability and performance, it remains a popular choice in industrial and commercial drone sectors.
This motor is particularly suited for users prioritizing endurance, payload capacity, and precision in specialized operations.

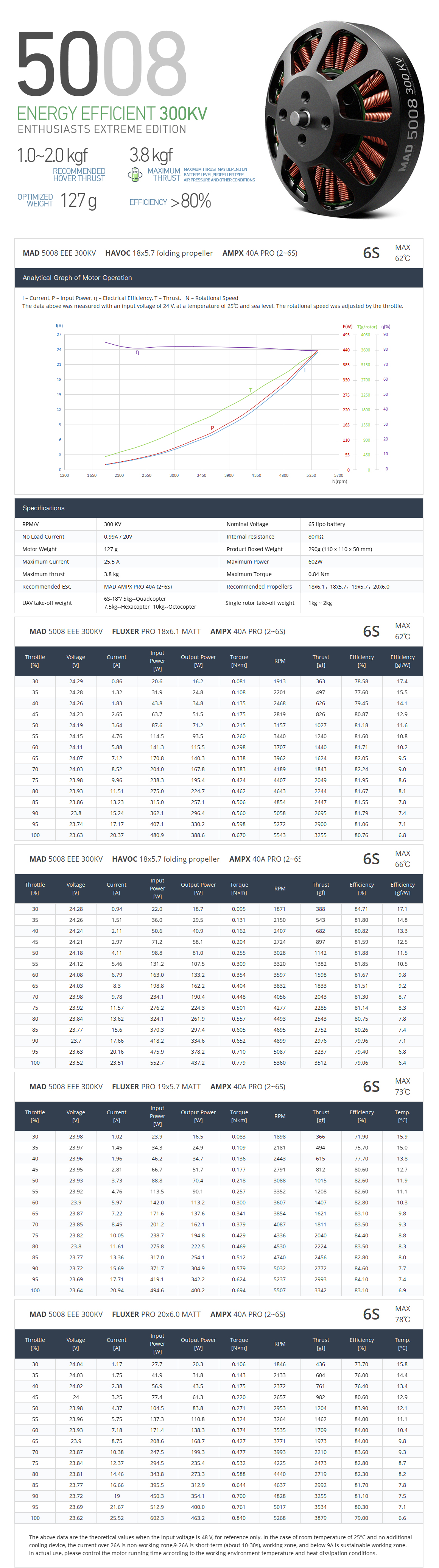

Specification

Motor Model
MAD 5008 EEE V2.0
Number of pole pairs
14
Stator
Anticorrosive
Varnished wire Degree
180°C
Motor Size
D:56 × 30.7 mm
Magnet Degree
150°C
Degree of Protection
Rain protection Cable Length
150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation
Independent Rotor Balance
≤5 mg
Propeller Mounting Holes
D:12 M3×2,  D:18 M3×2
Motor Balance
≤10 mg
Shaft Diameter
IN: 5 mm
Motor Mounting Holes
D:25 M3×4, D:30 M3×4
Bearing 685ZZ*1 / 695ZZ*1
Disruptive test
500 V
_______________________________________________________________________________________________________________

Drawing and mount holes

__________________________________________________________________________________________________________________________

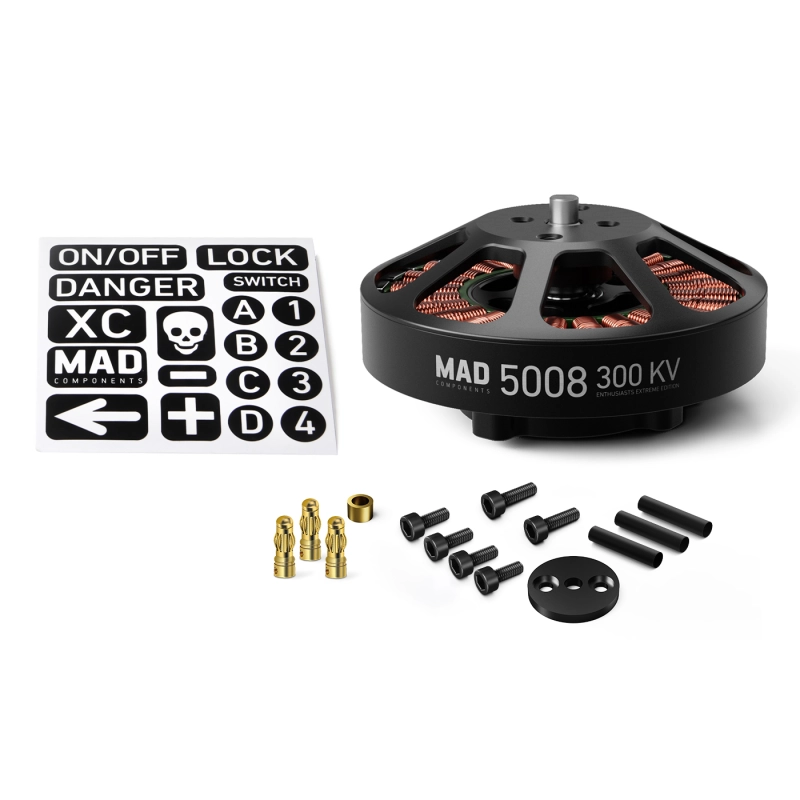

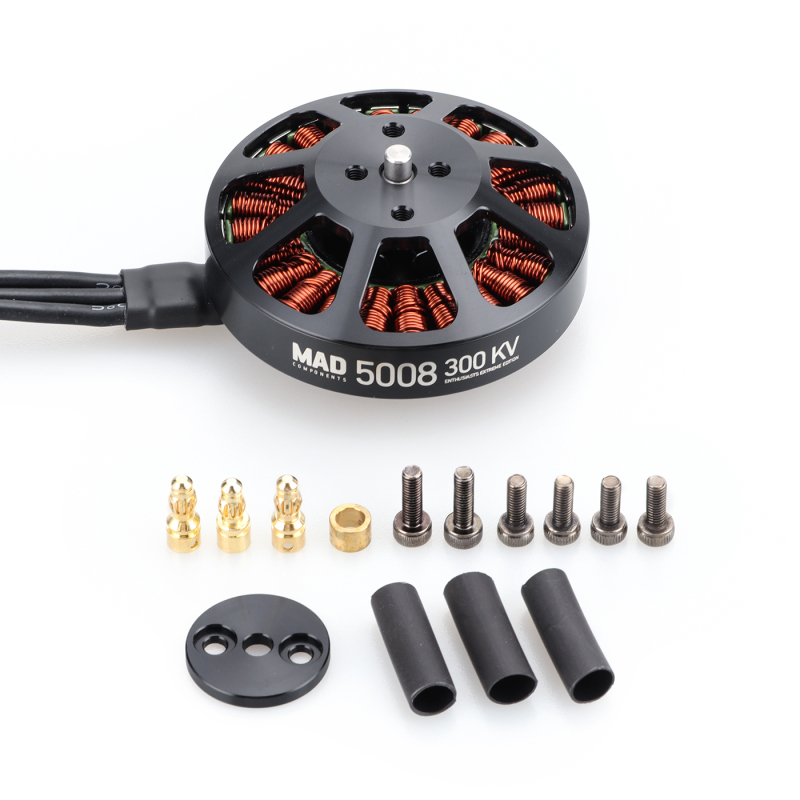

Accessories
