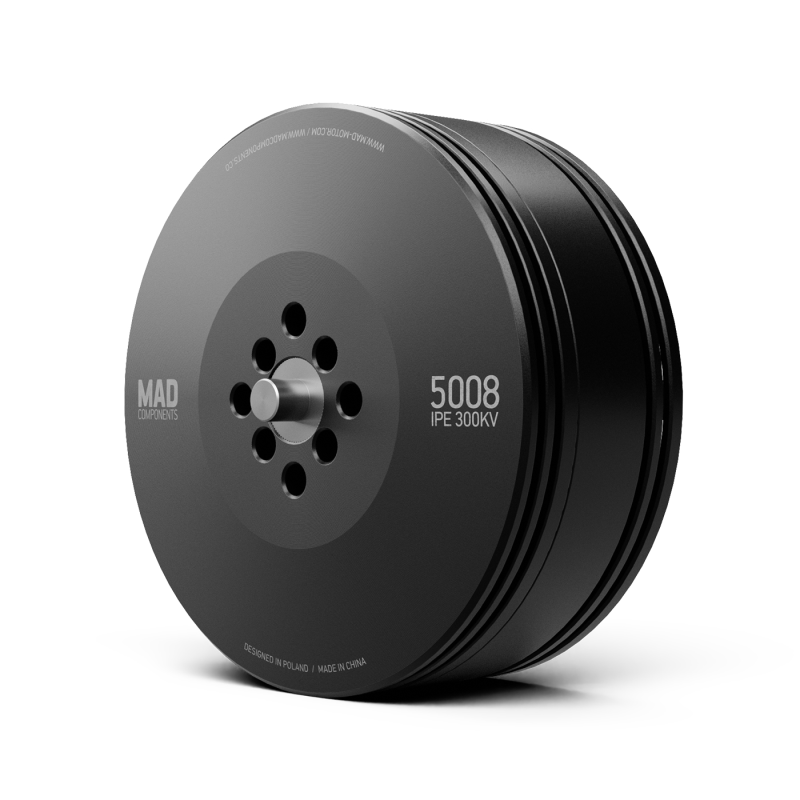

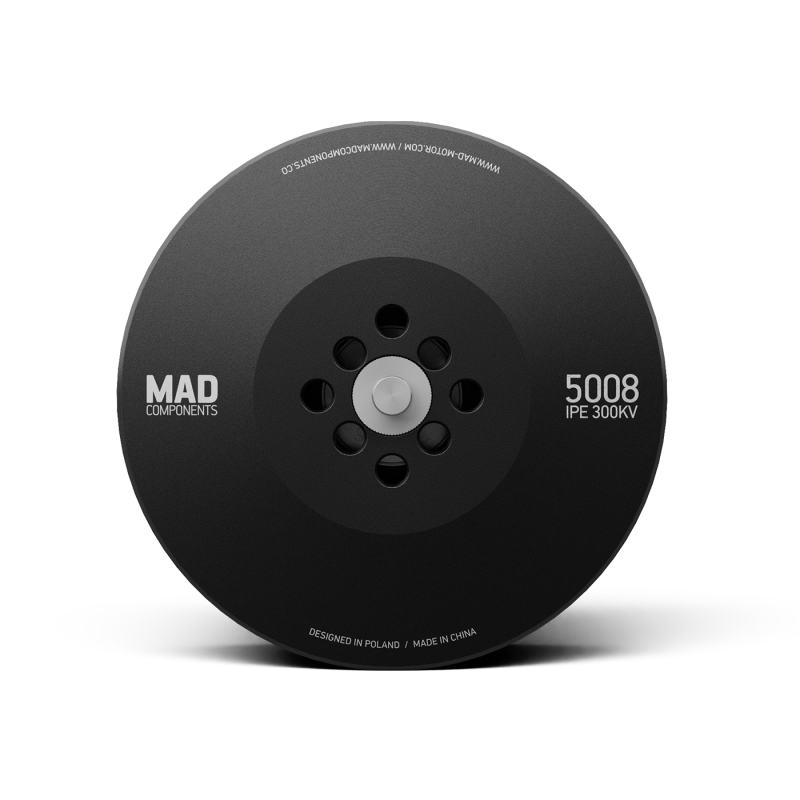

5008 IPE V3 Drone Motor
SKU: 0101DJ0689
| Sustained thrust: | 1~2kg |
| Max thrust: | 4.8kg |
| Support voltage: | 6S; 8S; 12S |
| Weight: | 136-142g; |
$80.00
| Sustained thrust: | 1~2kg |
| Max thrust: | 4.8kg |
| Support voltage: | 6S; 8S; 12S |
| Weight: | 136-142g; |
Summary of the 5008 Motor by MAD EU (2015):
Developer/Year: Designed and developed by MAD EU in 2015, this motor has proven reliable and effective, meeting the expectations of both designers and users.
Key Features:
Applications: Widely adopted in professional drones, including:
Reputation:Recognized for its reliability and performance, it remains a popular choice in industrial and commercial drone sectors.
This motor is particularly suited for users prioritizing endurance, payload capacity, and precision in specialized operations.
| Specification |
|||||||||
| Motor Model |
MAD 5008 IPE V3.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 29.3 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4, D:15 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4 | ||||||
| Bearing | 696ZZ*2 |
Disruptive test |
500 V |
||||||
___________________________________________________________________________________________________________________________ Drawing and mount holes |
|||||||||
