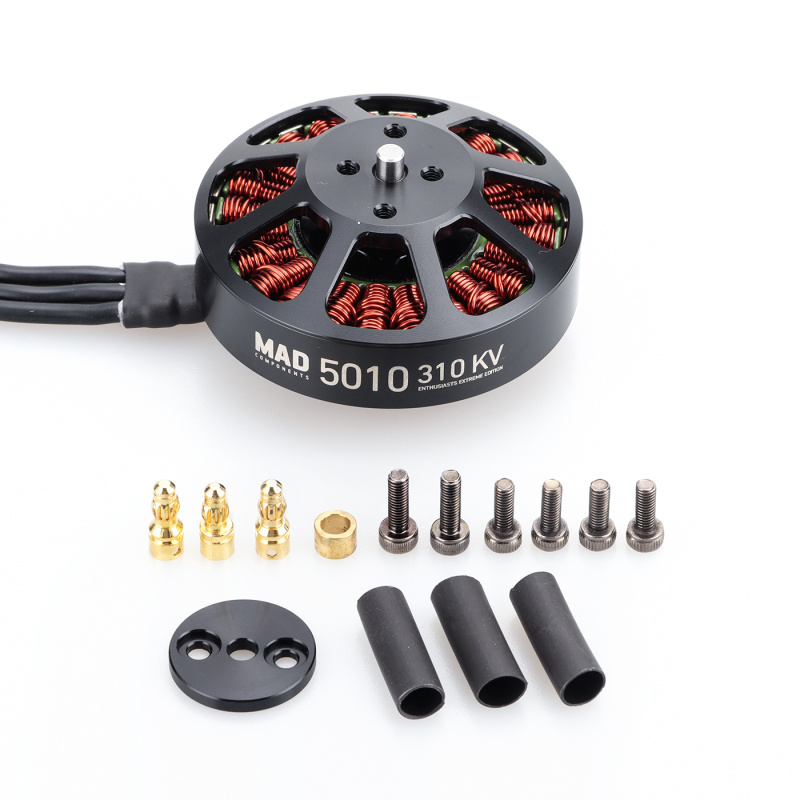

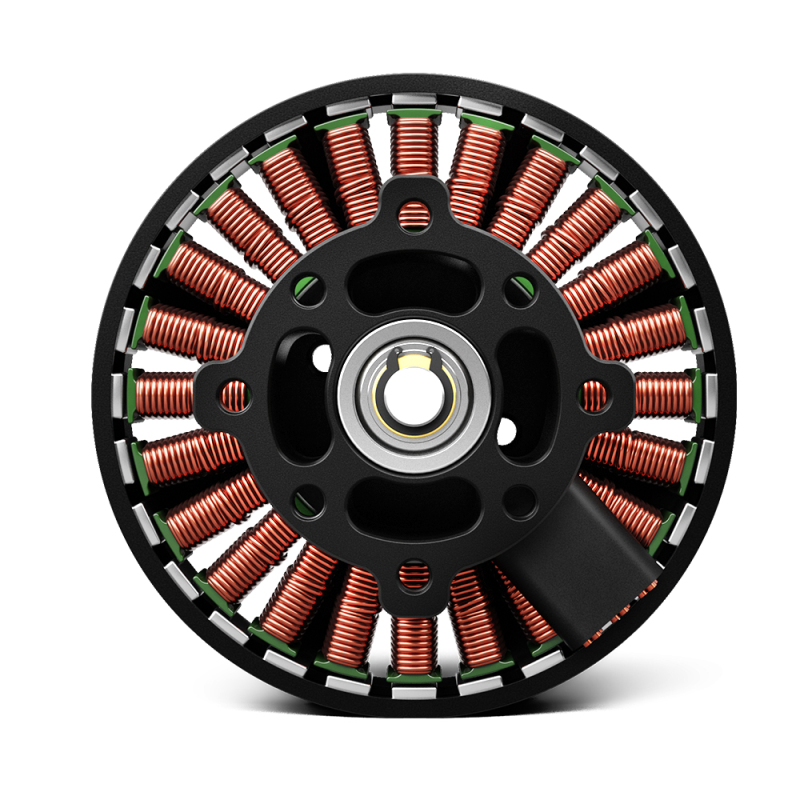

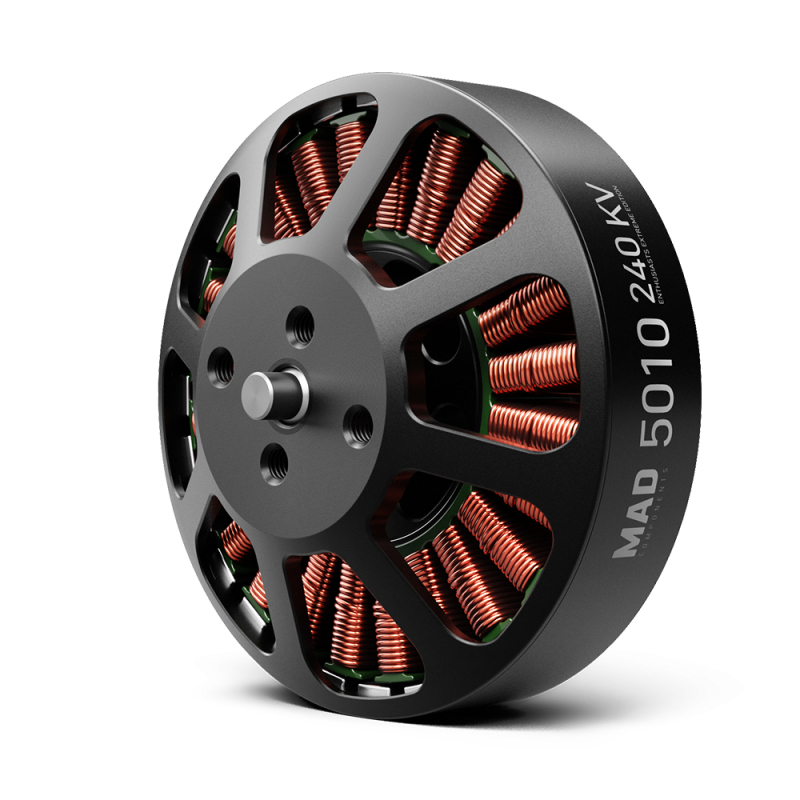

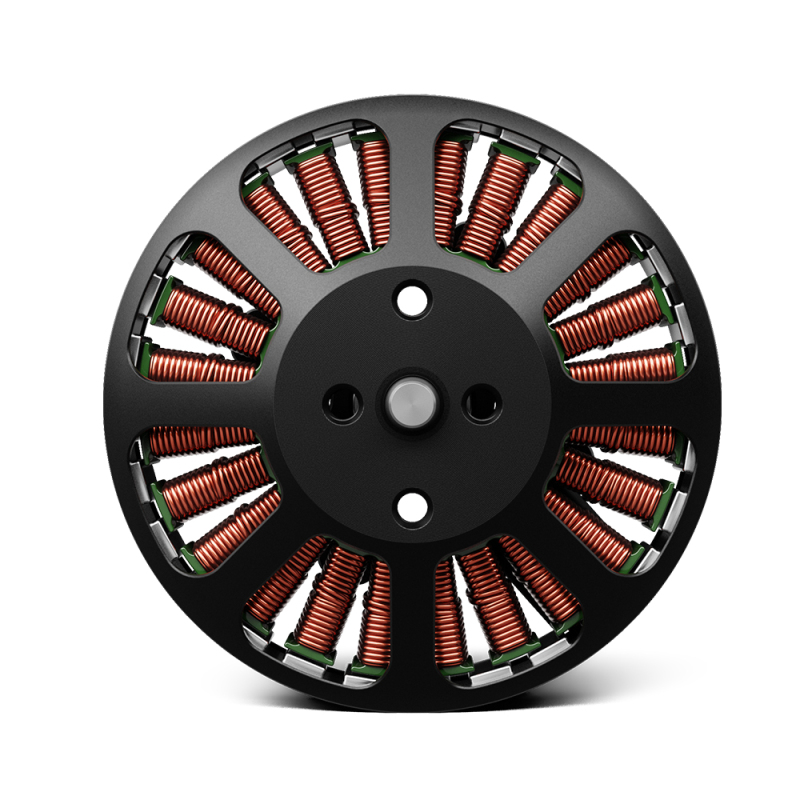

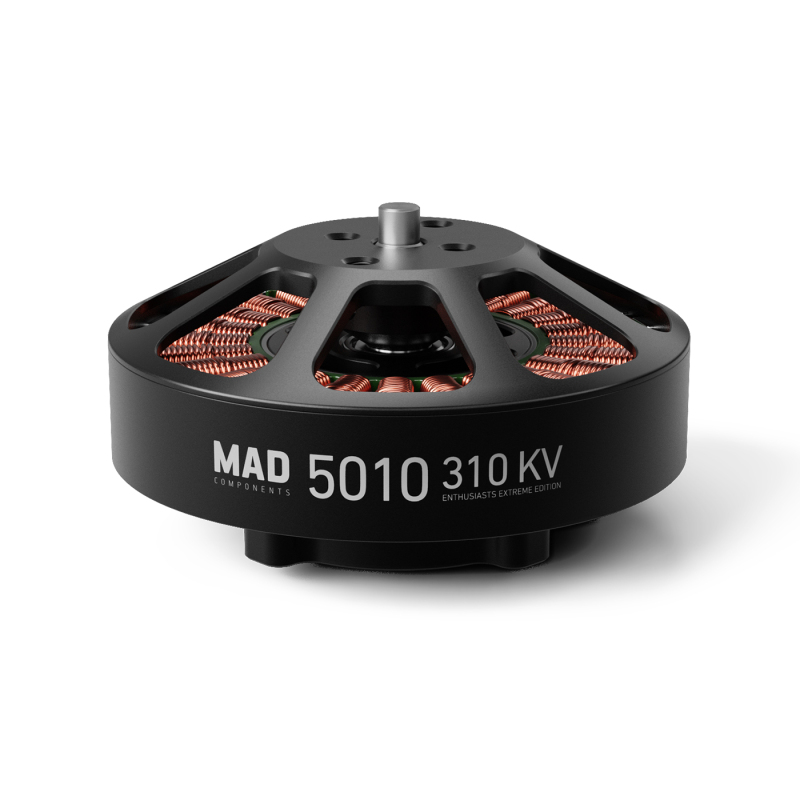

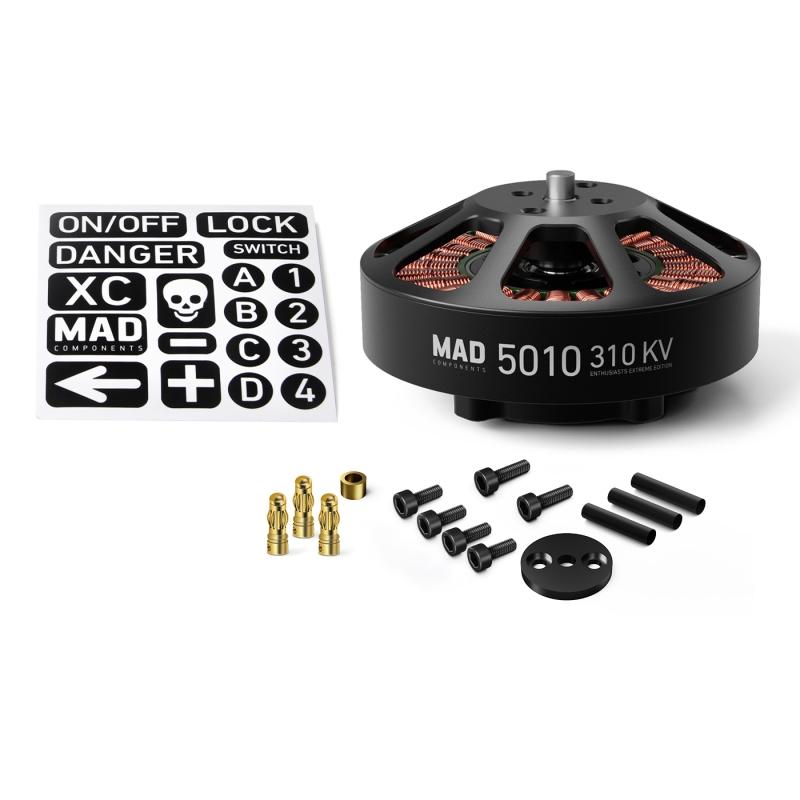

5010 EEE V2.0 brushless drone motor
SKU: 0101DJ0289
| Sustained thrust: | 1.5~2kg |
| Max thrust: | 5.2kg |
| Support voltage: | 6S; 8S; 12S |
| Weight: | 162g |
$84.00
| Sustained thrust: | 1.5~2kg |
| Max thrust: | 5.2kg |
| Support voltage: | 6S; 8S; 12S |
| Weight: | 162g |
⚡ Thrust-Optimized Performance
Continuous Thrust: 1300–2500g per motor (Ideal for stable, efficient operation)
Peak Burst Thrust: 5200g per rotor (For critical maneuvers or emergency recovery)
Propeller Range: 16–24" carbon fiber
24" Props: Max efficiency for heavy lifting
16" Props: Agile response for high-speed applications
🛡️ Built for Industrial Durability
Ultralight Design: Just 162g/motor (Reduces dead weight without sacrificing power)
Aerospace-Grade Materials: Precision bearings, reinforced alloy housing
Thermal Resilience: Optimized for sustained high-load operation
| Specification |
|||||||||
| Motor Model |
MAD 5010 EEE V2.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 32.7 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
Rain protection | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
Independent | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×2, D:18 M3×2 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 5 mm |
Motor Mounting Holes |
D:25 M3×4, D:30 M3×4 | ||||||
| Bearing | 685ZZ*1 / 695ZZ*1 |
Disruptive test |
500 V |
||||||
Drawing and mount holes |
|||||||||
