5012 IPE V3.0 Drone Motor

SKU: 0101DJ0545
Sustained thrust: 1.5-3.0kg
Max thrust: 6.1kg
Support voltage: 4S;6S
Weight: 189~200g
$0.00 $98.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV OPTION:
    160KV
    250KV
    320KV
    340KV
    Please select the information you wantX
Quantity
-
+
Download
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 Drone Motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 Drone Motor
  • 5012 IPE V3.0 brushless motor
1/1
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 brushless motor
  • 5012 IPE V3.0 Drone Motor
  • 5012 IPE V3.0 brushless motor
  • Description

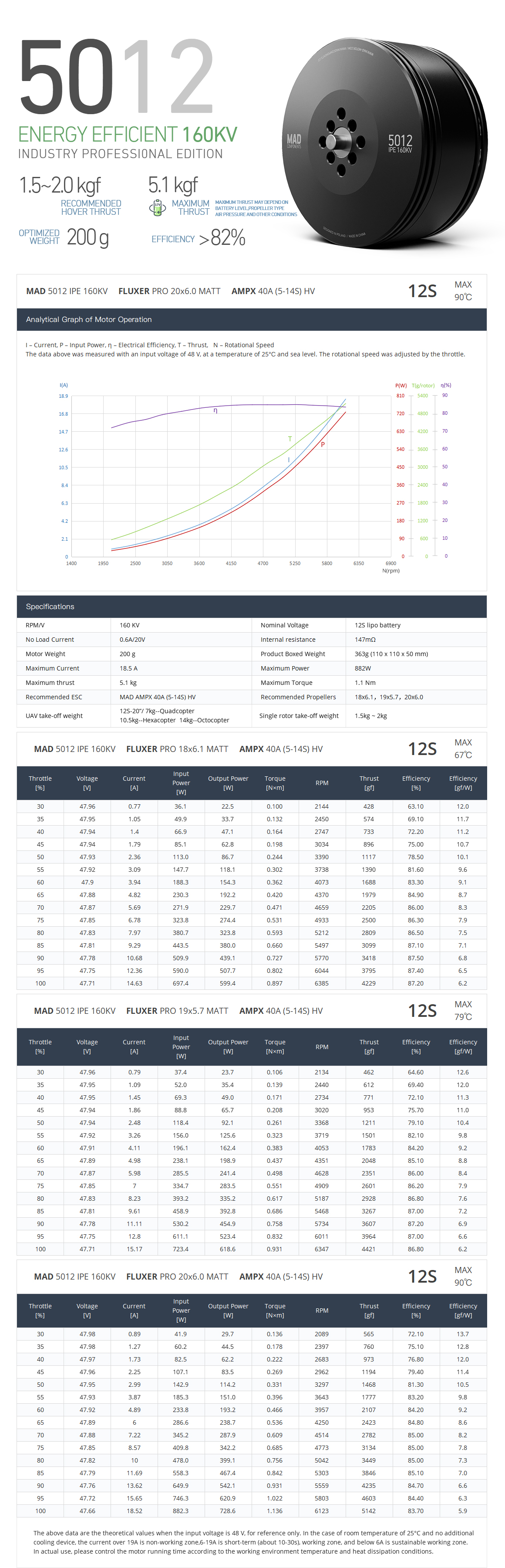

  • 160KV

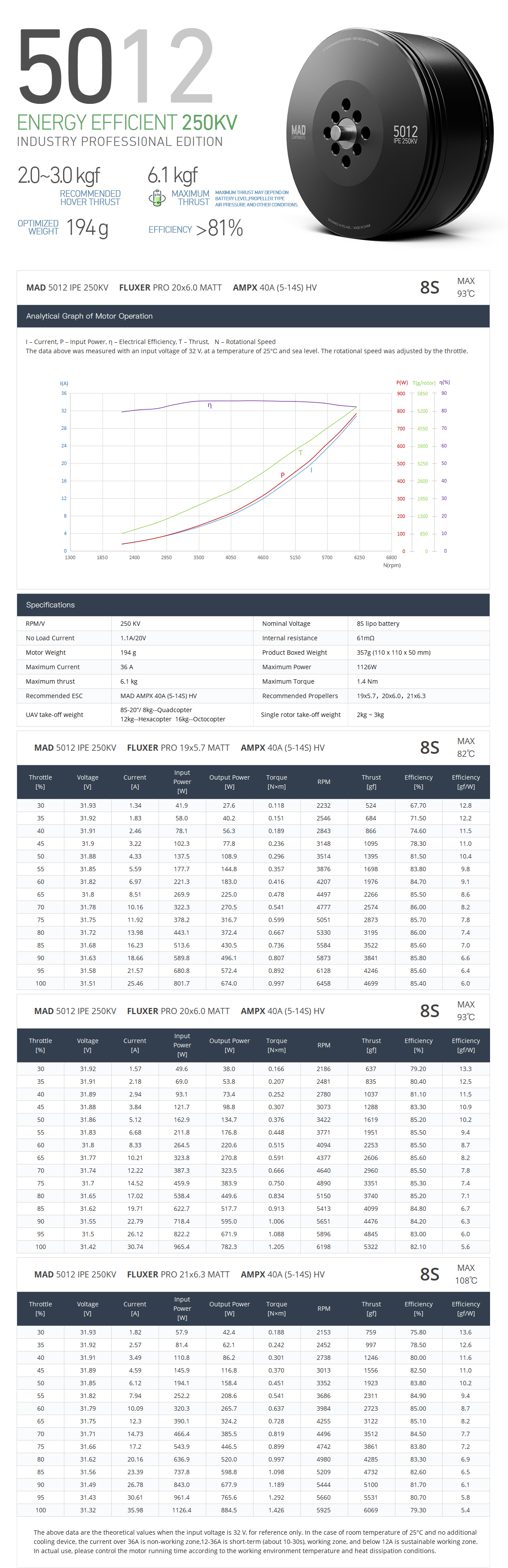

  • 250KV
  • 320KV

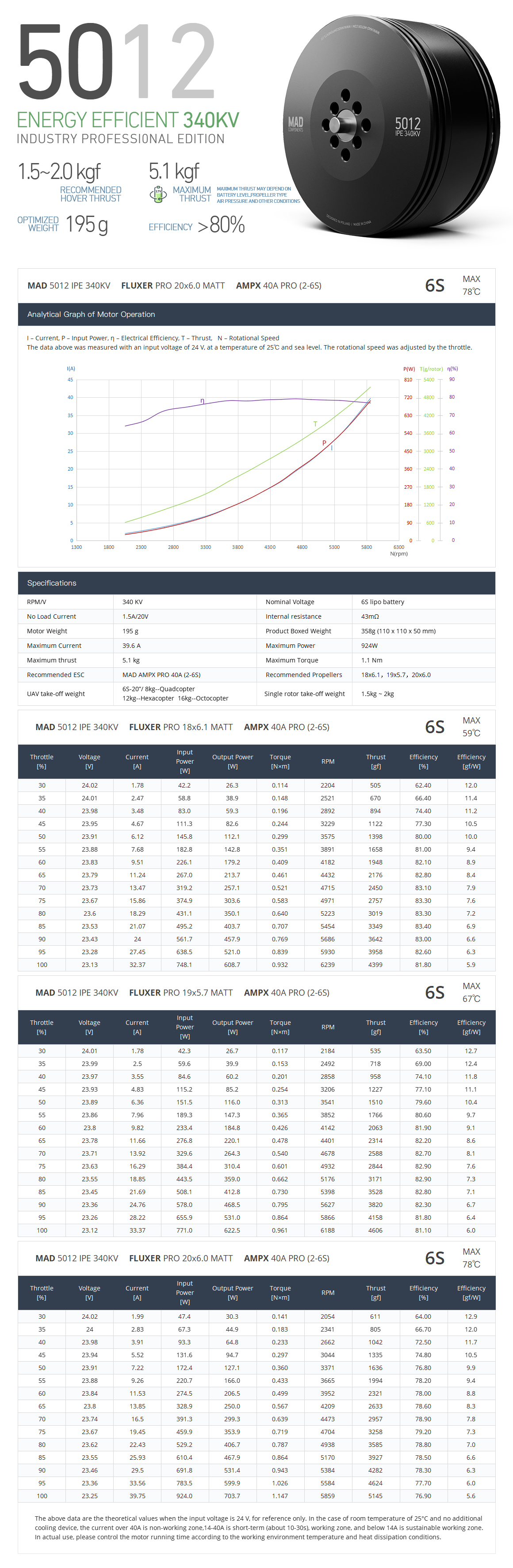

  • 340KV

About 5012 IPE V3.0

Key Specifications
Single rotor load range: 1500-3000g
Continuous working thrust: suitable for long-term stable flight or industrial load tasks (such as spraying, mapping), taking into account efficiency and heat dissipation.
Application scenario: Higher load limit than MAD5010 IPE (1300-2500G), more suitable for jobs requiring higher redundancy or dynamic adjustment.
Single  maximum thrust: 6.1kg
Instantaneous explosive force: short-term peak thrust (such as wind disturbance resistance, emergency climb), but to avoid continuous overload operation leading to demagnetization or overheating.

Comparative boost: 17% more than the MAD5010 EEE's 5.2kg peak for more demanding power needs.

propeller compatibility: 18-22 inch carbon fiber propeller
Efficiency balance: Reduced blade range (the MAD5010 supports 16-24 inches), focused on medium and large blade optimization, reducing vibration and energy loss.

Typical collocation:

18 inch paddle: High speed response, suitable for high-speed maneuvering or dynamic flight (such as FPV racing).

22 inch propeller: low speed and high torque, improve energy efficiency, extend heavy duty mission life.

Motor weight: 200g/ pc
Specification

Motor Model
MAD 5012 IPE V3.0
Number of pole pairs
14
Stator
Anticorrosive
Varnished wire Degree
180°C
Motor Size
D:56 × 33.3 mm
Magnet Degree
150°C
Degree of Protection
IP45 Cable Length
150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation
YES Rotor Balance
≤5 mg
Propeller Mounting Holes
D:12 M3×4,  D:15 M3×4
Motor Balance
≤10 mg
Shaft Diameter
IN: 6 mm
Motor Mounting Holes
D:25 M3×4
Bearing 696ZZ*2
Disruptive test
500 V

Drawing and mount holes
