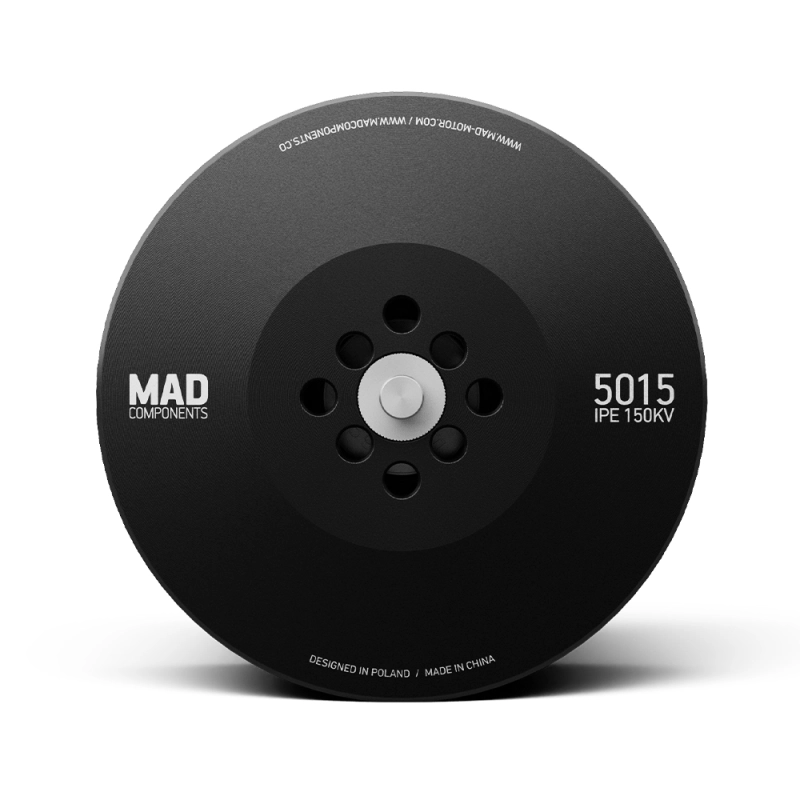

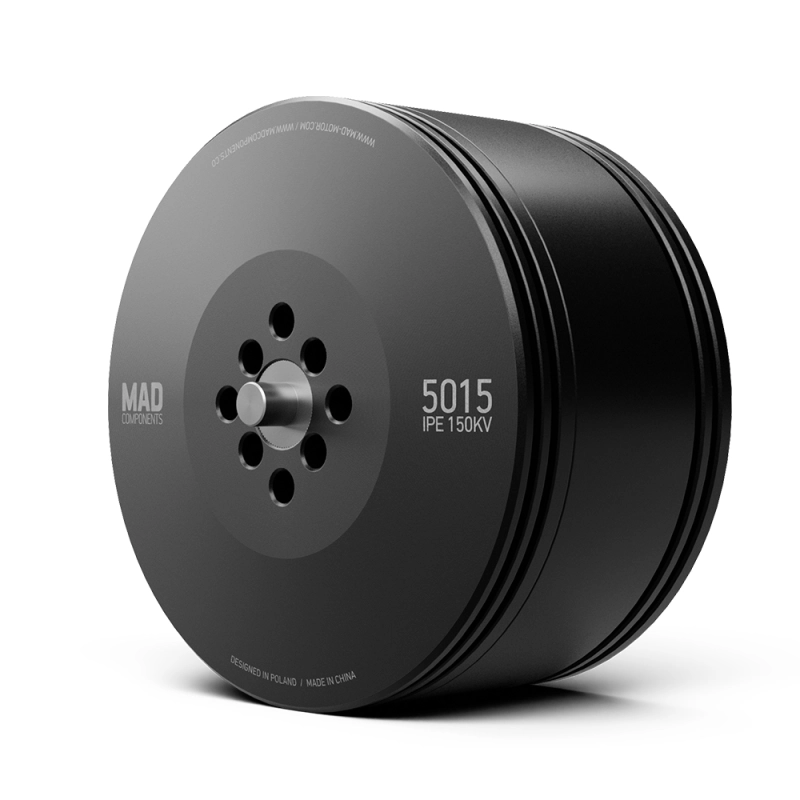

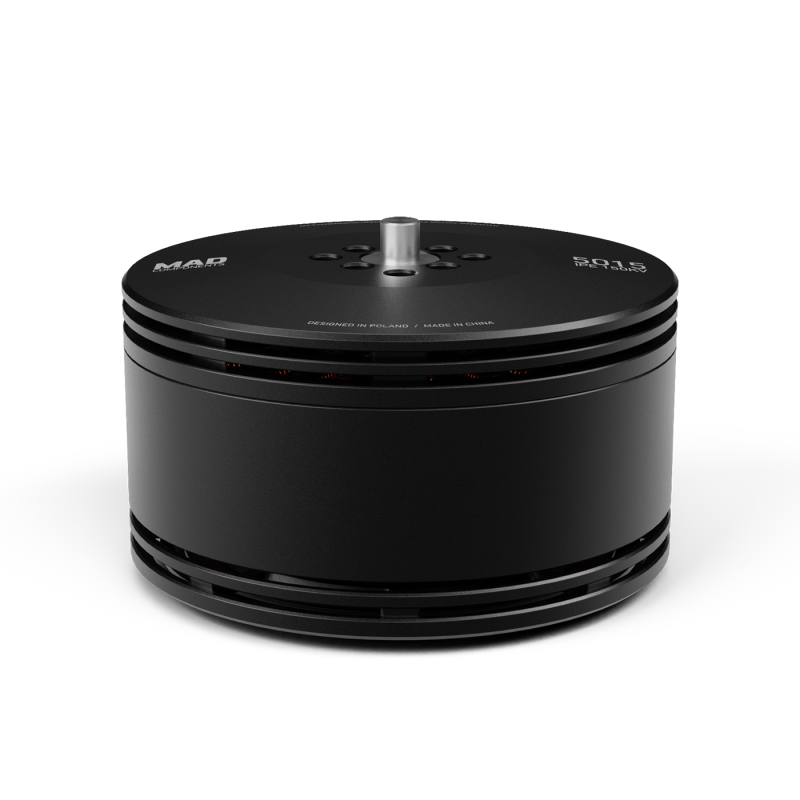

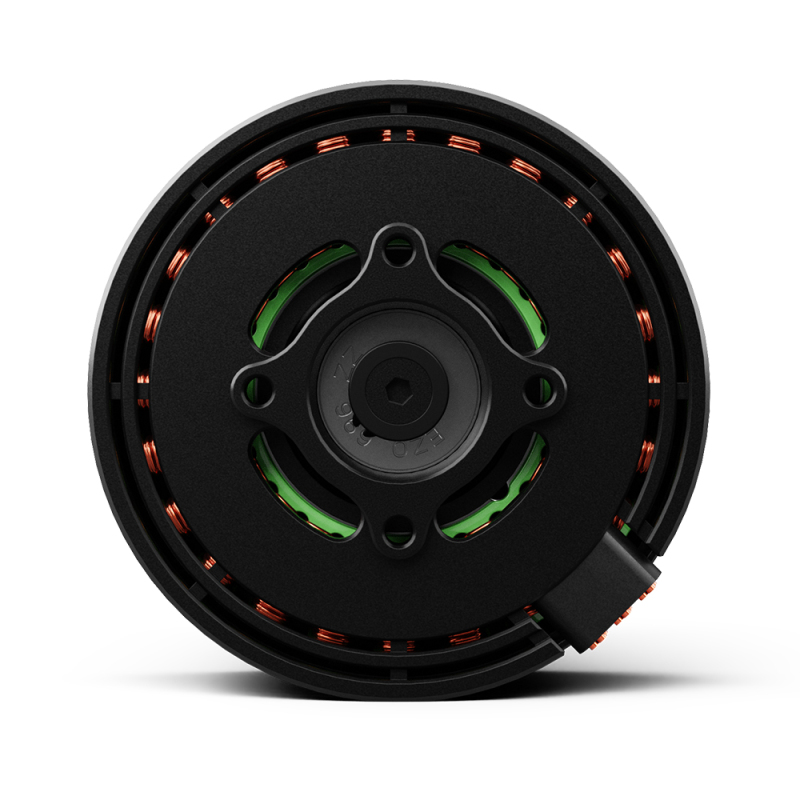

5015 IPE V3.0 eVTOL Drone Motor
SKU: 0101DJ0432
| Sustained thrust: | 1.5~3.5kg |
| Max thrust: | 8.6kg |
| Support voltage: | 6S;12S |
| Weight:3 | 220-230g |
$108.00
| Sustained thrust: | 1.5~3.5kg |
| Max thrust: | 8.6kg |
| Support voltage: | 6S;12S |
| Weight:3 | 220-230g |
🚀 Thrust-Optimized KV Options
270KV/320KV – The go-to motors for 8-16kg eVTOLs, balancing efficiency and power
150KV – Ideal for heavy quadcopters (8-14kg takeoff weight) with smooth, controlled lift
⏱️ Long-Range Endurance
Optimized electromagnetic design reduces power consumption by 15% vs. competitors
Low-RPM high-torque operation extends flight times for inspection and mapping missions
🛠️ Built for Industrial-Grade Reliability
High-temp windings – Sustain peak performance in continuous operation
Precision-balanced rotors – Minimize vibration for stabilized camera/sensor payloads
Corrosion-resistant construction – Reliable performance in harsh environments
✔ Proven in 10,000+ flight hours across commercial and industrial applications
✔ compatibility with 6S-12S ESCs
✔ Adaptable to any multirotor configuration – quads, hexacopters, octocopters, and custom eVTOL designs.
| Specification |
|||||||||
| Motor Model |
MAD 5015 IPE V3.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:56 × 36.3 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4, D:15 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4 | ||||||
| Bearing | 696ZZ*2 |
Disruptive test |
500 V |
||||||
___________________________________________________________________________________________________________________________ Drawing and mount holes |
|||||||||
