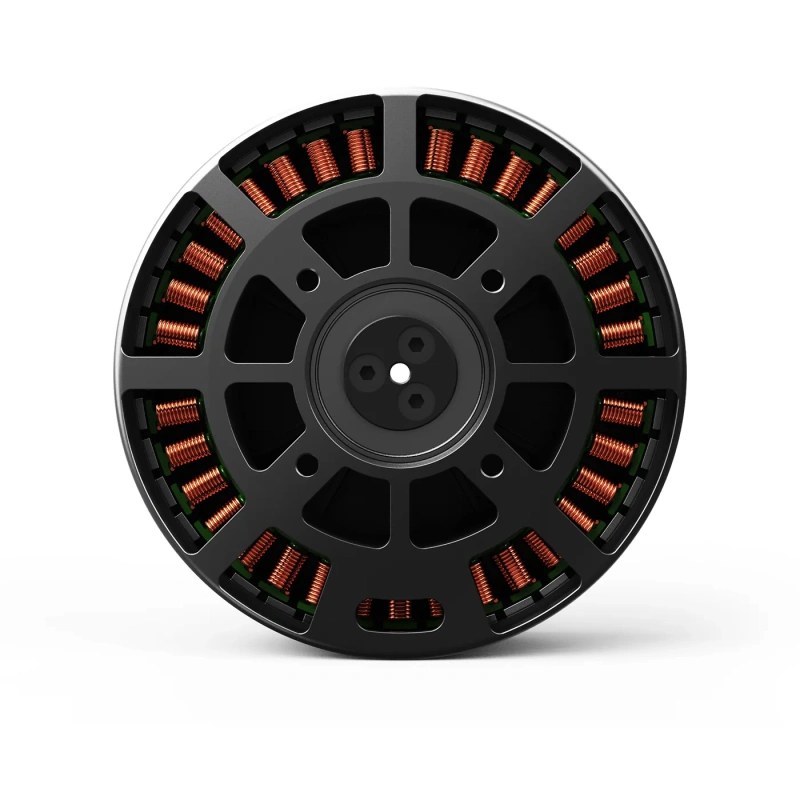

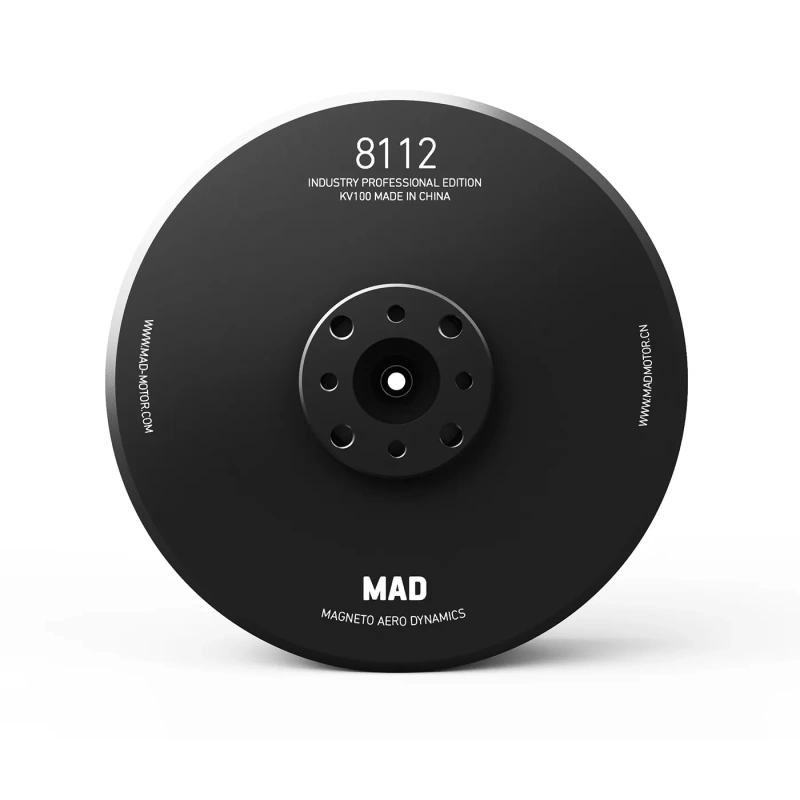

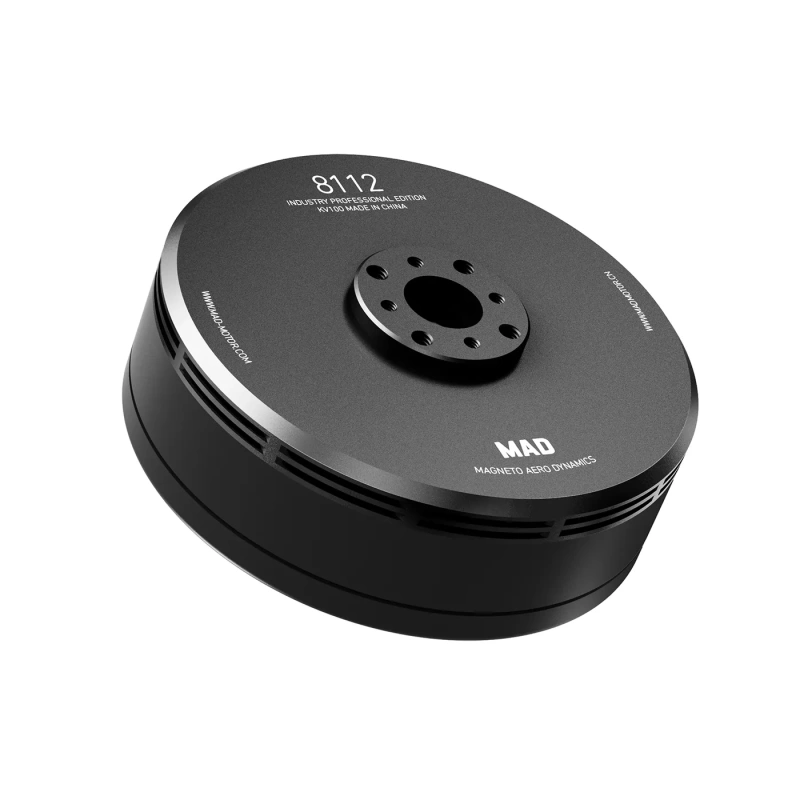

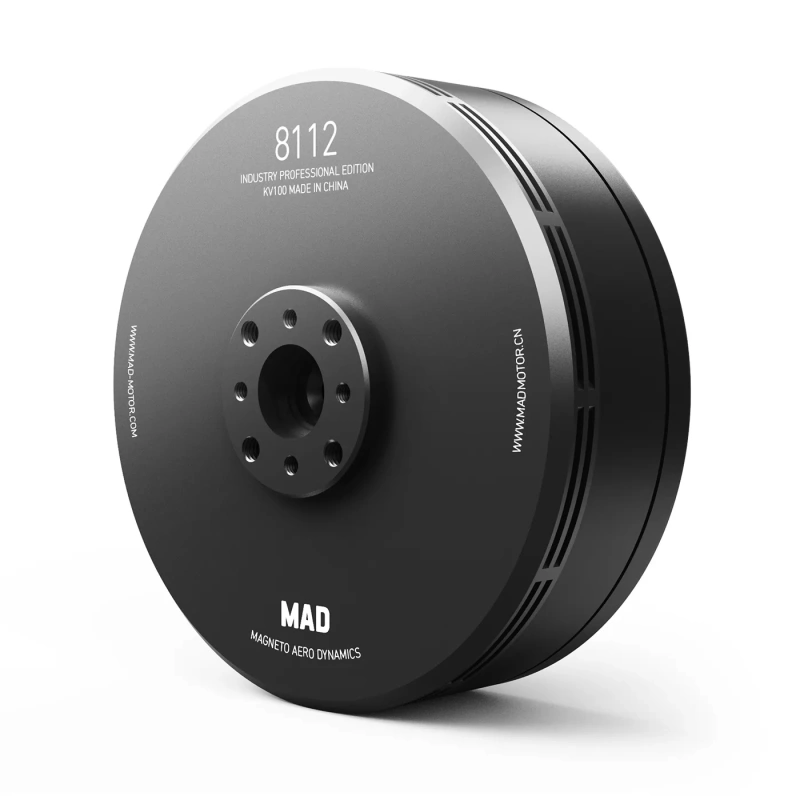

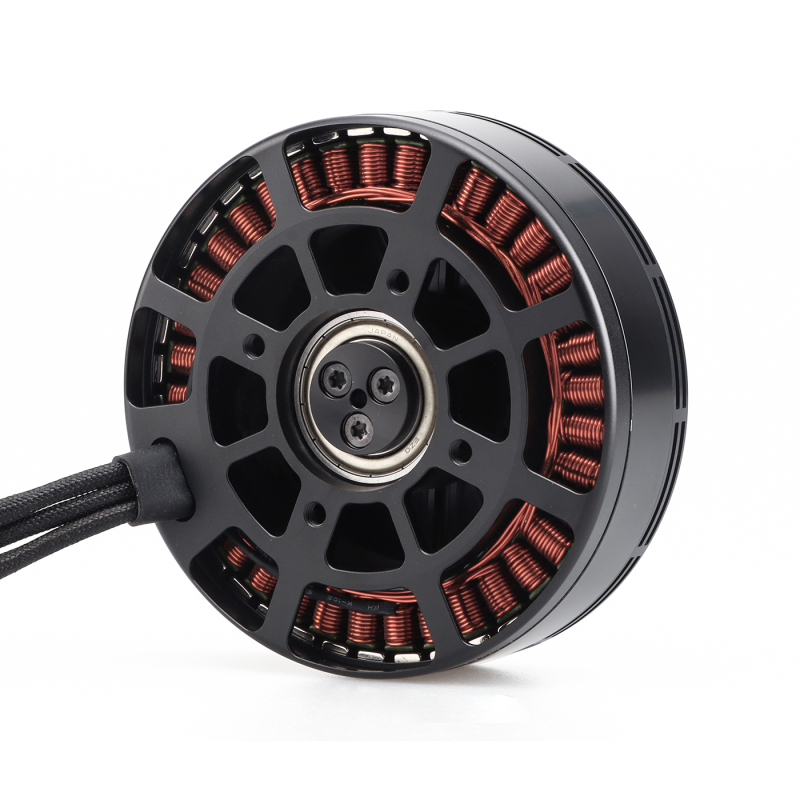

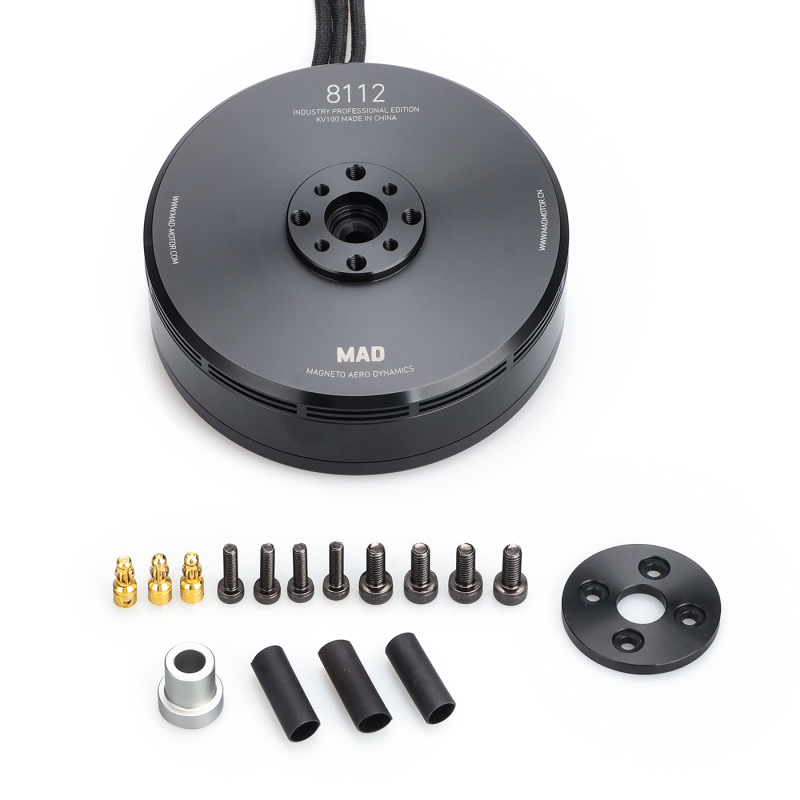

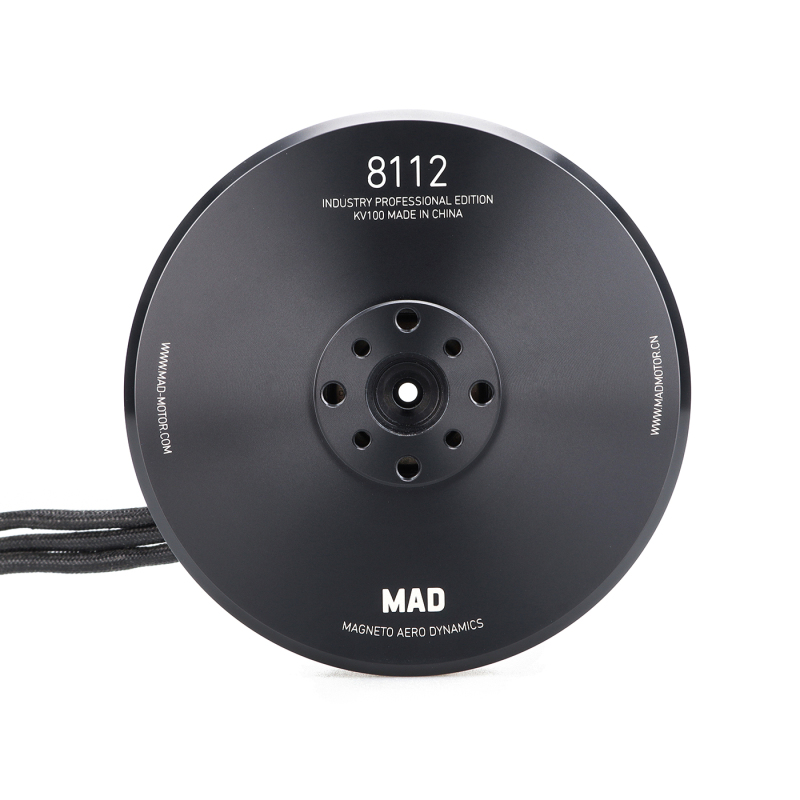

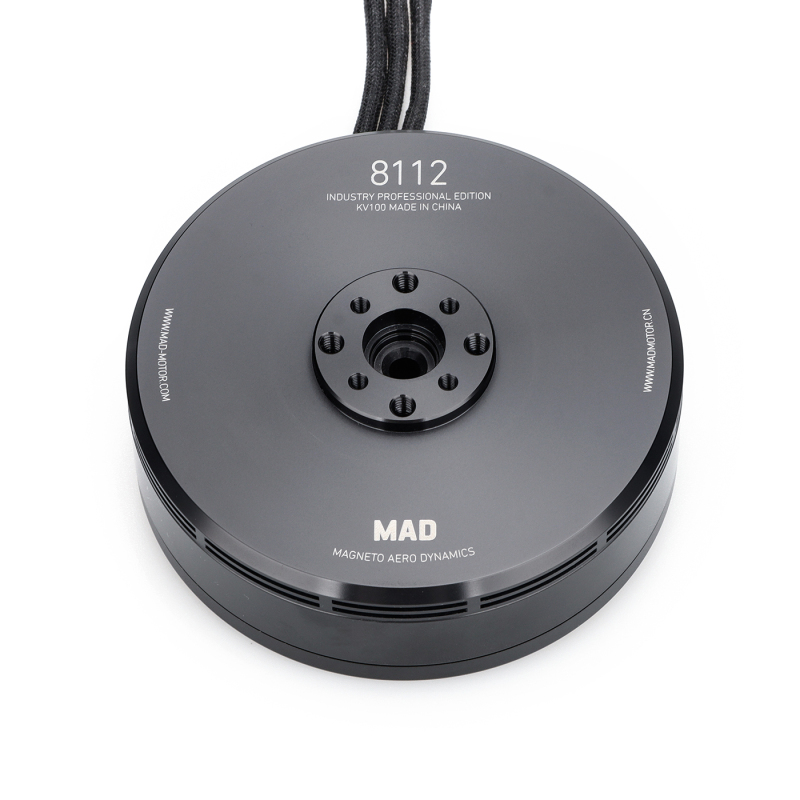

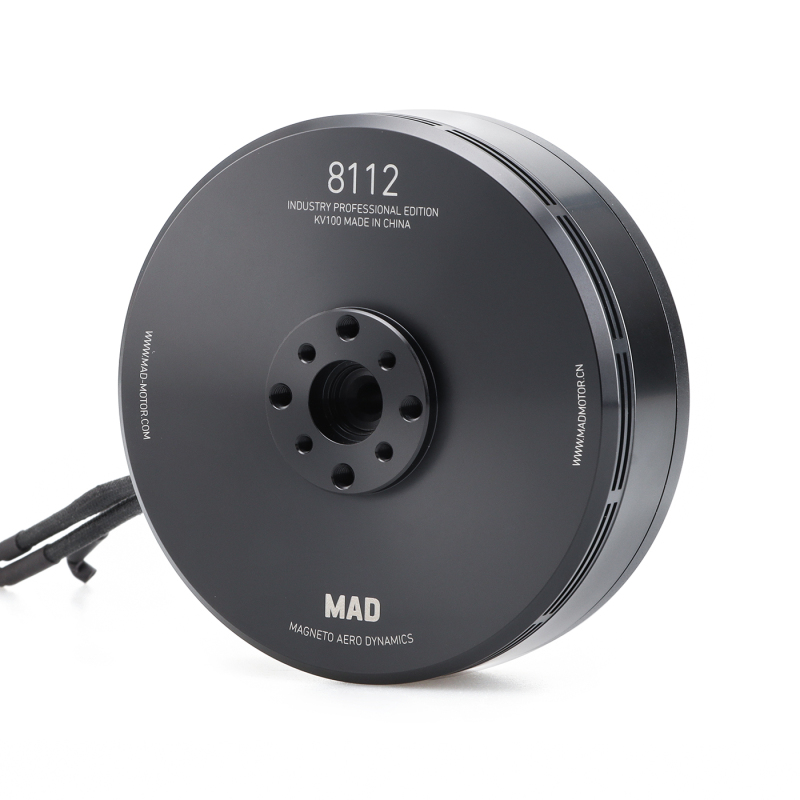

8112 IPE Drone Motor
SKU: 0101DJ0205
$228.00
Positioning:
• Designed for industrial UAVs and professional aerial mapping missions
• Supports 12S voltage systems for high-power applications
• Features a 36N40P multi-slot multipole structure for enhanced performance
• 5% lighter than comparable 81-series motors from other brands
Key Features:
✔ Integrated fan structure for faster airflow and efficient heat dissipation
✔ Precision-engineered for long life in demanding environments
✔ High-quality bearings ensure stable, smooth rotation
Perfect for:
• High-end industrial drone platforms.
• Professional surveying and mapping UAVs.
• Applications requiring lightweight, high-efficiency motors with extended durability.

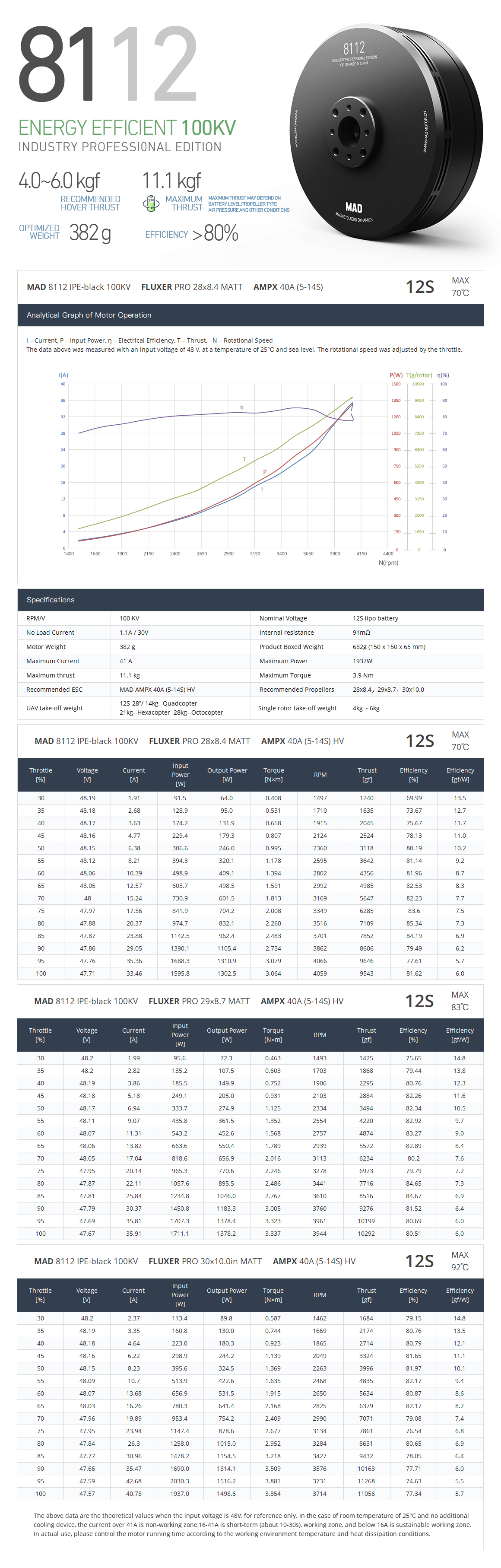

Motor Data |
|||
| Motor Model | MAD 8112 IPE V1.0 black | Number of pole pairs | 20 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.6 × 32.5 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:40 M4×4 |
| Bearing | 6902ZZ*2 | Disruptive test | 500 V |
