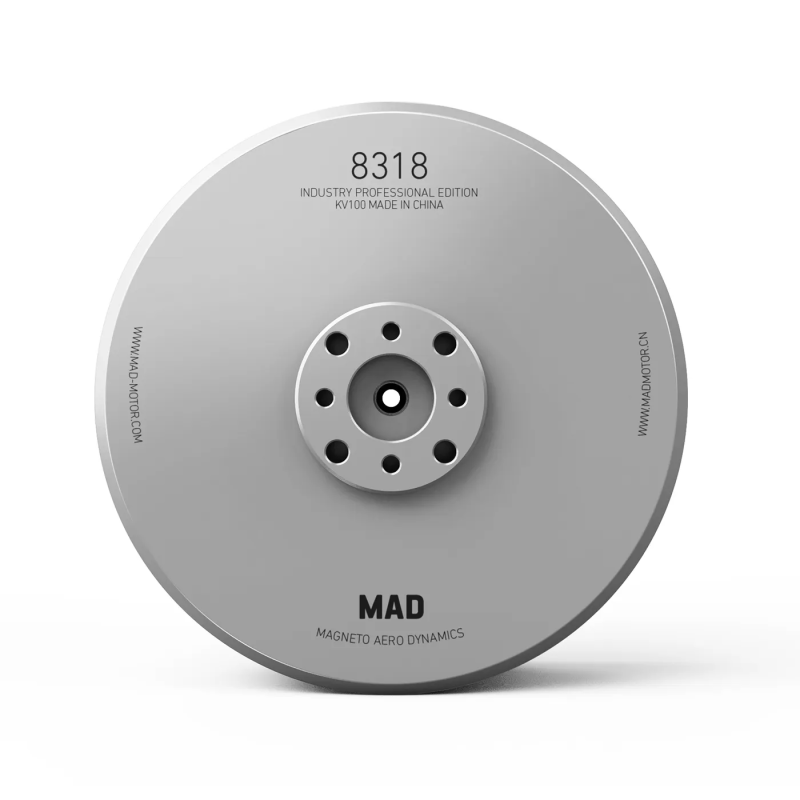

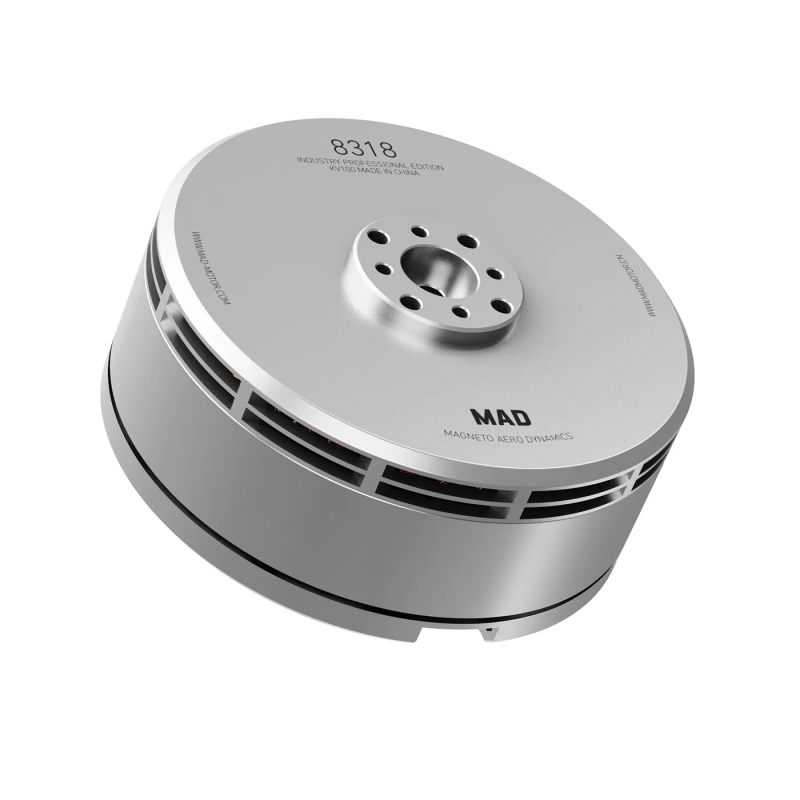

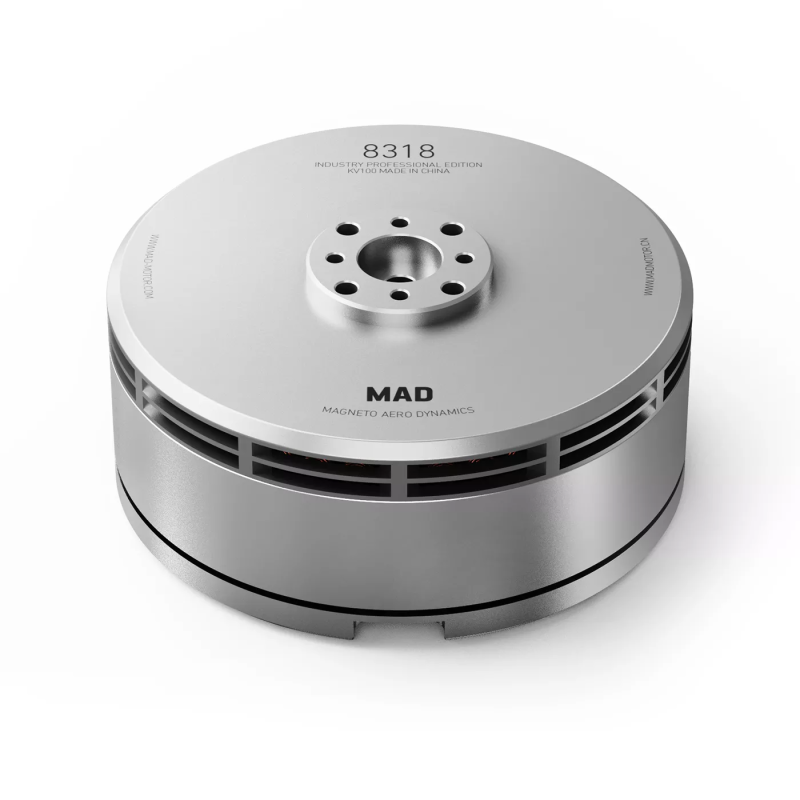

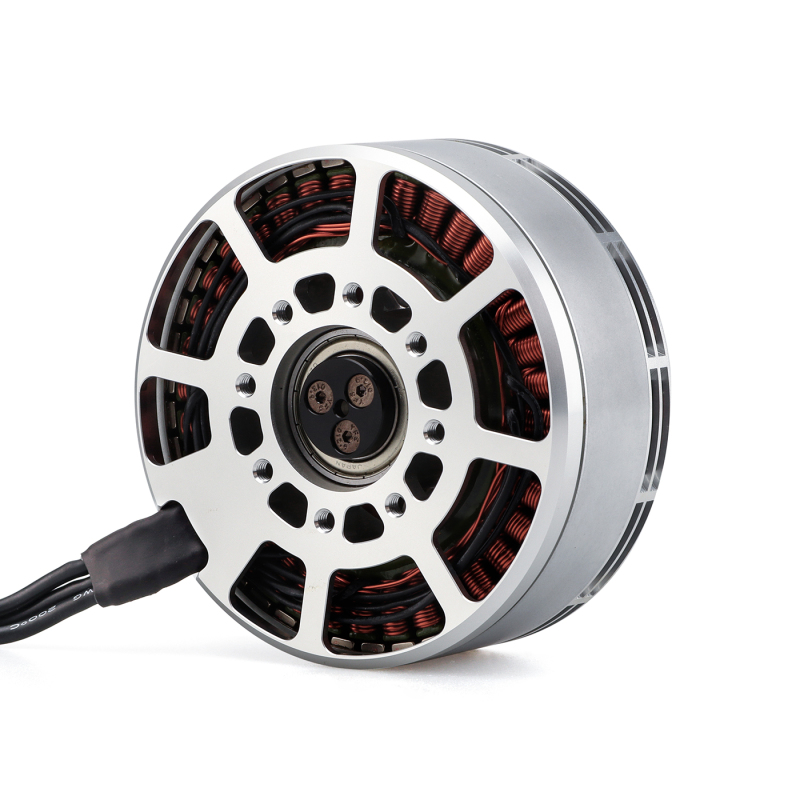

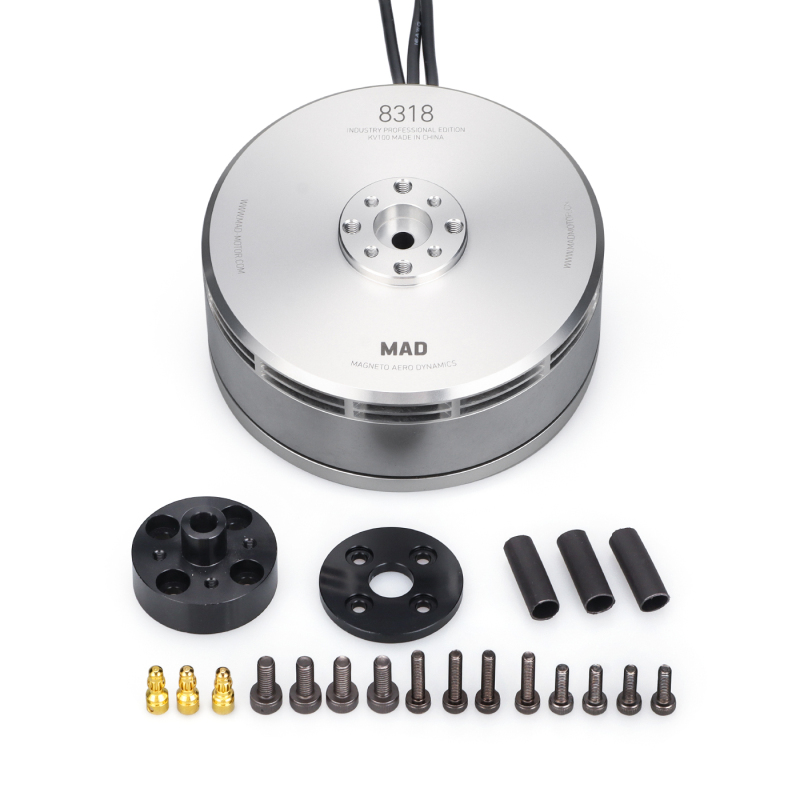

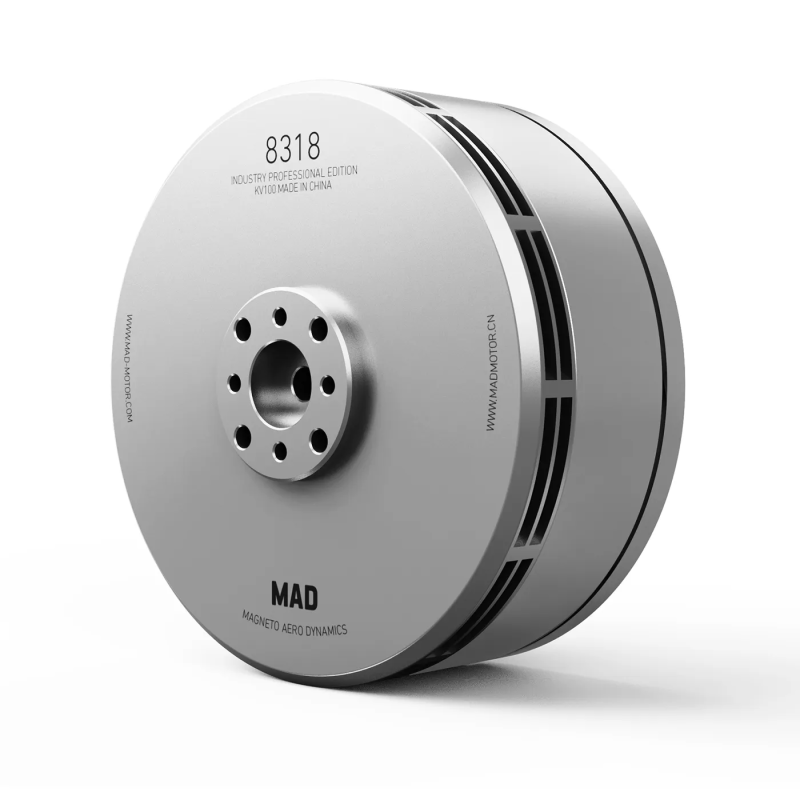

8318 IPE Agriculture drone motor(Silver)
SKU: 0101DJ0116
$197.00
Positioning:
• Designed for heavy-duty agricultural drones operating in rugged environments
• Optimized for 28–32" propellers to support large-scale payloads
• Delivers a maximum thrust of 17.5kg per motor
• Silver version runs 5°C cooler than black, ideal for sun-exposed applications
Key Features:
✔ High thrust capacity for demanding agricultural tasks
✔ Enhanced durability with larger, longer-lasting bearings
✔ Cooler operation improves efficiency and motor lifespan in high-temperature conditions
Perfect for:
• Agricultural spraying drones and crop monitoring platforms
• Long-duration outdoor drone missions under strong sunlight
• Cost-effective high-performance UAVs for rural operations

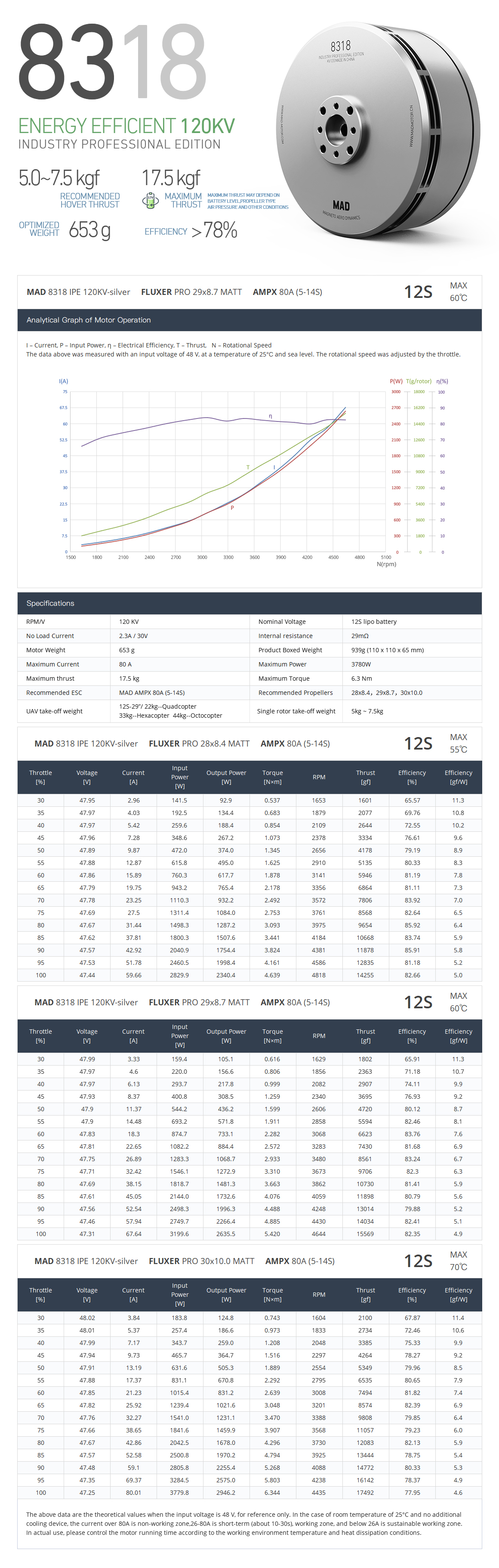

Motor Data |
|||
| Motor Model | MAD 8318 IPE V1.0 silver | Number of pole pairs | 21 |

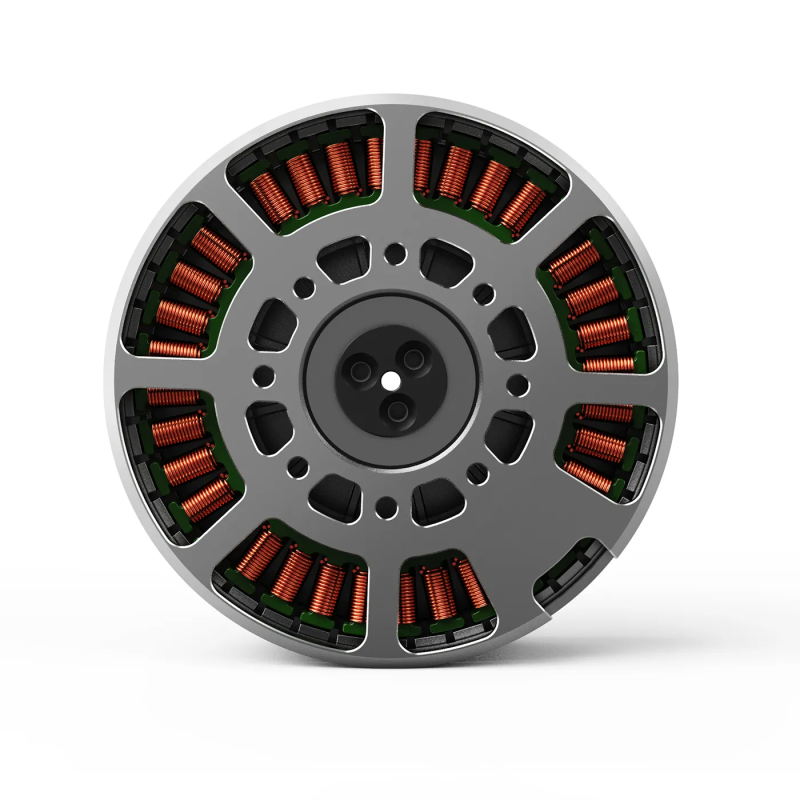

| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:91.5 × 41 mm | Magnet Degree | 150°C |
| Degree of Protection | IP35 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4x4, D:40 M4x4 |
| Bearing | 6802ZZ*2 | Disruptive test | 500 V |
