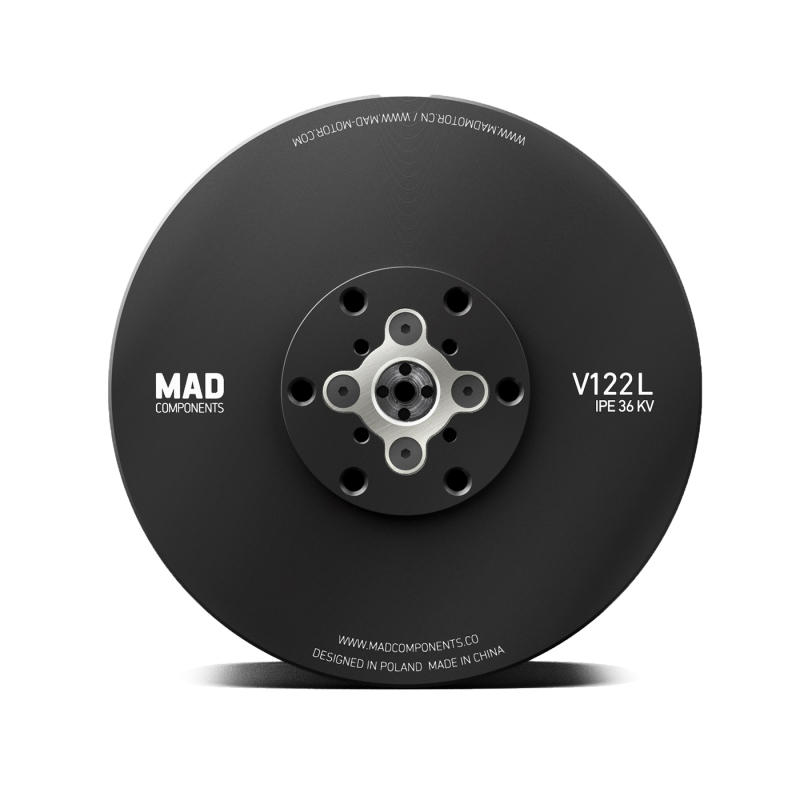

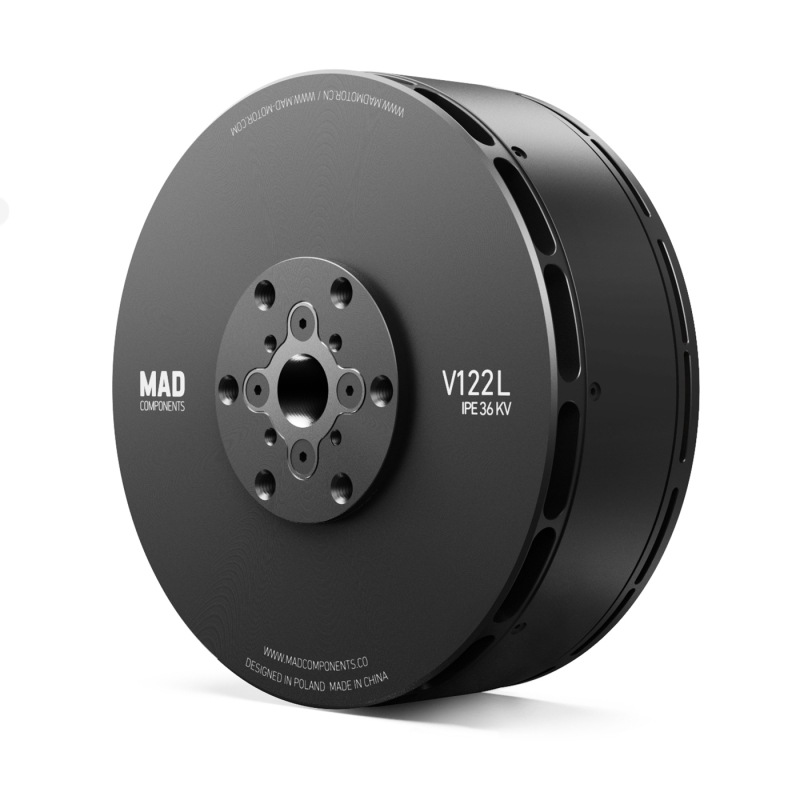

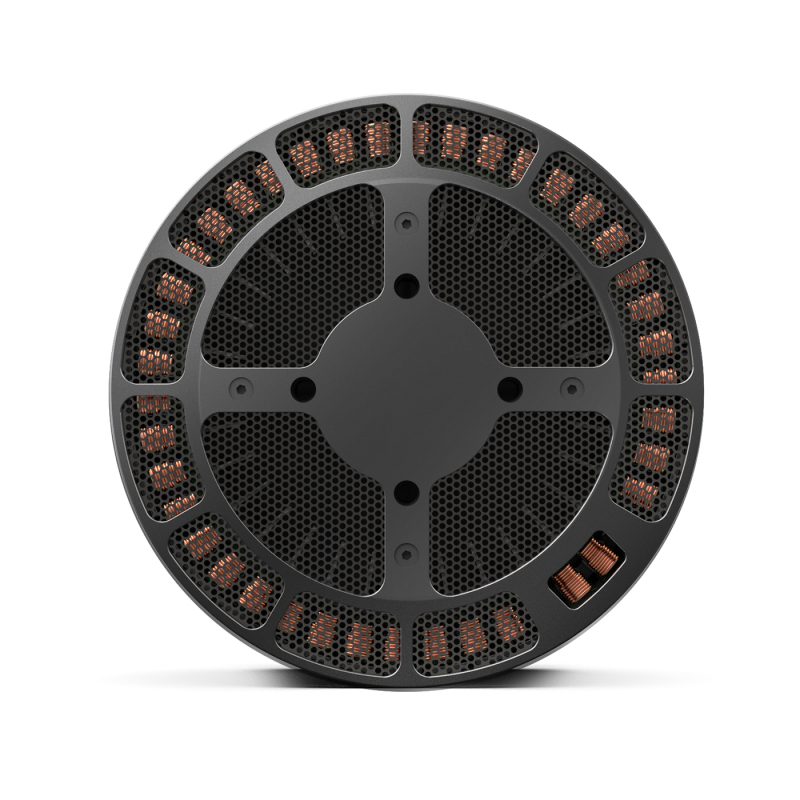

V122L eVTOL Drone Motor

Name: V122L eVTOL Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ1000
Price: 669 USD
Availability: InStock

SKU: 0101DJ1000

Designed to carry payloads of 18-21kg (39.6bl-46.29bl) per rotor, with 47.5″ carbon propeller. Max thrust is up to 50kg(110.23bl) per rotor, unit motor weighs only 1620g. With large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAVs.

$669.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
36KV
Solution

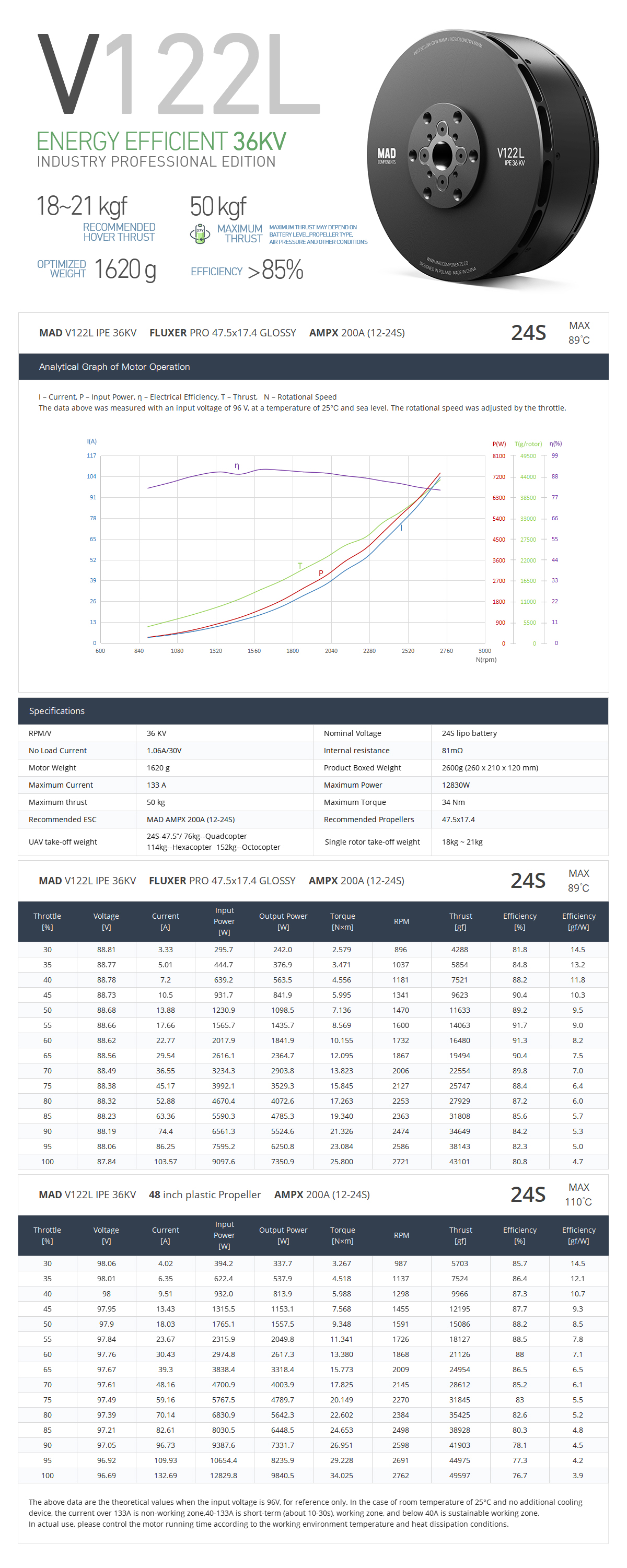

Motor Data
Motor Model	MAD V122L IPE V2.0	Number of pole pairs	19
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:144.6 × 53 mm	Magnet Degree	180°C
Degree of Protection	IP35	Cable Length	150 mm (extended Enameled wires）
Centrifugal Heat Dissipation	YES	Rotor Balance	≤10 mg
Propeller Mounting Holes	D:50 M6×6	Motor Balance	≤20 mg
Shaft Diameter	IN: 20 mm	Motor Mounting Holes	D:50 M6×4
Bearing	6904ZZ*2	Disruptive test	500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes

___________________________________________________________________________________________________________________________

Accessories

SOLUTION
VTOL Motor/KV	VTOL Prop	VTOL ESC
MAD V122L IPE 36KV	Fluxer VTOL 40x13.1/42x14	MAD AMPX 120A(12-24S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 axes)
24S(4.3V/S)/84-52V	16kg ~ 20kg	76kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
