V128L eVTOL Drone Motor

SKU: 0101DJ1546
Designed to carry payloads of 20-26kg per rotor, with 47.5″ carbon propeller. Max thrust is up to 50kg per rotor, unit motor weighs only 1910g. with large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional aerial UAVs.
$0.00 $689.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    45KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
1/1
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
  • MAD V128L VTOL DRONE MOTOR Brushless for the flying drone
  • Description
  • 45KV-24S

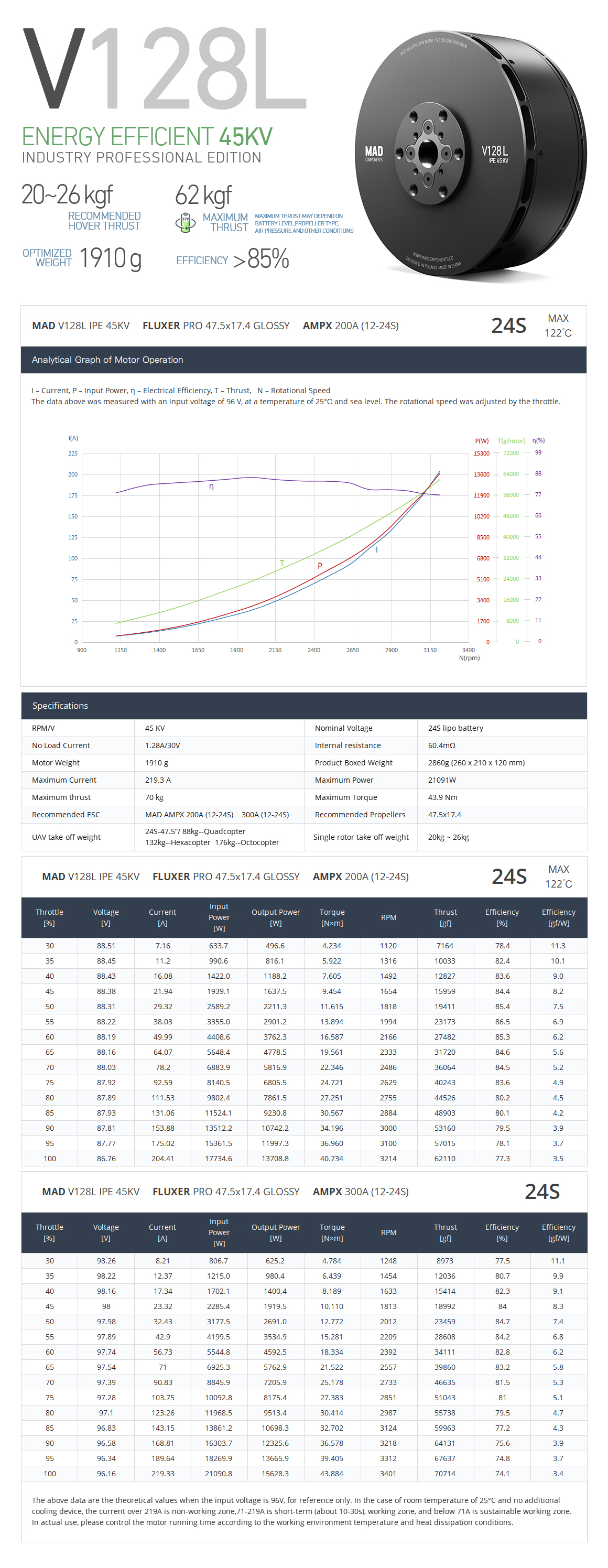

Motor Data

Motor Model MAD V128L IPE V2.0 Number of pole pairs 19
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:144.6 × 59 mm Magnet Degree 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:50 M6×6 Motor Balance ≤20 mg
Shaft Diameter IN: 20 mm Motor Mounting Holes D:50 M6×4
Bearing 6904ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
