M7C10 IPE V2 Drone Motor

SKU: 0101DJ0373
Sustained thrust: 2~4kg
Max thrust: 8.7kg
Support voltage: 100KV/12S, 120KV/ 12S, 190KV/6S
Weight: 275g, 277g, 281g
$0.00 $199.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    100KV
    120KV
    190KV
    Please select the information you wantX
Quantity
-
+
Download
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
1/1
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • M7C10 IPE V2  brushless motor
  • Description
  • 100KV
  • 120KV
  • 190KV

About M7C10 IPE

Positioning:
• Designed for UAVs including multirotor hexacopters and octocopters
• Supports 12S voltage and optimized for 2–4 kg single-axis payloads
• Ideal for mid-to-heavy lift applications with 26–28 inch carbon fiber propellers

Key Features:
✔ Delivers up to 8.7 kg maximum thrust per axis
✔ Motor weight: 270g
✔ Engineered for high stability and performance in multi-rotor systems

Perfect for:
• Medium-lift UAVs
• Hexacopter and octocopter builds requiring efficient and lightweight motors
• Professional users balancing thrust, voltage compatibility, and motor weight

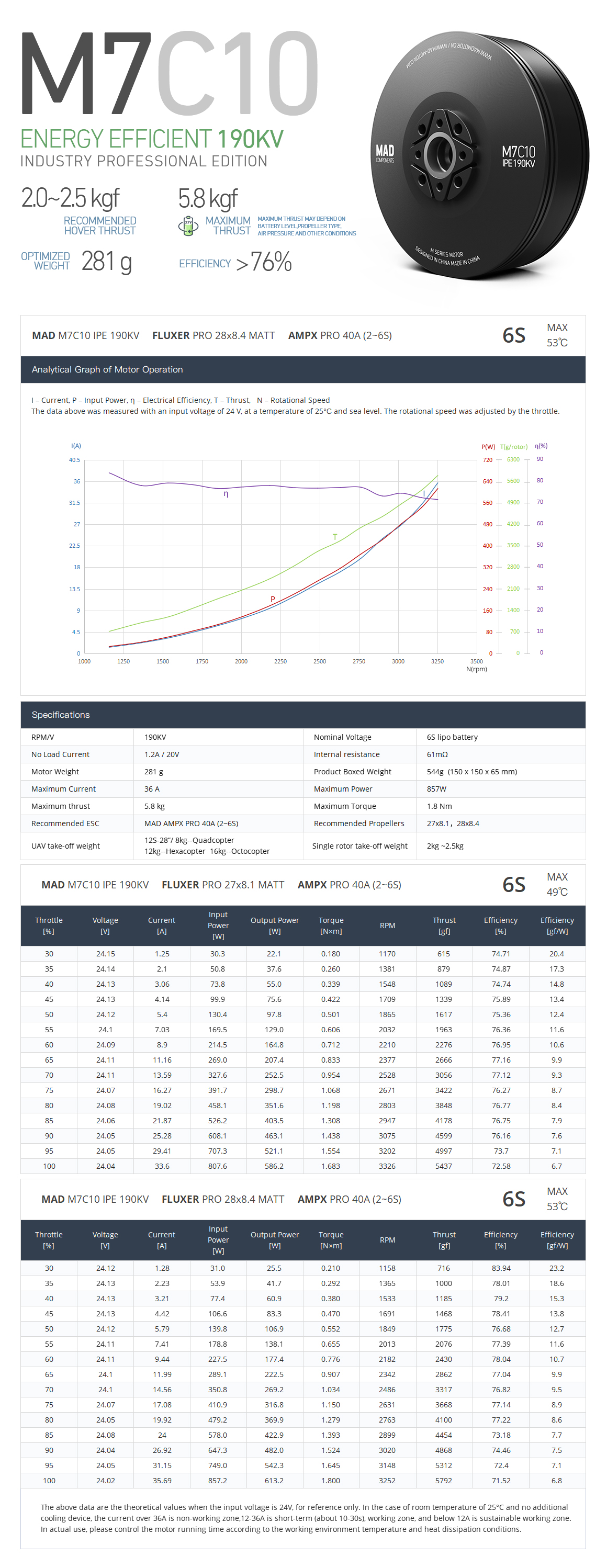

Motor Data

Motor Model MAD M7C10 IPE V2.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:78.3 × 27.8 mm Magnet Degree 150°C
Degree of Protection IP35 Cable Length 150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4, D:23 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 12 mm Motor Mounting Holes D:32 M4×4
Bearing 6901ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes___________________________________________________________________________________________________________________________
