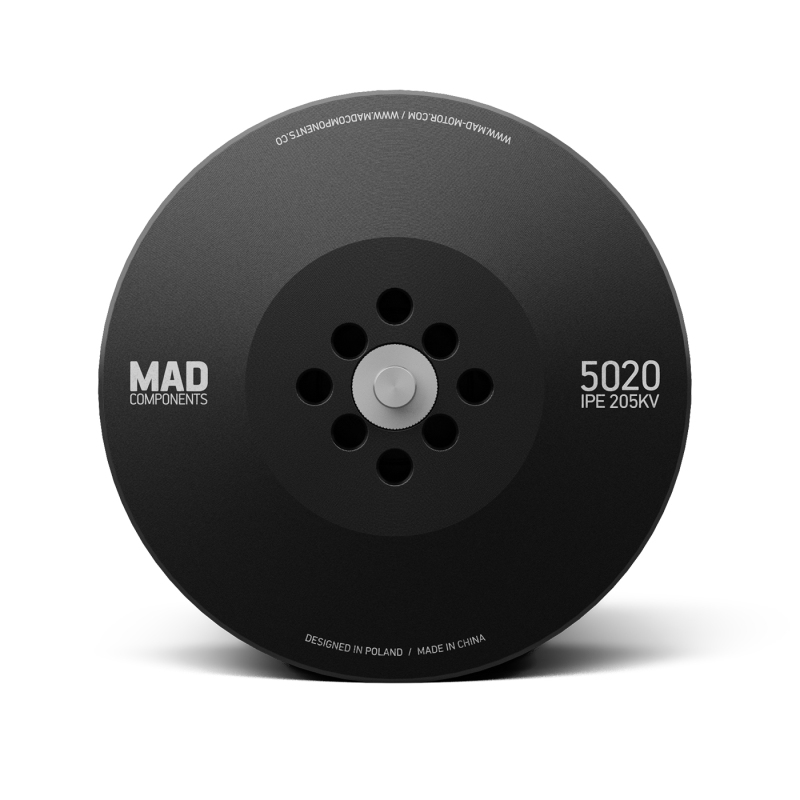

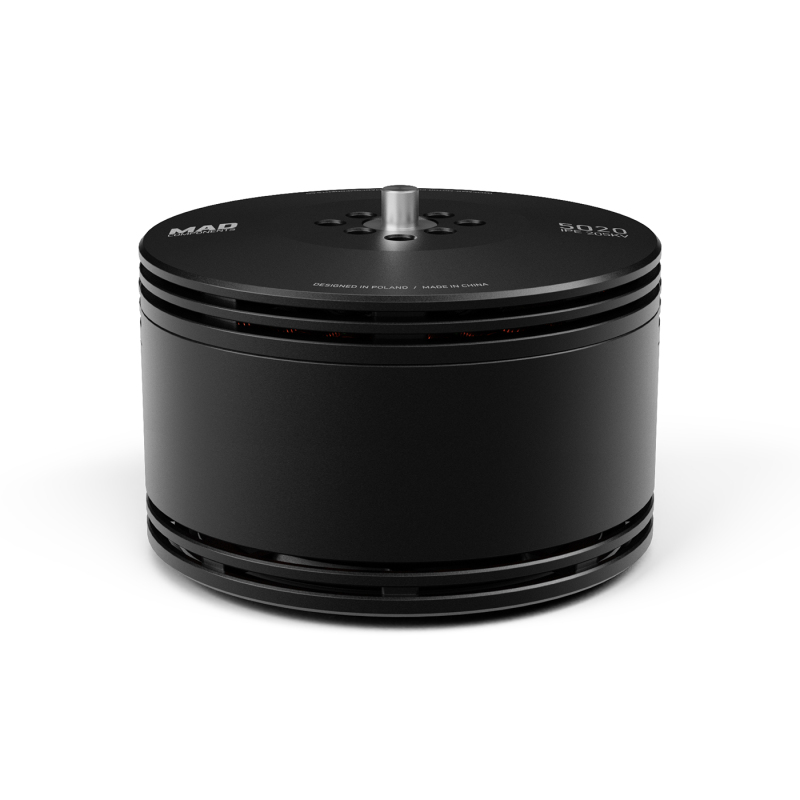

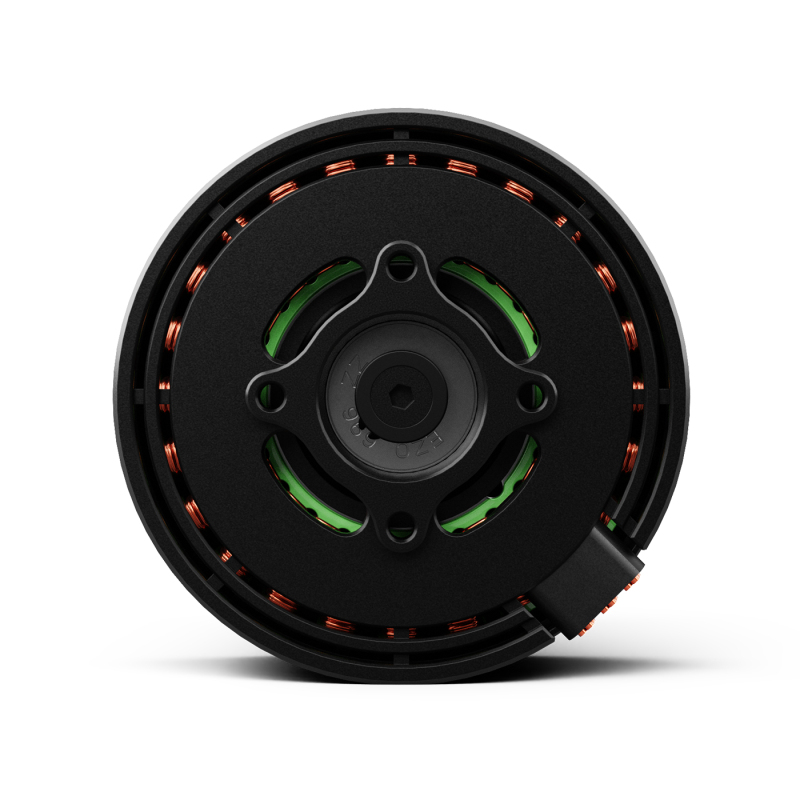

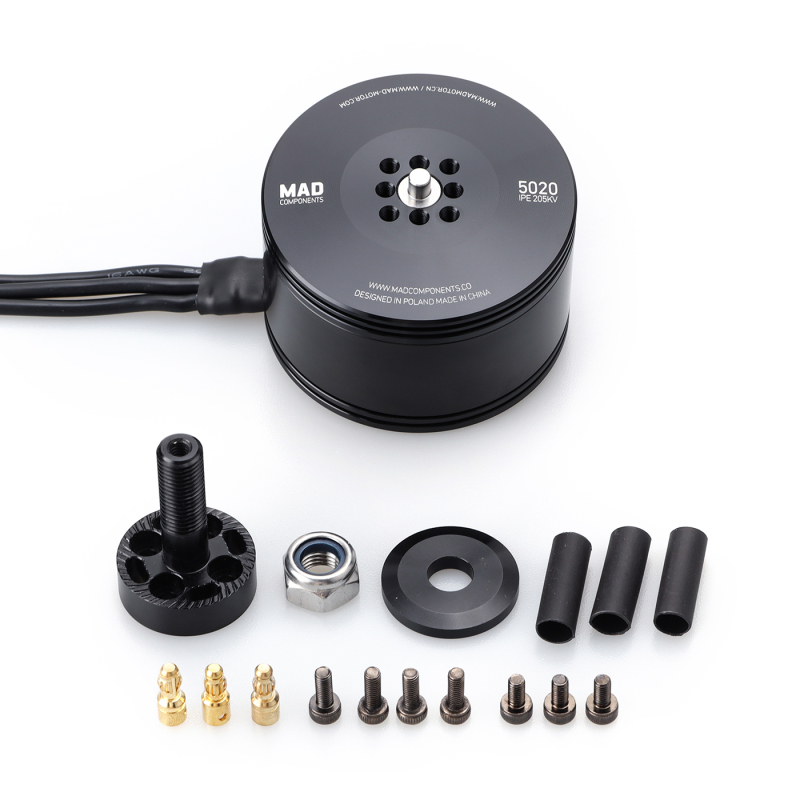

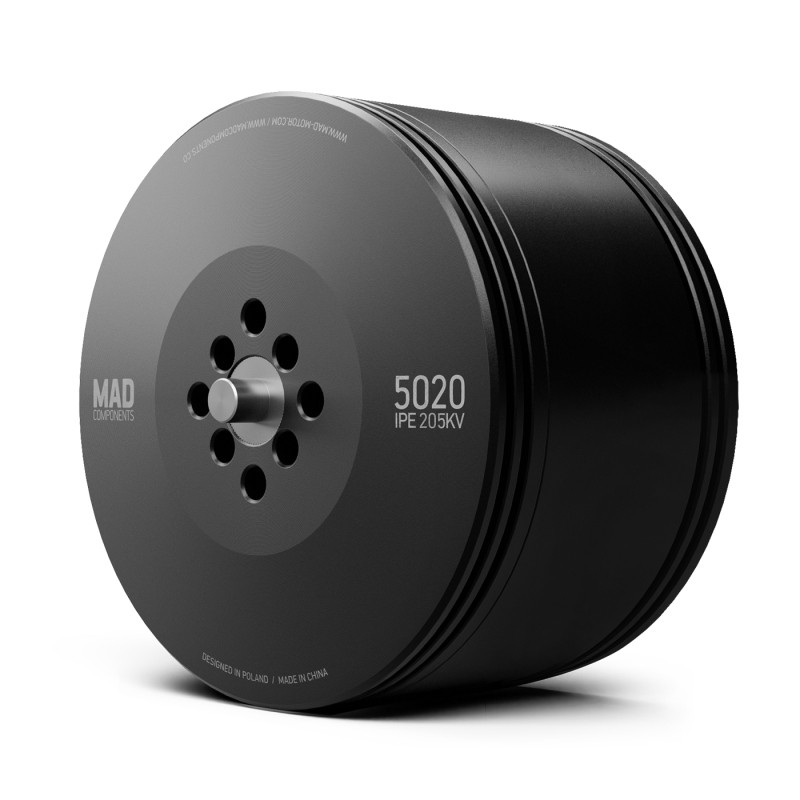

MAD 5020 IPE V3.0 VTOL Drone Motor

SKU: 0101DJ0925
5020 205KV As the hot motors in the field, because it is the darling of 2.5-3.5kg VTOL aircraft, at the same time 5020 KV205 is also the best power solution for the quadcopter with take-off weight of 2.5-3.5kg.It is widely used for the long-range inspection drone mapping drone surveying drone quadcopter hexcopter mulitirotor.
$0.00 $119.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    205KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD 5020 IPE V3.0 brushless motor for the long-range inspection drone mapping drone surveying VTOL drone quadcopter hexcopter mulitirotor-2017
  • MAD 5020 IPE V3.0 brushless motor for the long-range inspection drone mapping drone surveying VTOL drone quadcopter hexcopter mulitirotor-2017
  • MAD 5020 IPE V3.0 brushless motor for the long-range inspection drone mapping drone surveying VTOL drone quadcopter hexcopter mulitirotor-2017
  • MAD 5020 IPE V3.0 brushless motor for the long-range inspection drone mapping drone surveying VTOL drone quadcopter hexcopter mulitirotor-2017
  • MAD 5020 IPE V3.0 brushless motor for the long-range inspection drone mapping drone surveying VTOL drone quadcopter hexcopter mulitirotor-2017
  • Description
  • 205KV

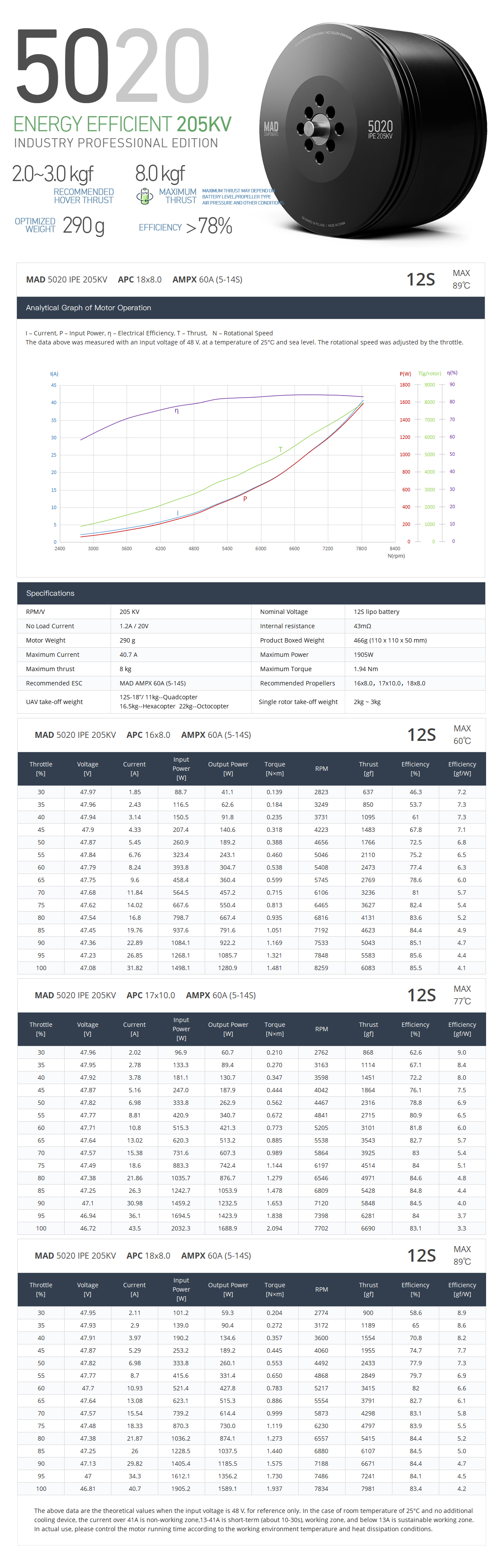

Specification

Motor Model
MAD 5020 IPE V3.0
Number of pole pairs
14
Stator
Anticorrosive
Varnished wire Degree
180°C
Motor Size
D:56 × 41.3 mm
Magnet Degree
150°C
Degree of Protection
IP45 Cable Length
150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation
YES Rotor Balance
≤5 mg
Propeller Mounting Holes
D:12 M3×4,  D:15 M3×4
Motor Balance
≤10 mg
Shaft Diameter
IN: 6 mm
Motor Mounting Holes
D:25 M3×4
Bearing EZO 696ZZ*2
Disruptive test
500 V

___________________________________________________________________________________________________________________________


Drawing and mount holes
