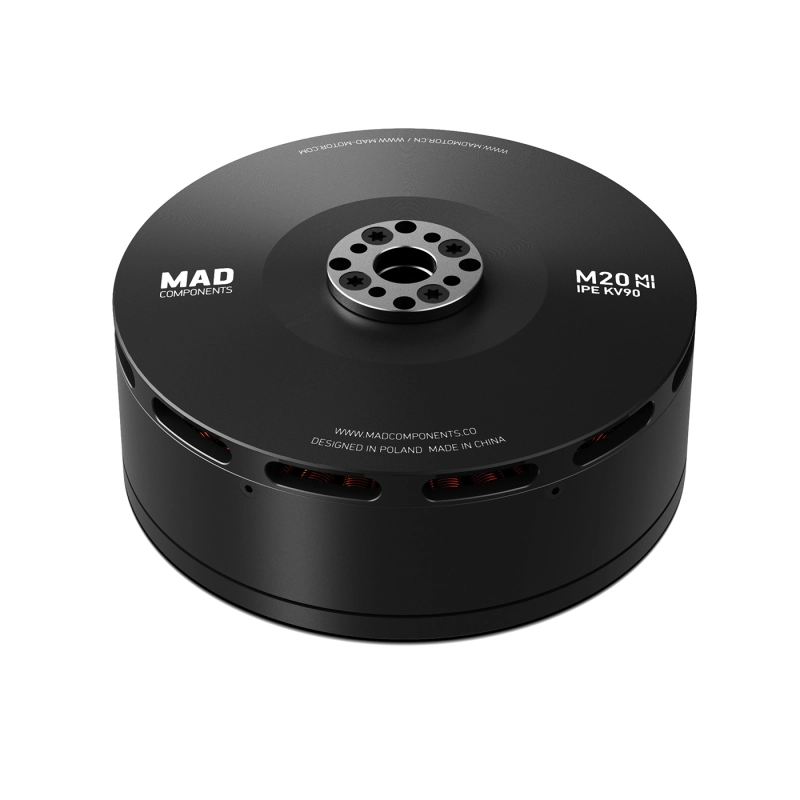

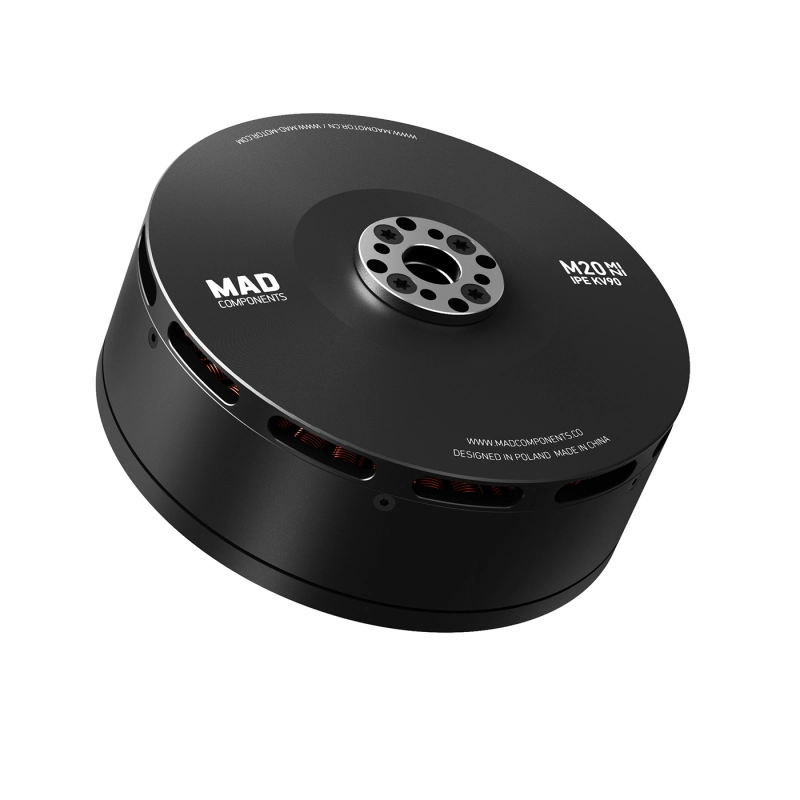

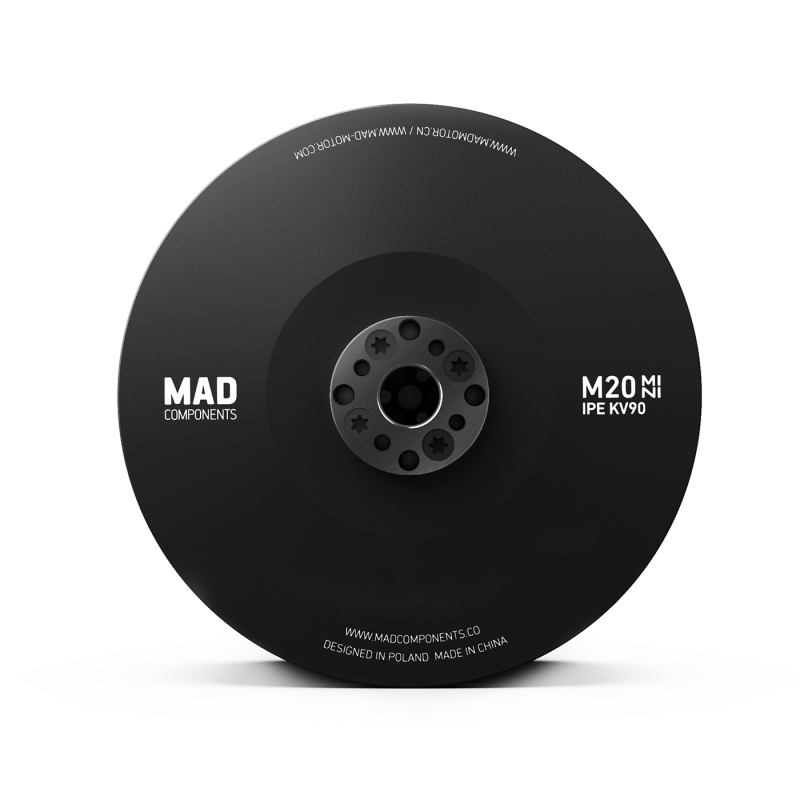

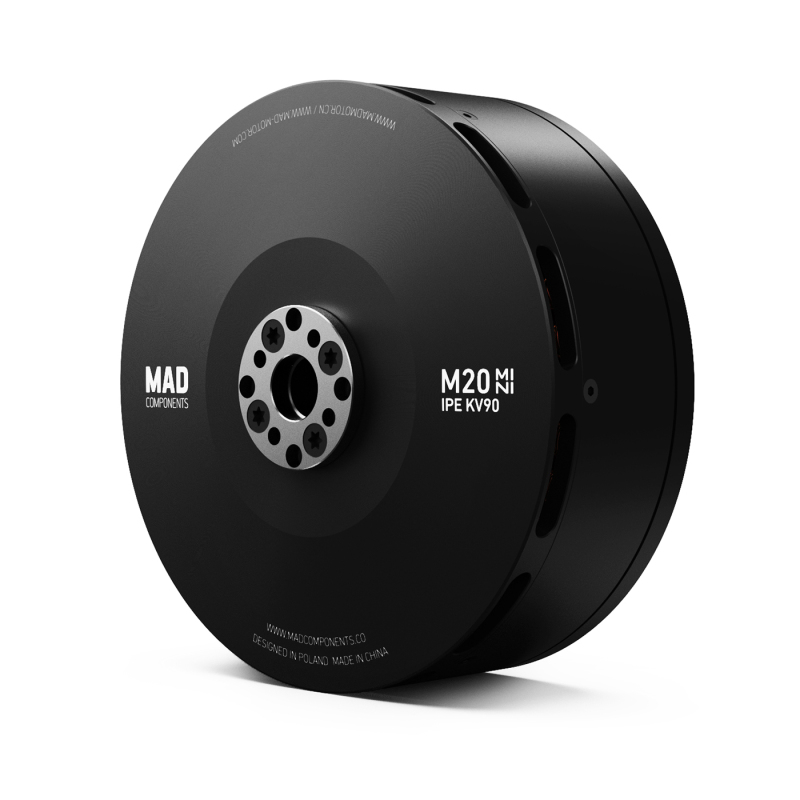

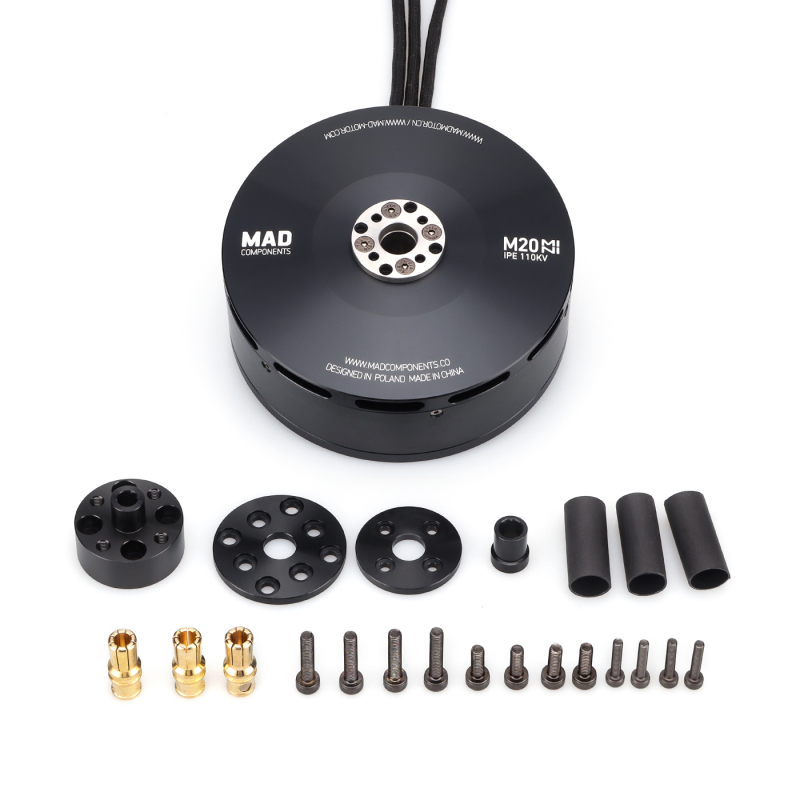

M20 MiNi IPE Drone Motor
SKU: 0101DJ0844
| Sustained thrust: | 8~9.5kg |
| Max thrust: | 30.4kg |
| Support voltage: | 12S |
| Weight: | 812g |
$429.00
| Sustained thrust: | 8~9.5kg |
| Max thrust: | 30.4kg |
| Support voltage: | 12S |
| Weight: | 812g |
Positioning:
• High-performance motor designed for 8–9.5 kg single-axis payloads
• Ideal for industrial UAVs requiring extreme thrust with broad propeller compatibility
• Supports 12S voltage and optimized for 28–40 inch carbon fiber propellers
Key Features:
✔ Peak thrust up to 30.4 kgf per axis
✔ Rated thrust range: 8–9.5 kgf
✔ Ultra-lightweight construction at just 812g
✔ Maximized thrust-to-weight ratio for demanding flight scenarios
Perfect for:
• Heavy-payload multirotor drones using large propellers
• Industrial or professional UAV platforms with dynamic thrust needs
• Builders focused on achieving powerful lift with a compact motor footprint
Motor Data |
|||
| Motor Model | MAD M20 MiNi IPE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:108.6 × 45.9 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3×4, D:24 M4×4 | Motor Balance | ≤20 mg |

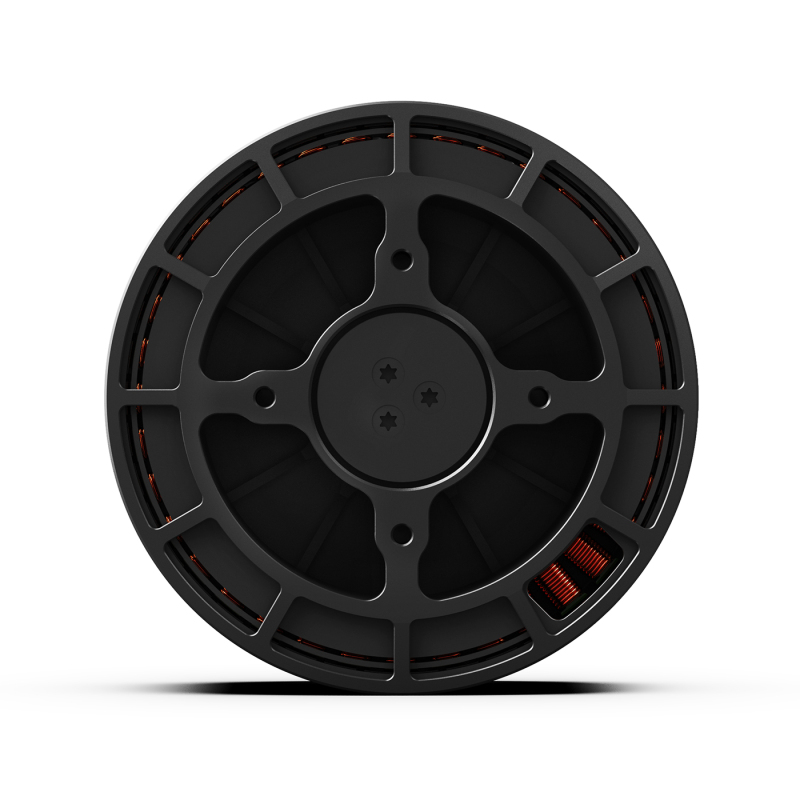

| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:50 M4×4 |
| Bearing | 6902ZZ*2 | Disruptive test | 500 V |
