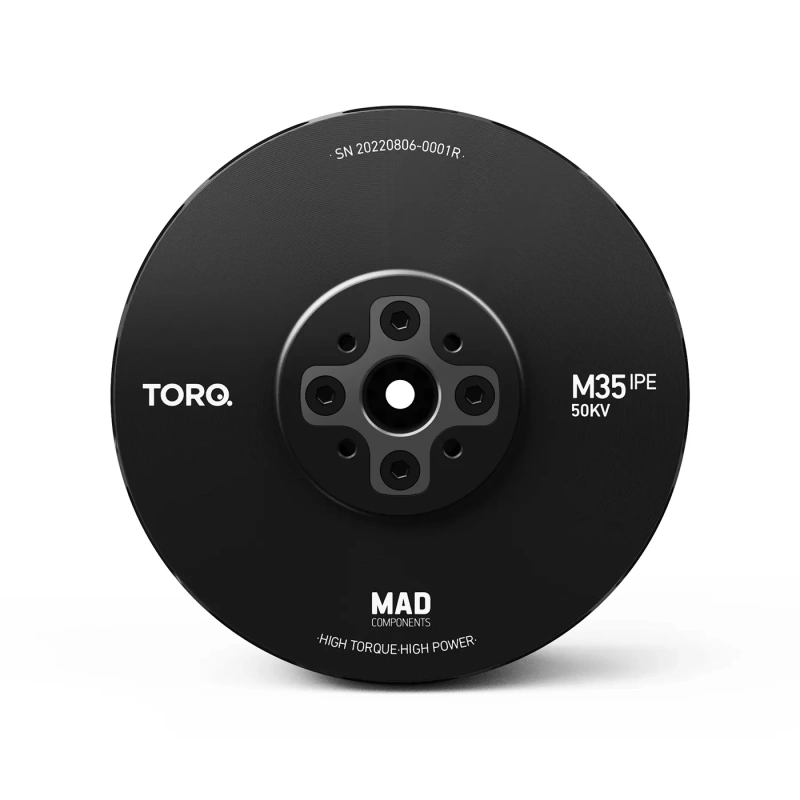

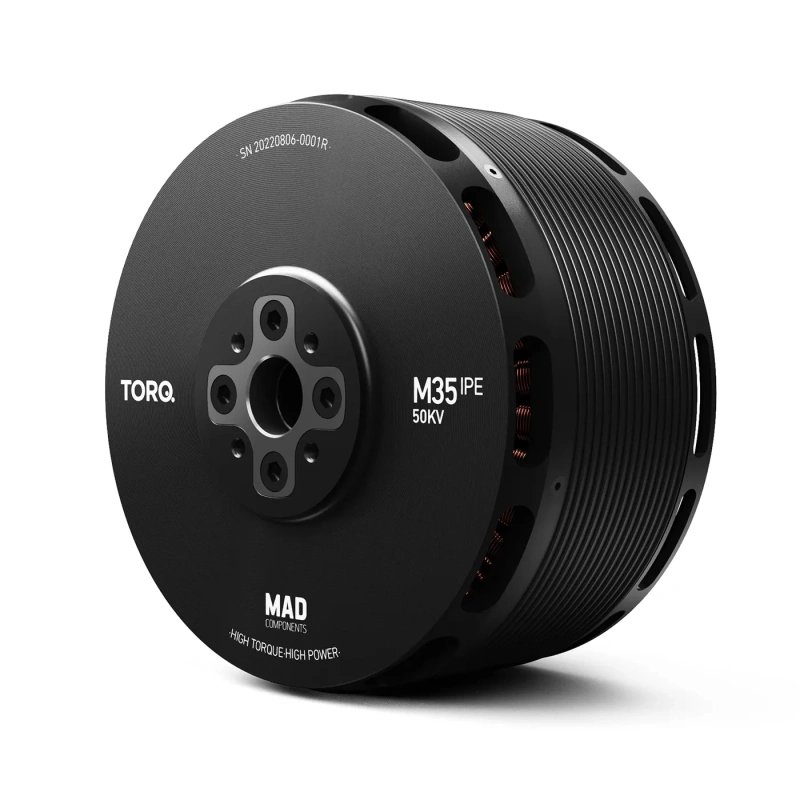

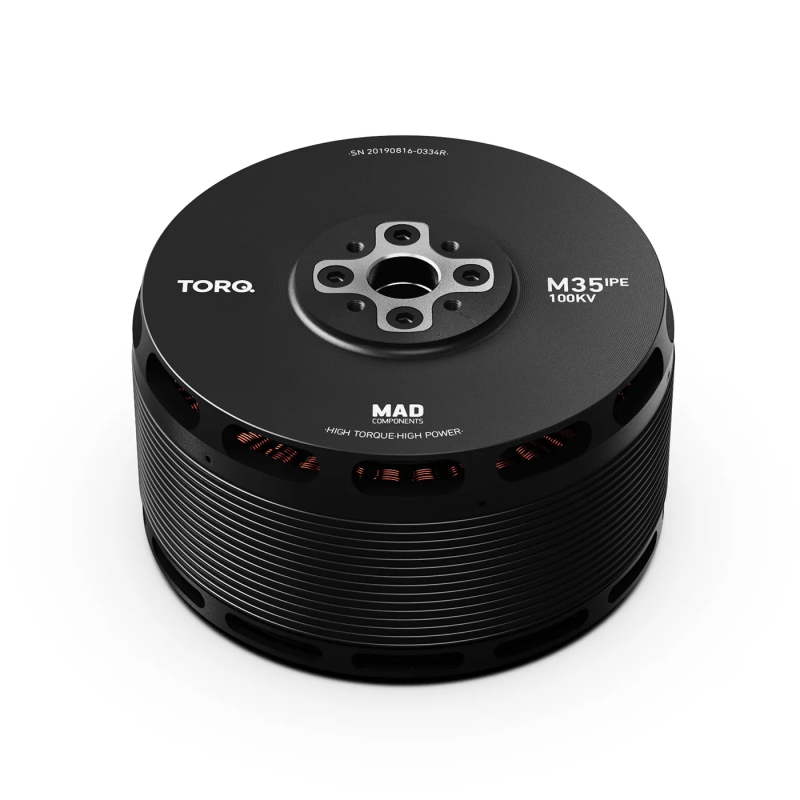

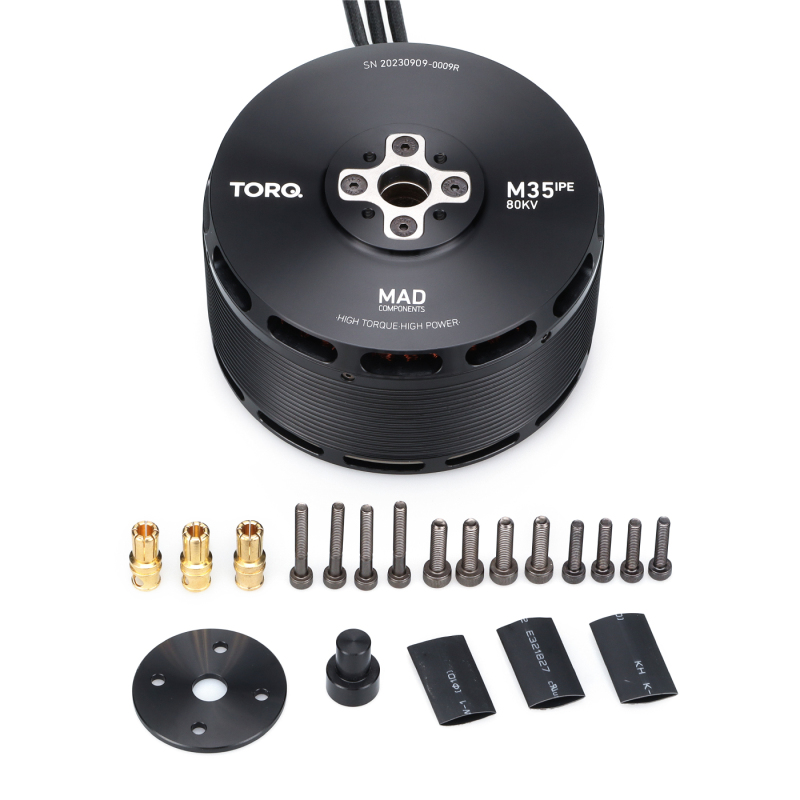

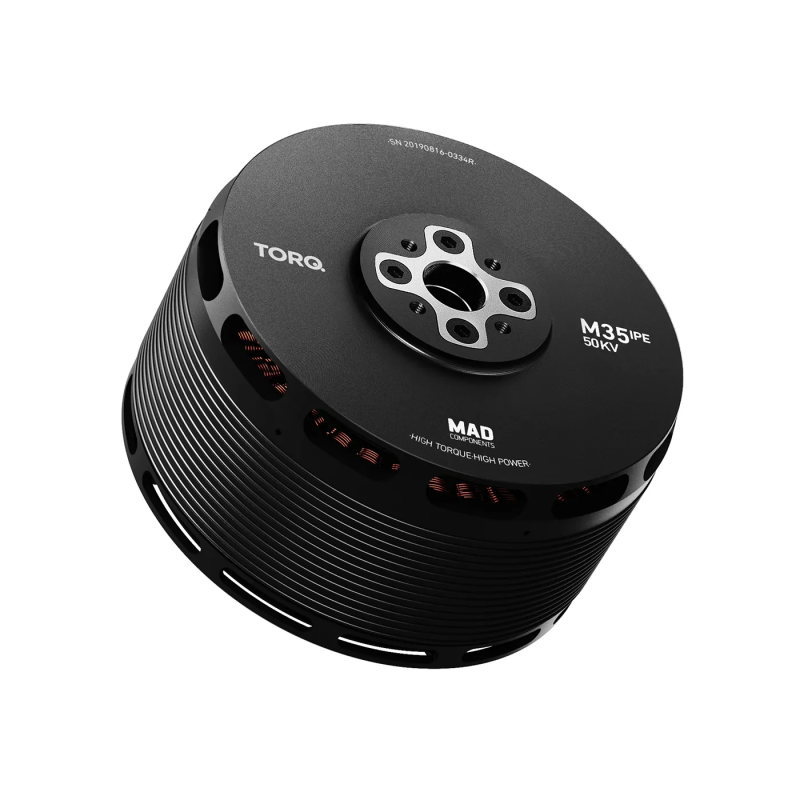

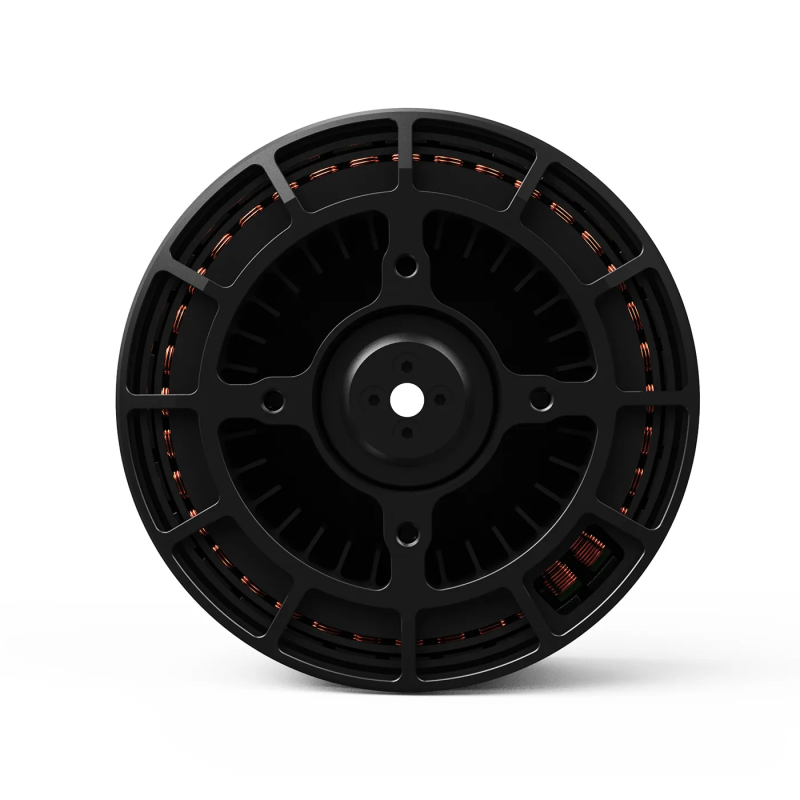

M35 TORQ IPE Manned Drone Motor

SKU:
Sustained thrust: 15~22kg
Max thrust: 53.8kg
Support voltage: 24S
Weight: 1860g
$0.00 $929.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV OPTION:
    50KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • M35 TORQ IPE brushless drone motor
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • M35 TORQ IPE brushless drone motor
  • M35 TORQ IPE brushless drone motor
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • M35 TORQ IPE brushless drone motor
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • M35 TORQ IPE brushless drone motor
  • M35 TORQ IPE brushless drone motor
1/1
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • M35 TORQ IPE brushless drone motor
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • MAD TORQ M35 IPE for an Unmanned VTOL / Multi-Copter (Hexa,Octo) Personal Aerial Vehicle (PAV)
  • M35 TORQ IPE brushless drone motor
  • M35 TORQ IPE brushless drone motor
  • Description
  • 50KV

About M35 IPE V1

Positioning:
• Flagship motor built for ultra-heavy-lift UAV platforms
• Optimized for VTOL systems and 40.1x16 inch propeller in high-demand aerial applications
• Designed to deliver maximum thrust under 24S voltage for manned or high-end industrial drones

Key Features:
✔ Peak thrust: 53.8 kgf | Rated thrust: 15–22 kgf
✔ Lightweight for its class: 1860g
✔ Supports 24S voltage systems
✔ Compatible with AMPX ESC 200a 12-24s and FOC 250A 24S Drone ESC

Perfect for:
• Large VTOL, logistics, or heavy-payload UAV applications
• Manned drone systems and professional aerial transport solutions


Motor Data

Motor Model MAD M35 IPE V1.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:122 × 68.5 mm Motor Balance 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:30 M4×4 Motor Balance ≤20 mg
Shaft Diameter IN: 20 mm Motor Mounting Holes D:55 M5×4
Bearing 6904ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
