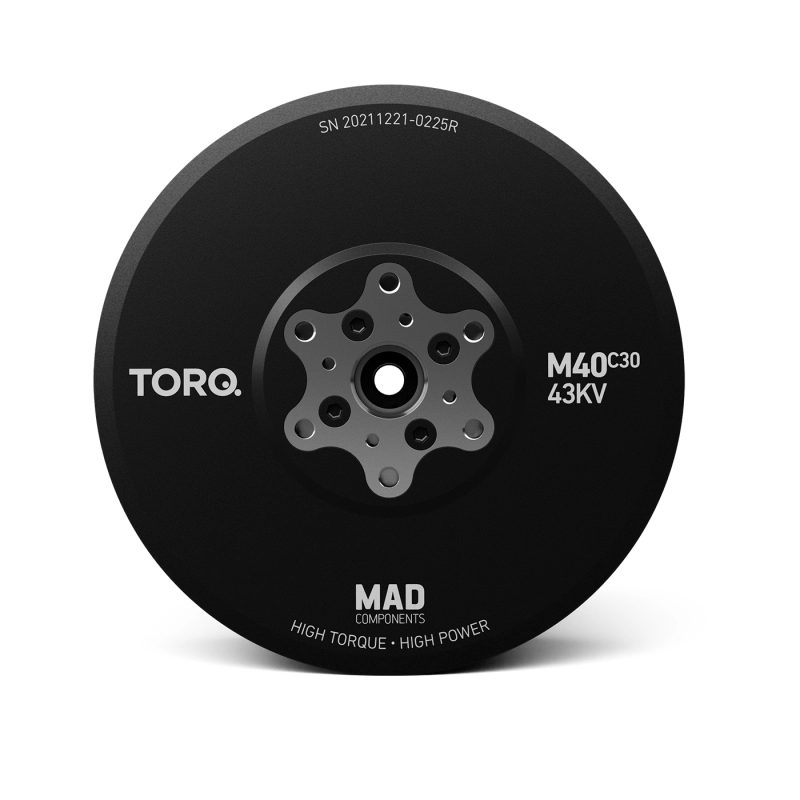

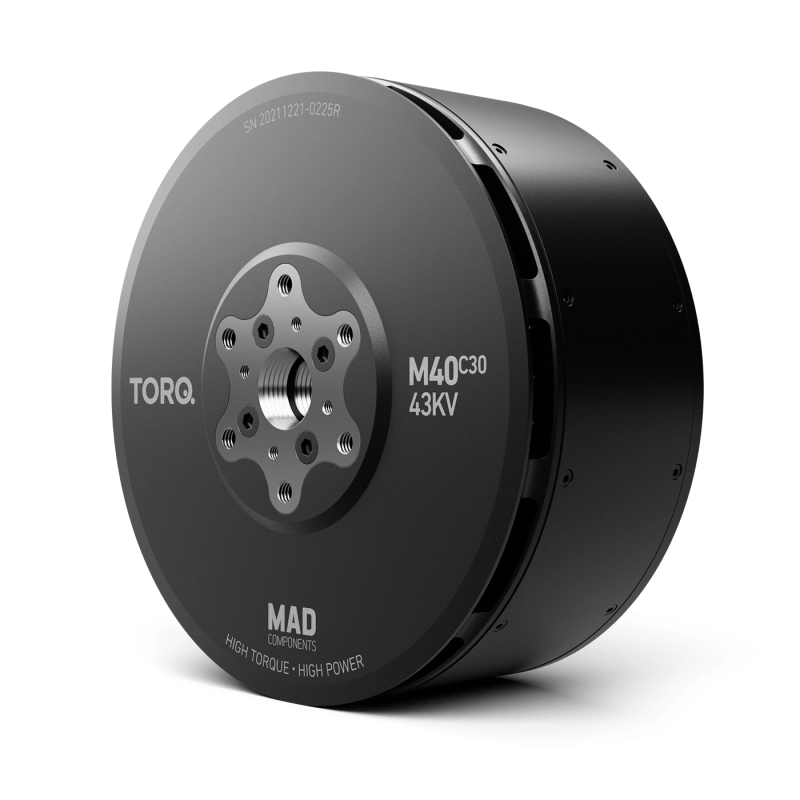

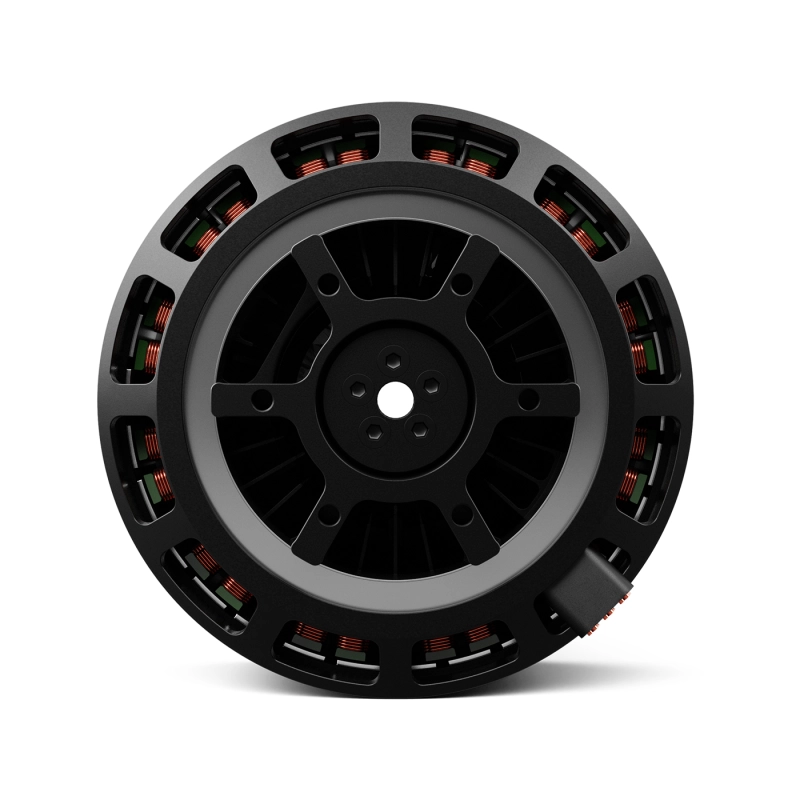

M40C30 PRO IPE brushless drone motor

SKU: 0101DJ0221
1.The case is equipped with large locating bearings to eliminate resonance and gyroscopic effects.
2. Maximum thrust of 70kg, designed for agricultural pest control and professional applications.
3. 43KV recommend:ESC:AMPX 300A (12-24s)   propeller:fluxer glossy 47.5x17.4 pro,
4. 35KV recommend: HB30-54x24
5. 10KV motor with FOC ESC combo recommend:HB30-54x24,HB30-CB2 47.5x18. 5 , HB30 47.5x17.4,HB30-52x19
$0.00 $1,069.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    43KV-24S
    10KV-100S
    35KV-24s
    Please select the information you wantX
Quantity
-
+
Download
  • MAD M40C30 PRO IPE brushless drone motor for the unmannedrc drone
  • MAD M40C30 PRO IPE brushless drone motor for the unmannedrc drone
  • MAD M40C30 PRO IPE brushless drone motor for the unmannedrc drone
  • MAD M40C30 PRO IPE brushless drone motor for the unmannedrc drone
  • Description
  • 10KV
  • 43KV

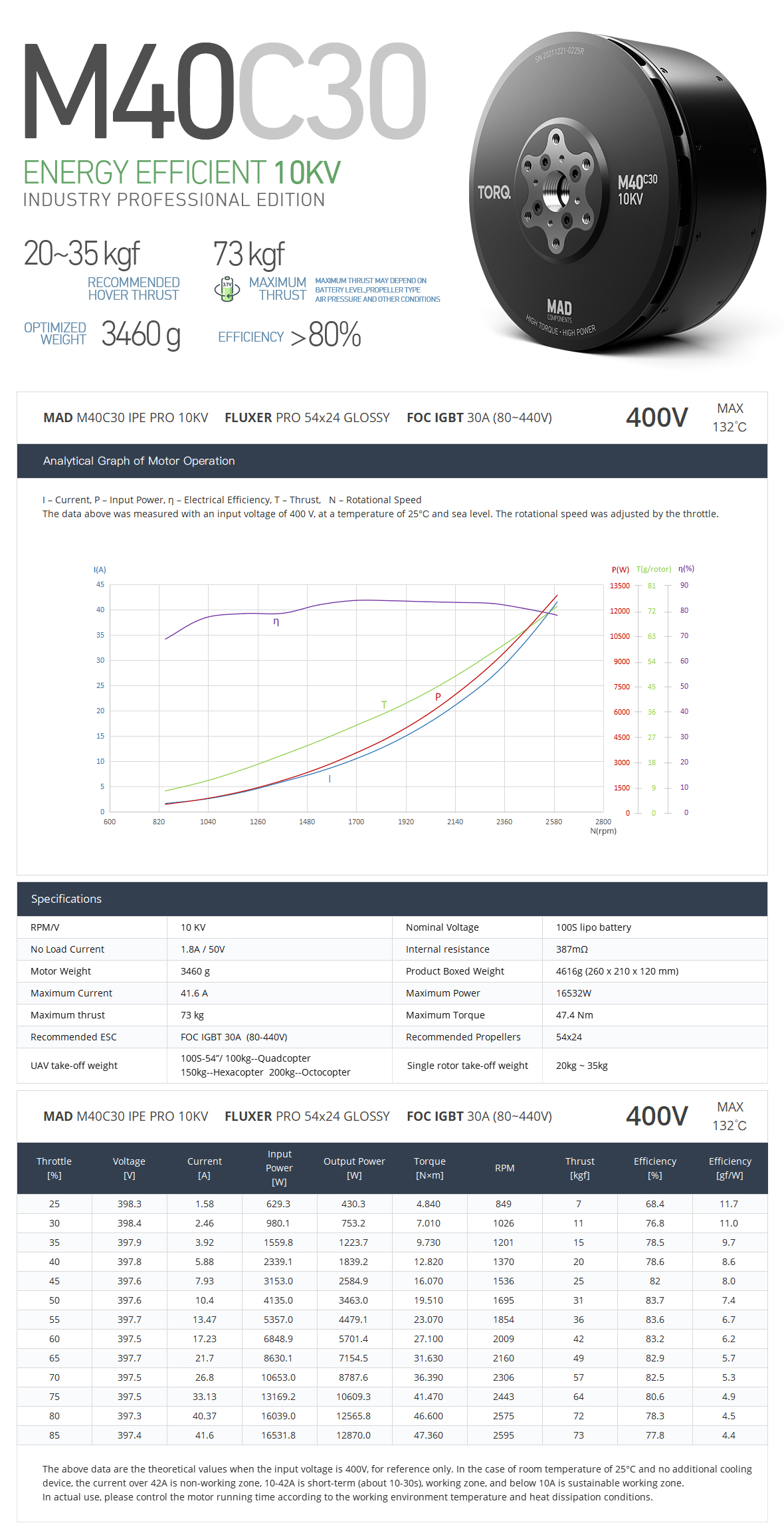

Motor Data

Motor Model MAD M40C30 IPE V3.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:151.4 × 81 mm Motor Balance 180°C
Degree of Protection IP45 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤20 mg
Propeller Mounting Holes D:50 M6×6 Motor Balance ≤30 mg
Shaft Diameter IN: 25 mm Motor Mounting Holes D:65 M6×6
Bearing 6805ZZ *2 / 6818ZZ Disruptive test 500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes
