| Sustained thrust: | 30~45kg |
| Max thrust: | 113.7kg |
| Support voltage: | 12S,24S |
| Weight: | 4300g |
Positioning:
• High-power propulsion system built for manned drones and ultra-heavy UAVs
• Ideal for projects requiring maximum lift, structural reliability, and power efficiency
Key Features:
✔ Rated thrust: 30–40 kgf | Peak thrust: 92.6 kgf
✔ Continuous output: 25 kW
✔ Motor weight: 4360g
✔ Supports 12–24S voltage systems
Recommended Configurations:

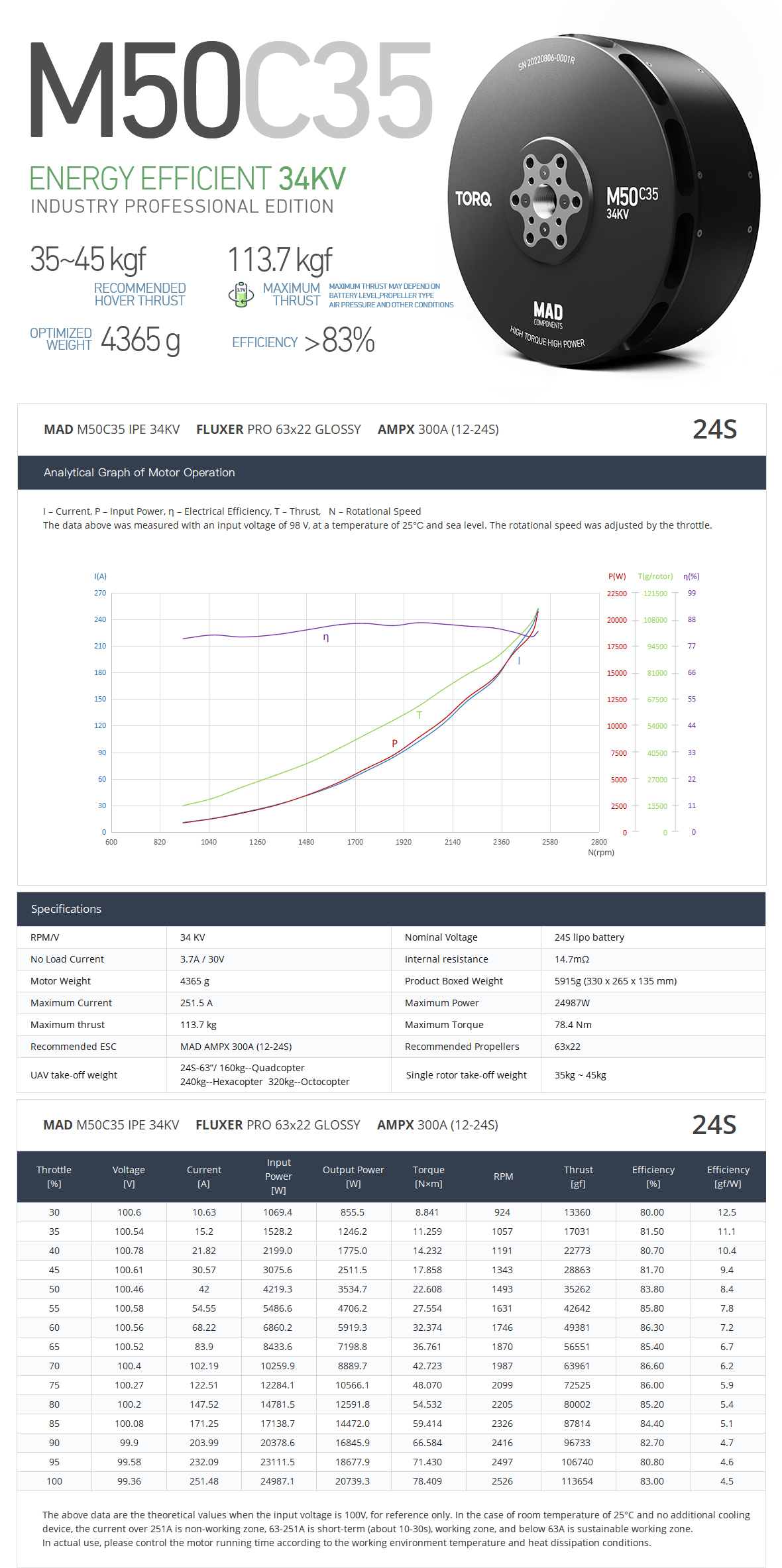

34KV Recommend ESC:AMPX 300A(12-24S) propeller： CB2 prop 63X22" inch carbon fiber propeller.

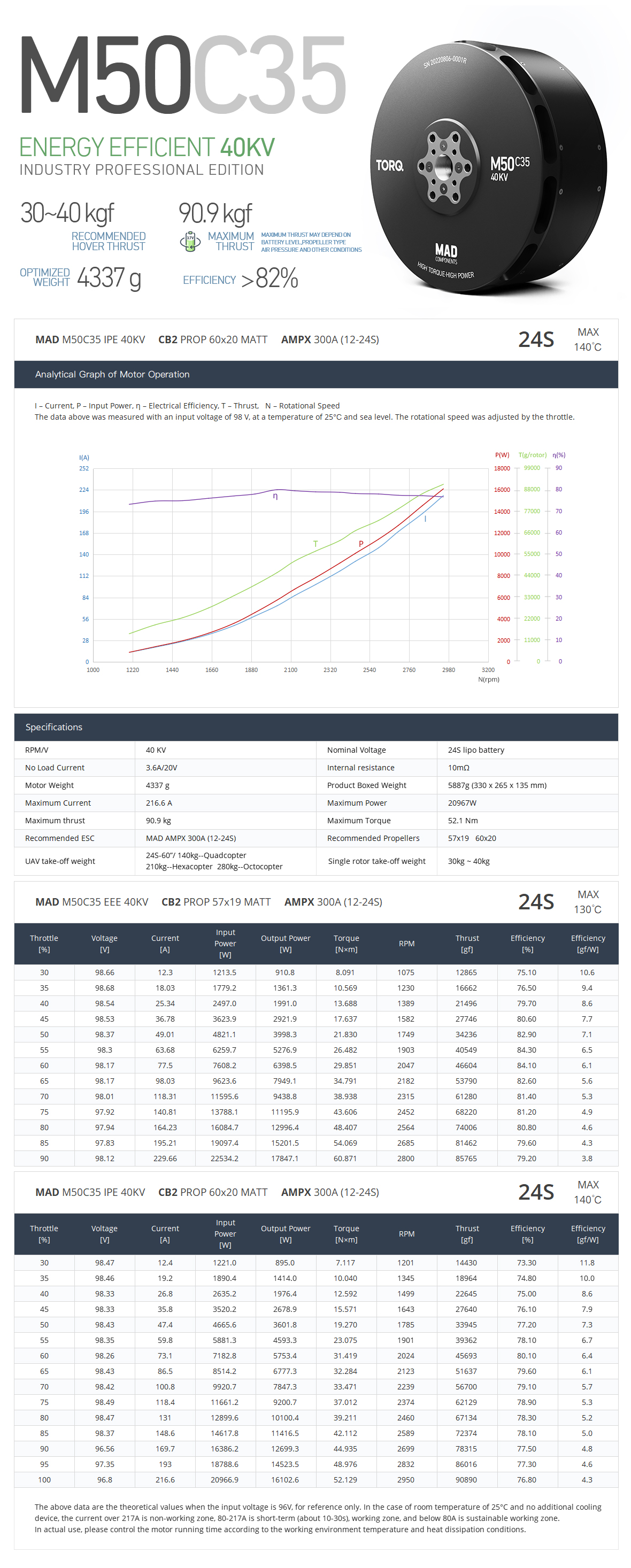

40KV Recommend ESC:AMPX 300A(12-24S) propeller:CB2 57X19 or AMPX 200A(12-24S), propeller: fluxer pro 60X20
59KV -Recommend FOC combo: HB40-63X22 drone arm set,HB40-64x20 drone arm set, HB40-60X19 drone arm set,HB40-57X19 drone arm set.
Perfect for:
• Manned drone propulsion systems
• eVTOL aircraft, cargo UAVs, and electric paramotor platforms
• Developers seeking 90+ kg peak thrust with validated ESC + prop combos
Motor Data |
|||

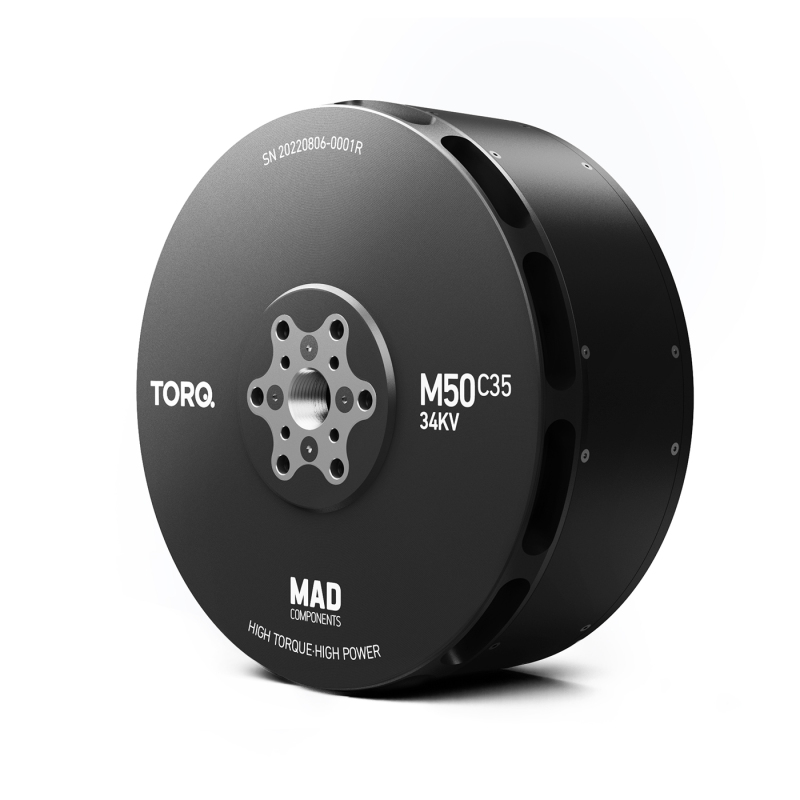

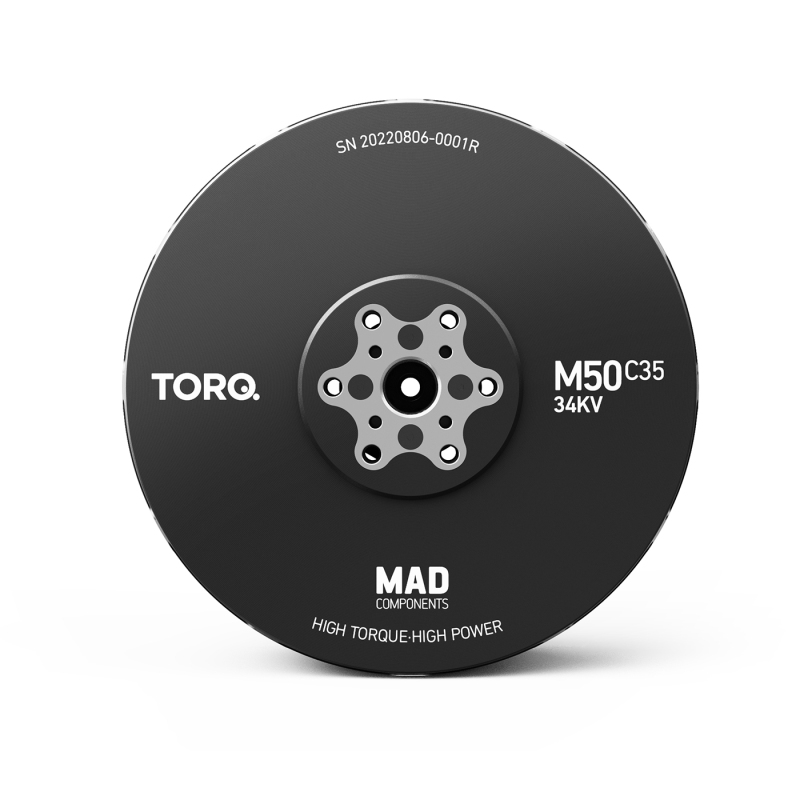

| Motor Model | MAD M50C35 IPE V1.0 | Number of pole pairs | 31 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:191 × 94 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤20 mg |
| Propeller Mounting Holes | D:50 M6×6 | Motor Balance | ≤30 mg |
| Shaft Diameter | IN: 25 mm | Motor Mounting Holes | D:80 M6×6 |
| Bearing | NSK 6818ZZCM | Disruptive test | 1000 V |
