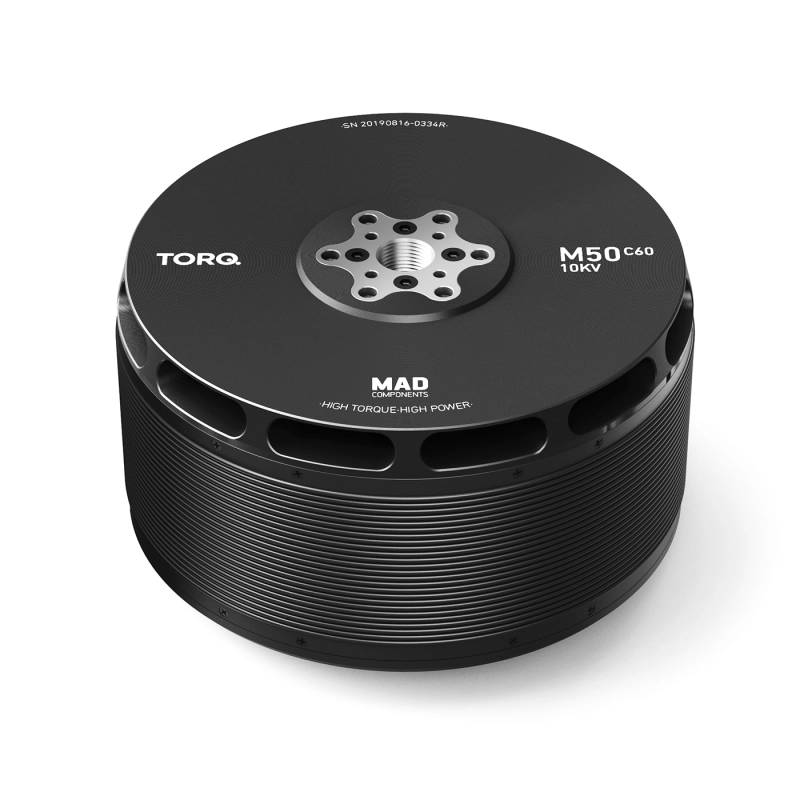

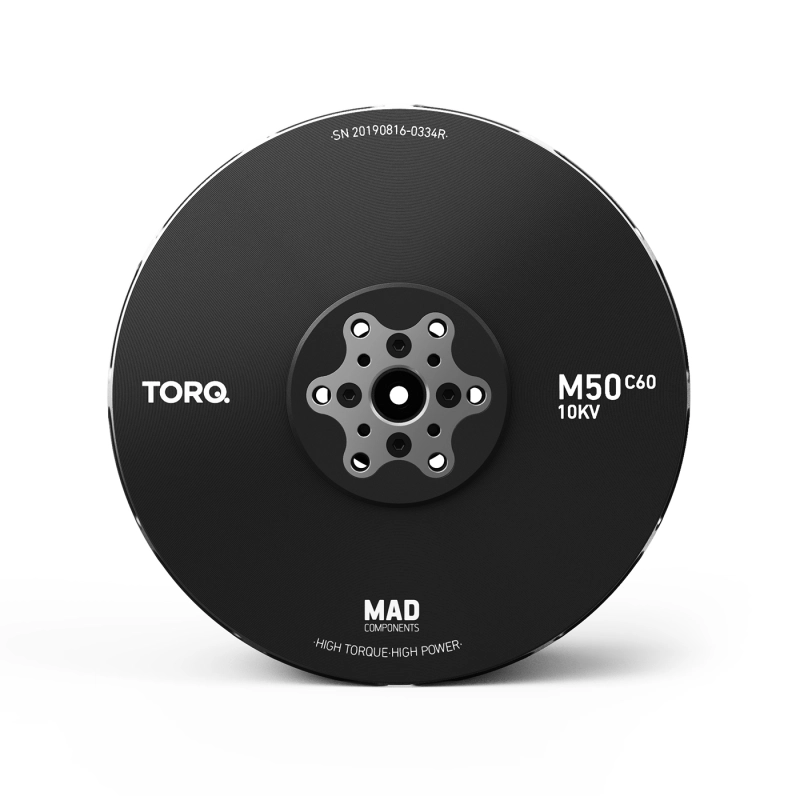

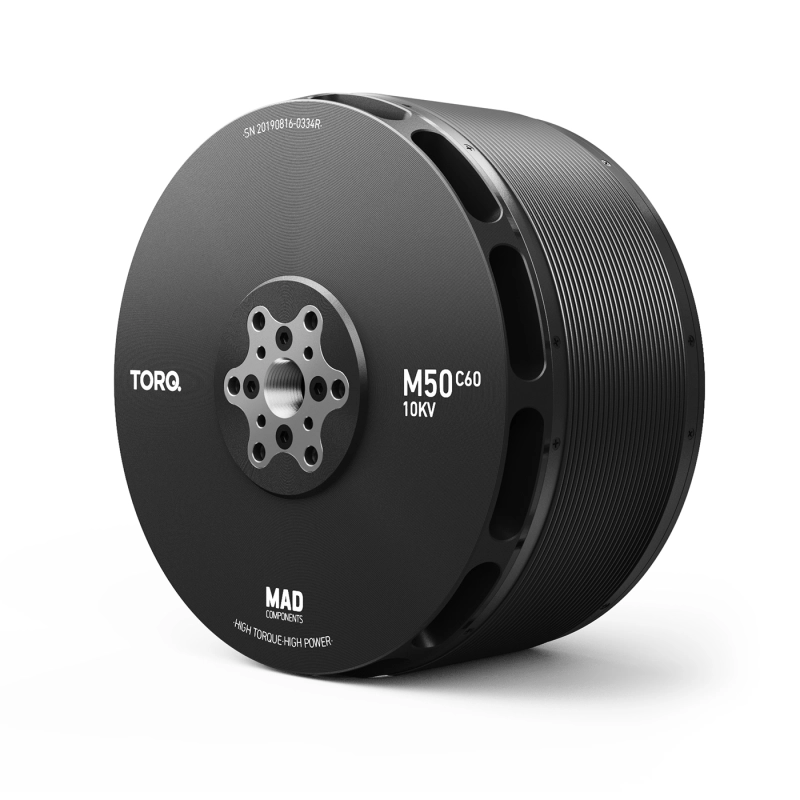

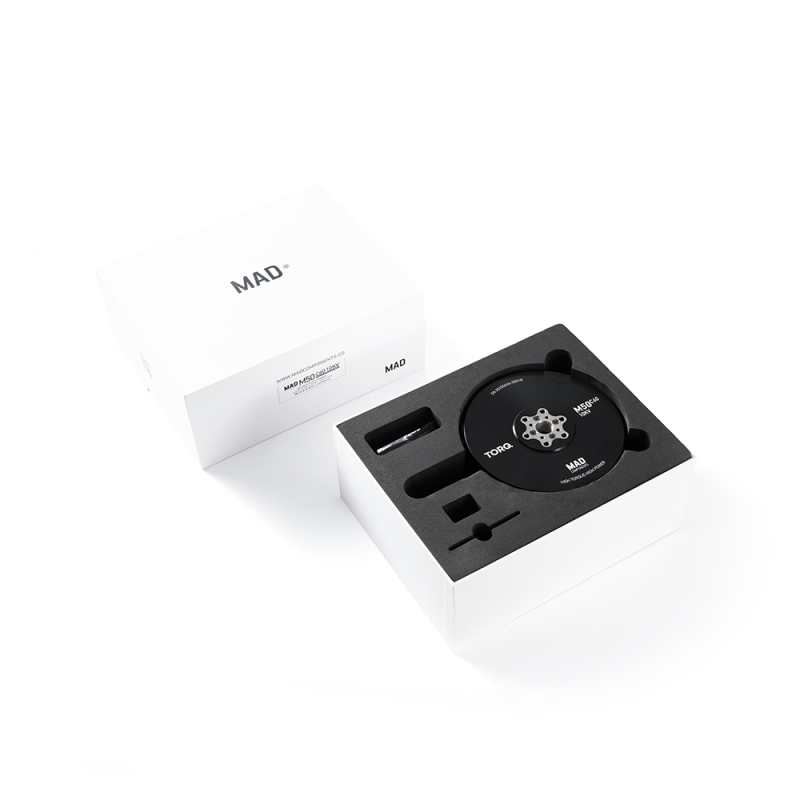

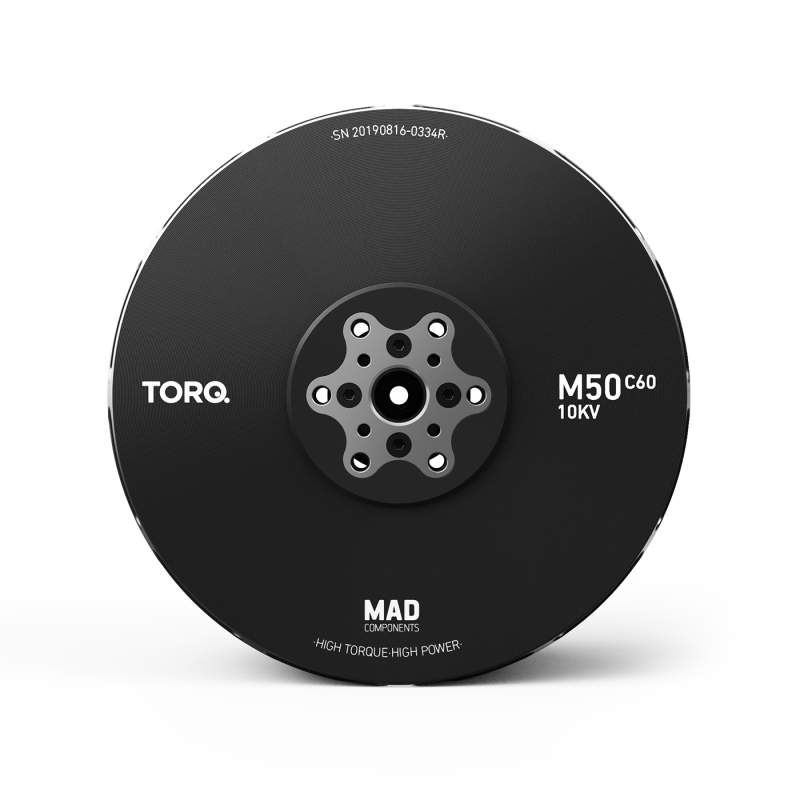

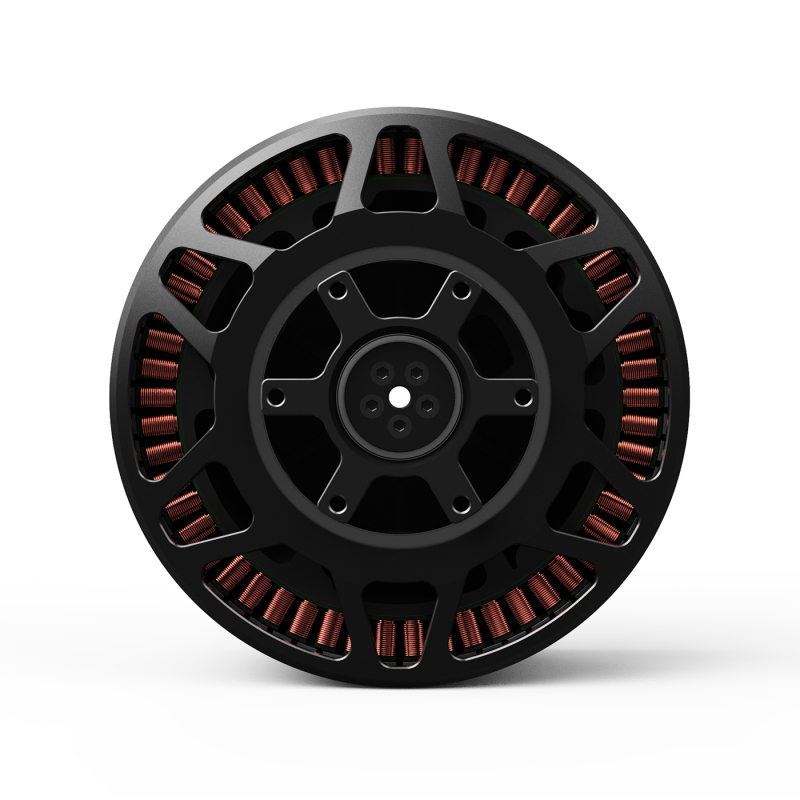

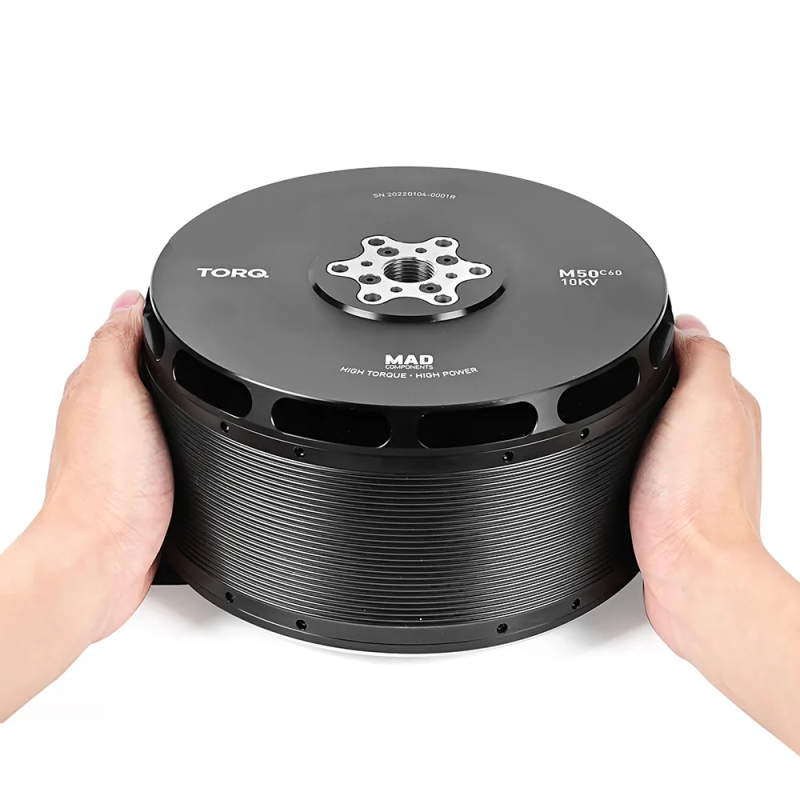

M50C60 PRO IPE Manned Motor
SKU: 0101DJ0915
| Sustained thrust: | 50~60kg |
| Max thrust: | 123kg |
| Support voltage: | 100S |
| Weight: | 7200g |
$2,299.00
1/1
| Sustained thrust: | 50~60kg |
| Max thrust: | 123kg |
| Support voltage: | 100S |
| Weight: | 7200g |
Positioning:
• Ultra high-thrust motor engineered for 50–60 kg single-axis payloads
• Designed for next-generation manned drones, heavy-lift VTOL aircraft, and advanced aerial mobility systems
• Optimized for 63–64 inch carbon fiber propellers in high-performance propulsion setups
Key Features:
✔ Peak thrust: up to 123 kgf
✔ Power output: 32 kW
✔ Motor weight: 7200g
✔ Supports high-voltage systems for maximum propulsion efficiency
✔ Recommended ESC and propeller: HB60-63X22, HB60-64X22.
Perfect for:
• Manned UAVs and eVTOL platforms
• Aerial cargo delivery drones with extreme payload requirements
• Developers building ultra-heavy multirotor or hybrid-electric aircraft
Motor Data |
|||
| Motor Model | MAD M50C60 IPE V1.0 | Number of pole pairs | 31 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:196 × 120.5 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 200 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤20 mg |
| Propeller Mounting Holes | D:50 M6×6 | Motor Balance | ≤30 mg |
| Shaft Diameter | IN: 25 mm | Motor Mounting Holes | D:80 M6×6 |
| Bearing | 6805ZZ *2 / 6818ZZ | Disruptive test | 1000 V |
