| Sustained thrust: | 2~4kg |
| Max thrust: | 7.6kg |

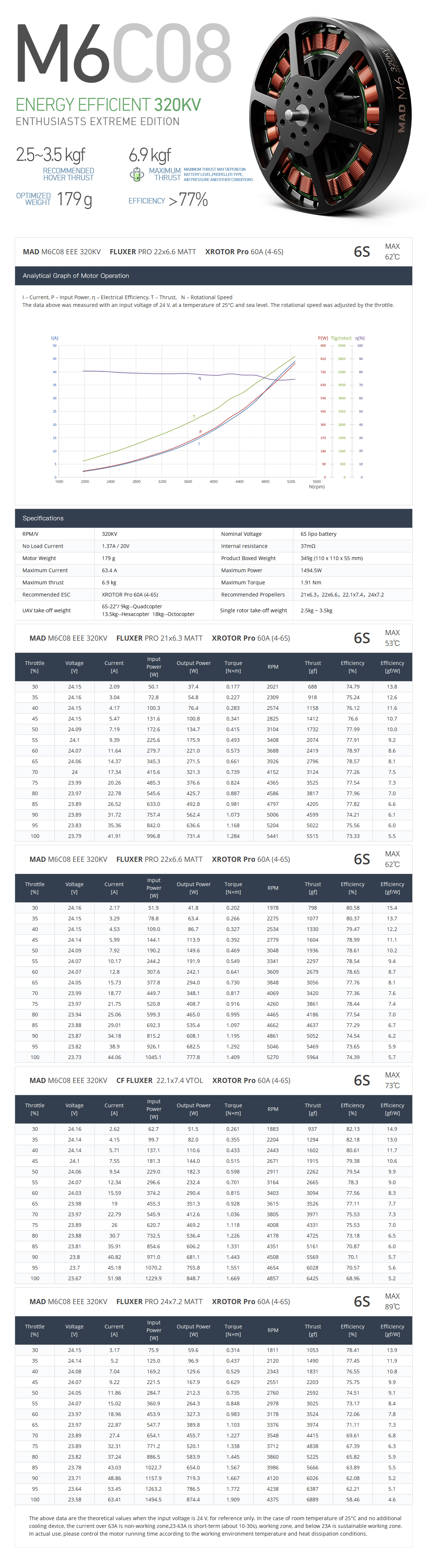

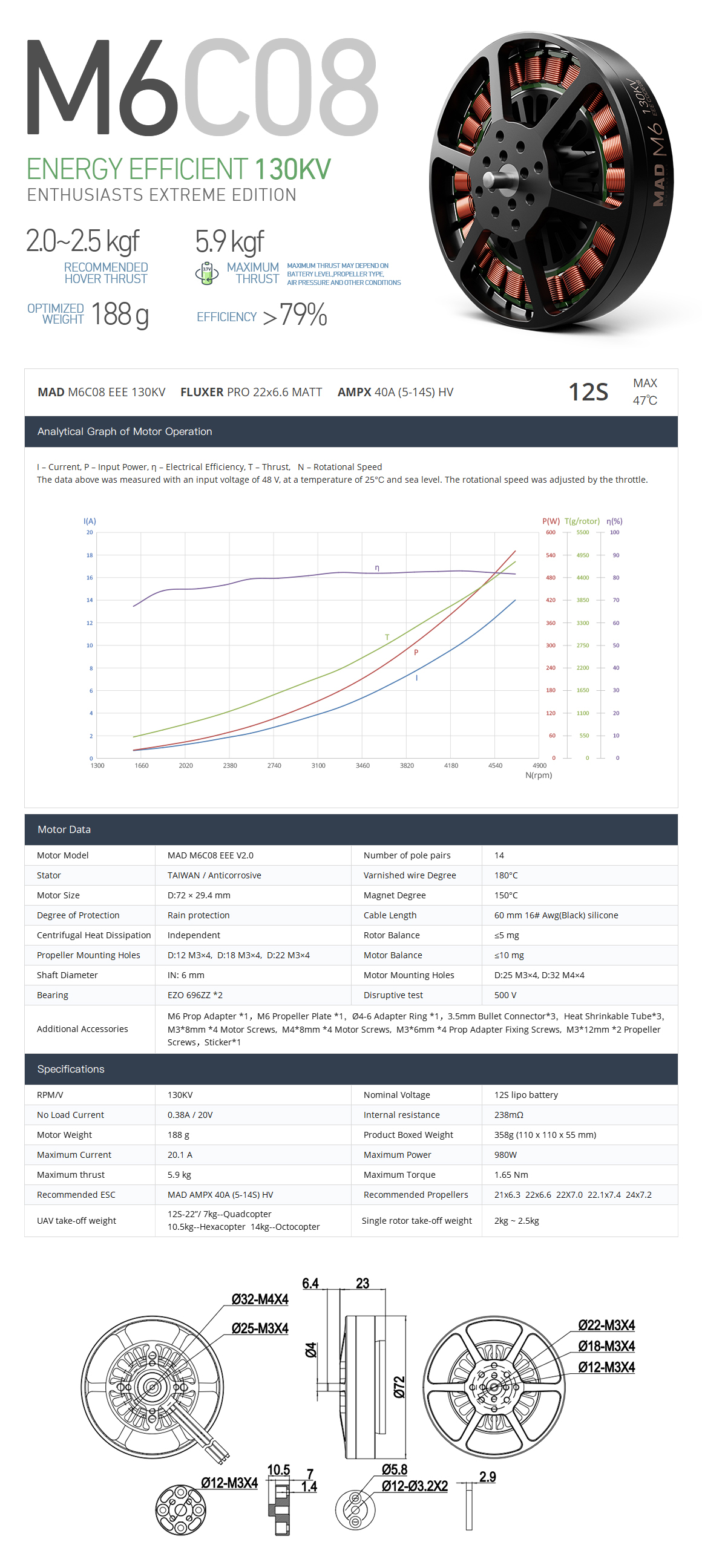

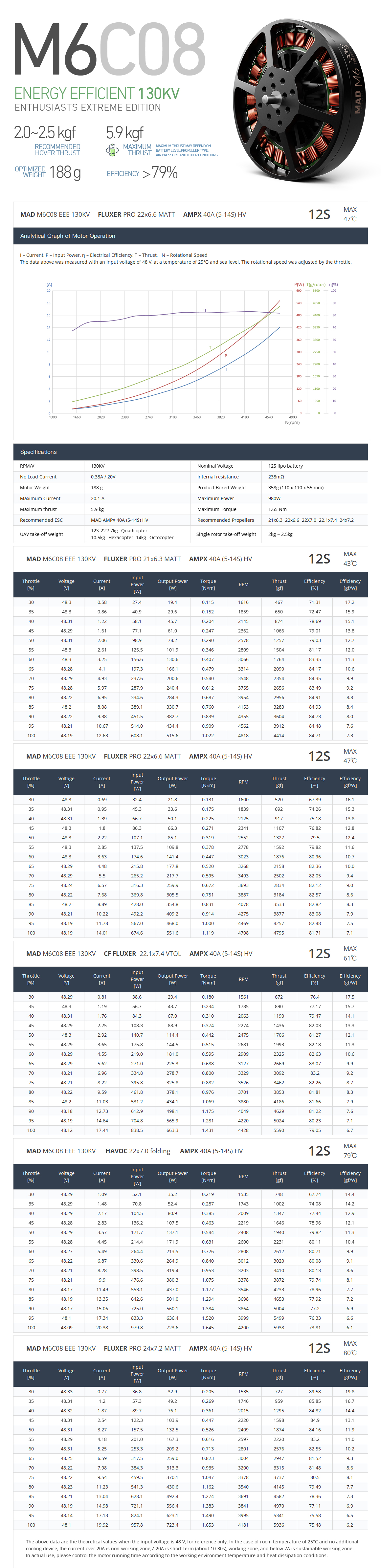

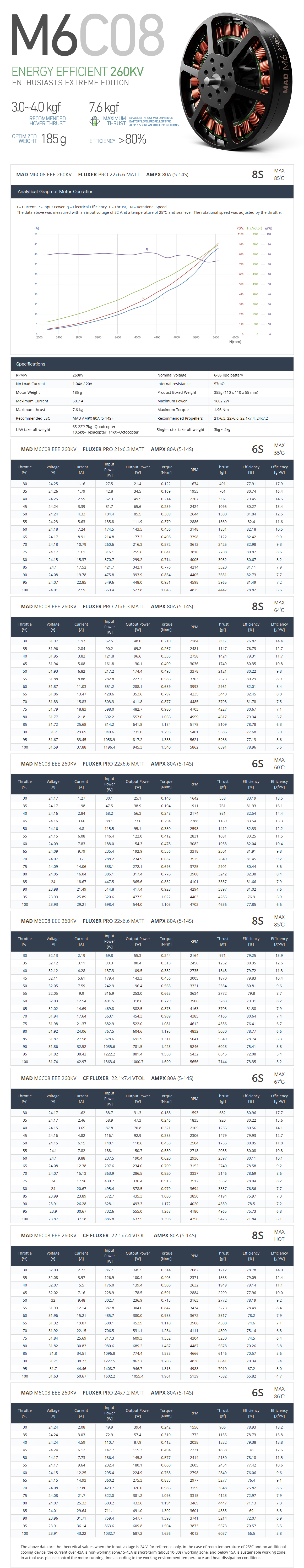

| Support voltage: | 130KV/12S; 180KV/12S; 360KV/8S; 320KV/6S |
| Weight: | 188g; 180g; 185g 179g |
Positioning:
• A high-efficiency motor from the ANTIMATTER series, designed for 2–4 kg single-axis payloads.
• Optimized for use with 20–24 inch carbon fiber propellers.
• Developed through a year-long design and validation process to redefine efficiency in multi-rotor propulsion.
Key Features:
✔ Supports 6S, 8S, and 12S voltage configurations.
✔ Unique stator architecture with 24N28P configuration.
✔ Delivers up to 7.6 kg thrust per axis with a lightweight 188g design.
Perfect for:
• Multi-rotor platforms carrying 2–4 kg payloads per motor.
• Drones using 20–24 inch props requiring high thrust-to-weight ratio.
• Builders seeking tested, high-efficiency propulsion within the ANTIMATTER series.
| Motor Data | |||
|---|---|---|---|

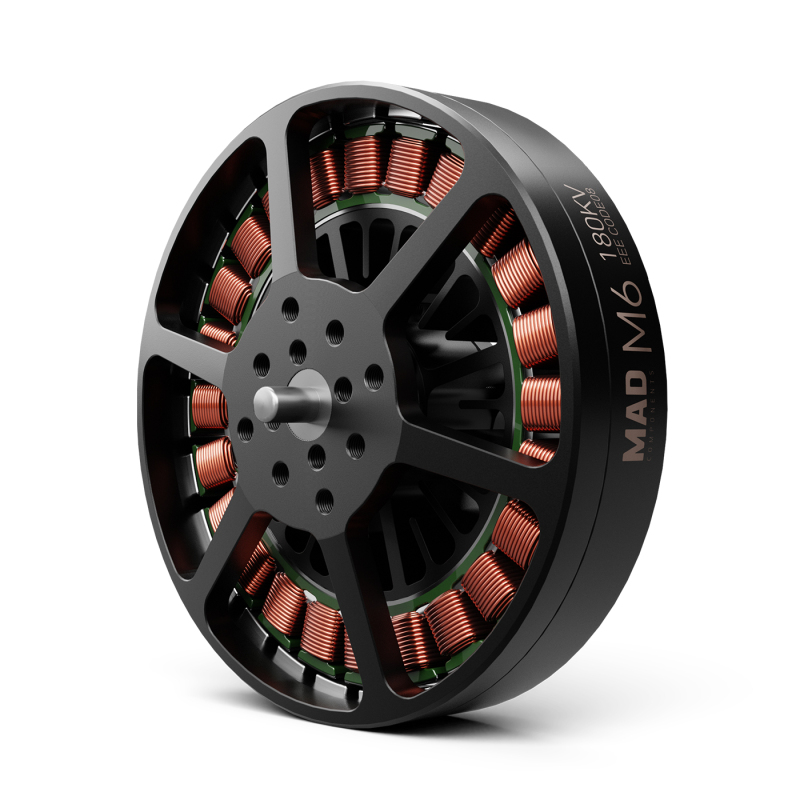

| Motor Model | MAD M6C08 EEE V2.0 | Number of pole pairs | 14 |
| Stator Size | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 29.4 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 60 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4,D:18 M3×4,D:22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6mm | Motor Mounting Holes | D:25 M3×4, D:32 M4×4 |
| Bearing | 696ZZ*2 | Disruptive test | 500 V |

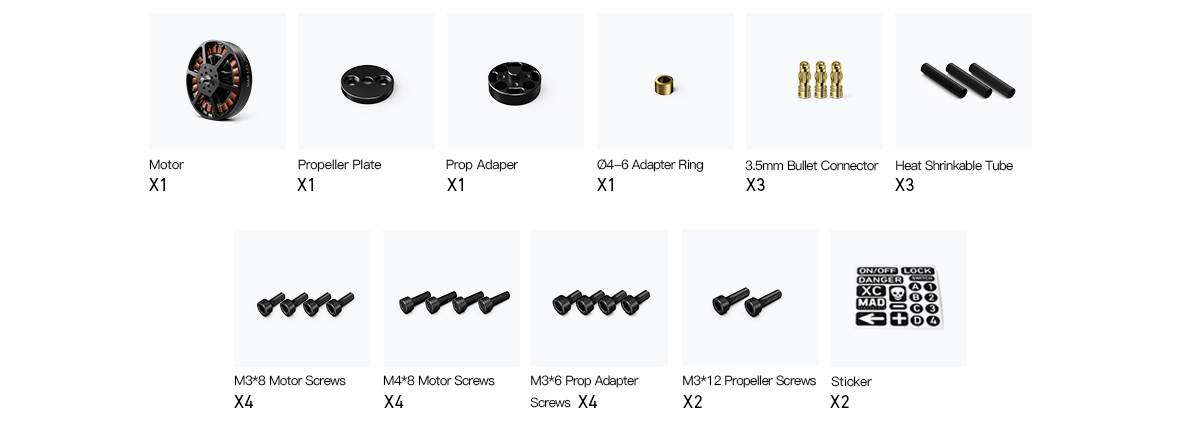

Accessories
