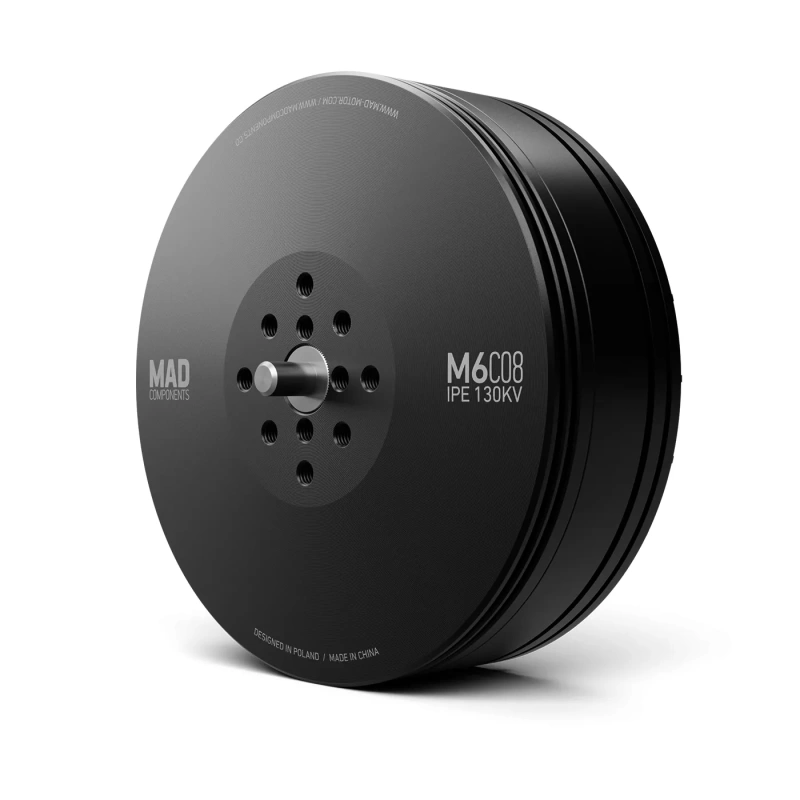

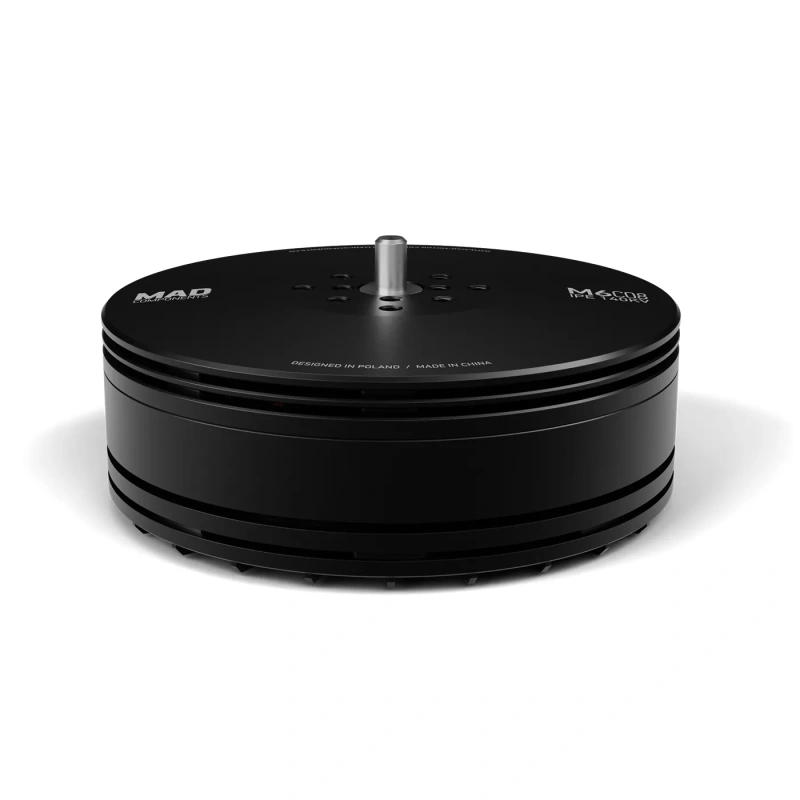

Antimatter M6C08 IPE V3 Drone Motor
SKU: 0101DJ0583
| Sustained thrust: | 2~4kg |
| Max thrust: | 7.6kg |
| Support voltage: | 130KV/12S; 180KV/12S; 260KV/6S; 320KV/6S |
| Weight: | 209g, 210g, 220g, 213g |
$115.00
| Sustained thrust: | 2~4kg |
| Max thrust: | 7.6kg |
| Support voltage: | 130KV/12S; 180KV/12S; 260KV/6S; 320KV/6S |
| Weight: | 209g, 210g, 220g, 213g |
• A high-performance motor designed for 2–4 kg/rotor payloads
• Optimized for use with 20–24 inch carbon fiber propellers
• Built for users seeking stable thrust output with lower energy consumption across multi-voltage configurations
Key Features:
✔ Supports 6S, 8S, and 12S voltage systems
✔ Unique stator design with 24N28P configuration
✔ Passed magnetic flux density simulation test for improved energy efficiency
✔ Provides up to 7.6 kg maximum thrust per axis with a 220g motor weight
Perfect for:
• Multirotor drones requiring 2–4 kg/rotor lifting capacity
• Platforms using 20–24 inch props aiming for both power and efficiency
• Builders looking for a balance between thrust, thermal control, and weight
| Specification |
|||||||||
| Motor Model |
MAD M6C08 IPE V3.0 |
Number of pole pairs |
14 | ||||||
| Stator |
Anticorrosive |
Varnished wire Degree |
180°C | ||||||
| Motor Size |
D:72 × 31.4 mm |
Magnet Degree |
150°C |
||||||
| Degree of Protection |
IP45 | Cable Length |
150 mm 16# Awg(Black) silicone |
||||||
| Centrifugal Heat Dissipation |
YES | Rotor Balance |
≤5 mg |
||||||
| Propeller Mounting Holes |
D:12 M3×4,D:18 M3×4,D:22 M3×4 |
Motor Balance |
≤10 mg |
||||||
| Shaft Diameter |
IN: 6 mm |
Motor Mounting Holes |
D:25 M3×4 | ||||||
| Bearing | 696ZZ*2 |
Disruptive test |
500 V |
||||||
Drawing and mount holes |
|||||||||
