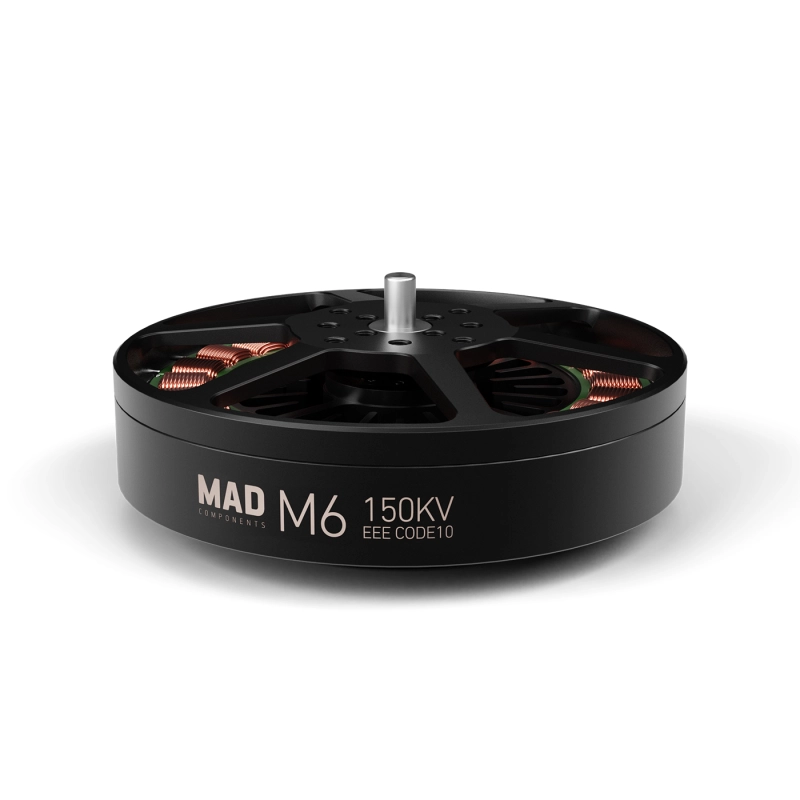

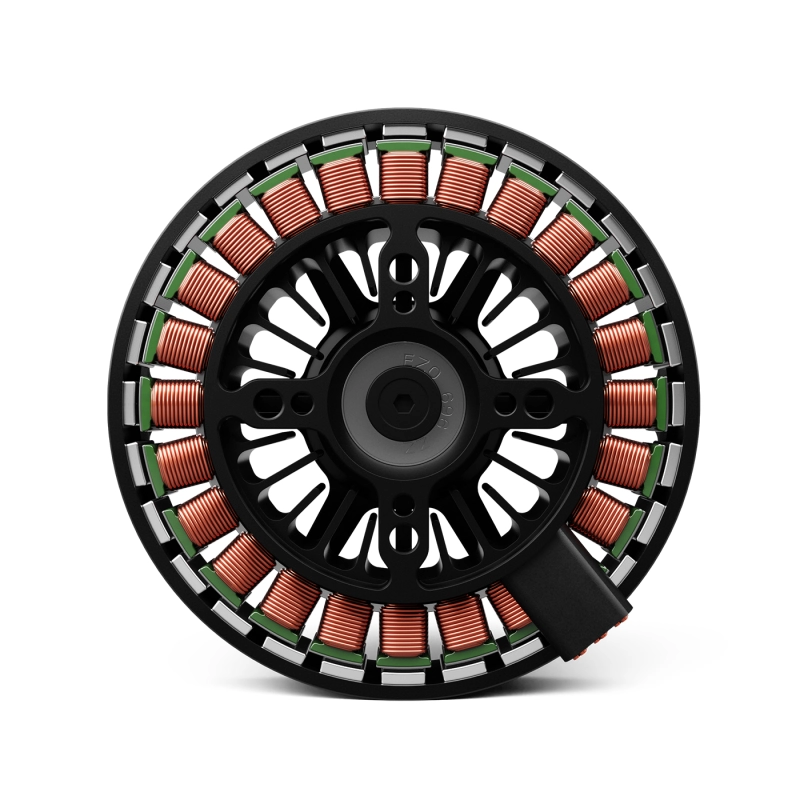

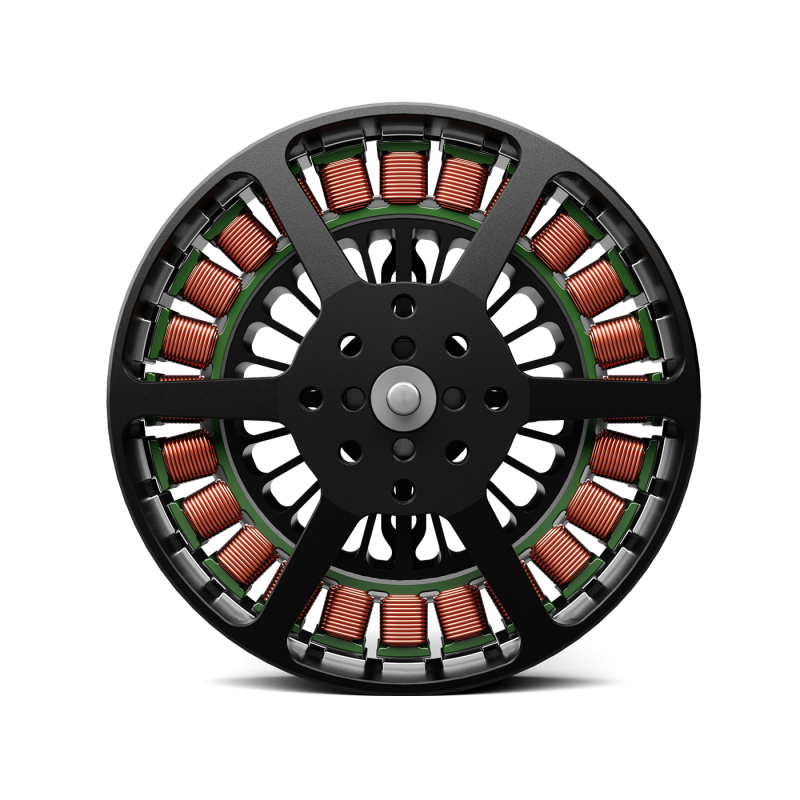

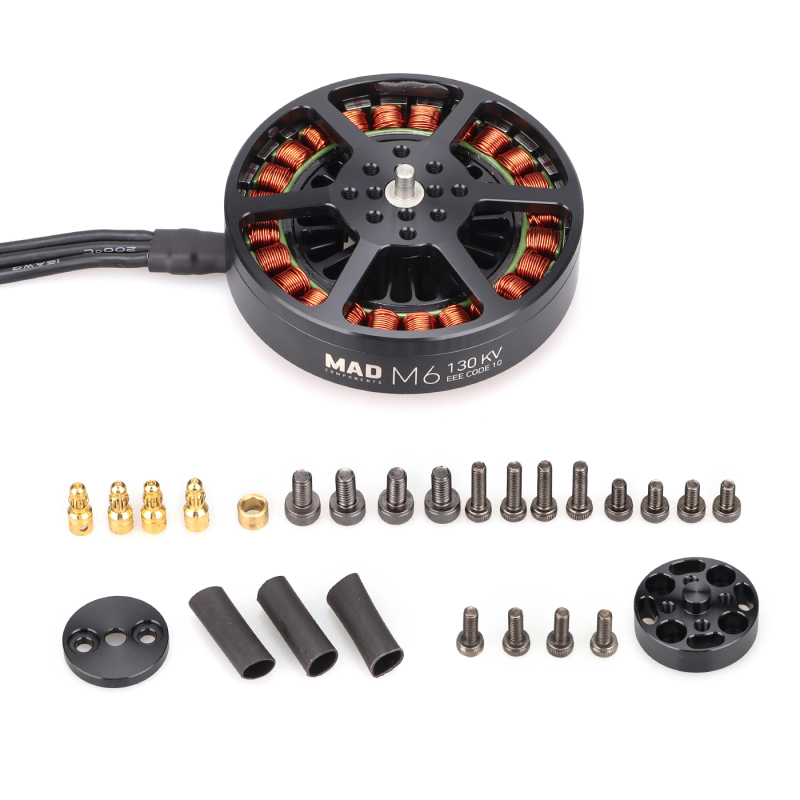

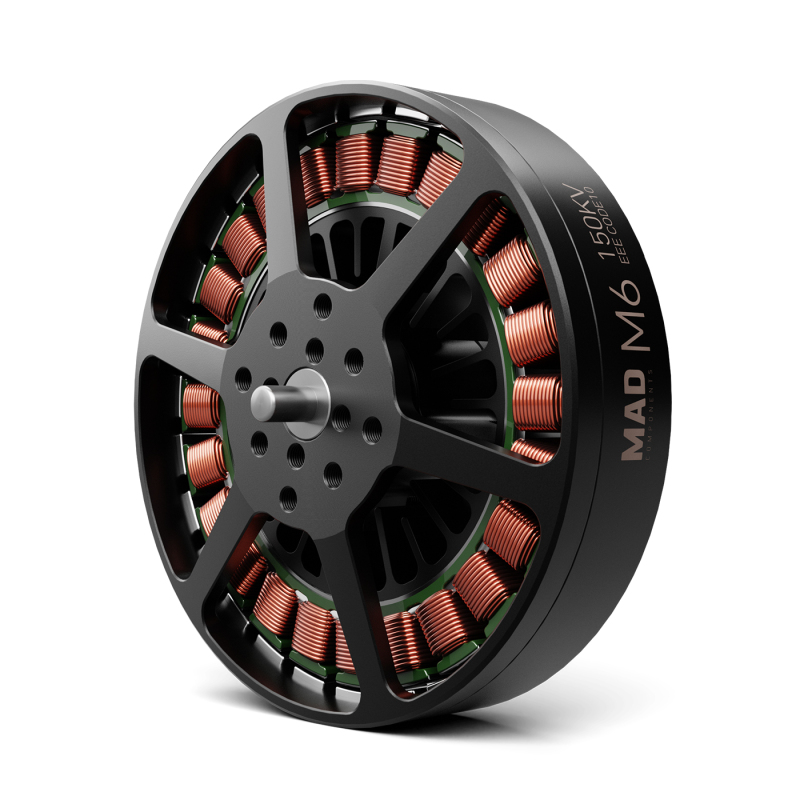

MAD Antimatter M6C10 EEE brushless motor for multirotor UAV propulsion.
Choose your KV option and review the motor data and mounting drawing to match your aircraft.
The MAD Antimatter M6C10 EEE offers four KV versions in the AN M6 brushless motor range. Use its mechanical specifications and model-specific performance data to develop a propulsion setup for your multirotor aircraft.
Match the selected KV version with a suitable battery voltage, ESC and propeller. Assess thrust and current using the test data for that exact combination; KV alone does not determine payload capacity or flight time. Check the motor and propeller mounting patterns before installation.
Compare other AN M6 series motors or explore drone ESCs and propellers to plan your system.
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD M6C10 EEE V2.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 31.4 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 60 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4,D:18 M3×4,D:22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4, D:32 M4×4 |
| Bearing | 696ZZ*2 | Disruptive test | 500 V |
