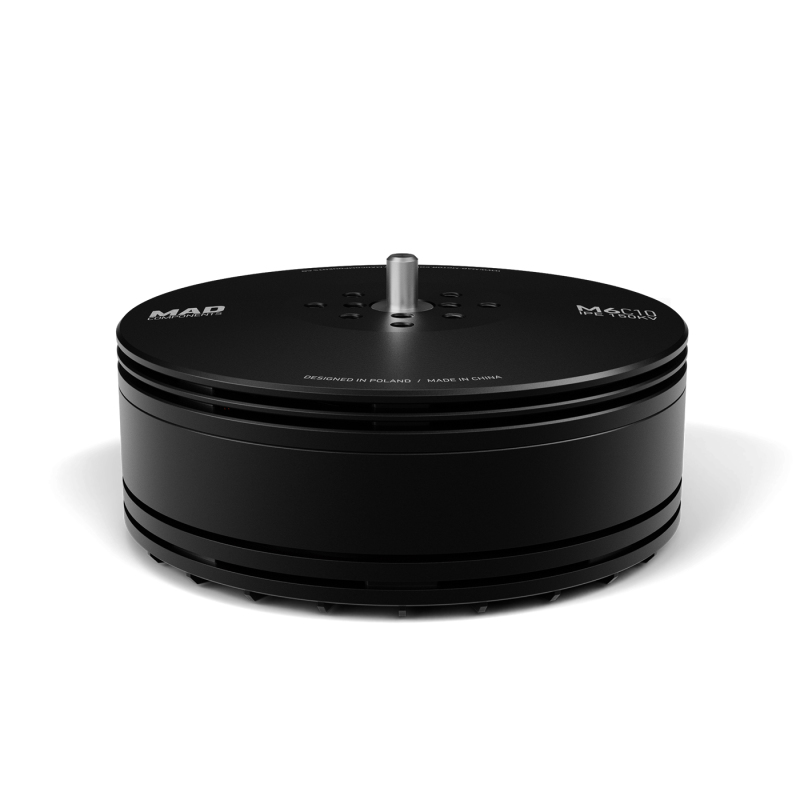

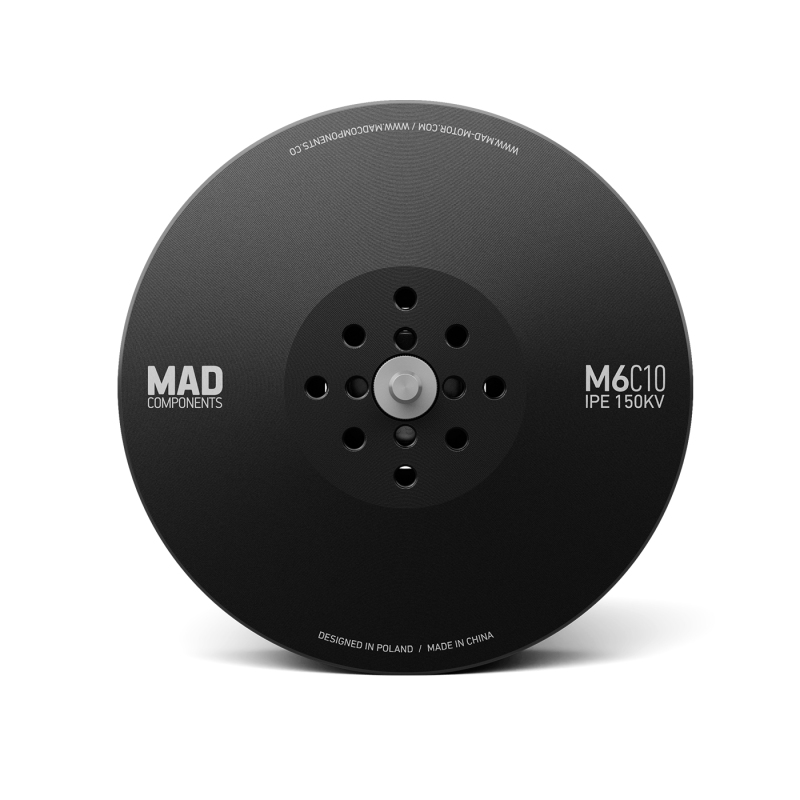

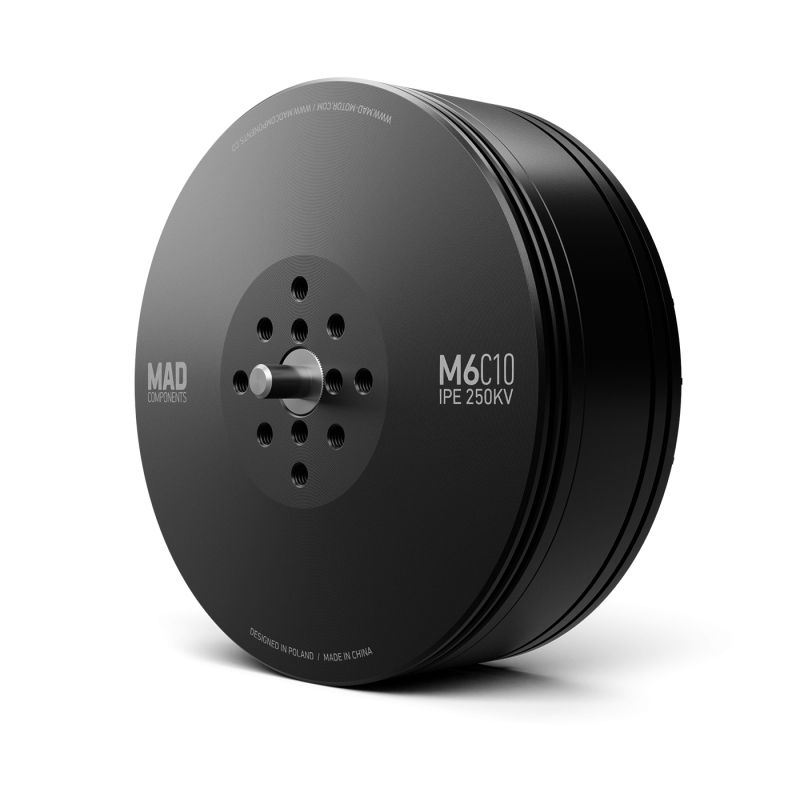

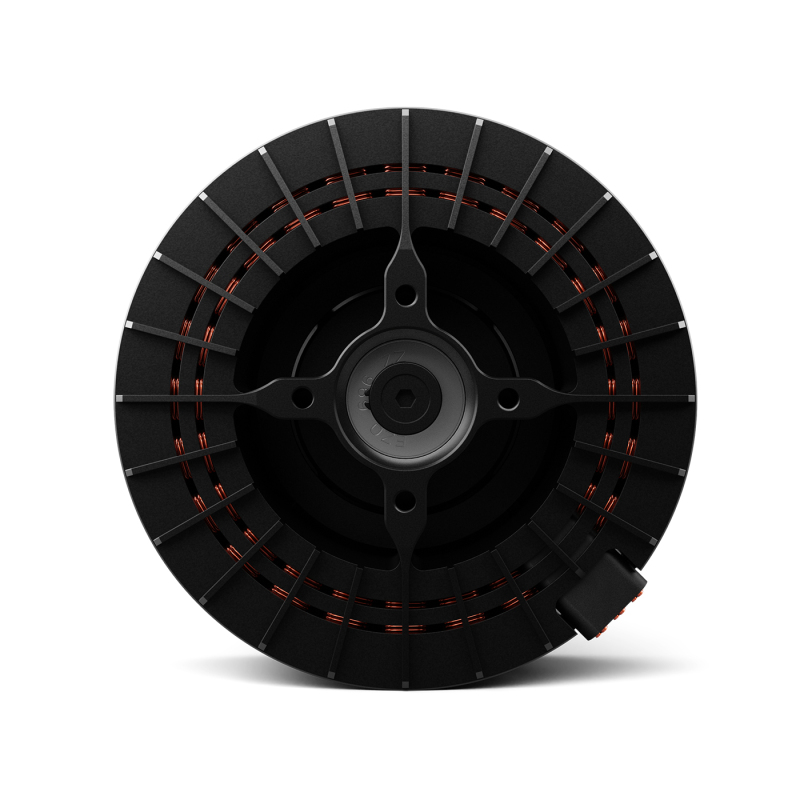

MAD Antimatter M6C10 IPE V3 brushless motor for multirotor UAV propulsion.

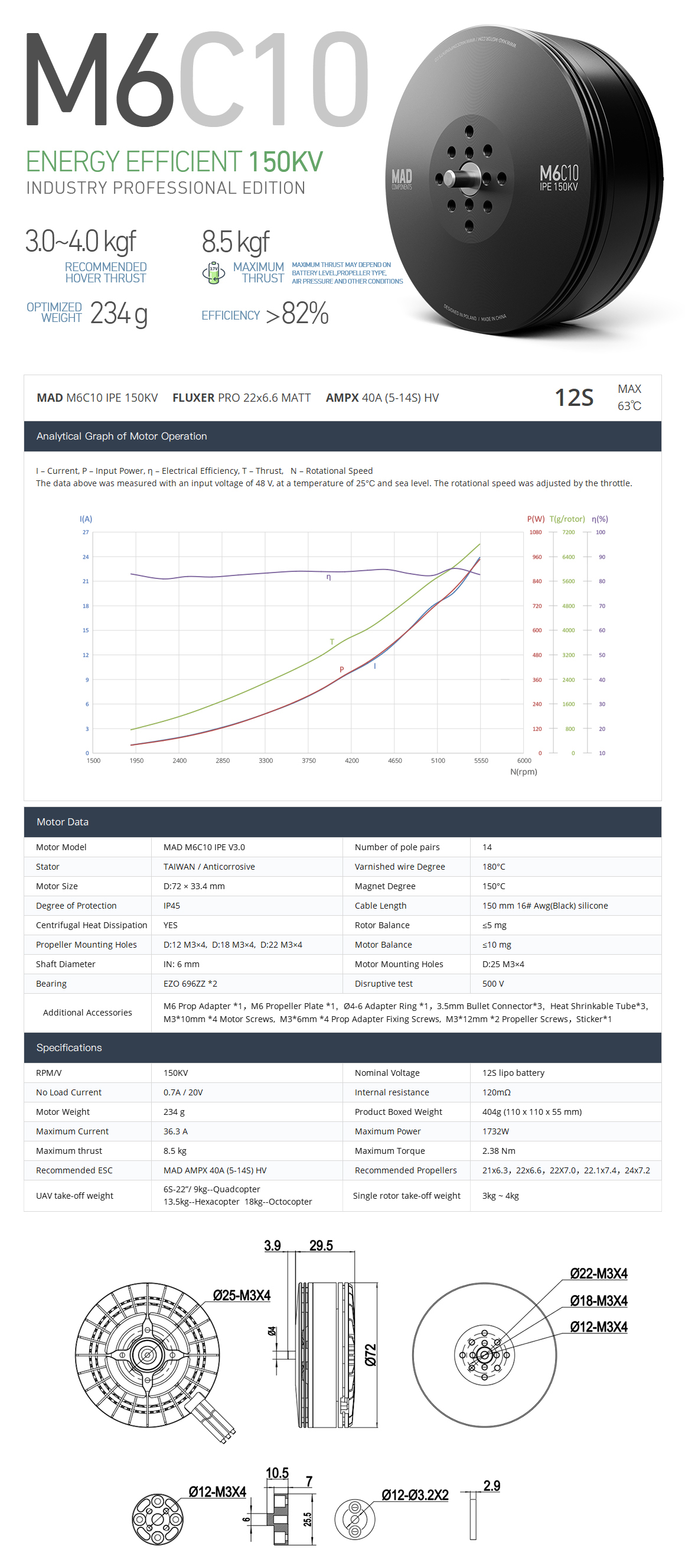

Choose your KV option and review the motor data and mounting drawing to match your aircraft.

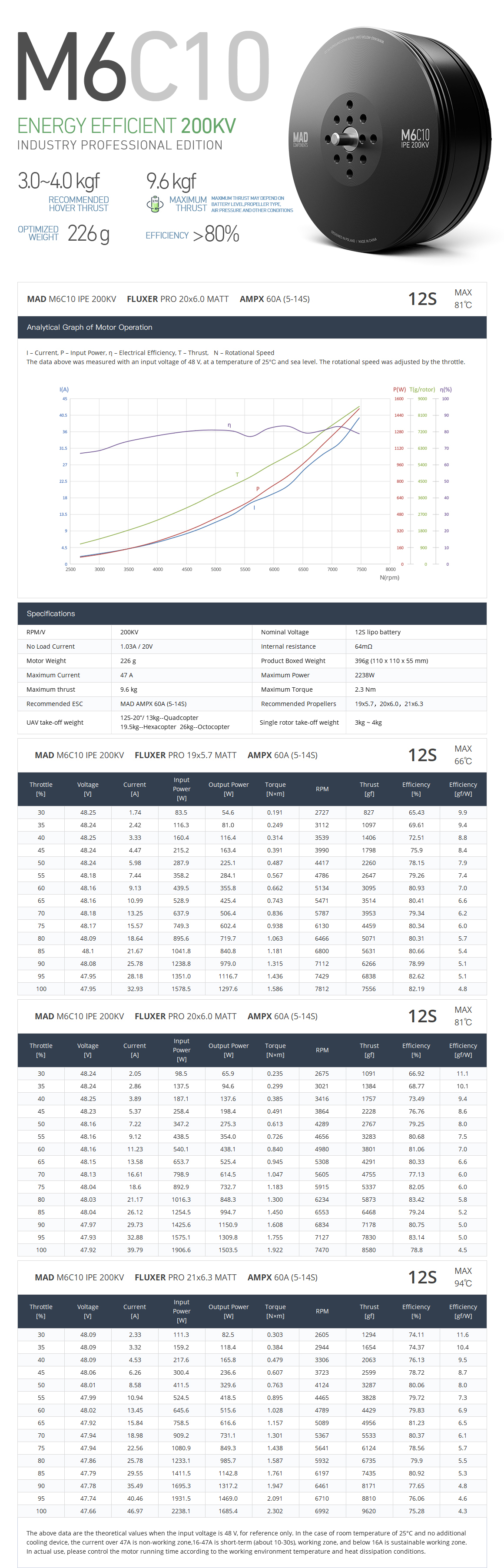

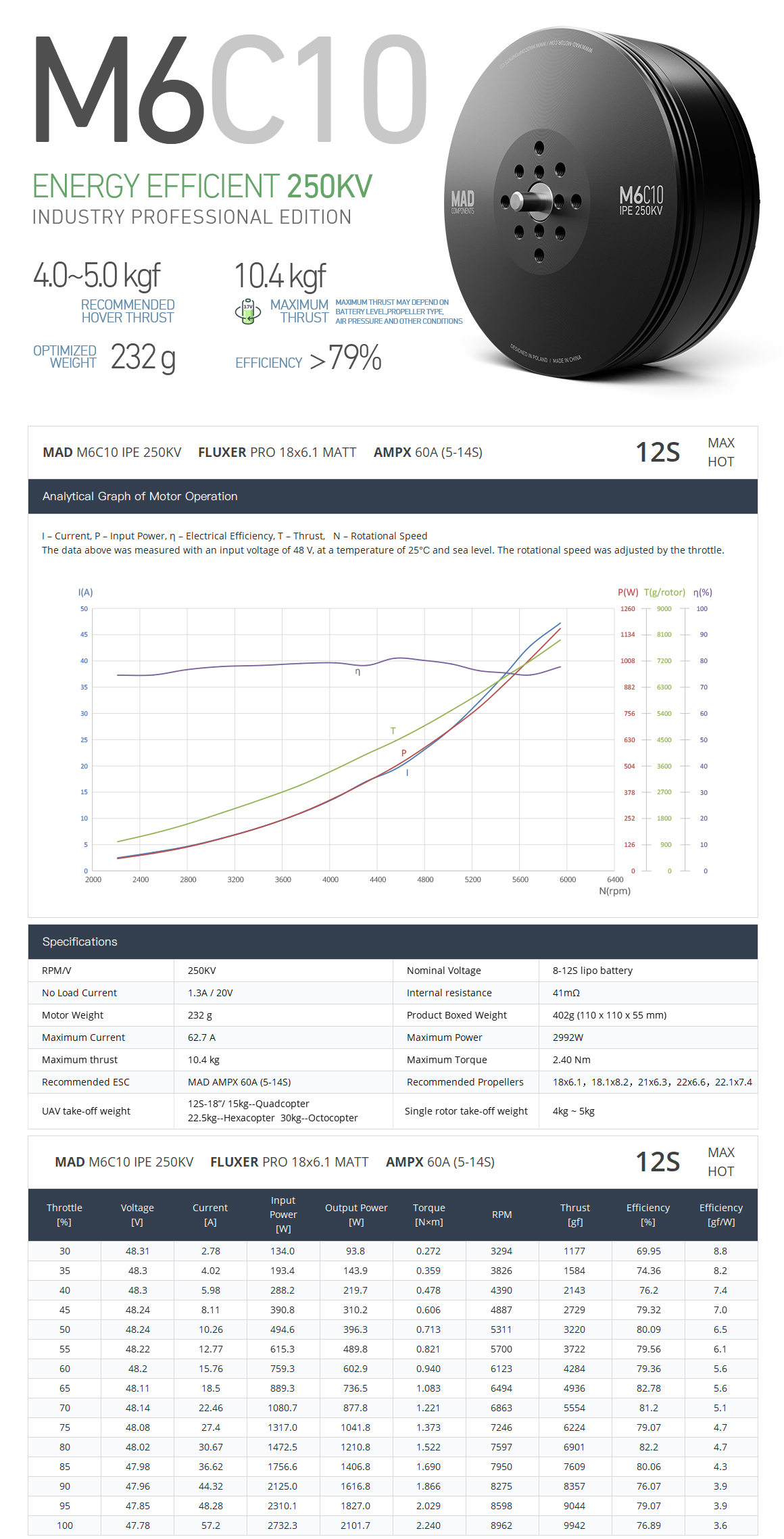

Develop your multirotor power system with the MAD Antimatter M6C10 IPE V3. This M6C10 variant offers 150KV, 200KV, 250KV and 300KV options, alongside the IPE V3 mechanical configuration detailed below.

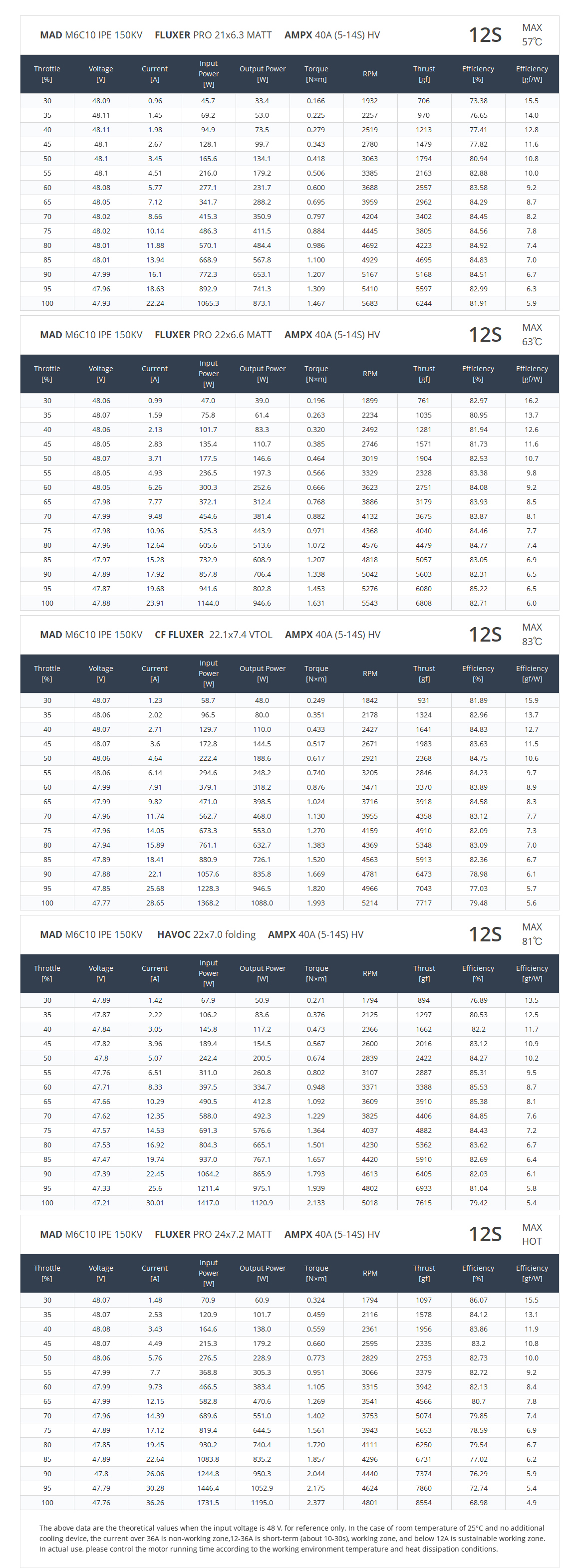

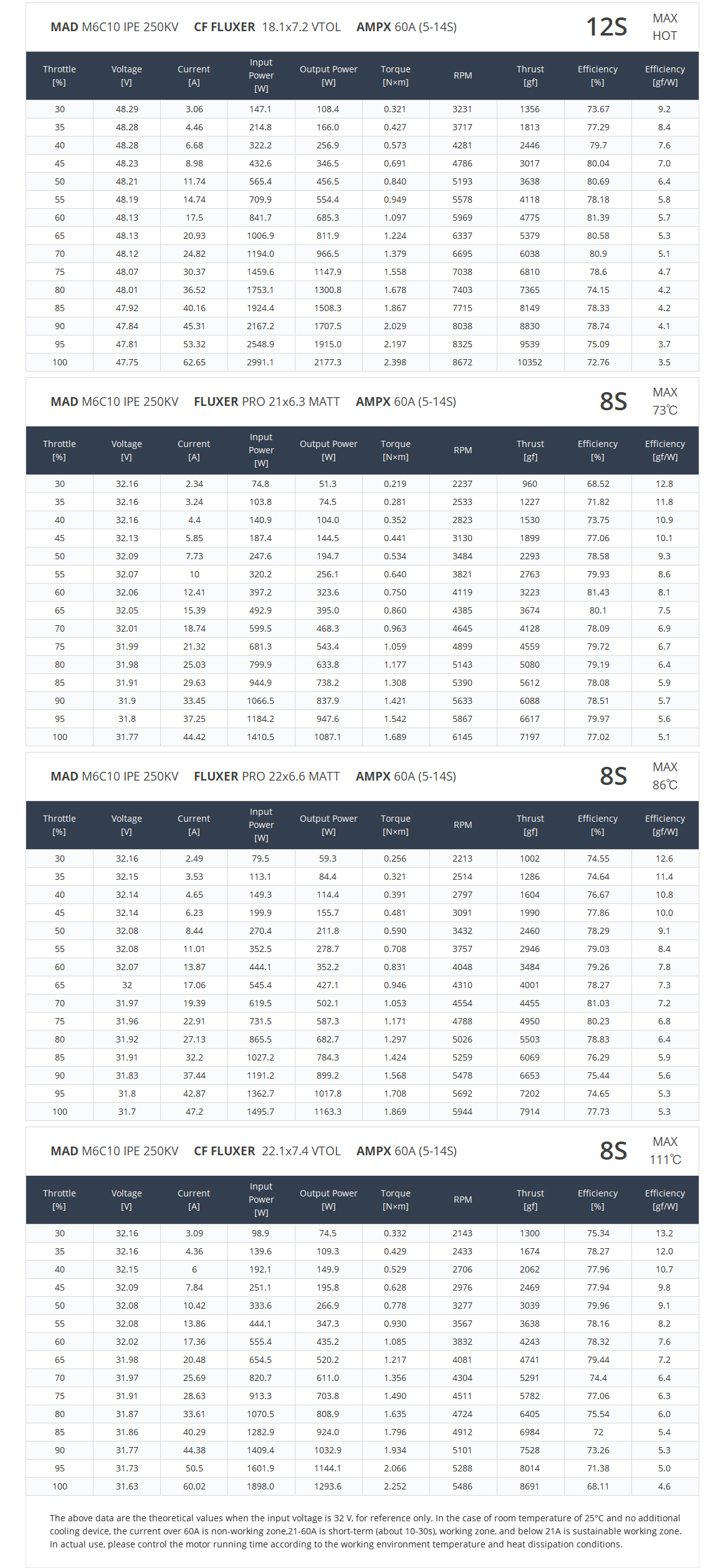

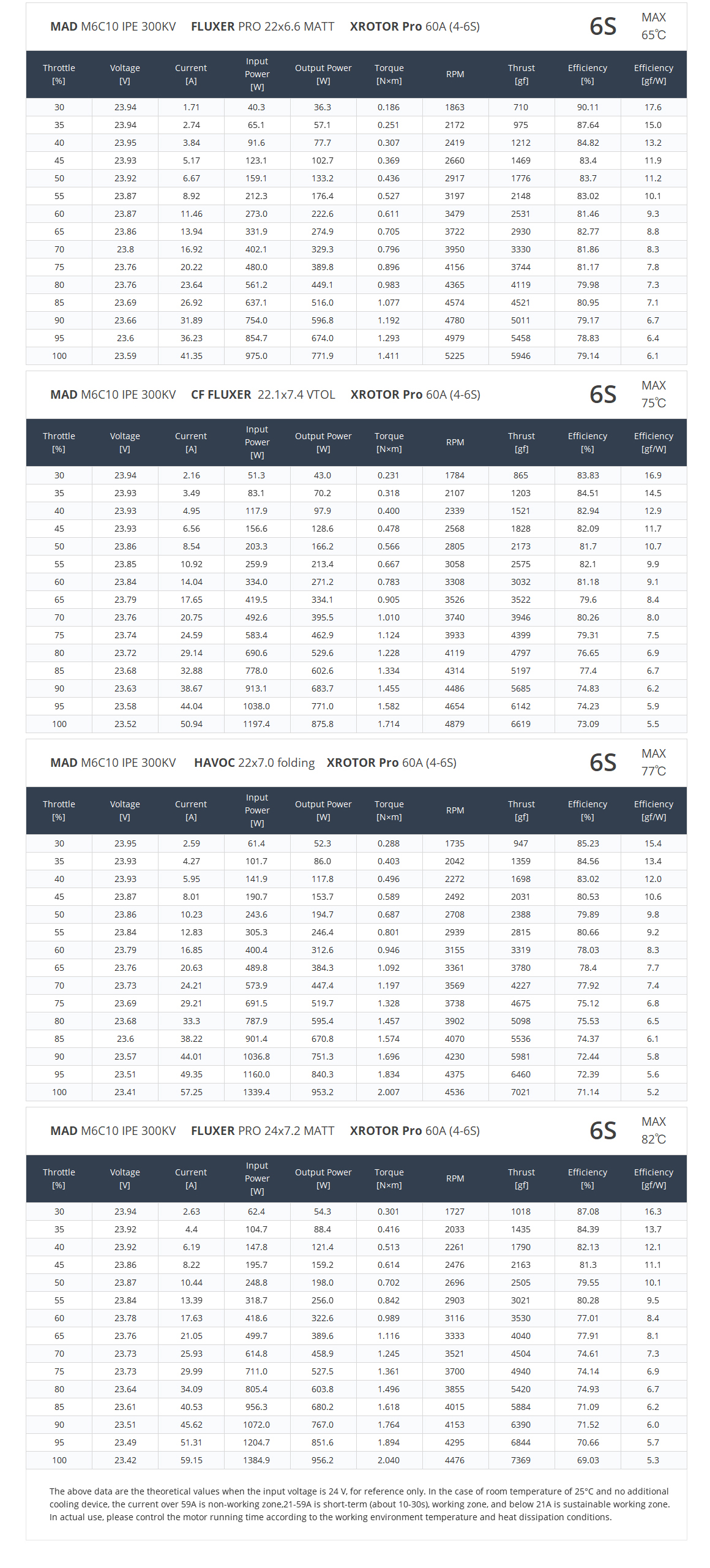

Match the selected KV version with a suitable battery voltage, ESC and propeller. Assess thrust and current using the test data for that exact combination; KV alone does not determine payload capacity or flight time. Check the motor and propeller mounting patterns before installation.
Compare other AN M6 series motors or explore drone ESCs and propellers to plan your system.
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD M6C10 IPE V3.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 33.4 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4, 18 M3×4, 22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | 696ZZ *2 | Disruptive test | 500 V |
