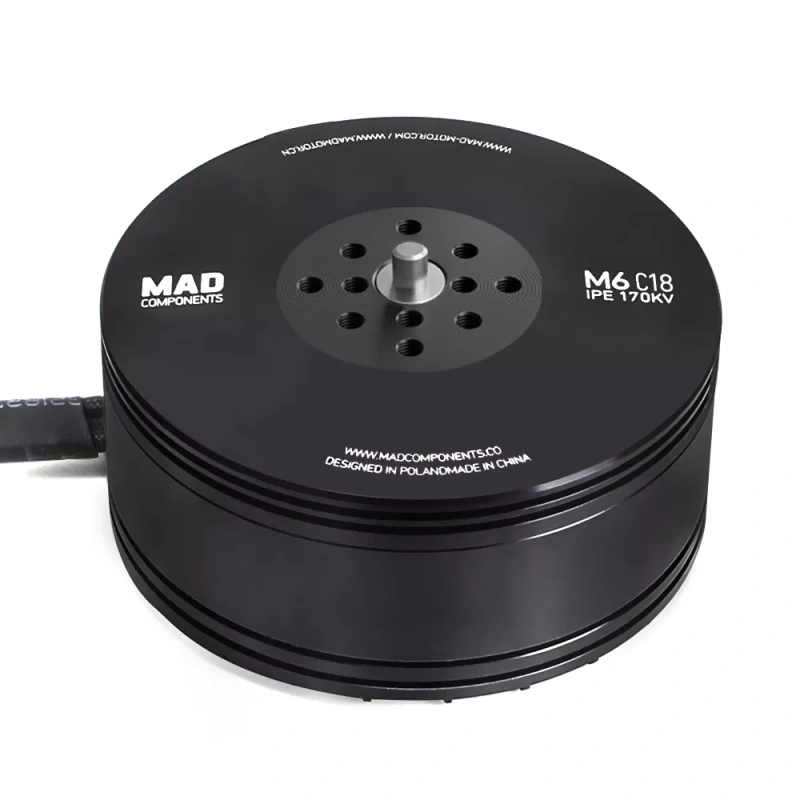

Antimatter M6C18 IPE V3 Drone Motor
| Sustained thrust: | 4~6kg |
| Max thrust: | 13.3kg |
| Support voltage: | 170KV/12S; 330KV/6S |
| Weight: | 380g; 390g |
$179.00
| Sustained thrust: | 4~6kg |
| Max thrust: | 13.3kg |
| Support voltage: | 170KV/12S; 330KV/6S |
| Weight: | 380g; 390g |
• A flagship motor in the ANTIMATTER series for 21–24 inch propellers
• Designed for 4–6 kg single-axis payloads, supporting 6S–12S voltage
• Built for long-endurance missions such as aerial cinematography, mapping, and surveying
Key Features:
✔ Up to 12 kg thrust per axis with a 340g motor weight
✔ Aerospace-grade aluminum housing for structural strength and flight safety
✔ Simulated magnetic design for low energy consumption and high efficiency
✔ Premium imported bearings for stable rotation and impact resistance
✔ High-temperature-resistant curved magnets for reliable, long-term performance
Perfect for:
• Professional drones in aerial imaging, mapping, and industrial surveying
• Builders needing reliable, high-thrust motors for endurance flights
Motor Data |
|||
| Motor Model | MAD M6C18 IPE V3.0 | Number of pole pairs | 14 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:72 × 41.4 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:12 M3×4, 18 M3×4, 22 M3×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 6 mm | Motor Mounting Holes | D:25 M3×4 |
| Bearing | 696ZZ *2 | Disruptive test | 500 V |
