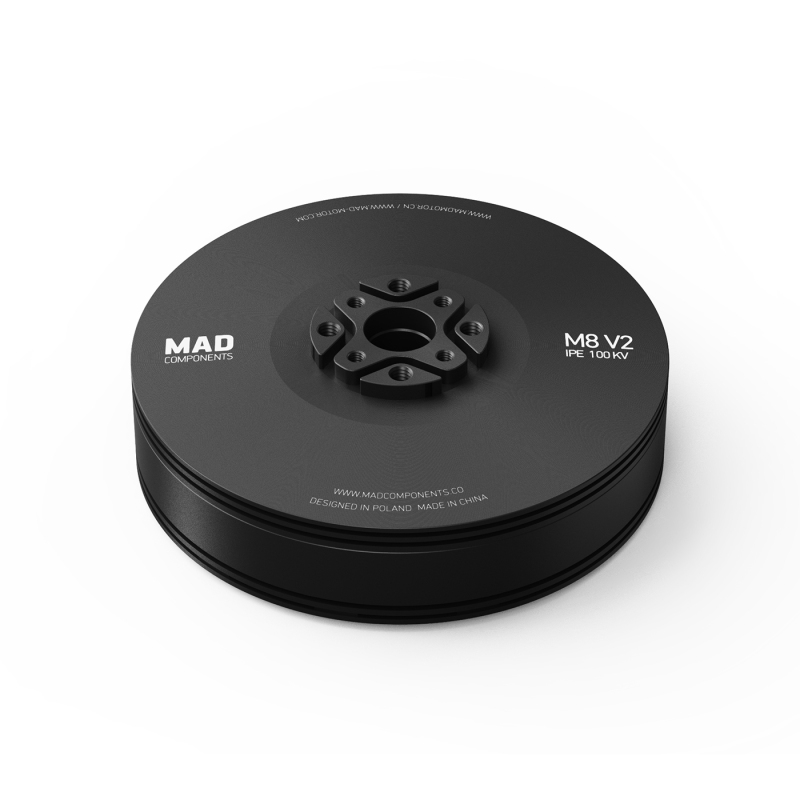

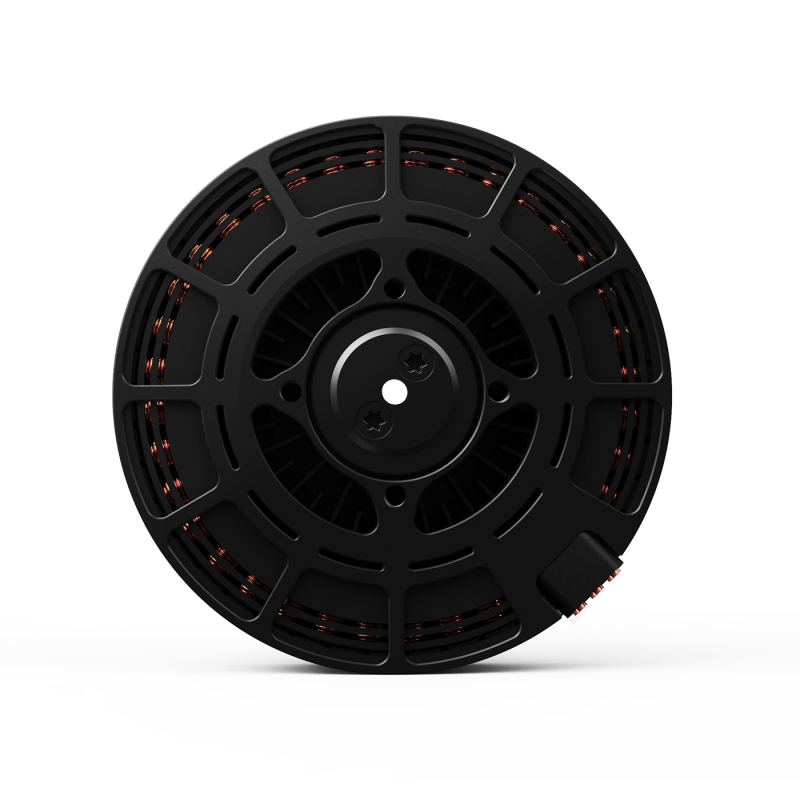

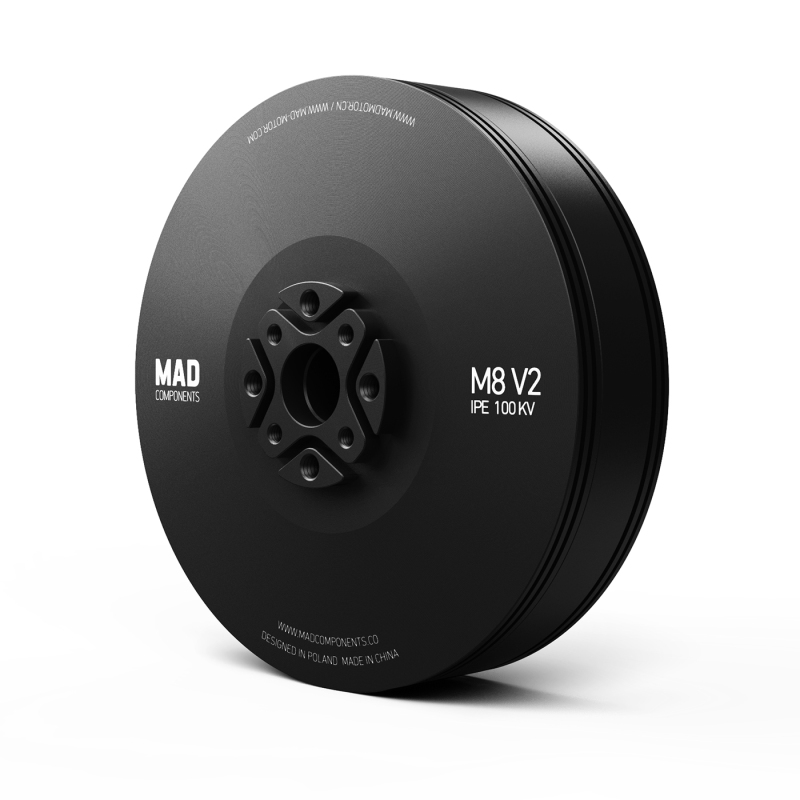

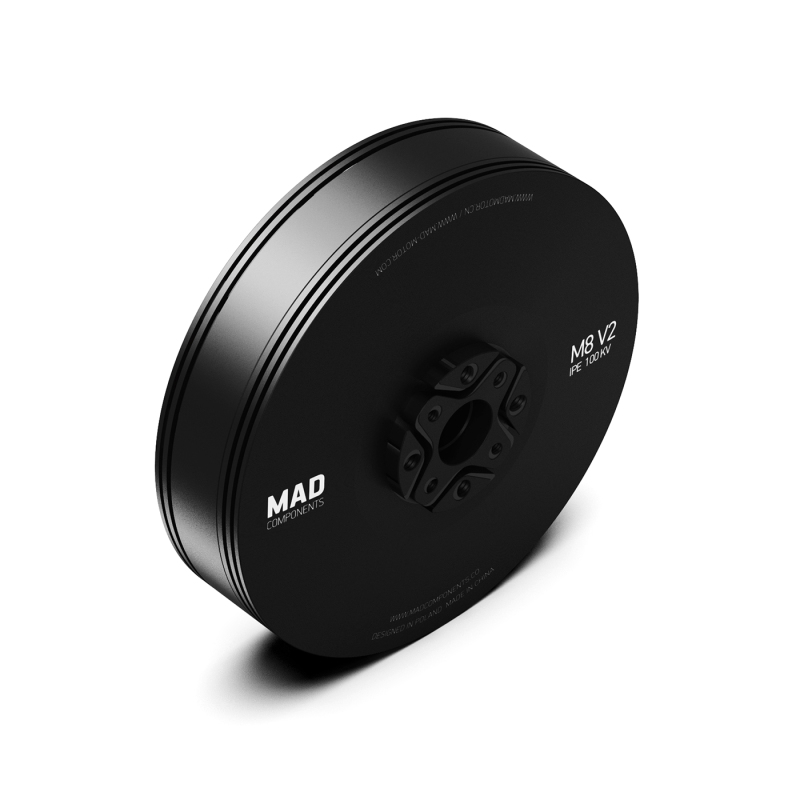

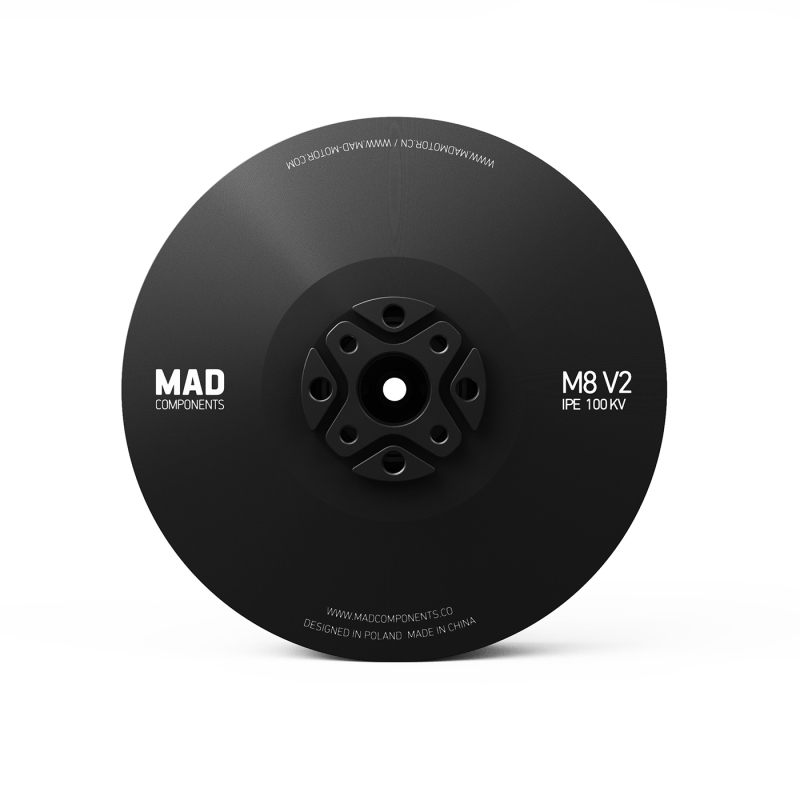

M8C08 8108 IPE V2 brushless drone motor

SKU: 0101DJ0562
8108 motor is the most classic product among UAV motors. MAD M8 is one of the most efficient motors among them and the most widely used motors for UAV of high-end aerial photography, exploration, archaeology, remote sensing surveying, mapping etc. Endurance flight time varies from 30-120min.
M8 IPE V2 is the latest version of MAD 8108 IPE, more efficient and lighter, great for endurance flights.
$0.00 $269.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    85KV
    100KV
    110KV
    150KV
    180KV
    Please select the information you wantX
Quantity
-
+
Download
  • MAD M8C08 IPE V2 brushless drone motor for the long flight time multirotor hexacopter octocopter
  • MAD M8C08 IPE V2 brushless drone motor for the long flight time multirotor hexacopter octocopter
  • MAD M8C08 IPE V2 brushless drone motor for the long flight time multirotor hexacopter octocopter
  • MAD M8C08 IPE V2 brushless drone motor for the long flight time multirotor hexacopter octocopter
  • MAD M8C08 IPE V2 brushless drone motor for the long flight time multirotor hexacopter octocopter
  • Description

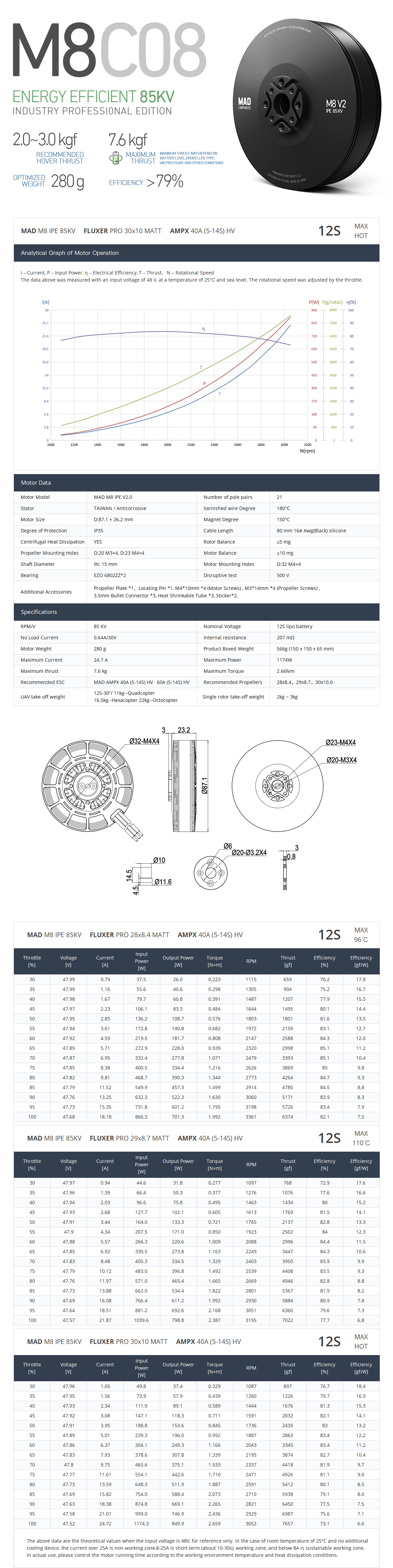

  • 85KV

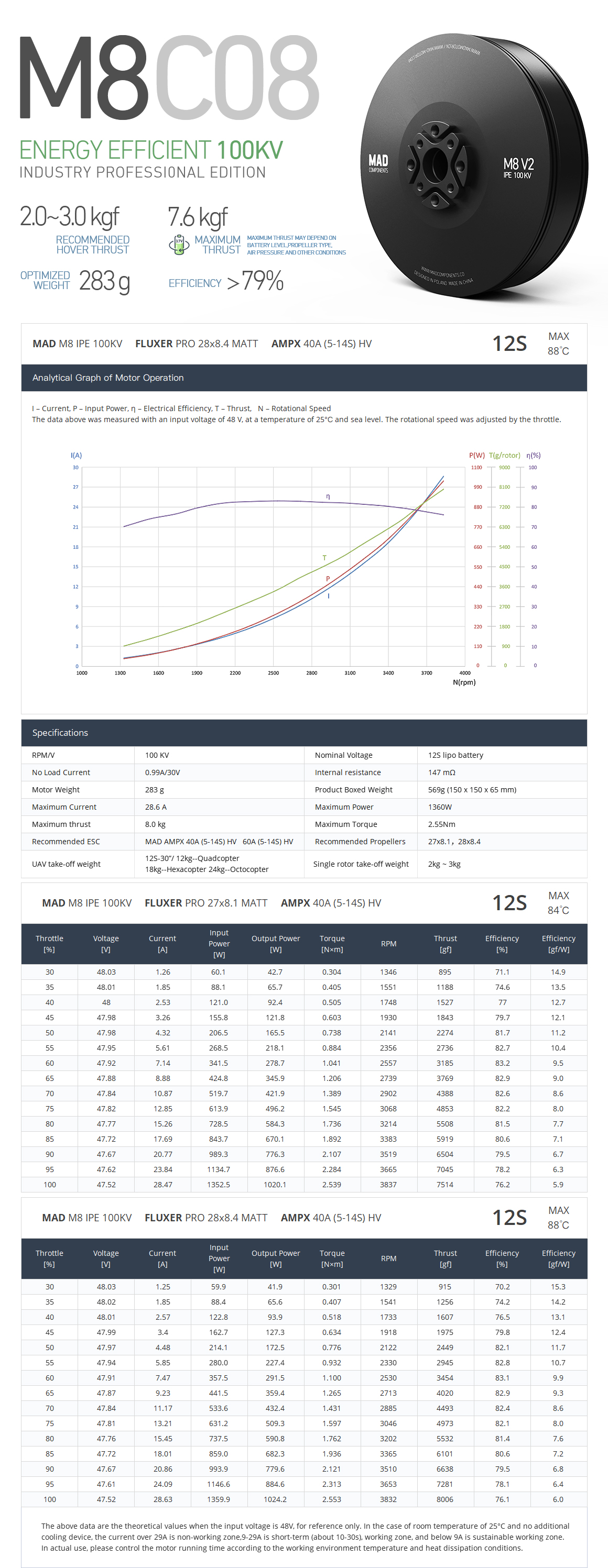

  • 100KV

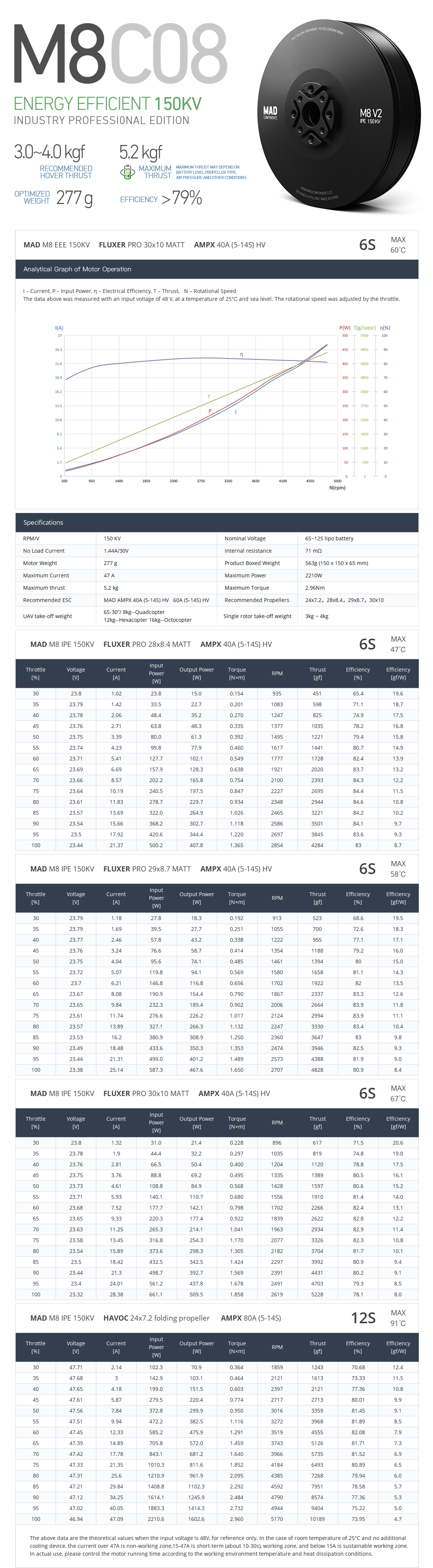

  • 150KV

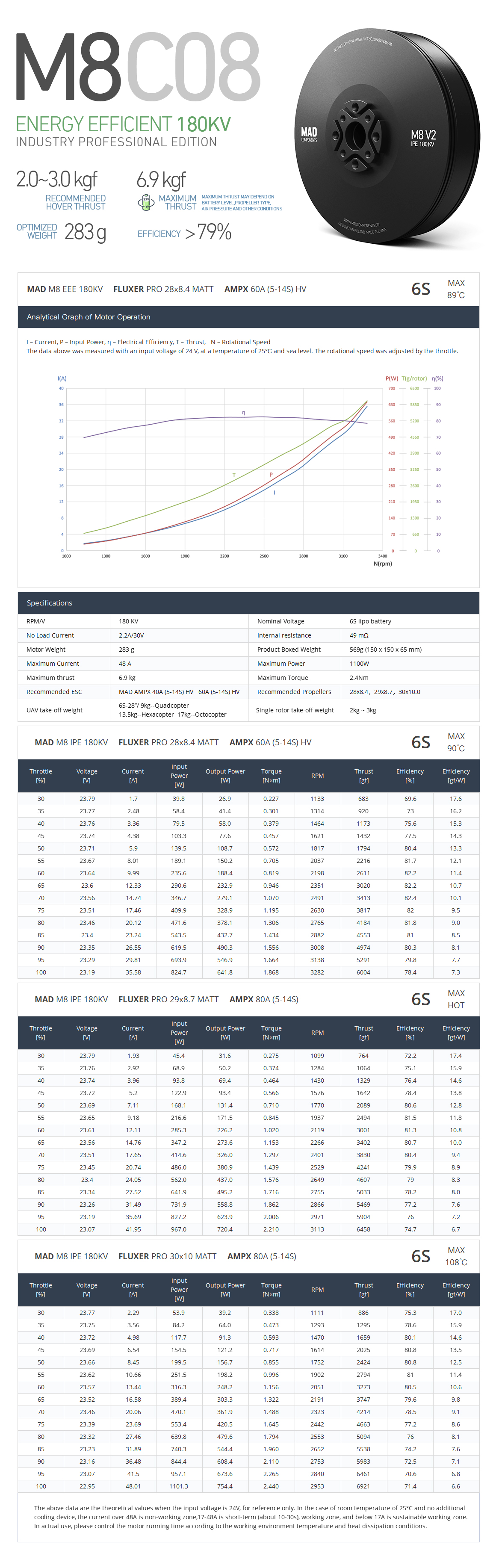

  • 180KV

Motor Data

Motor Model MAD M8C08 IPE V2.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:87.1 × 26.2 mm Motor Balance 150°C
Degree of Protection IP35 Cable Length 80 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4, D:23 M4×4 Motor Balance ≤10 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:32 M4×4
Bearing 6802ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

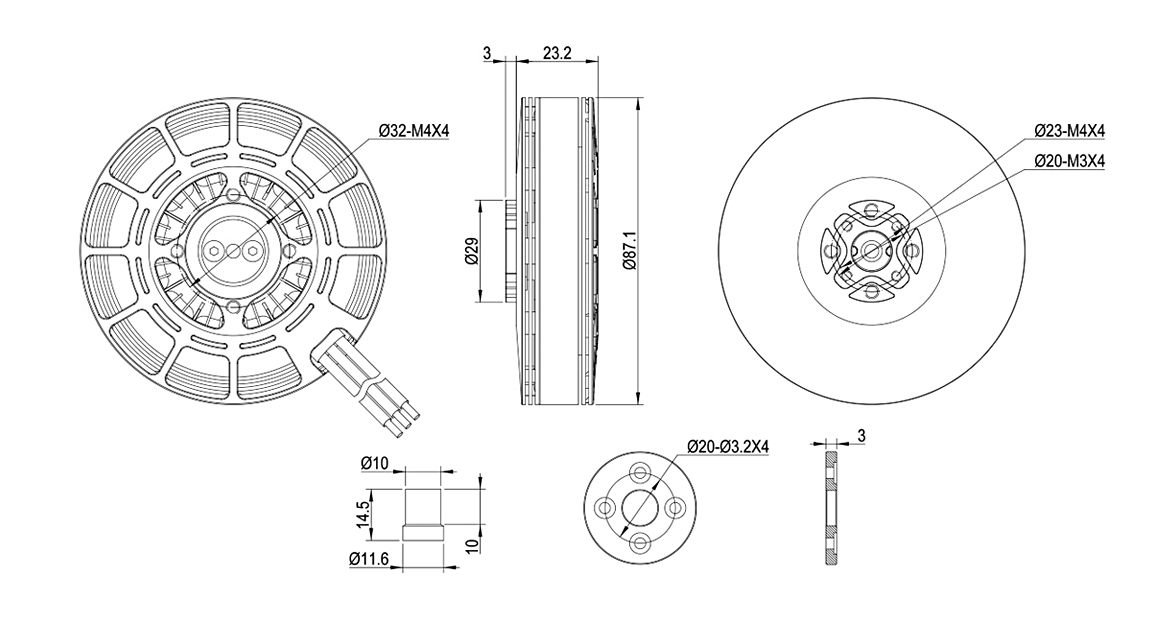

Drawing and mount holes
