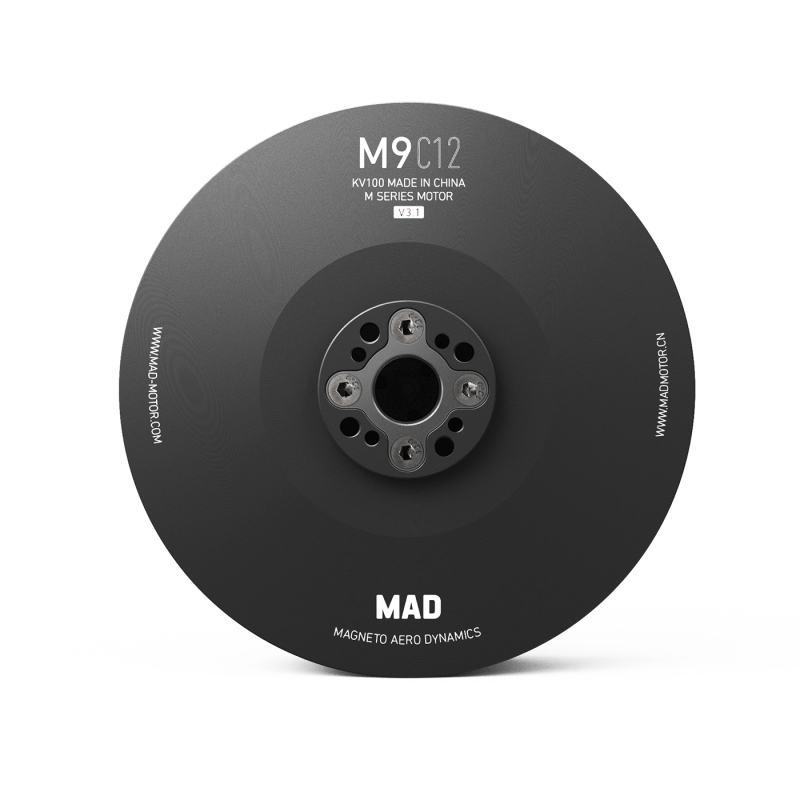

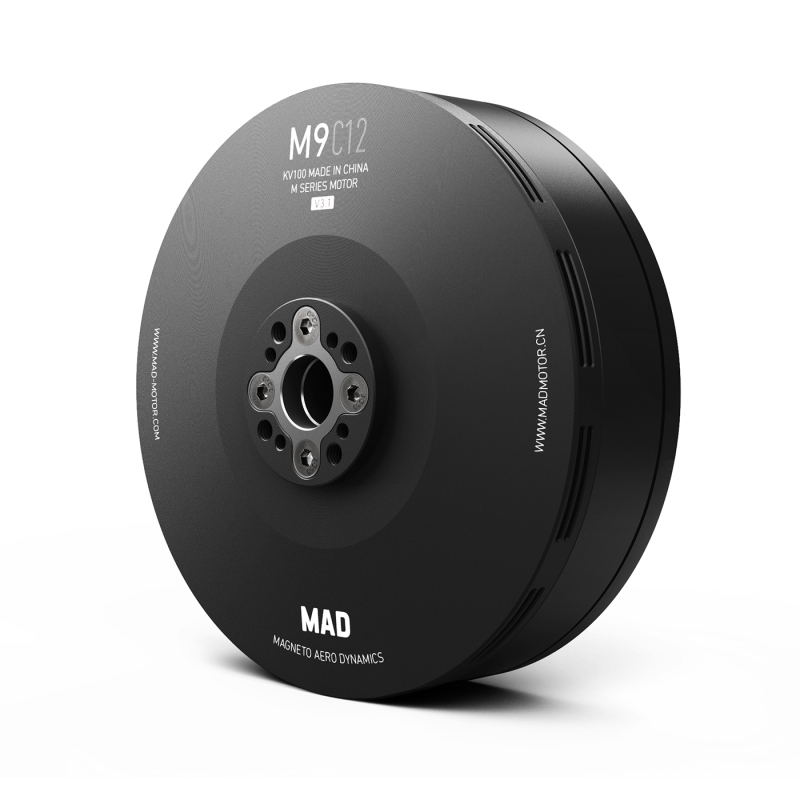

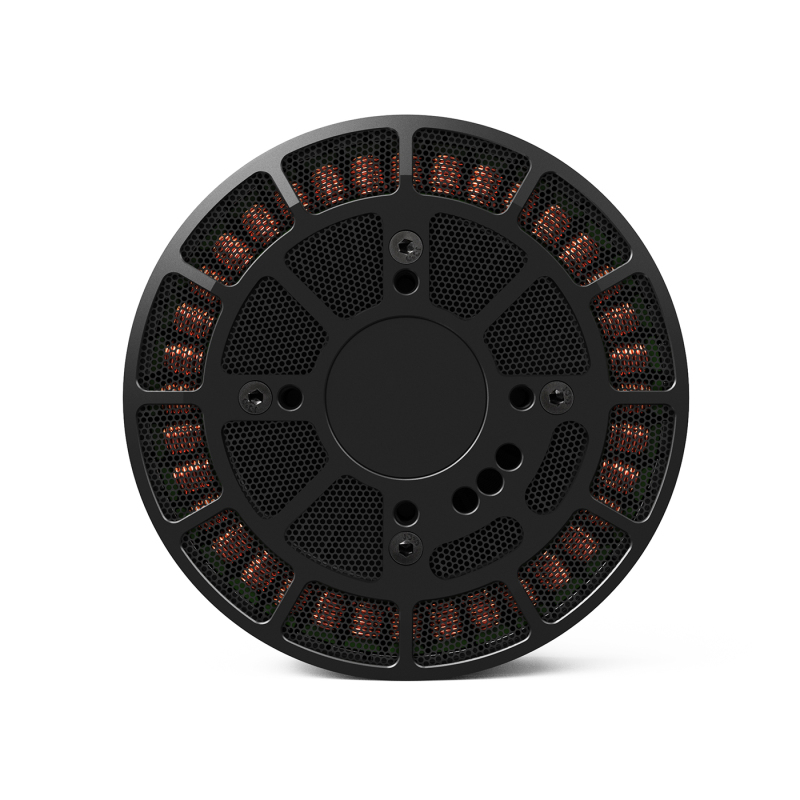

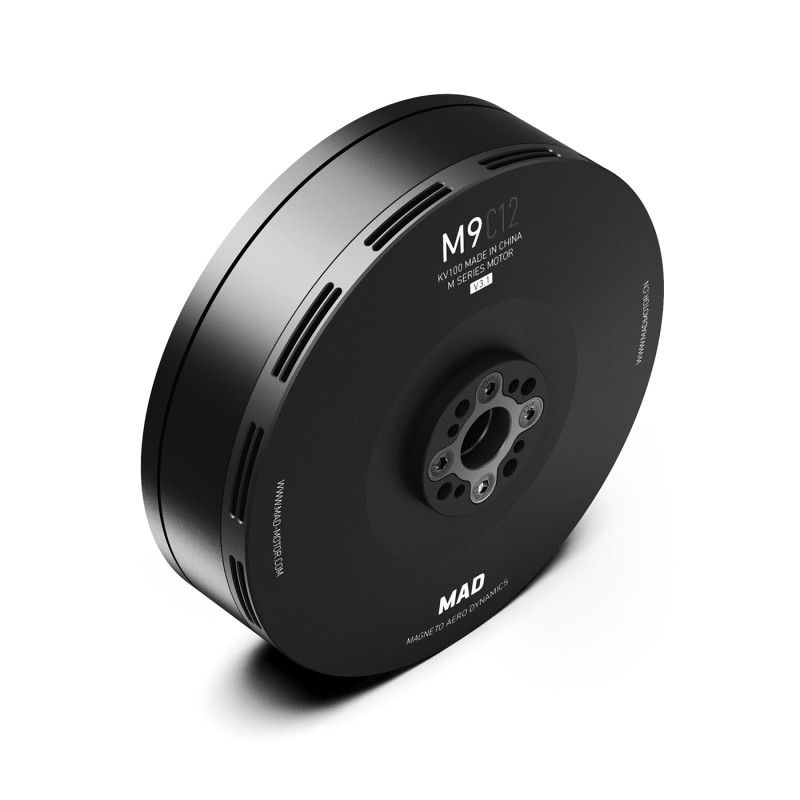

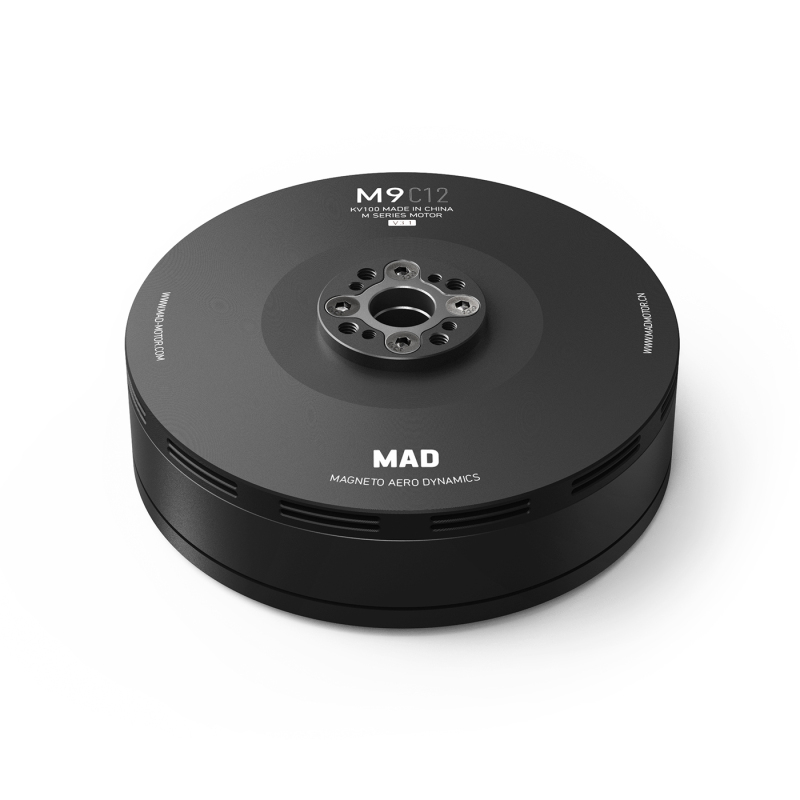

M9C12 IPE V3.1 Drone Motor

SKU: 0101DJ0939
Sustained thrust: 4~6kg
Max thrust: 13.8kg
Support voltage: 100KV/12S,110KV/12S
Weight: 486g,496g
$0.00 $279.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV Option:
    100KV
    110KV
    Please select the information you wantX
Quantity
-
+
Download
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
1/1
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • M9C12 IPE V3.1  brushless motor
  • Description
  • 100KV
  • 110KV

About M9C12 IPE V3.1

Positioning:
• Designed for 4–5 kg single-axis payloads with 28–32 inch carbon fiber propellers
• Engineered for low energy consumption and high efficiency through advanced magnetic simulation
• Ideal for professional UAV applications requiring high thrust and structural strength

Key Features:
✔ Maximum thrust up to 13.8 kg per axis
✔ Motor weight: 463g
✔ Unique 36N42P motor core design for smooth, stable power delivery
✔ Constructed with 7075-T6 aviation-grade aluminum for durability
✔ Reinforced with a precision steel shaft for long-term reliability

Perfect for:
• Heavy-lift drones using large-diameter props
• UAVs needing efficient, high-thrust motors

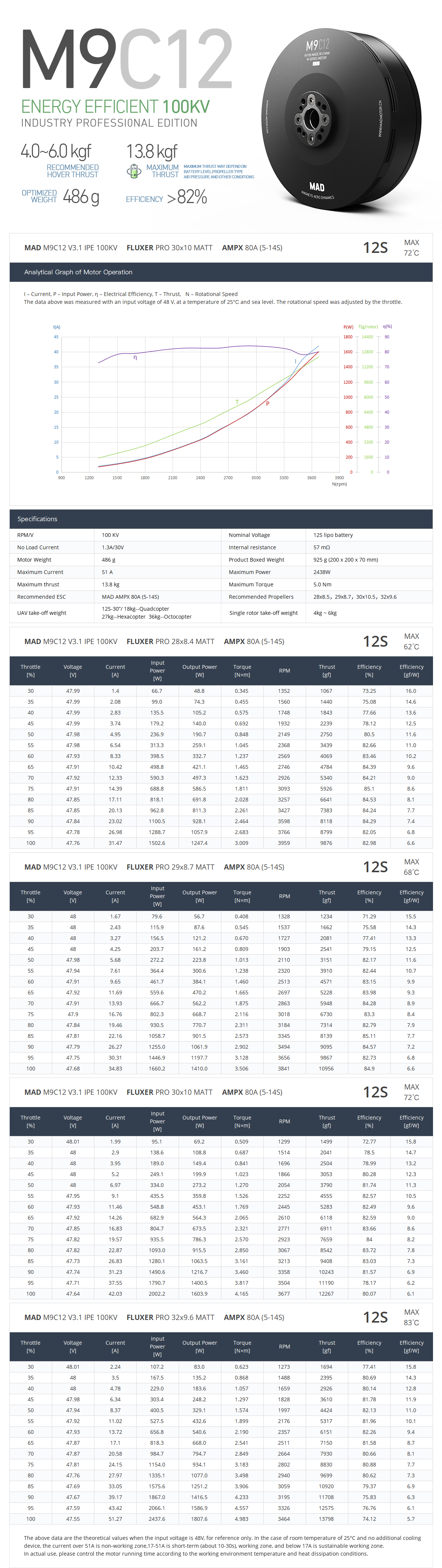

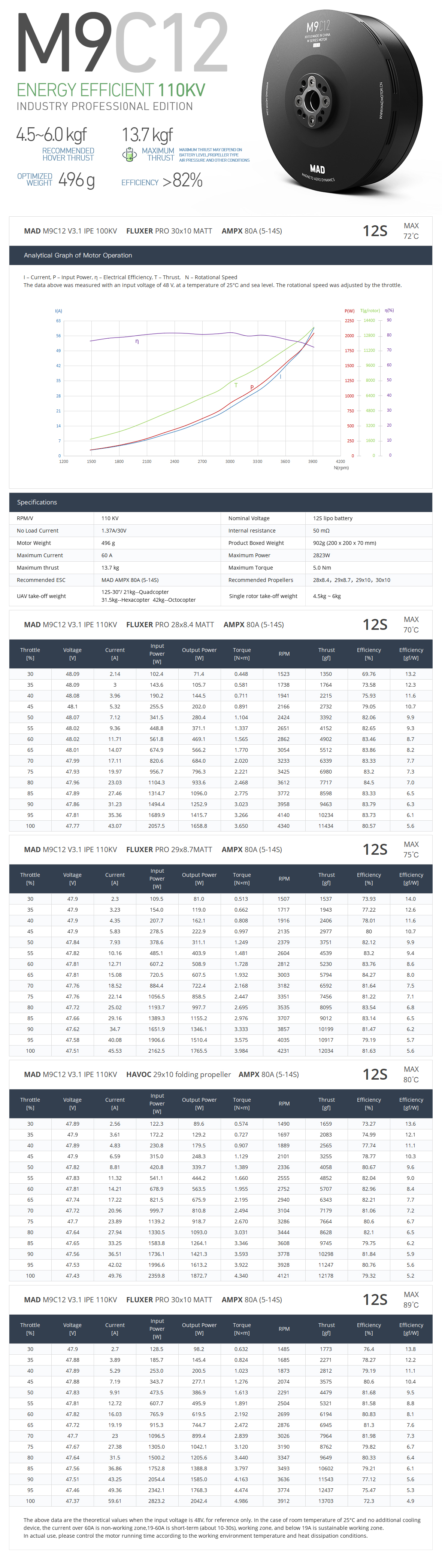

Motor Data
Motor Model MAD M9C12 IPE V3.1 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:98.5 × 33.55 mm Magnet Degree 150°C
Degree of Protection IP45 Cable Length 50mm 16# Awg(Black Yellow Red) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4, D:23 M4×4 Motor Balance ≤10 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:40 M4×4
Bearing EZ0 6902ZZ*2 Disruptive test 500 V

Drawing and mount holes
