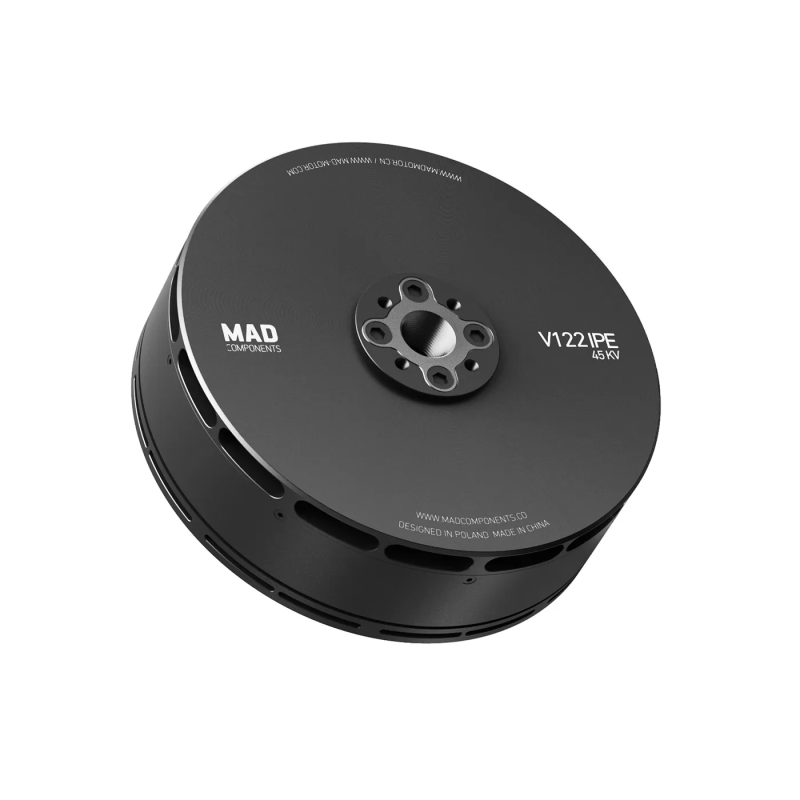

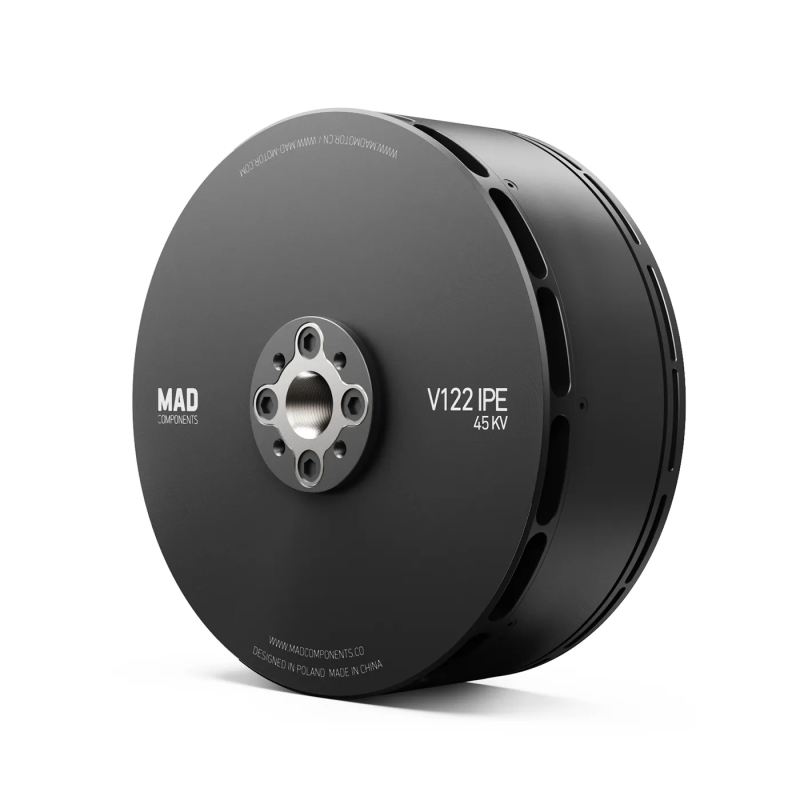

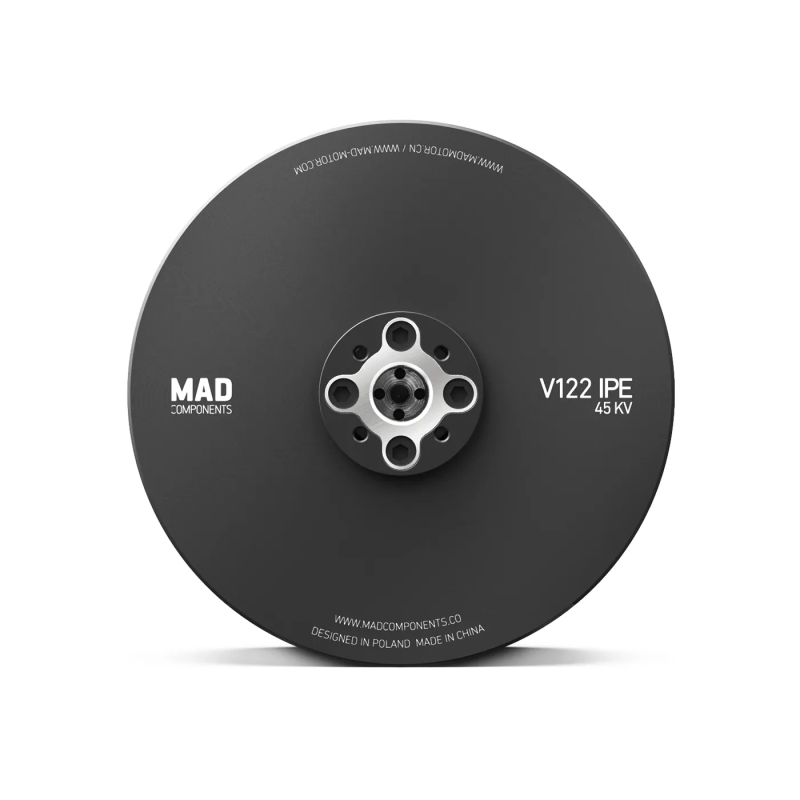

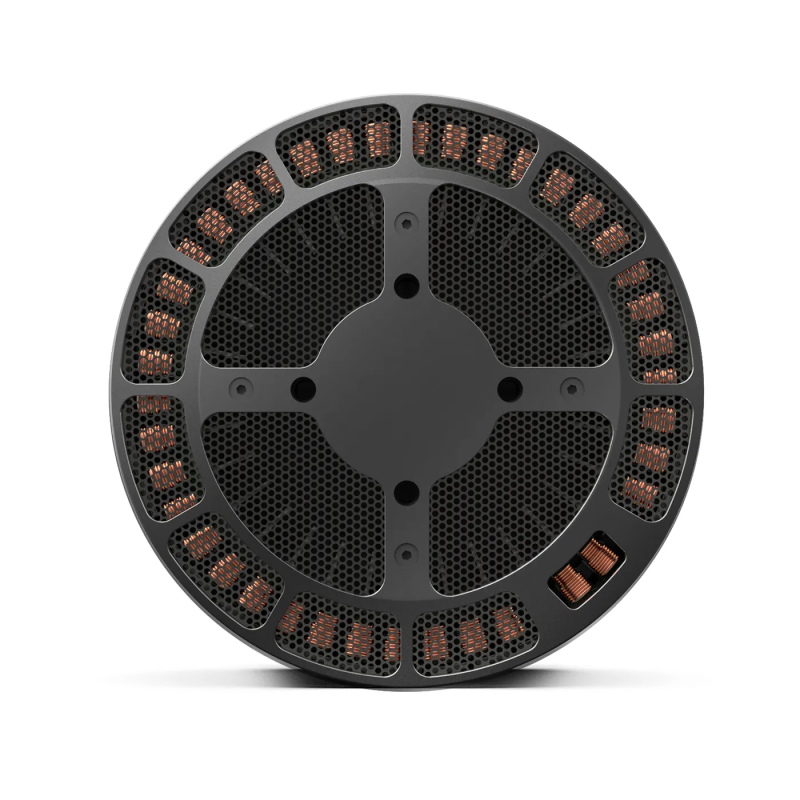

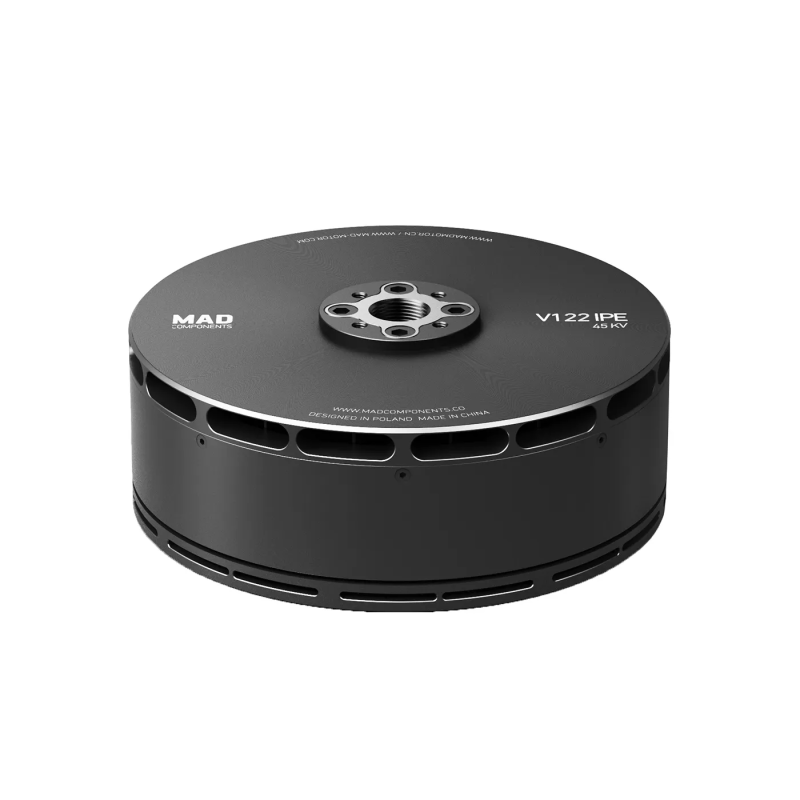

V122 eVTOL Drone Motor

Name: V122 eVTOL Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ1302
Price: 669 USD
Availability: OutOfStock

SKU: 0101DJ1302

Designed to carry payloads of 16-20kg per rotor, with 42″ carbon propeller. Max thrust is up to 48kg(105.8bl) per rotor, unit motor weighs only 1600g. With large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAV.

$669.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

1/1

Description

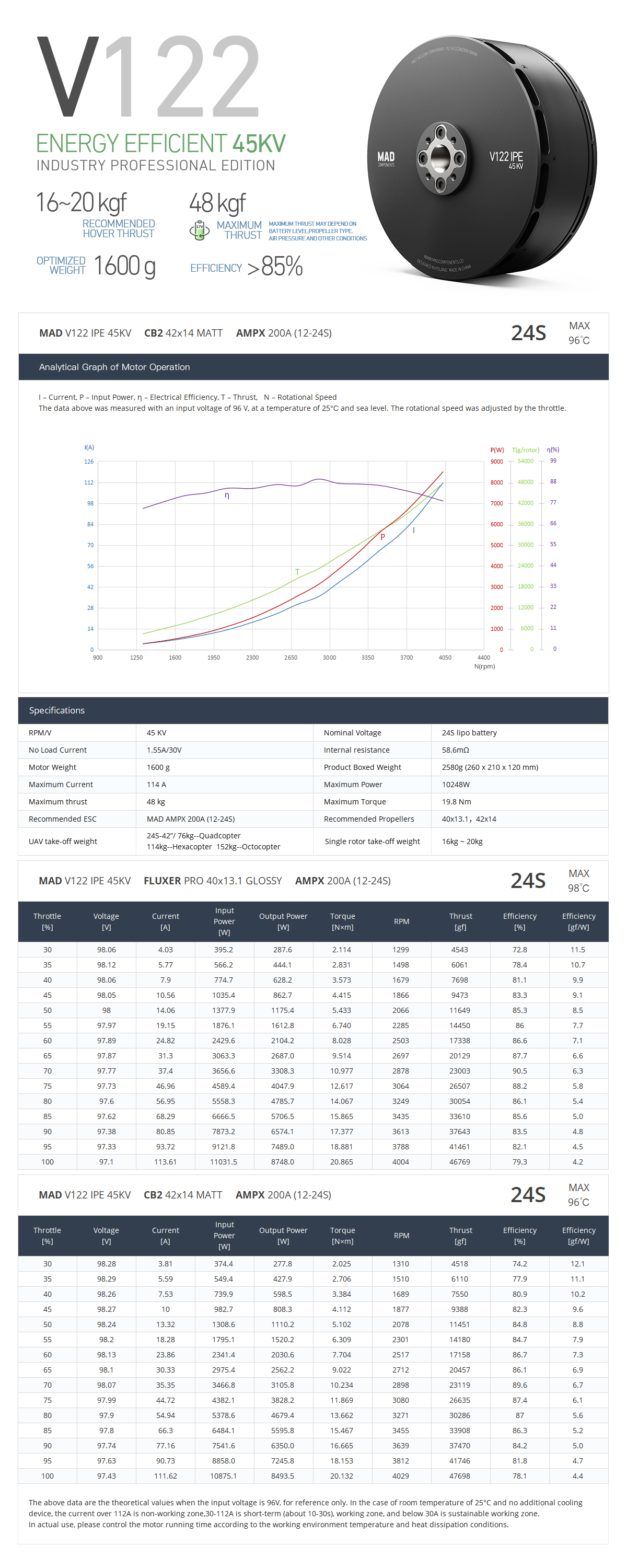

45KV

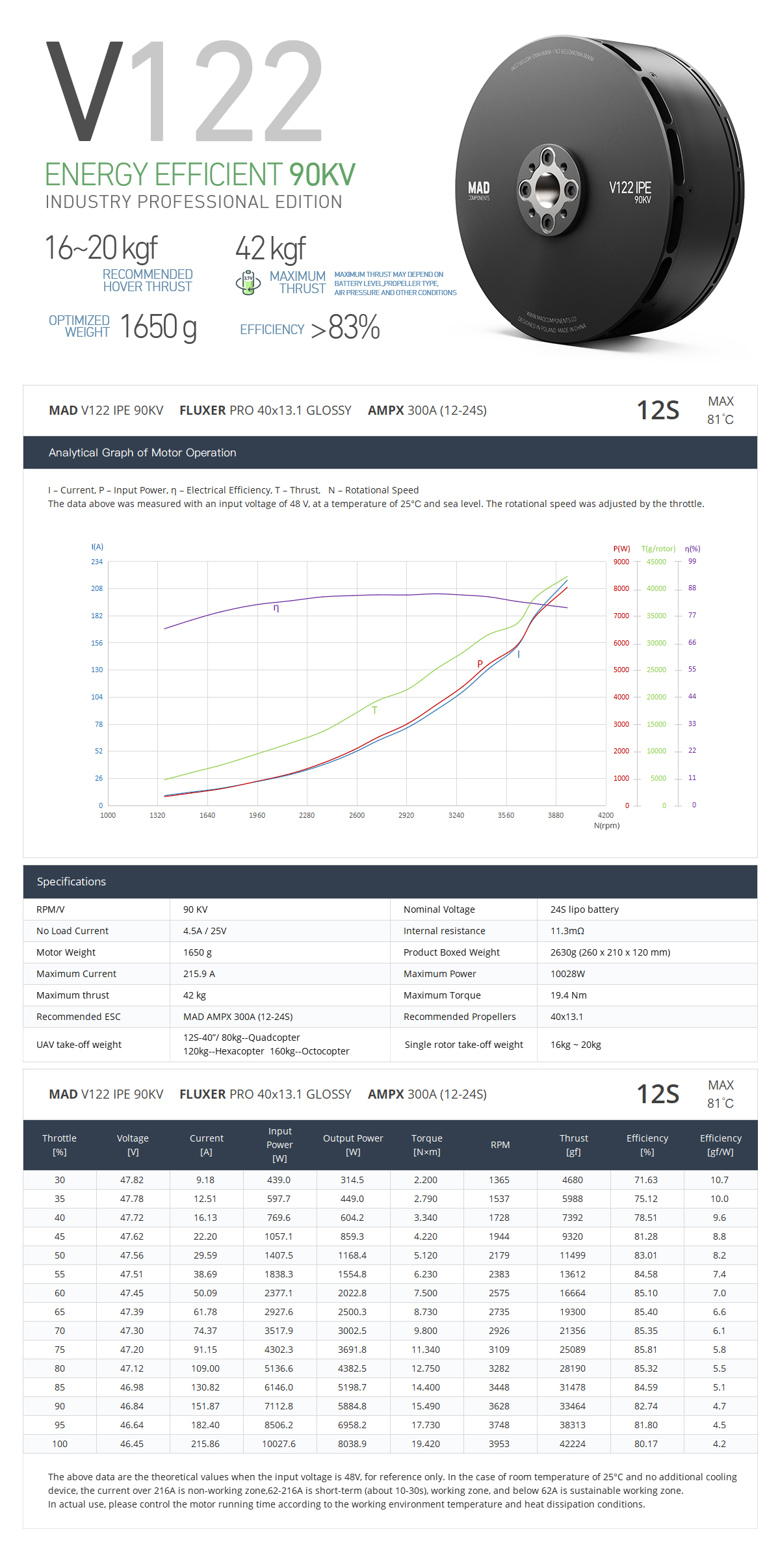

90KV
Solution

Motor Data
Motor Model	MAD V122 IPE V2.0	Number of pole pairs	19
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:145 × 53 mm	Magnet Degree	180°C
Degree of Protection	IP35	Cable Length	150 mm (extended Enameled wires）
Centrifugal Heat Dissipation	YES	Rotor Balance	≤10 mg
Propeller Mounting Holes	D:24 M4×4，D:30 M5×4	Motor Balance	≤20 mg
Shaft Diameter	IN: 20 mm	Motor Mounting Holes	D:50 M6×4
Bearing	6904ZZ*2	Disruptive test	500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes

___________________________________________________________________________________________________________________________

Accessories

VTOL Motor/KV	VTOL Prop	VTOL ESC
MAD V122 IPE 45KV	Fluxer VTOL 40x13.1/42x14	MAD AMPX 120A(12-24S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 rotors)
24S(4.3V/S)/84-52V	16kg ~ 20kg	76kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
