V128 EVTOL UAV Drone Motor

Name: V128 EVTOL UAV Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ1014
Price: 689 USD
Availability: InStock

SKU: 0101DJ1014

✔ Heavy Lift Capacity: Up to 62kg max thrust （continue thrust 20-27kg) per rotor
✔ Lightweight Design: Motor weighs only 1910g
✔ Endurance-Optimized: High-efficiency carbon fiber propellers
✔ Customizable: Optional ENCR (Electronic Control)
✔ Reliable & Durable: Ideal for demanding aerial missions

Ideal for: Surveying, logistics, agriculture, and other heavy-payload, long-endurance UAV air craft applications .
Link of the components :
https://www.mad-motor.com/products/40x131-inch-carbon-fiber-prop
https://www.mad-motor.com/products/mad-ampx-esc-200a-12-24s-hv?VariantsId=11190

~~$689.00~~ $689.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

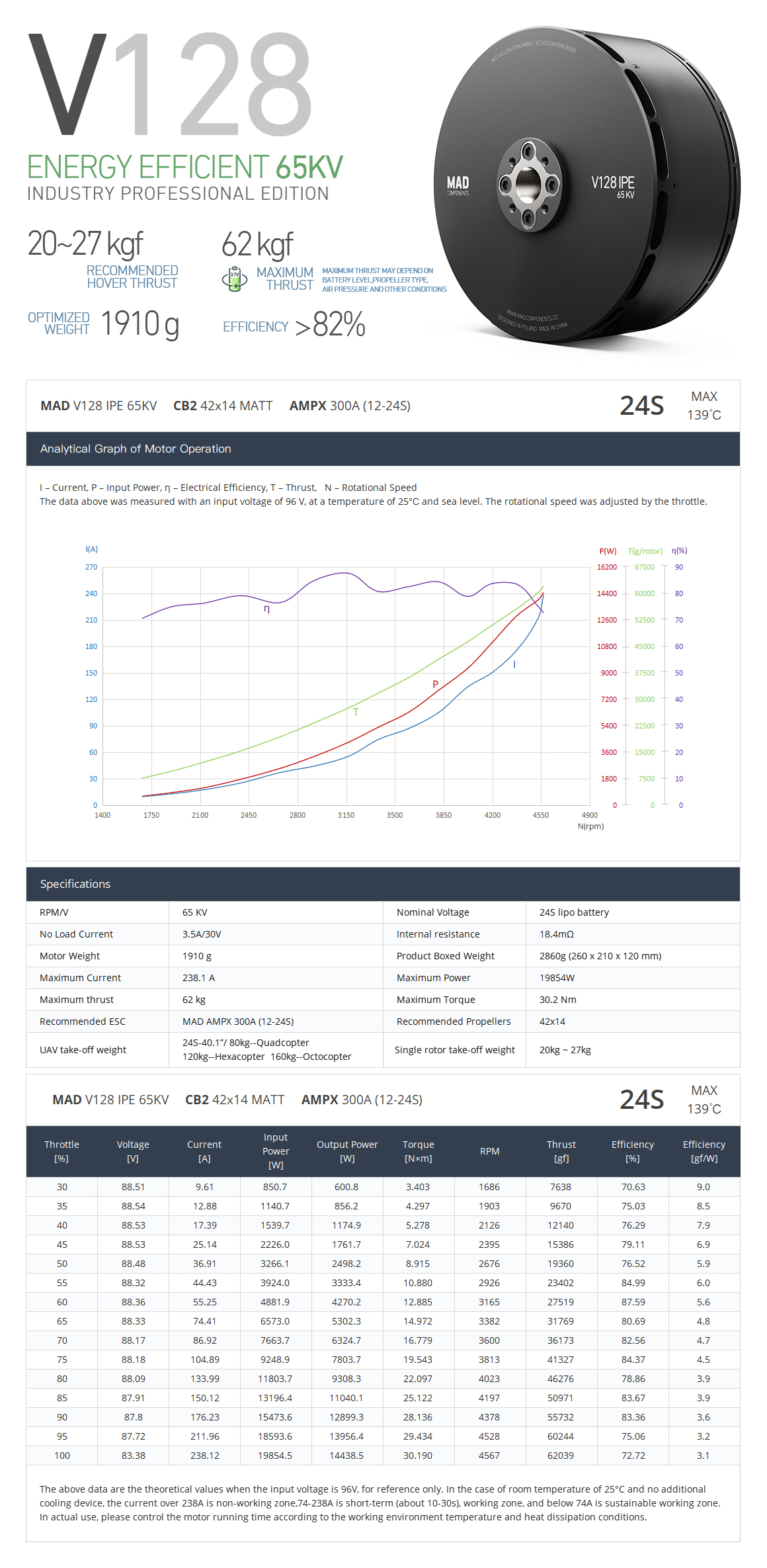

65KV-24S

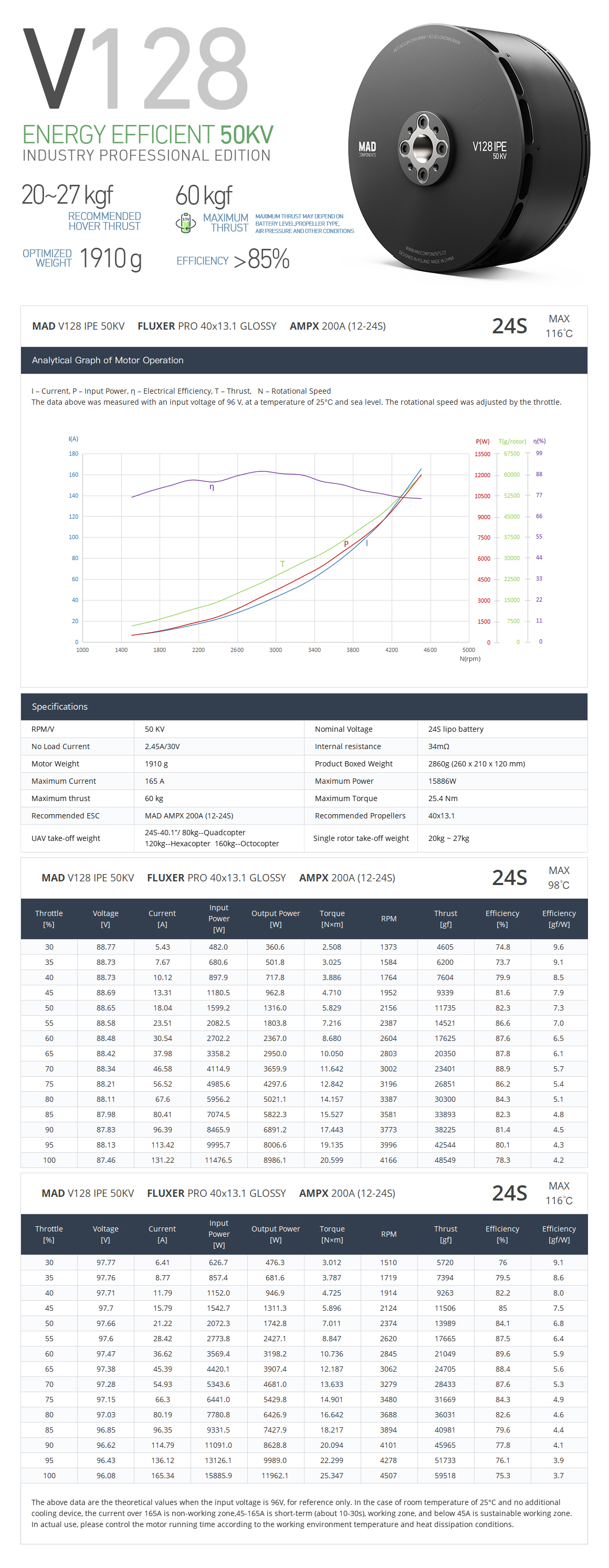

50KV-24S
Solution

Motor Data
Motor Model	MAD V128 IPE V2.0	Number of pole pairs	19
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:145 × 59 mm	Magnet Degree	180°C
Degree of Protection	IP35	Cable Length	150 mm (extended Enameled wires）
Centrifugal Heat Dissipation	YES	Rotor Balance	≤10 mg
Propeller Mounting Holes	D:24 M4×4，D:30 M5×4	Motor Balance	≤20 mg
Shaft Diameter	IN: 20 mm	Motor Mounting Holes	D:50 M6×4
Bearing	6904ZZ*2	Disruptive test	500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes

___________________________________________________________________________________________________________________________

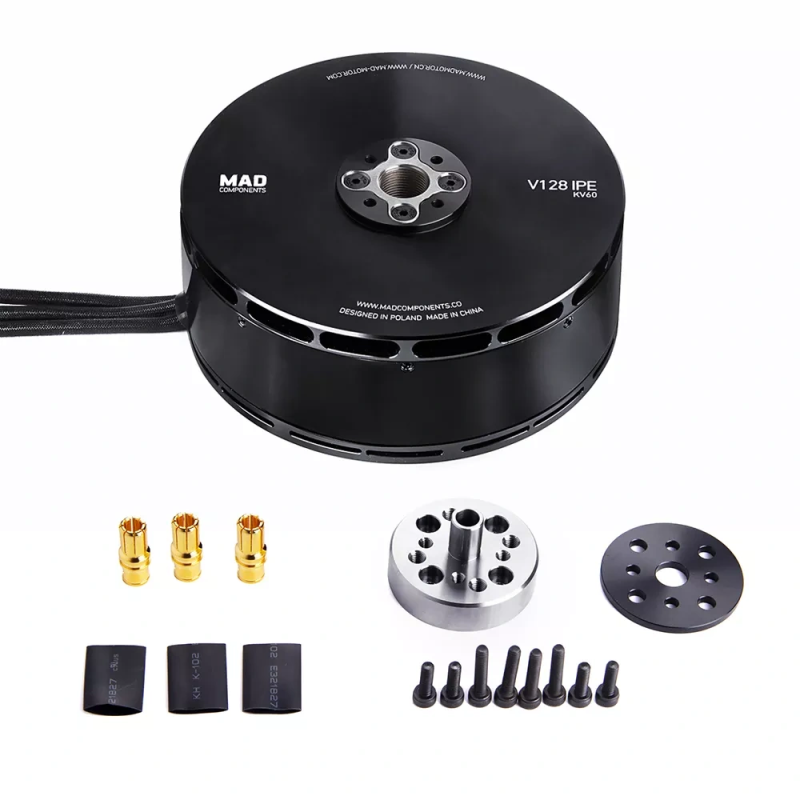

Accessories

SOLUTION
VTOL Motor/KV	VTOL Prop	VTOL ESC
MAD V128 IPE 50KV	Fluxer VTOL 40x13.1	MAD AMPX 200A(12-24S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 axes)
24S(4.3V/S)/84-104V	20kg ~ 27kg	80kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.

SOLUTION
VTOL Motor/KV	VTOL Prop	VTOL ESC
MAD V128 IPE 50KV	Fluxer VTOL 42x14	MAD AMPX 200A(12-24S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 axes)
24S(4.3V/S)/84-104V	20kg ~ 27kg	80kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
