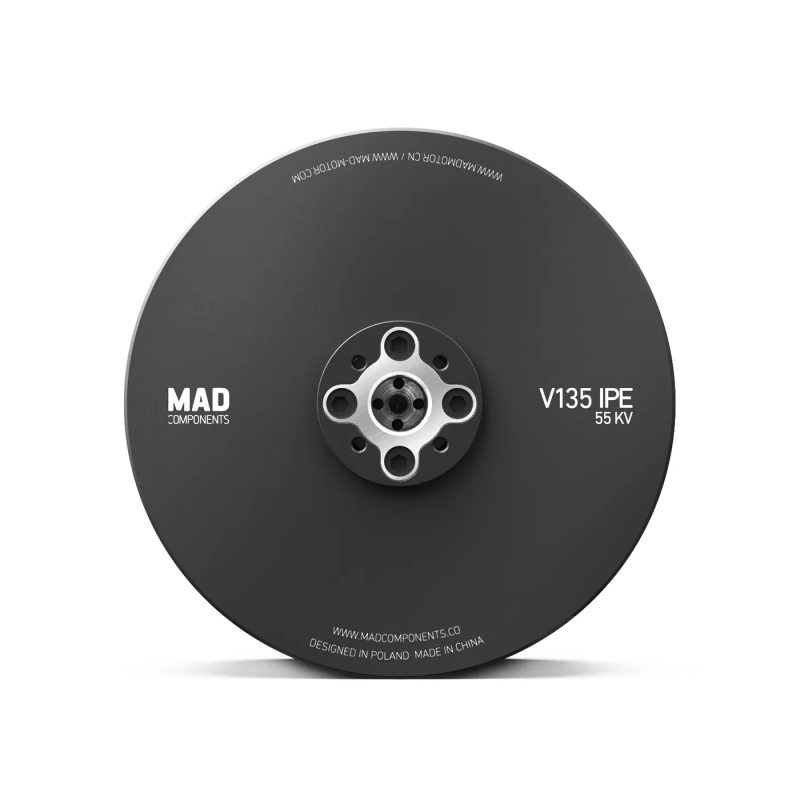

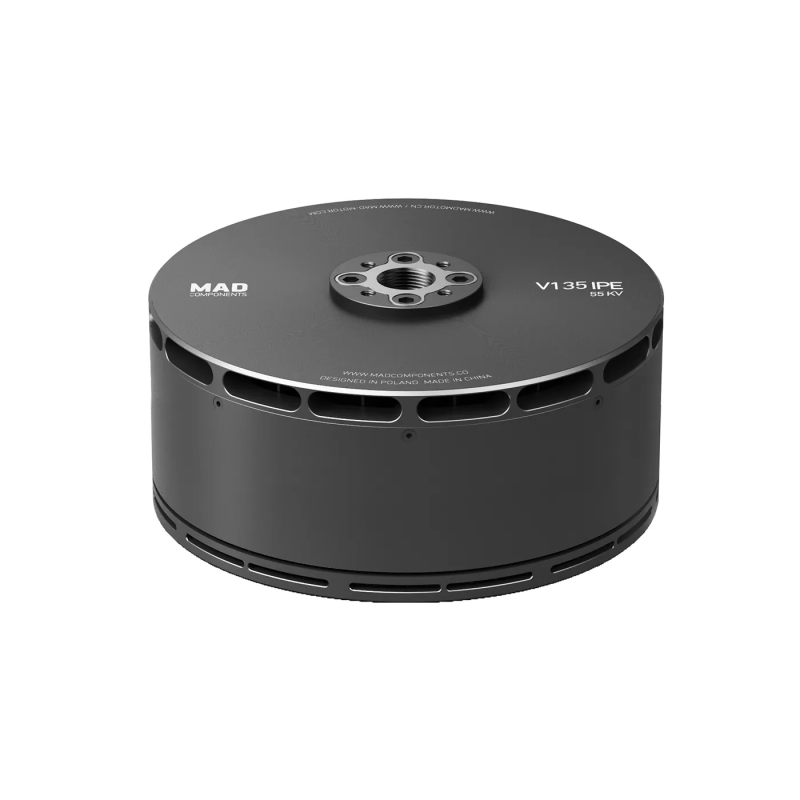

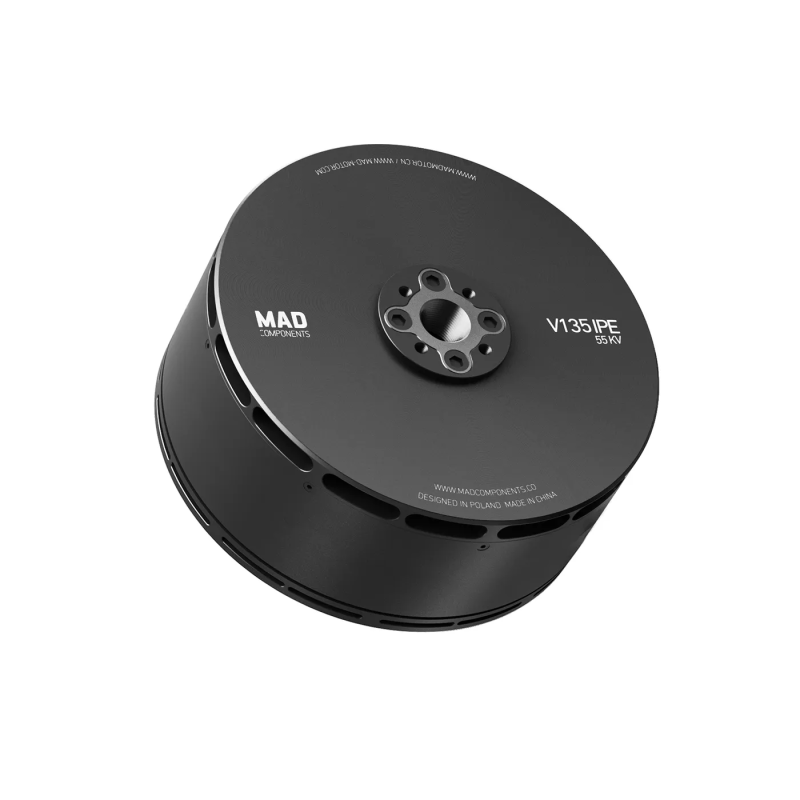

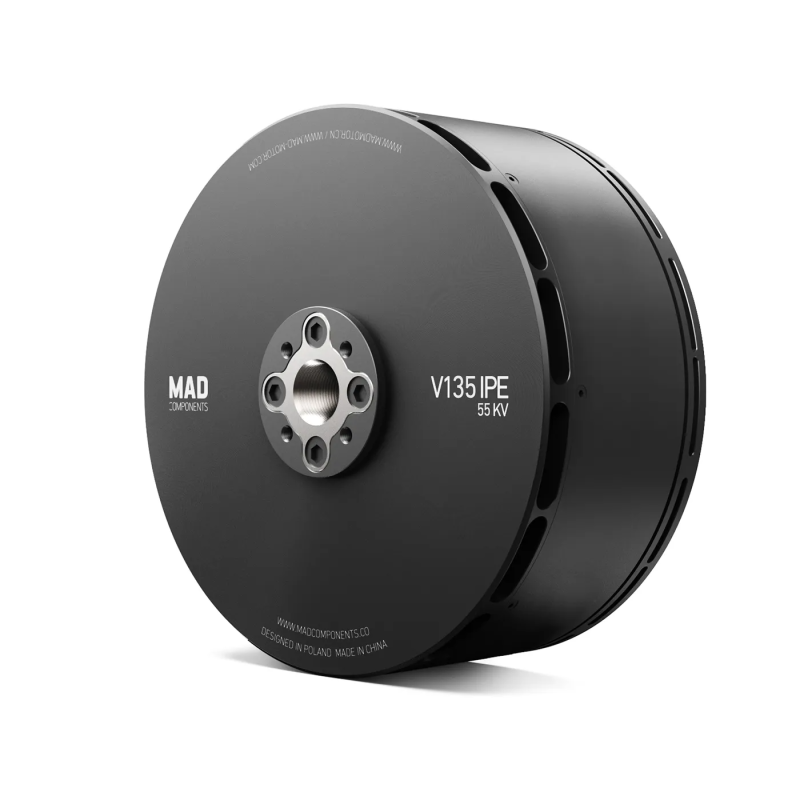

V135 IPE EVTOL Drone Motor

Name: V135 IPE EVTOL Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ1257
Price: 889 USD
Availability: OutOfStock

SKU: 0101DJ1257

Designed to carry payloads of 25-30kg per rotor, with 40″ carbon propeller. Max thrust is up to 68kg per rotor, unit motor weighs only 2293g. With large pitch EVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional UAVs.

$889.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

1/1

Description
55KV-24S
Solution

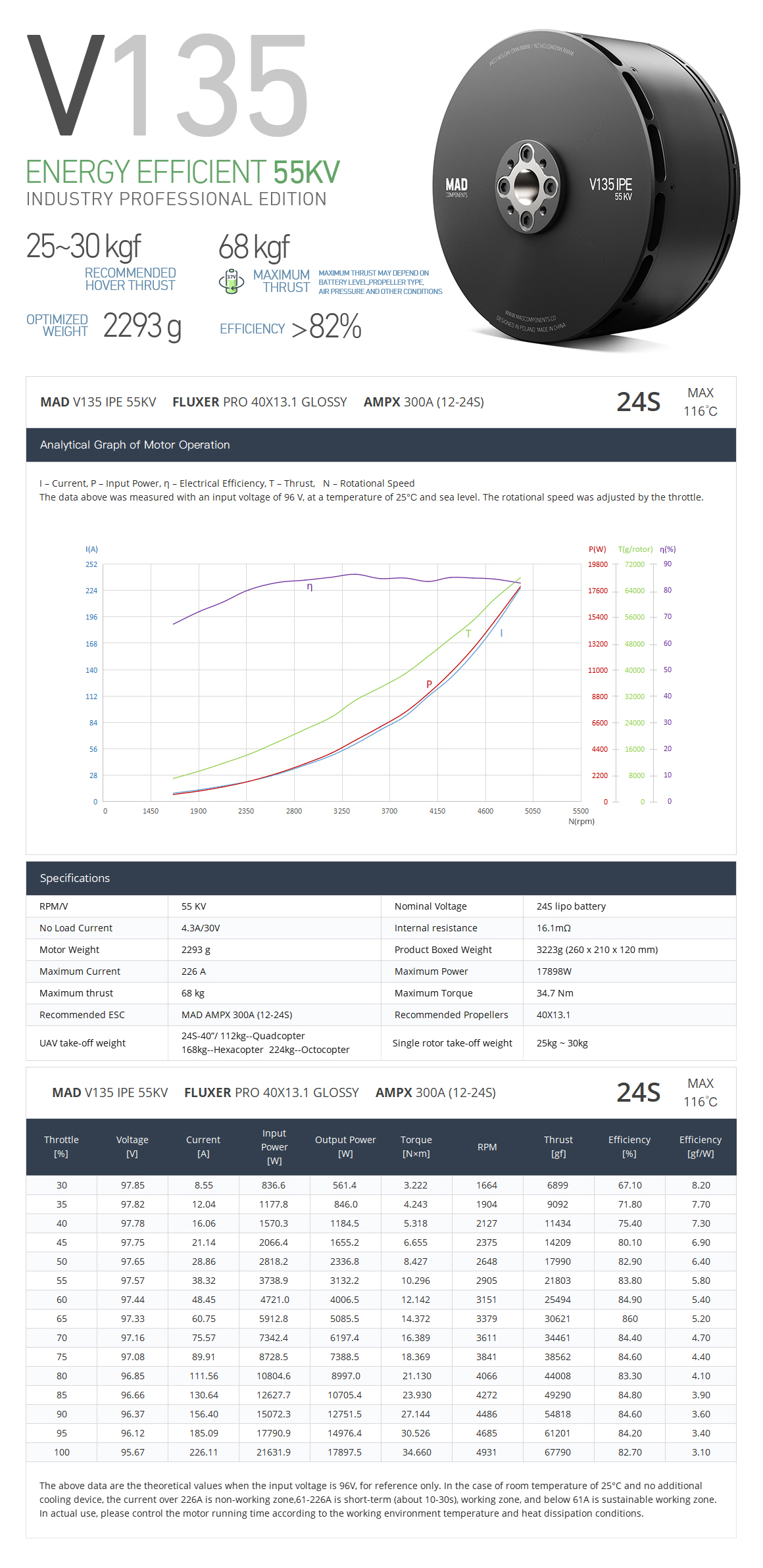

Motor Data
Motor Model	MAD V135 IPE V2.0	Number of pole pairs	19
Stator	Anticorrosive	Varnished wire Degree	220°C
Motor Size	D:145 × 66 mm	Magnet Degree	180°C
Degree of Protection	IP35	Cable Length	150 mm (extended Enameled wires）

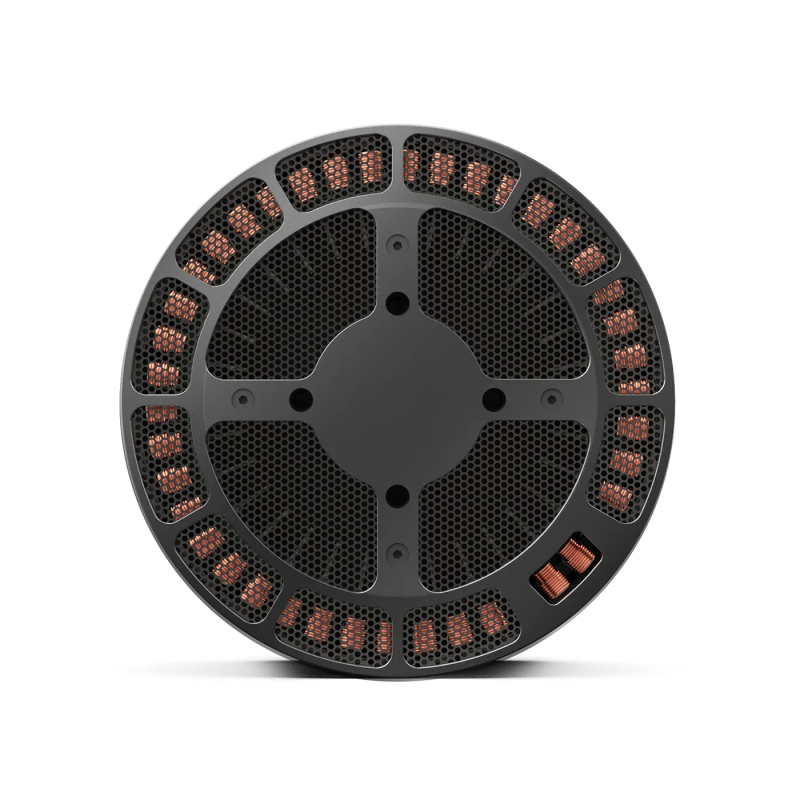

Centrifugal Heat Dissipation	YES	Rotor Balance	≤10 mg
Propeller Mounting Holes	D:24 M4×4，D:30 M5×4	Motor Balance	≤20 mg
Shaft Diameter	IN: 20 mm	Motor Mounting Holes	D:50 M6×4
Bearing	6904ZZ*2	Disruptive test	500 V

Drawing and mount holes

___________________________________________________________________________________________________________________________

Accessories

SOLUTION
VTOL Motor/KV	VTOL Prop	VTOL ESC
MAD V135 IPE 55KV	Fluxer VTOL 40x13.11	MAD AMPX 300A(12-24S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 rotors)
24S(4.3V/S)/84-104V	25kg ~ 30kg	112kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
