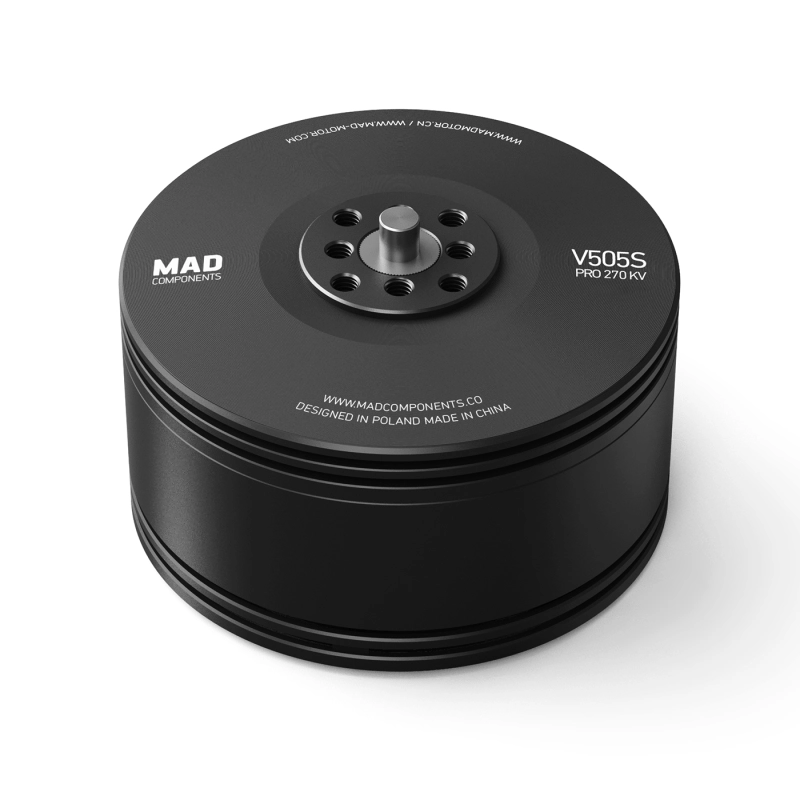

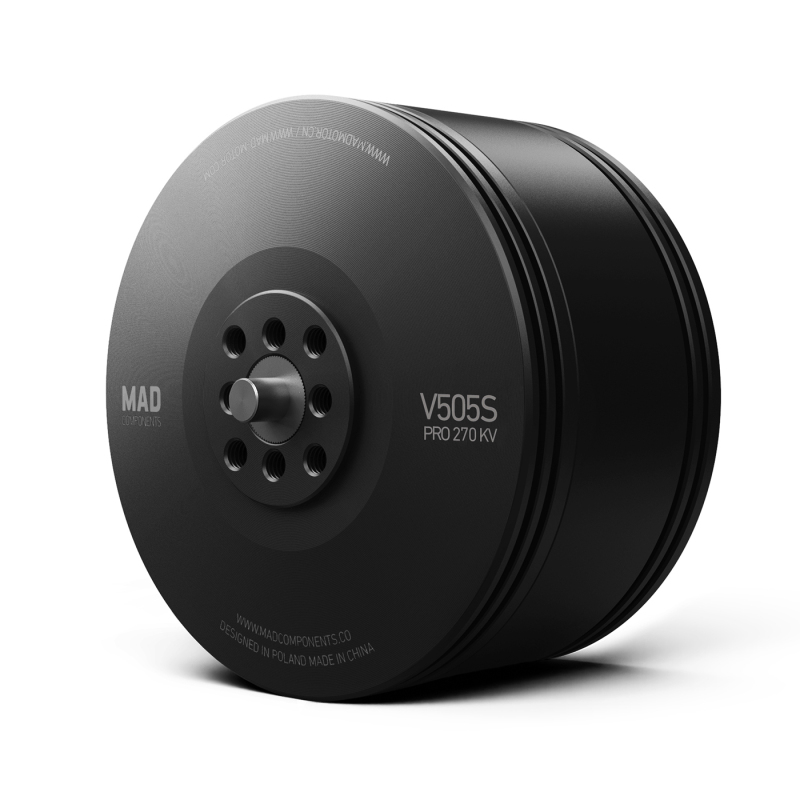

V505S PRO IPE V3.0 Feathering propeller Autocenter EVTOL Drone motor

Name: V505S PRO IPE V3.0 Feathering propeller Autocenter EVTOL Drone motor
Brand: MAD COMPONENTS
SKU: 0101DJ1509
Price: 108 USD
Availability: InStock

SKU: 0101DJ1509

V505S PRO 270KV/320KV As the hot motors in the field ,becasue it's darling of 8-16kg EVTOL Aircraft,at same time V505S PRO KV150 is also the best power solution for the quadcoper with take-off weight of 8-14kg.the motor with propeller is designed to automatically return to a horizontal position relative to the wing upon shutdown, ensuring streamlined alignment.

$108.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity

Download

Add to Favorites (0)

1/1

Description
150KV
170KV
270KV
320KV
380KV
420KV

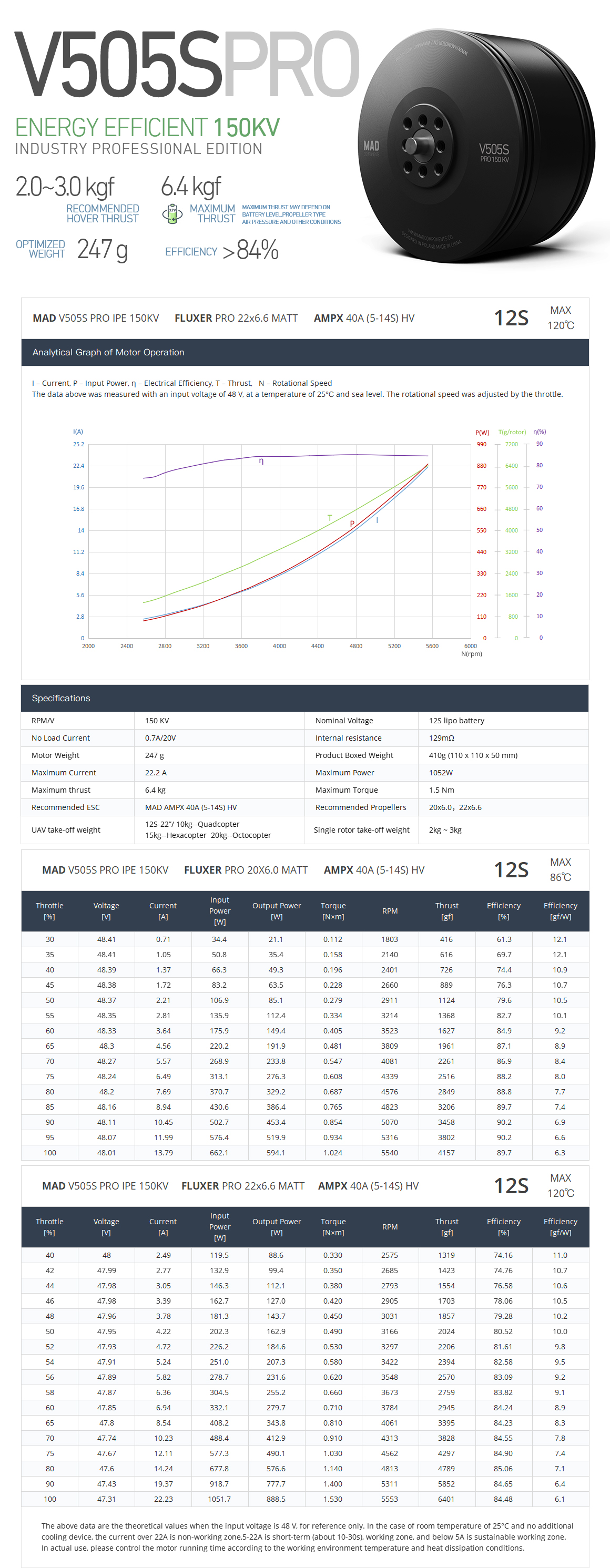

Specification
Motor Model	MAD V505S PRO IPE V3.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:56 × 37.4 mm	Magnet Degree	150°C
Degree of Protection	IP45	Cable Length	150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×4, D:15 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 6 mm	Motor Mounting Holes	D:25 M3×4
Bearing	EZO 696ZZ*2	Disruptive test	500 V
___________________________________________________________________________________________________________________________ Drawing and mount holes
