V62 PRO Feathering propeller Autocenter eVTOL Drone Motor

Name: V62 PRO Feathering propeller Autocenter eVTOL Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ0785
Price: 149 USD
Availability: InStock

SKU: 0101DJ0785

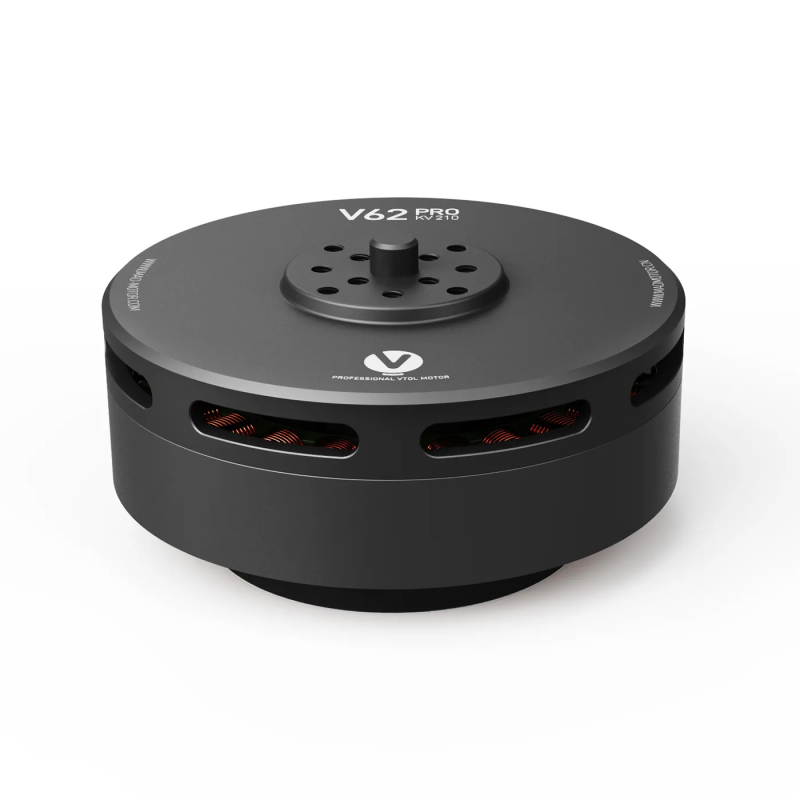

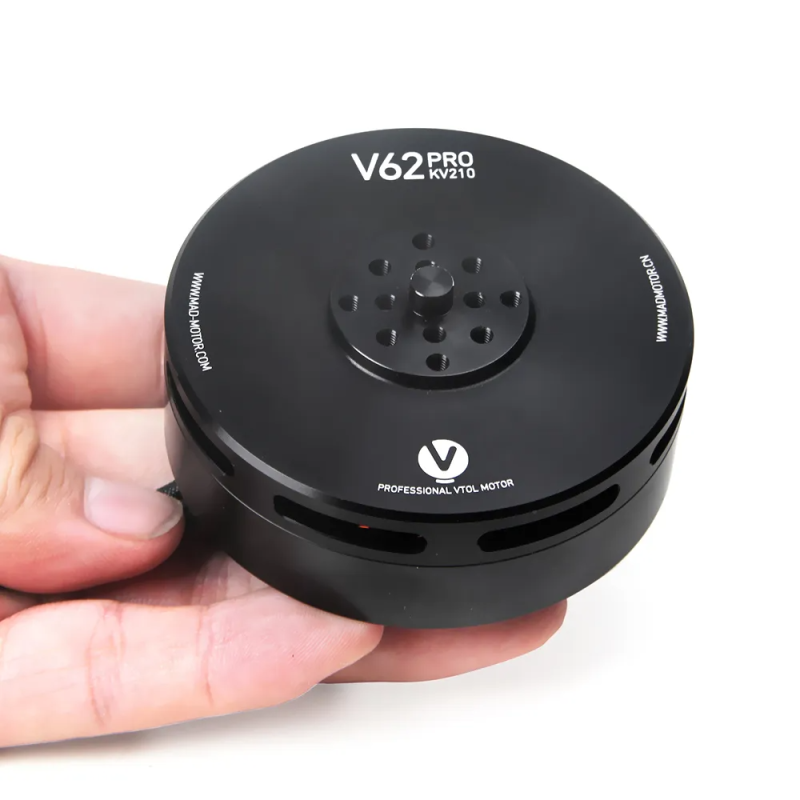

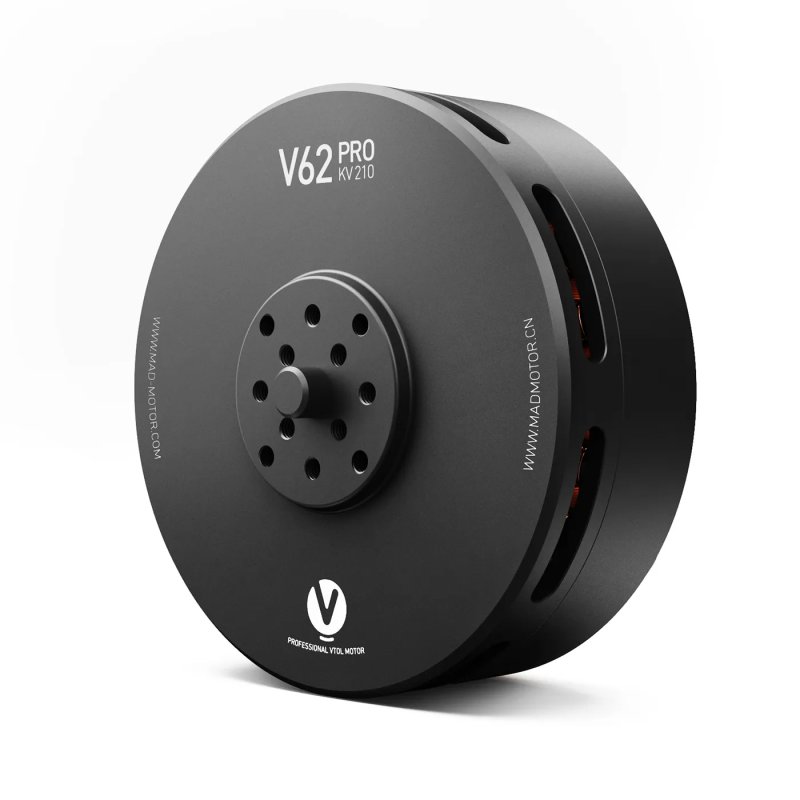

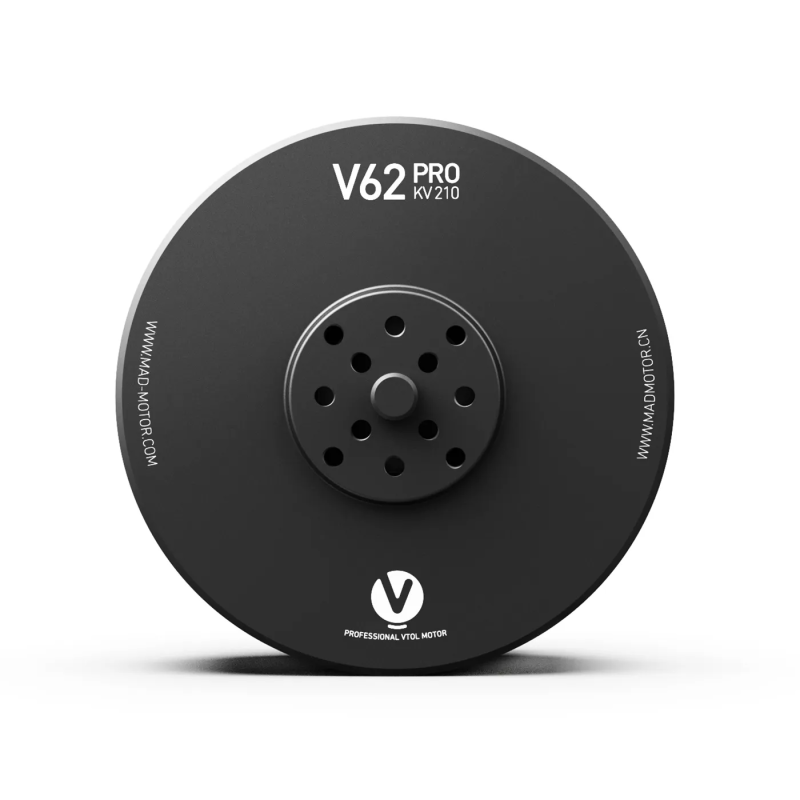

This is a eVTOL autocentre motor designed to carry payloads of 3.5-6kg per rotor, with an 18″ carbon propeller. Max thrust is up to 11.8kg per rotor, unit motor weighs only 305g. Designed for 15-20kg MTOW professional industrial eVTOL fixed-wing UAS, with large-pitch eVOTL CF propellers,the motor with propeller is designed to automatically return to a horizontal position relative to the wing upon shutdown, ensuring streamlined alignment.

$149.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
210KV
280KV
Solution

Motor Data
Motor Model	MAD V62 PRO IPE V1.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	180°C
Motor Size	D:72 × 37.5 mm	Motor Balance	150°C
Degree of Protection	IP35	Cable Length	80 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×4, 18 M3×4, 22 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 12 mm	Motor Mounting Holes	D:25 M3×4, D:30 M3×4
Bearing	6801ZZ*2	Disruptive test	500 V

Drawing and mount holes

90℃ feathering propeller，180℃ feathering propeller

___________________________________________________________________________________________________________________________

Accessories

SOLUTION
VTOL Motor/KV	VTOL Prop	VTOL ESC
V62 210KV	Fluxer VTOL 22.1x7.4	MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)=/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight
12S(4.3V/S)/42-52V	4kg~6kg	20kg
Note.For a coaxial configuration, a total thrust loss of 25% should be considered.

SOLUTION 2
VTOL Motor/KV	VTOL Prop	VTOL ESC
V62 280KV	FLUXER VTOL 18.1X7.2	MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)=/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight
12S(4.3V/S)/42-52V	4kg~5kg	19kg
Note.For a coaxial configuration, a total thrust loss of 25% should be considered.
