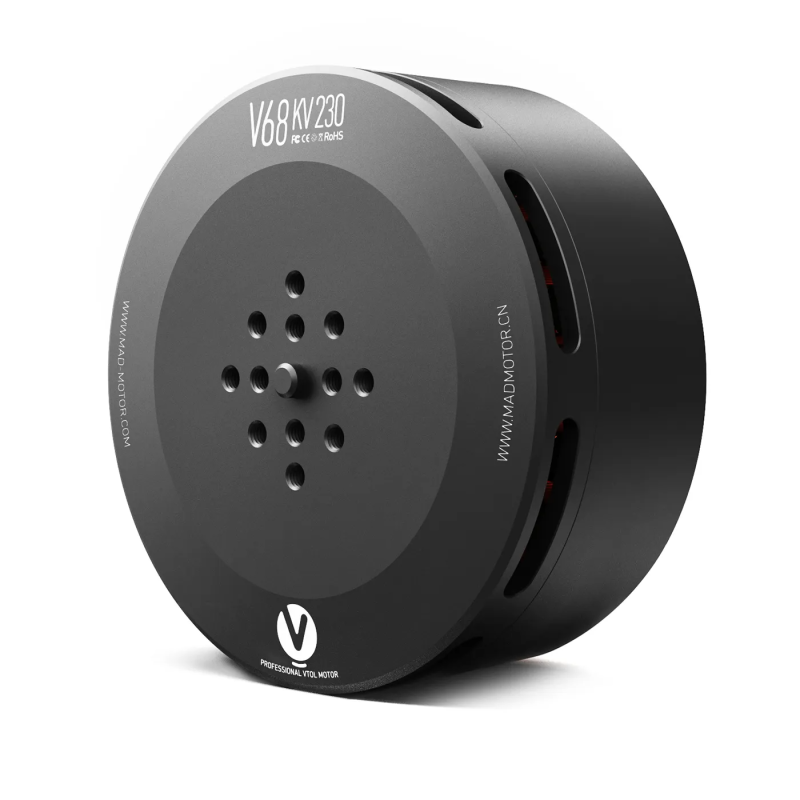

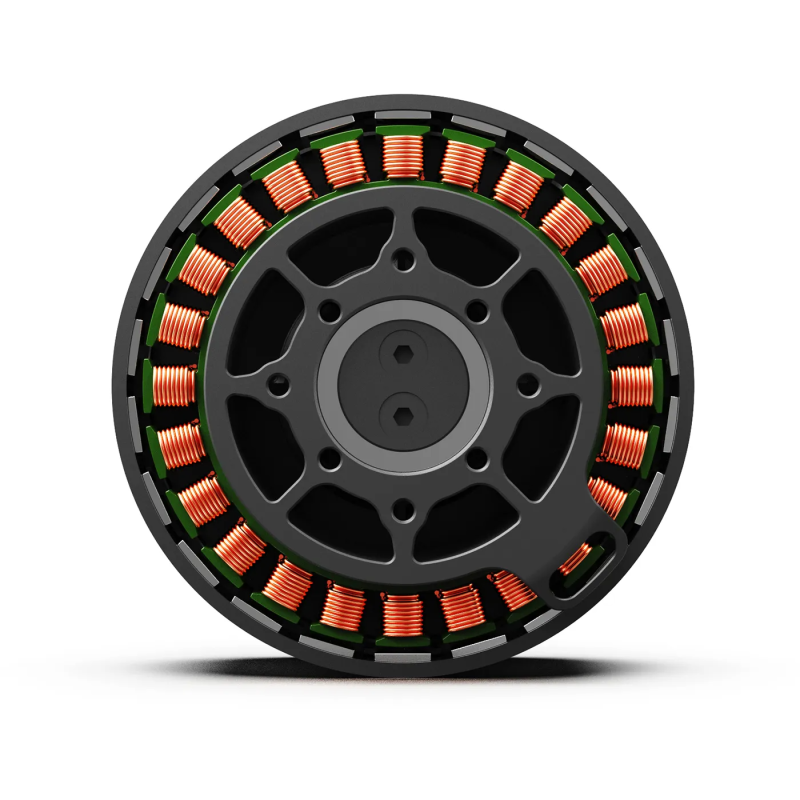

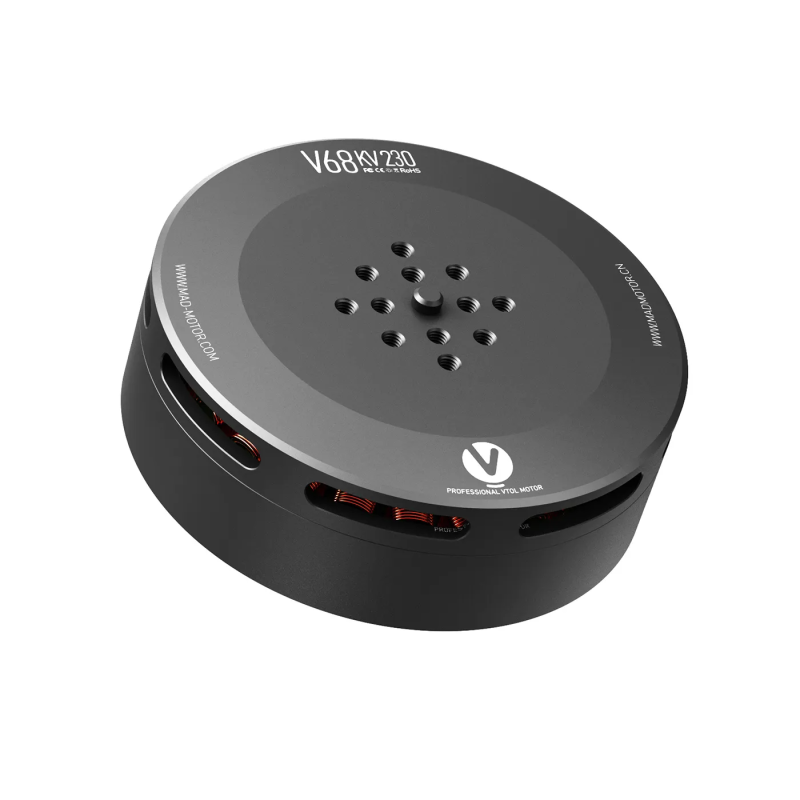

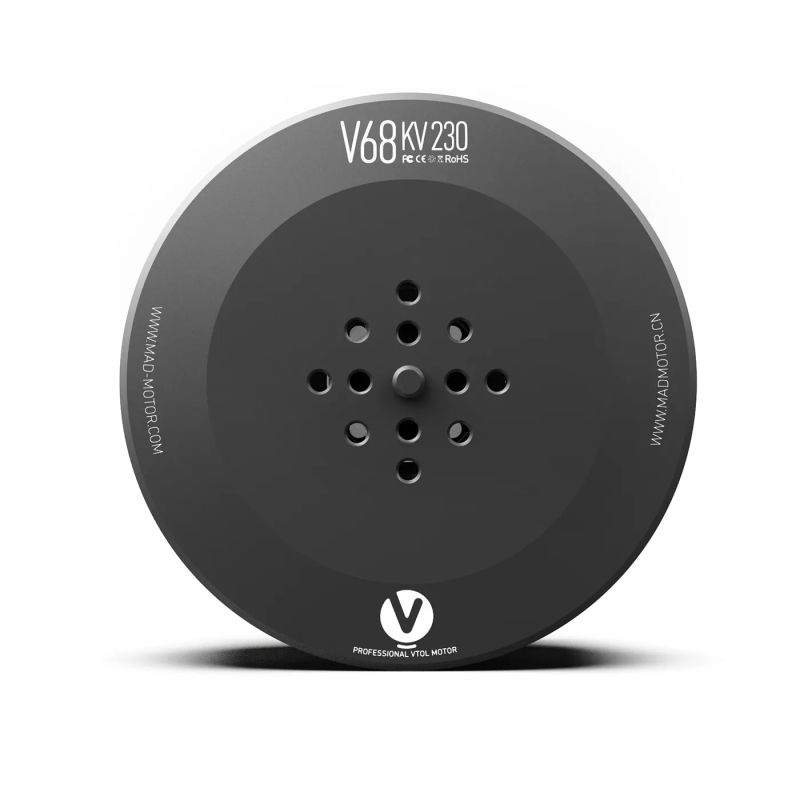

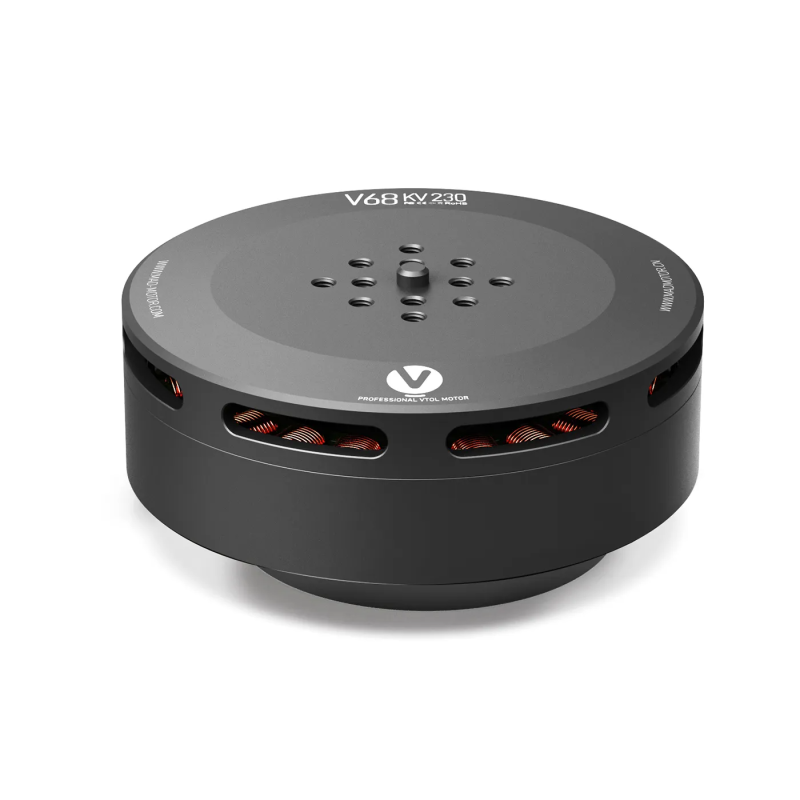

V68 IPE EVTOL Drone motor

Name: V68 IPE EVTOL Drone motor
Brand: MAD COMPONENTS
SKU: 0101DJ0908
Price: 179 USD
Availability: InStock

SKU: 0101DJ0908

Designed to carry payloads of 5-6.5kg per rotor, Max thrust is up to 13.9kg per rotor, unit motor weighs only 378g. Designed for 15-20kg MTOW professional industrial EVTOL fixed-wing UAS, with large-pitch EVOTL CF propellers, achieving high load, high efficiency and excellent reliability, providing reliable power support for various endurance flights.

$179.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description
230KV
Solution

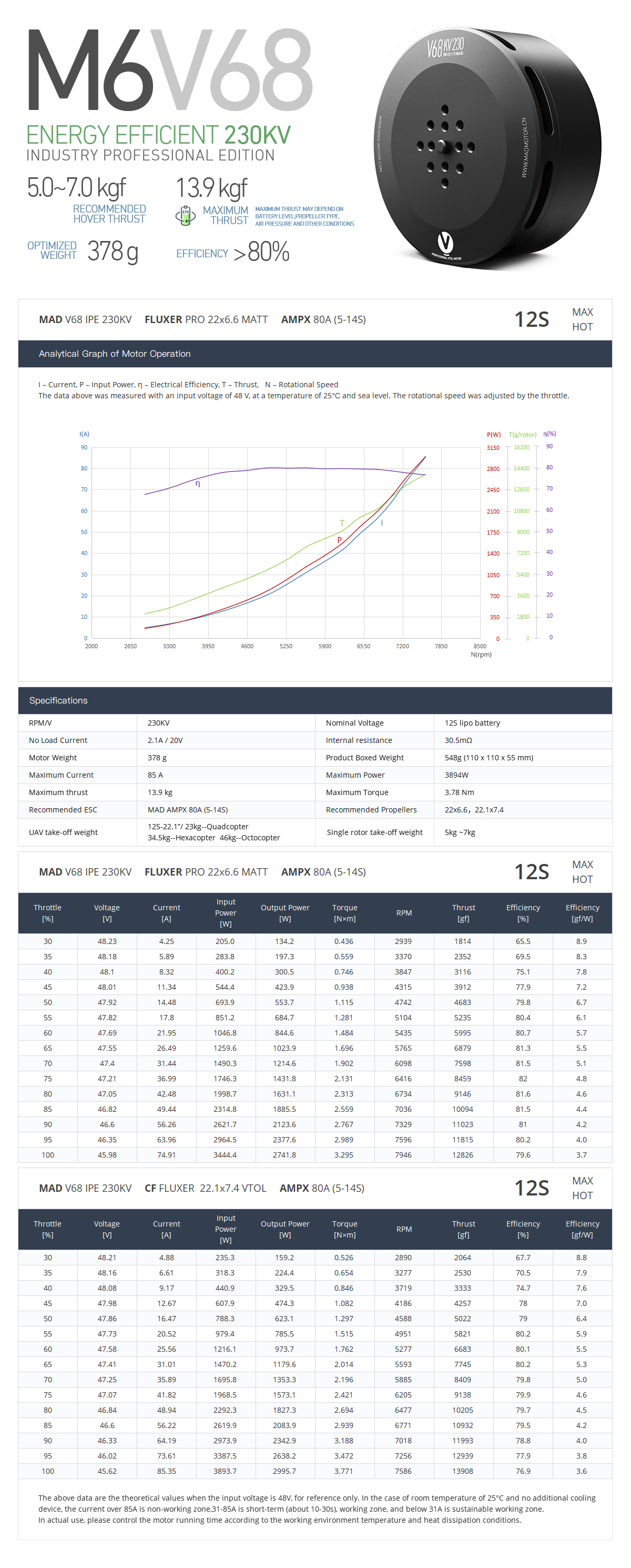

Motor Data
Motor Model	MAD V68 IPE V1.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	150°C
Motor Size	D:72 × 39.5 mm	Motor Balance	150°C
Degree of Protection	IP35	Cable Length	80mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤5 mg
Propeller Mounting Holes	D:12 M3×4, 18 M3×4, 22 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 12 mm	Motor Mounting Holes	D:25 M3×4, D:30 M4×4
Bearing	6801ZZ*2	Disruptive test	500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes

___________________________________________________________________________________________________________________________

Accessories

SOLUTION
VTOL Motor/KV	VTOL Prop	VTOL ESC
V68 230KV	FLuxer VTOL 22x6.6/22.1x7.4	MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 rotors)
12S(4.3V/S)/42-52V	5kg ~ 7kg	23kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
