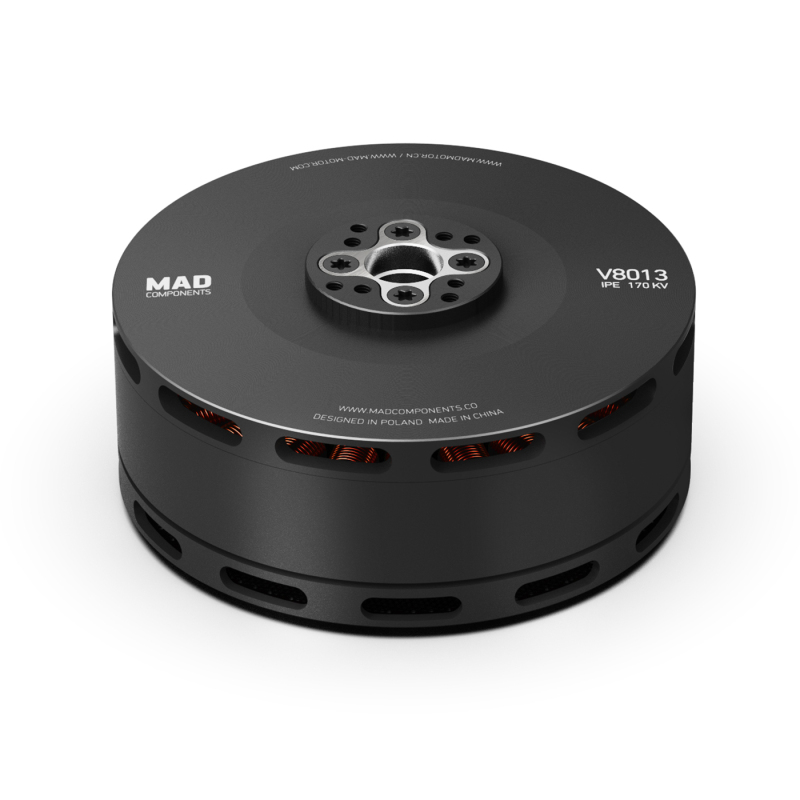

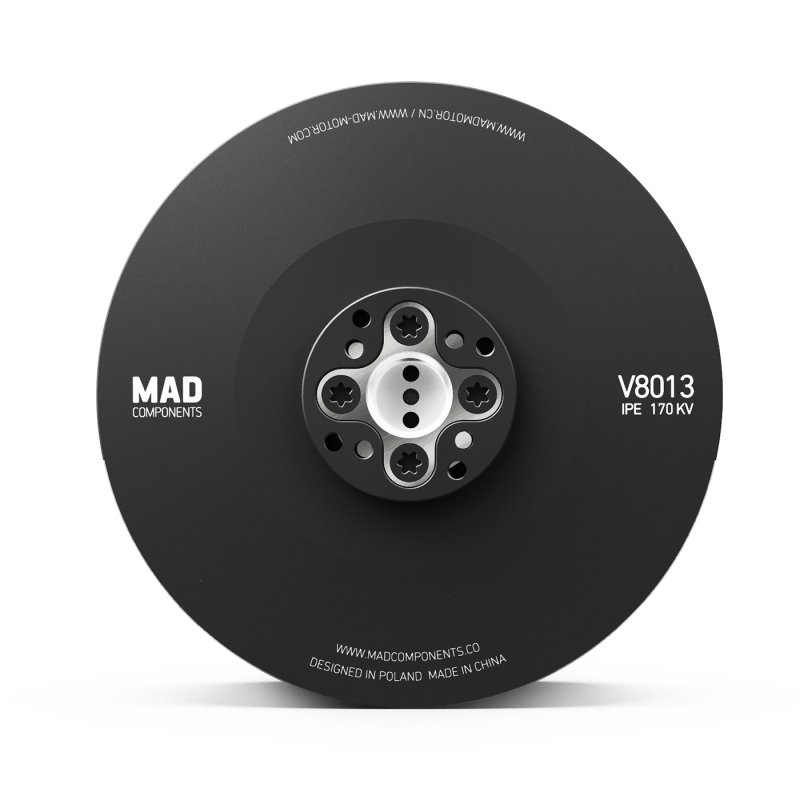

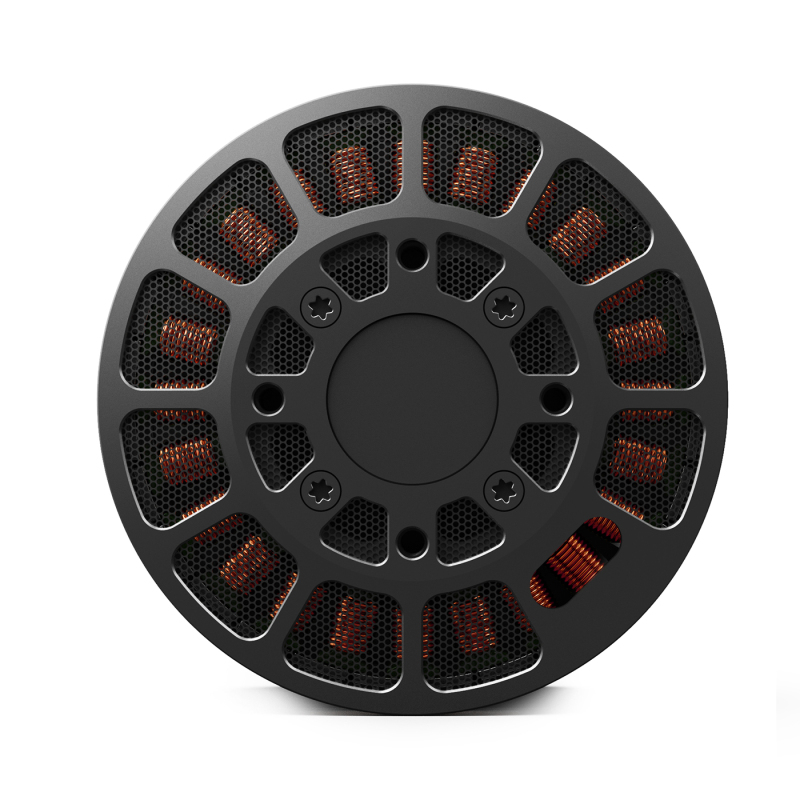

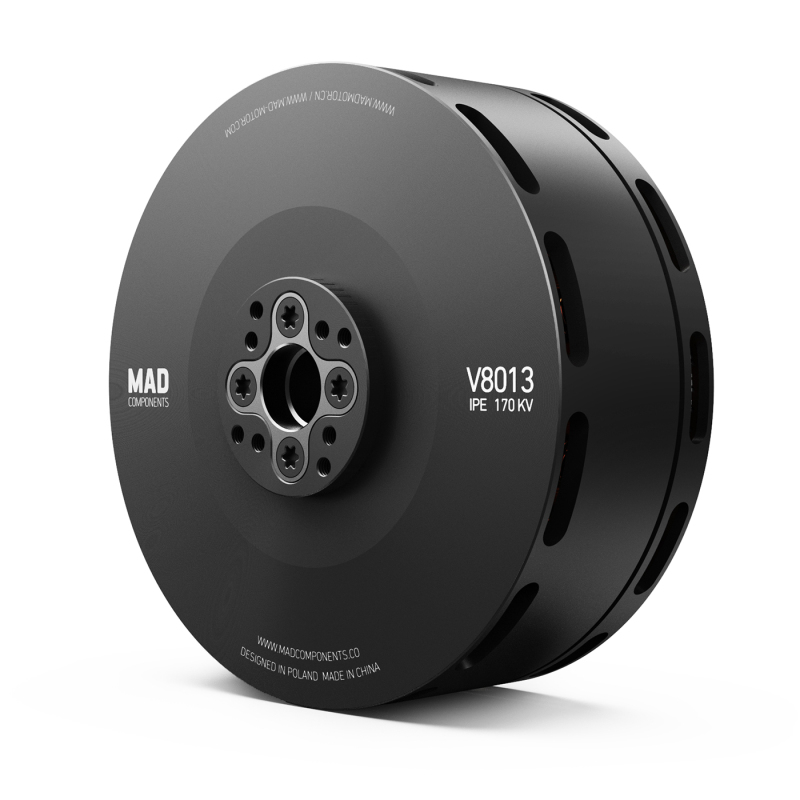

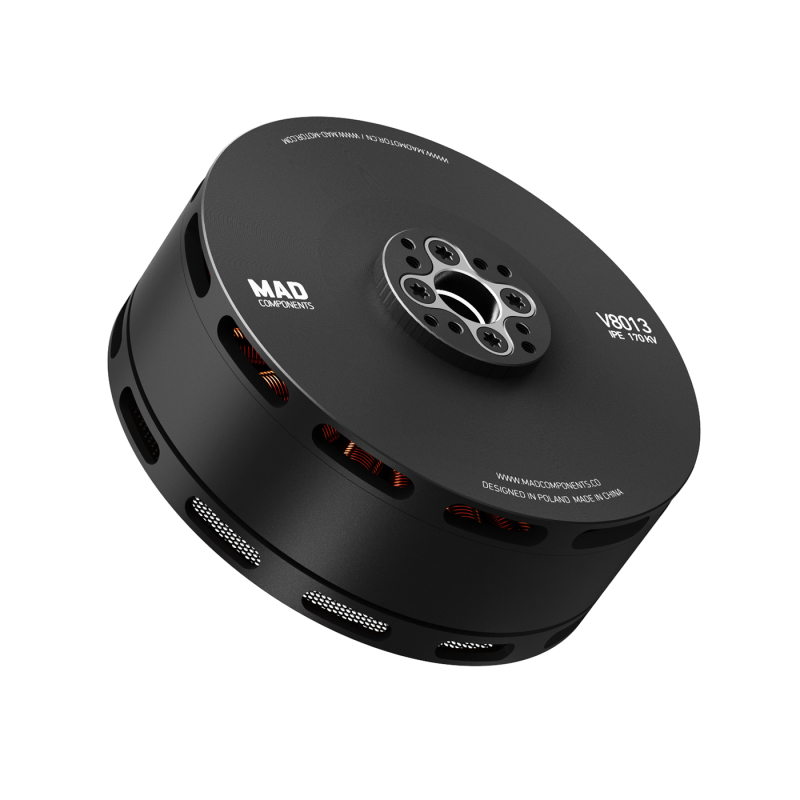

V8013 IPE eVTOL Drone Motor

Name: V8013 IPE eVTOL Drone Motor
Brand: MAD COMPONENTS
SKU: 0101DJ0976
Price: 259 USD
Availability: InStock

SKU: 0101DJ0976

Designed to carry payloads of 4.5-6.5kg per rotor, with 28" carbon propeller. Max thrust is up to 14.5kg per rotor, unit motor weighs only 1910g. with large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional aerial UAVs.

$259.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

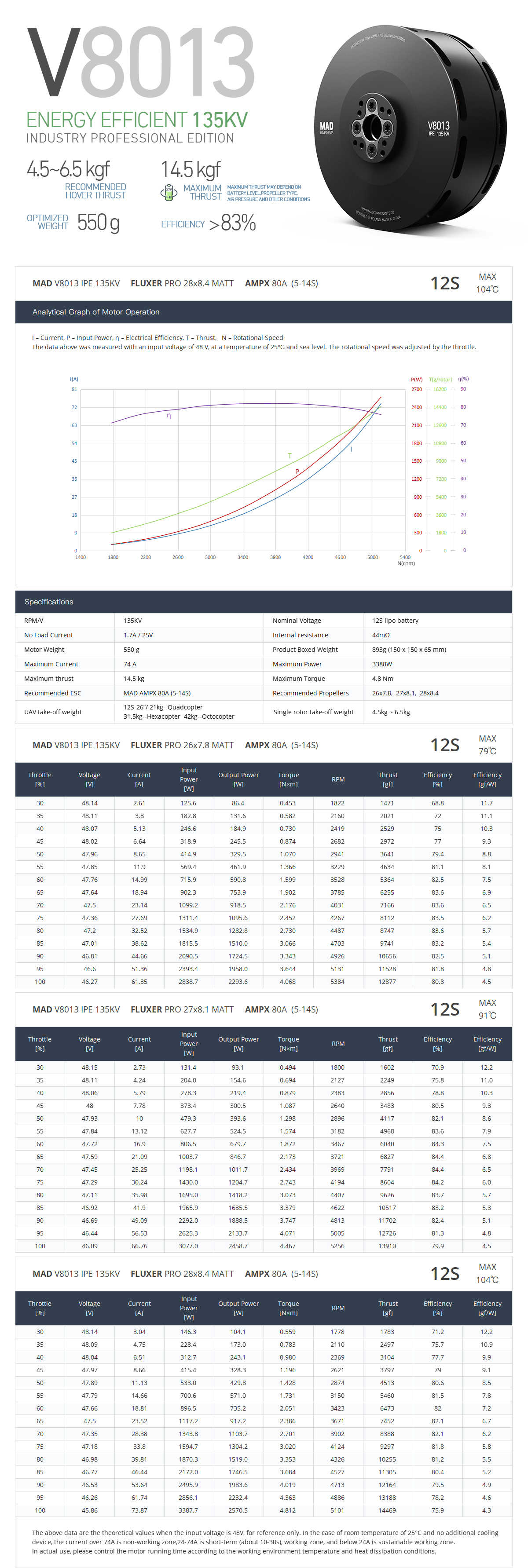

135KV

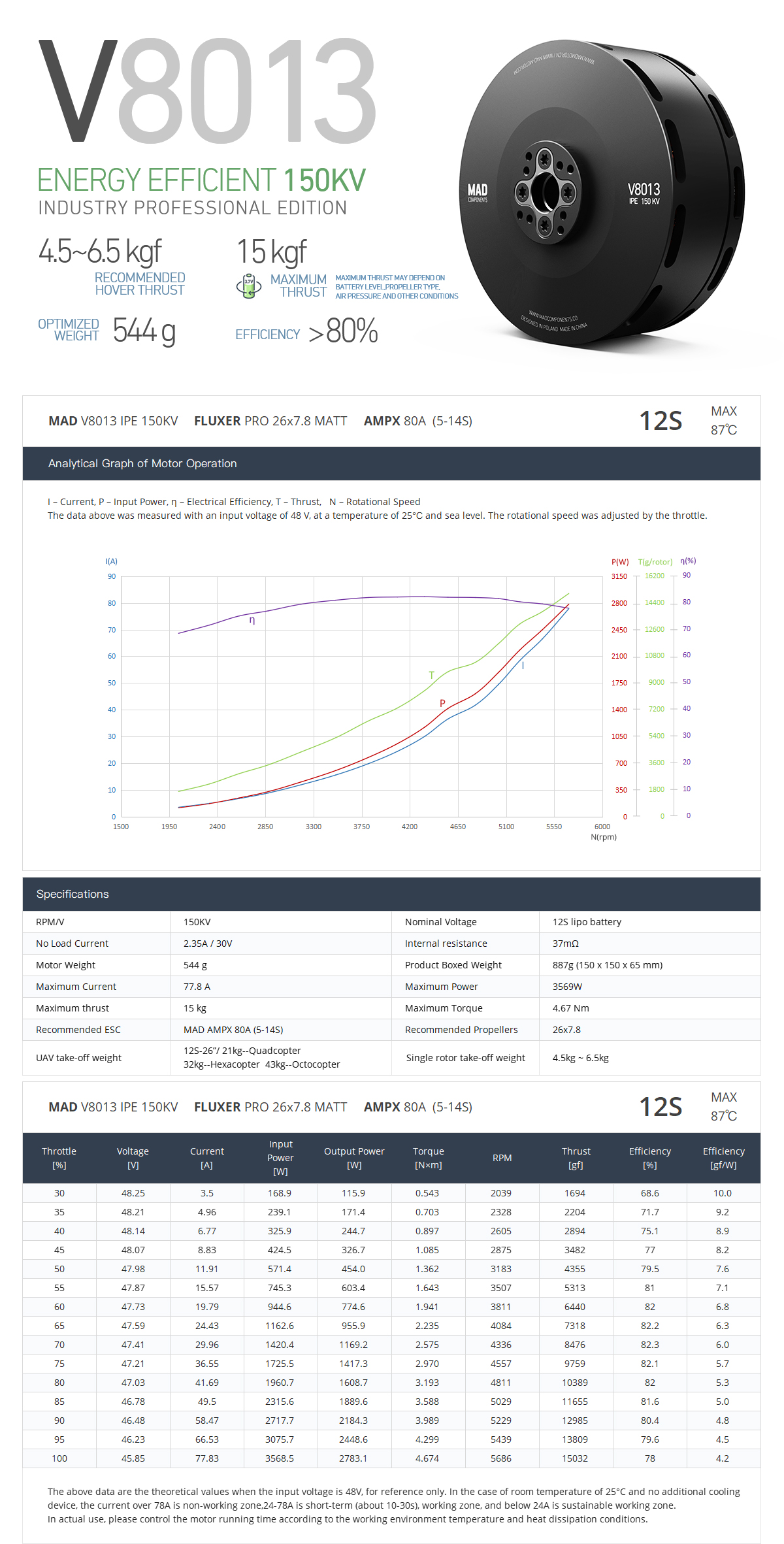

150KV

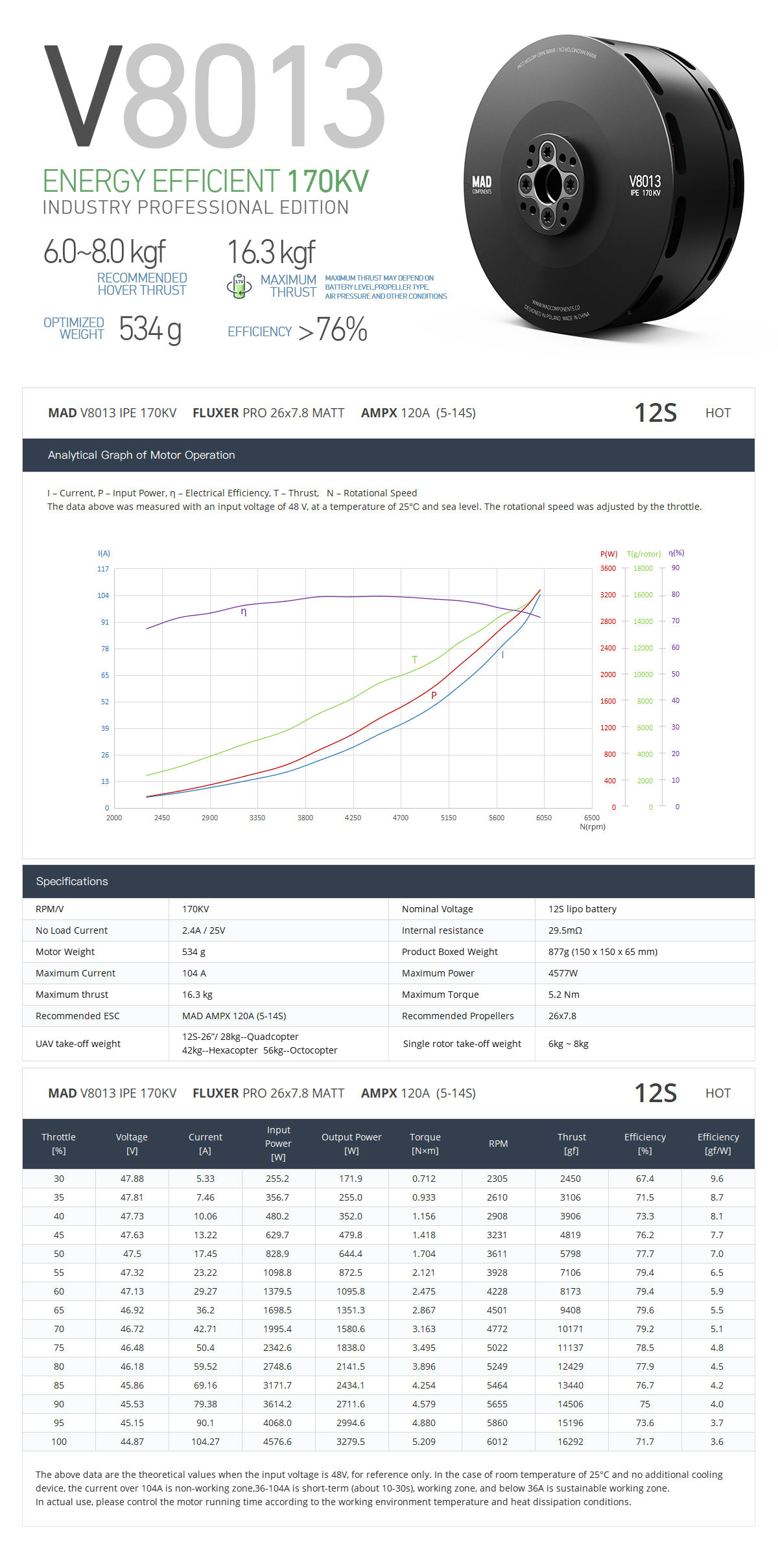

170KV
Solution

Motor Data
Motor Model	MAD V8013 IPE V1.0	Number of pole pairs	14
Stator	Anticorrosive	Varnished wire Degree	150°C
Motor Size	D:88.5 × 41.65 mm	Motor Balance	150°C
Degree of Protection	IP35	Cable Length	150 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation	YES	Rotor Balance	≤25 mg
Propeller Mounting Holes	D:20 M3×4, D:25 M3×4	Motor Balance	≤10 mg
Shaft Diameter	IN: 12 mm	Motor Mounting Holes	D:40 M4×4
Bearing	6901ZZ*2	Disruptive test	500 V

___________________________________________________________________________________________________________________________

Drawing and mount holes

___________________________________________________________________________________________________________________________

Accessories

VTOL Motor/KV	VTOL Prop	VTOL ESC
V8013 130KV	Fluxer VTOL 26x7.8/27x8.1/28x8.4in	MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 rotors)
12S(单节4.3V)/42-52V	4.5kg ~ 6.5kg	22kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.

SOLUTION 2
VTOL Motor/KV	VTOL Prop	VTOL ESC
V8013 150KV	Fluxer Vtol 26x7.8in	MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 rotors)
12S(单节4.3V)/42-52V	4.5kg ~ 6.5kg	21kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.

SOLUTION 3
VTOL Motor/KV	VTOL Prop	VTOL ESC
V8013 170KV	Flxuer Vtol 26x7.8in	MAD AMPX 120A (5-14S)
VTOL Battery(Lipo)/Voltage	VTOL Thrust Per Motor(kg)	The recommended takeoff weight(4 axes)
12S(单节4.3V)/42-52V	6kg ~ 8kg	28kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
